Swing Gate Motors

24V Solar Panel 20 Watts

This solar panel is used for 24V DC system

• Max. Power: 20W
• Optimum Power Current: 0.56A
• Optimum Power Voltage: 36V
• Short Circuit Current: 0.59A
• Open Circuit Voltage: 43.2V
• Product Size: 530x350x25mm
• Max System Vlot: 1000V

BFT Solar Kit - Ecosol & Panel 40W

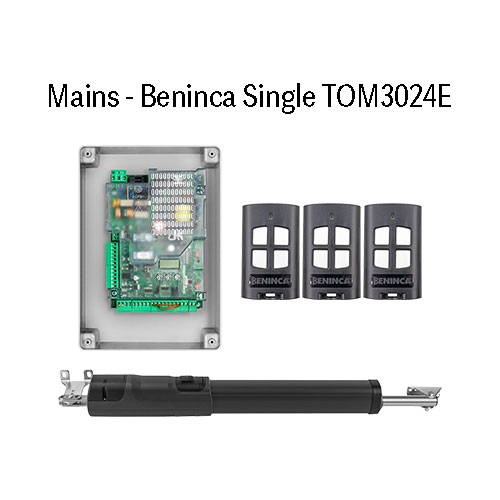

Beninca Single Swing Gate Motor TOM3024E Motor Kit

The TOM series of motors is made by Italian company Beninca which translates into quality, reliability and performance. The TOM range uses linear shaft technology for added length and strength and 24 volt DC motors.

24 VOLT ELECTRIC GATE OPERATOR – RESIDENTIAL & COMMERCIAL – 3.0 METRE LEAF

The powerful 24 volt swing gate electro mechanical operator. What makes TOM so special (and yes a little more expensive than most) is just below the top shaft cover. Easily accessible and adjustable mechanical stops. That along with ability to wire encoders makes the TOM highly adaptable to difficult sites where physical stops may be a problem to install. The TOM is a non reversible operator with key operated manual override but one of the main benefits of the 24 volt motor is the ability to use battery backup meaning you may never have to use the manual override key.

Reliable and innovative gear motor, thanks to the 2 adjustable mechanical stops in opening and closing accessible from above and positioned under the metal cover of the shaft. Ideal for the automation of any type of swing gate thanks also to the compact footprints (only 96 mm width) and screw-in brackets. The 45° inclination of the wiring cable allows the distance from the ground to be reduced to a minimum. The rear and front brackets, aligned on the same axis, enable the better distribution of loads by optimizing the lifespan of the actuator. The worm screw protected by wiper ring and stainless steel shaft make it suitable for dusty or sandy environments, or places with aggressive weather conditions

It is possible to use a variety of control boards to control the TOM but the factory designed board is the BRAINY which can be used as a one or two motor controller with a host of programmable parameters.

•At just 96 cm wide, the TOM telescopic linear motor for swing gates to 3 metres long.

•TOM features adjustable mechanical stops for opening and closing, patented FACE gears and a bronze release wheel with customised key.

•The 24 Vdc version, also guarantees standby power consumption of less than 0.8 W.

HIGH-QUALITY COMPONENTS
The release wheel is made of bronze to maximise its life, reliability, and operation. The worm gear is protected by a wiper seal and a stainless-steel shaft, making it suitable for use in dusty, sandy or harsh environments.

COMPACT DESIGN
Thanks to its compact dimensions, just 96 mm wide, TOM adapts to any situation. The 45° inclination of the cable also means that the operator can be installed flush with the floor.

EASY ACCESS TO MECHANICAL STOPS
The adjustable stops at the top are accessible once the metal cover has been slid back. These stops slide on rails and can be easily fixed in the desired position using screws.

FASTENERS DESIGNED FOR MAXIMUM ADAPTABILITY
The rear articulation, which can be fixed in three positions, reduces space requirements by adjusting for any misalignment of the panel during movement. The alignment of the front and rear brackets also ensures better load distribution by reducing bending, guaranteeing axial thrust and optimising operator life.

Additional information

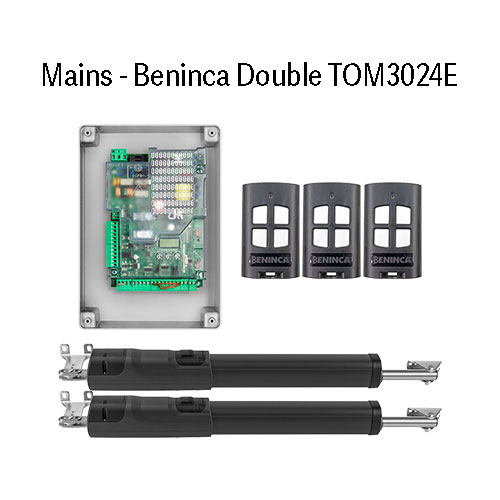

Beninca Double Swing Gate Motor TOM3024E Motor Kit

The TOM series of motors is made by Italian company Beninca which translates into quality, reliability and performance. The TOM range uses linear shaft technology for added length and strength and 24 volt DC motors.

24 VOLT ELECTRIC GATE OPERATOR – RESIDENTIAL & COMMERCIAL – 3.0 METRE LEAF

The powerful 24 volt swing gate electro mechanical operator. What makes TOM so special (and yes a little more expensive than most) is just below the top shaft cover. Easily accessible and adjustable mechanical stops. That along with ability to wire encoders makes the TOM highly adaptable to difficult sites where physical stops may be a problem to install. The TOM is a non reversible operator with key operated manual override but one of the main benefits of the 24 volt motor is the ability to use battery backup meaning you may never have to use the manual override key.

Reliable and innovative gear motor, thanks to the 2 adjustable mechanical stops in opening and closing accessible from above and positioned under the metal cover of the shaft. Ideal for the automation of any type of swing gate thanks also to the compact footprints (only 96 mm width) and screw-in brackets. The 45° inclination of the wiring cable allows the distance from the ground to be reduced to a minimum. The rear and front brackets, aligned on the same axis, enable the better distribution of loads by optimizing the lifespan of the actuator. The worm screw protected by wiper ring and stainless steel shaft make it suitable for dusty or sandy environments, or places with aggressive weather conditions

It is possible to use a variety of control boards to control the TOM but the factory designed board is the BRAINY which can be used as a one or two motor controller with a host of programmable parameters.

•At just 96 cm wide, the TOM telescopic linear motor for swing gates to 3 metres long.

•TOM features adjustable mechanical stops for opening and closing, patented FACE gears and a bronze release wheel with customised key.

•The 24 Vdc version, also guarantees standby power consumption of less than 0.8 W.

HIGH-QUALITY COMPONENTS
The release wheel is made of bronze to maximise its life, reliability, and operation. The worm gear is protected by a wiper seal and a stainless-steel shaft, making it suitable for use in dusty, sandy or harsh environments.

COMPACT DESIGN
Thanks to its compact dimensions, just 96 mm wide, TOM adapts to any situation. The 45° inclination of the cable also means that the operator can be installed flush with the floor.

EASY ACCESS TO MECHANICAL STOPS
The adjustable stops at the top are accessible once the metal cover has been slid back. These stops slide on rails and can be easily fixed in the desired position using screws.

FASTENERS DESIGNED FOR MAXIMUM ADAPTABILITY
The rear articulation, which can be fixed in three positions, reduces space requirements by adjusting for any misalignment of the panel during movement. The alignment of the front and rear brackets also ensures better load distribution by reducing bending, guaranteeing axial thrust and optimising operator life.

Additional information

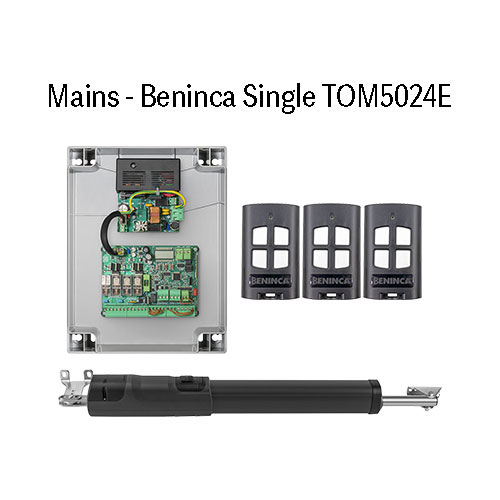

Beninca Single Swing Gate Motor TOM5024E Motor Kit

The TOM series of motors is made by Italian company Beninca which translates into quality, reliability and performance. The TOM range uses linear shaft technology for added length and strength and 24 volt DC motors.

24 VOLT ELECTRIC GATE OPERATOR – RESIDENTIAL & COMMERCIAL –5.0 METRE LEAF

The powerful 24 volt swing gate electro mechanical operator. What makes TOM so special (and yes a little more expensive than most) is just below the top shaft cover. Easily accessible and adjustable mechanical stops. That along with ability to wire encoders makes the TOM highly adaptable to difficult sites where physical stops may be a problem to install. The TOM is a non reversible operator with key operated manual override but one of the main benefits of the 24 volt motor is the ability to use battery backup meaning you may never have to use the manual override key.

Reliable and innovative gear motor, thanks to the 2 adjustable mechanical stops in opening and closing accessible from above and positioned under the metal cover of the shaft. Ideal for the automation of any type of swing gate thanks also to the compact footprints (only 96 mm width) and screw-in brackets. The 45° inclination of the wiring cable allows the distance from the ground to be reduced to a minimum. The rear and front brackets, aligned on the same axis, enable the better distribution of loads by optimizing the lifespan of the actuator. The worm screw protected by wiper ring and stainless steel shaft make it suitable for dusty or sandy environments, or places with aggressive weather conditions

It is possible to use a variety of control boards to control the TOM but the factory designed board is the BRAINY which can be used as a one or two motor controller with a host of programmable parameters.

•At just 96 cm wide, the TOM telescopic linear motor for swing gates to 5 metres long.

•TOM features adjustable mechanical stops for opening and closing, patented FACE gears and a bronze release wheel with customised key.

•The 24 Vdc version, also guarantees standby power consumption of less than 0.8 W.

HIGH-QUALITY COMPONENTS
The release wheel is made of bronze to maximise its life, reliability, and operation. The worm gear is protected by a wiper seal and a stainless-steel shaft, making it suitable for use in dusty, sandy or harsh environments.

COMPACT DESIGN
Thanks to its compact dimensions, just 96 mm wide, TOM adapts to any situation. The 45° inclination of the cable also means that the operator can be installed flush with the floor.

EASY ACCESS TO MECHANICAL STOPS
The adjustable stops at the top are accessible once the metal cover has been slid back. These stops slide on rails and can be easily fixed in the desired position using screws.

FASTENERS DESIGNED FOR MAXIMUM ADAPTABILITY
The rear articulation, which can be fixed in three positions, reduces space requirements by adjusting for any misalignment of the panel during movement. The alignment of the front and rear brackets also ensures better load distribution by reducing bending, guaranteeing axial thrust and optimising operator life.

Additional information

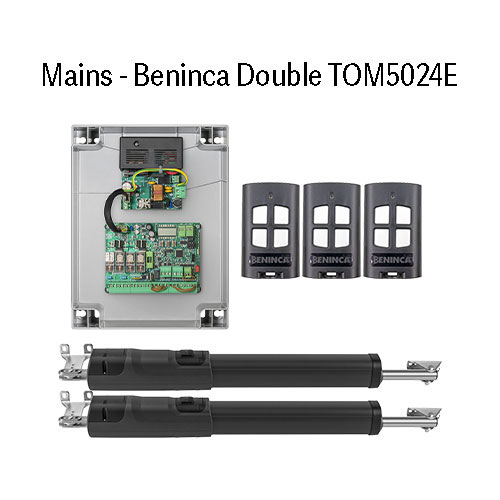

Beninca Double Swing Gate Motor TOM5024E Motor Kit

The TOM series of motors is made by Italian company Beninca which translates into quality, reliability and performance. The TOM range uses linear shaft technology for added length and strength and 24 volt DC motors.

24 VOLT ELECTRIC GATE OPERATOR – RESIDENTIAL & COMMERCIAL –5.0 METRE LEAF

The powerful 24 volt swing gate electro mechanical operator. What makes TOM so special (and yes a little more expensive than most) is just below the top shaft cover. Easily accessible and adjustable mechanical stops. That along with ability to wire encoders makes the TOM highly adaptable to difficult sites where physical stops may be a problem to install. The TOM is a non reversible operator with key operated manual override but one of the main benefits of the 24 volt motor is the ability to use battery backup meaning you may never have to use the manual override key.

Reliable and innovative gear motor, thanks to the 2 adjustable mechanical stops in opening and closing accessible from above and positioned under the metal cover of the shaft. Ideal for the automation of any type of swing gate thanks also to the compact footprints (only 96 mm width) and screw-in brackets. The 45° inclination of the wiring cable allows the distance from the ground to be reduced to a minimum. The rear and front brackets, aligned on the same axis, enable the better distribution of loads by optimizing the lifespan of the actuator. The worm screw protected by wiper ring and stainless steel shaft make it suitable for dusty or sandy environments, or places with aggressive weather conditions

It is possible to use a variety of control boards to control the TOM but the factory designed board is the BRAINY which can be used as a one or two motor controller with a host of programmable parameters.

•At just 96 cm wide, the TOM telescopic linear motor for swing gates to 5 metres long.

•TOM features adjustable mechanical stops for opening and closing, patented FACE gears and a bronze release wheel with customised key.

•The 24 Vdc version, also guarantees standby power consumption of less than 0.8 W.

HIGH-QUALITY COMPONENTS
The release wheel is made of bronze to maximise its life, reliability, and operation. The worm gear is protected by a wiper seal and a stainless-steel shaft, making it suitable for use in dusty, sandy or harsh environments.

COMPACT DESIGN
Thanks to its compact dimensions, just 96 mm wide, TOM adapts to any situation. The 45° inclination of the cable also means that the operator can be installed flush with the floor.

EASY ACCESS TO MECHANICAL STOPS
The adjustable stops at the top are accessible once the metal cover has been slid back. These stops slide on rails and can be easily fixed in the desired position using screws.

FASTENERS DESIGNED FOR MAXIMUM ADAPTABILITY
The rear articulation, which can be fixed in three positions, reduces space requirements by adjusting for any misalignment of the panel during movement. The alignment of the front and rear brackets also ensures better load distribution by reducing bending, guaranteeing axial thrust and optimising operator life.

Additional information

•Irreversible 24 Vdc gear motor for intensive use

available with or without control unit

• The control unit, accessible from above, is positioned on

a removable support that facilitates installation operations

and provides quick access to the mechanical stops

• 100 ÷ 250 Vac switching power supply that reduces

consumption and ensures the long life of the actuator

• Ideal for swing gates with large columns and leaf hinges

up to 280 mm deep (just 170 mm wide)

• The encoder guarantees maximum safety

and precision while the gate is moving

• STC System device that enables torque

management in relation to the position

of the gate, guaranteeing maximum safety

• Sturdy arm fitted with a closing lock that

helps define the limit switch position during installation

• Motor fixing bracket fitted with cable gland

• Operation guaranteed even in the event of a power supply

failure through batteries that integrate perfectly into the motor

• Amperometric sensor obstacle detection

system to prevent crushing

• Can be connected with the X.BE module for the integration

of KNX home automation systems and programmed via the

BeUP app and PRO.UP interface

• Option of adjustable flush release that allows opening

from the outside in the event of a power supply failure
