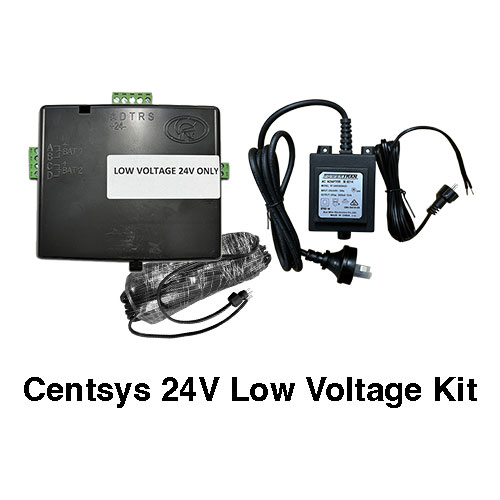

ET010
Low Voltage Kit for Centsys D5, D10, D20 Smart (24V)

24V Low Voltage Kit for Centsys D5, D10, D20 Smart

Kit includes:

  • Internal Transformer
  • External Transformer
  • 30m Cable
429.00 429.0 AUD
ET001
Low Voltage Kit for Centsys D5 Evo & Vantage (12V)

12V Low Voltage Kit for Centsys D5 Evo and Centsys Vantage 400 & 500

Kit includes:

  • Internal Transformer
  • External Transformer
  • 30m Cable
225.00 225.0 AUD

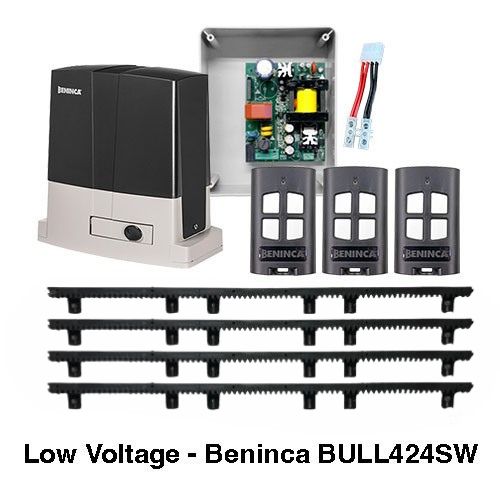

GMSG712
Low Voltage Beninca BULL424SW 450kg - Complete Kit

Italian Sliding Gate Motor Beninca BULL424 SW 24V 450kg- Motor kit



Kit Includes:

Beninca 424SW x 1

Beninca Low Voltage Box and adapter x 1

Beninca Remotes x 3

Lugs down nylon racks x 4


The BULL424SW is a 24 volt motor designed for residential and commercial sliding gates up to 450kg in weight. 24 VOLT ELECTRIC GATE OPERATOR - RESIDENTIAL - 450KG The BULL424SW by Beninca is plain and simple Beninca quality and reliability throughout. The BULL424SW is designed for residential and commercial sliding automatic gates up to 450kg in weight.

The BULL424SW has a built in control board in its own seperate enclosure with a dedicated 433mhz wireless receiver and inputs for photocells and switches etc. The BULL also comes with a base plate. Battery backup is optional with the addition of the battery module and two 1.3Ah rechargeable batteries.

 Motor Voltage - 24 volts DC

Current Standby - 8mA

Current at use - 3.2A

Motor power - 80W

Maximum thrust - 428N

Operating speed - 11 metres per minute (adjustable)

Maximum gate size - 450 kg

Duty cycle - 80%

Height - 330mm Width - 326mm Depth - 140mm

Weight - 7.6 Kg

IP rating - IP44




Additional information

Weight 15 kg
Motor Voltage

24 volts DC

Standby Current

8mA

Maximum Current

0.4A

Motor Power

80W

Maximum Thrust

428N

Operating Speed

11 Metres per minute

Maximum Gate Weight

400 Kg

IP Rating

IP44

Height (mm)

330mm

Width (mm)

140mm

Length (mm)

326mm

Weight (kg)

10.2 Kg

Duty Cycle

80%

Battery Back upWireless Keypad



769.00 769.0 AUD

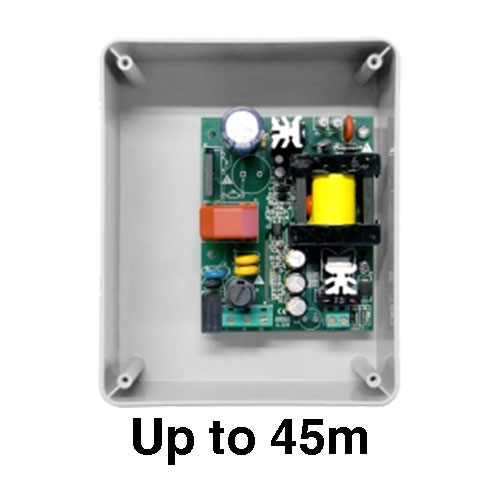

ET824
Beninca SAR.24 Low Voltage Box 7Amp

7Amp low voltage box with built-in transformer.

Up to 45m distance


Works with all Beninca Control Boards with screen.

For SW series (without screen), please contact us for an adapter free of charge.

269.00 269.0 AUD

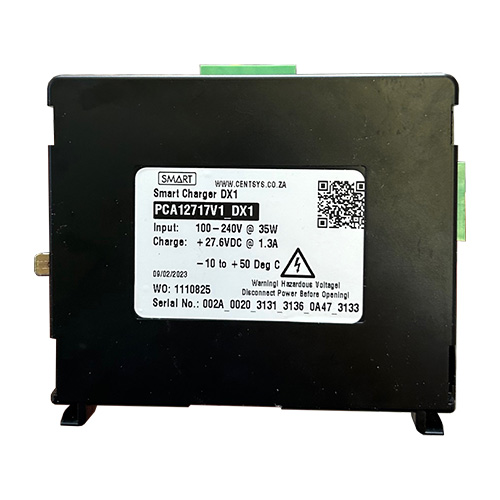

ET009
Internal Transformer for 240V Centsys D5, D10, and D20 Smart

240V Input - Internal Transformer for D5, D10, and D20 Smart

225.00 225.0 AUD

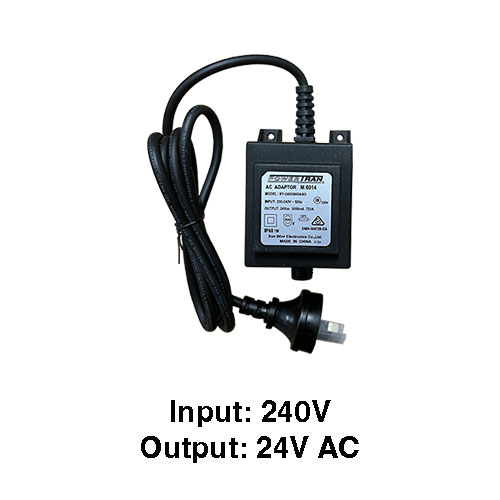

ET008
External Transformer for Centsys D5, D10, and D20 Smart Low Voltage

External Transformer for Low Voltage Centsys D5, D10, D20 Smart

(Without 30m cable)

Input: 240V

Output: 24V AC

IP68

125.00 125.0 AUD

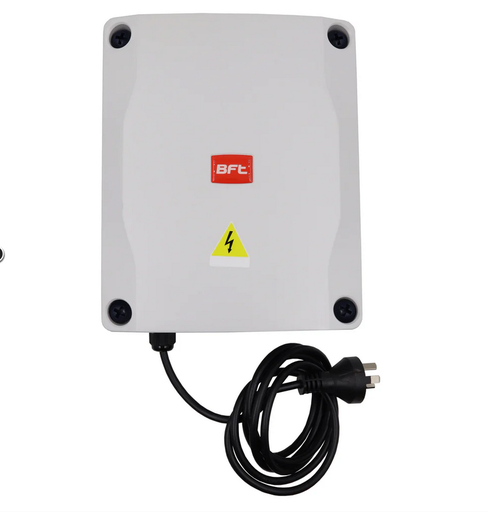

ET802
Transformer for BFT Deimos A600 & Virgo

The ET802 Transformer for BFT Deimos A600/Virgo is a reliable and essential component designed for gate systems. This transformer is specifically designed for use with the BFT Deimos A600 and Virgo models, providing the necessary power supply for their operation. It ensures the proper functioning and performance of the gate system by converting the electrical input to the appropriate voltage required by the motor. The ET802 transformer offers a reliable and efficient power solution, allowing the gate system to operate smoothly. Upgrade your BFT Deimos A600 or Virgo gate system with the ET802 Transformer for reliable and consistent power supply.

145.00 145.0 AUD
ET800
Transformer for BFT Deimos A400

The ET800 Transformer for BFT Deimos A400 is a reliable and essential component designed for gate systems. This transformer is specifically designed for use with the BFT Deimos A400 model, providing the necessary power supply for its operation. It ensures the proper functioning and performance of the gate system by converting the electrical input to the appropriate voltage required by the motor. The ET800 transformer offers a reliable and efficient power solution, allowing the gate system to operate smoothly. Upgrade your BFT Deimos A400 gate system with the ET800 Transformer for reliable and consistent power supply.

Transformer Specification Sheet Part Number: [ET800] Description: 50VA Power Transformer Electrical Specifications:Primary Voltage: [Primary Voltage, e.g., 240VAC] Secondary Voltage: ~28VAC VA Rating: 50VA Frequency: 50/60Hz Fuse Rating: 0.8A

145.00 145.0 AUD
ET804
Transformer for BFT Ares

Low Voltage Transformer for BFT ARES

The transformer is a replacement part for the BFT Ares gate control board. It is designed to provide the necessary power to the control board and ensure the smooth operation of the gate system. This transformer is made from high-quality materials and is built to last, making it a reliable and long-lasting solution for your gate control needs. With its easy installation process, you can quickly replace your old transformer and get your gate system up and running in no time. Keep your BFT Ares gate control board running smoothly with the transformer.

194.50 194.5 AUD

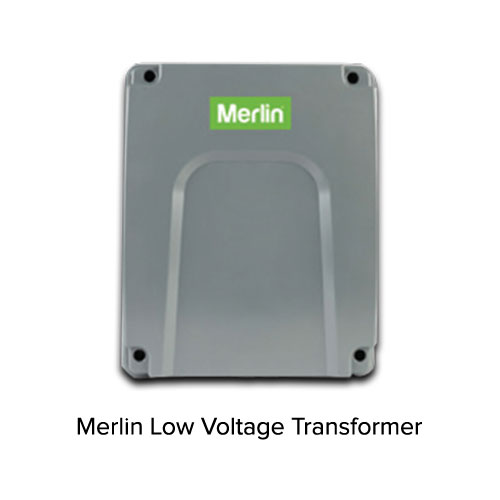

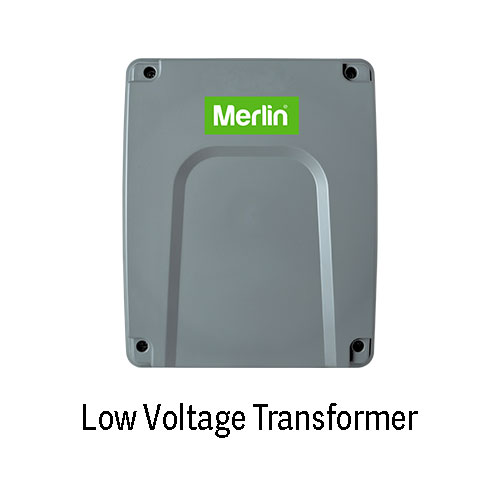

ET840
Low Voltage Transformer for Merlin 600kg sliding gate motor

Low Voltage Transformer for Merlin 600 sliding gate motor

120.00 120.0 AUD
ET842
Low Voltage Transformer for Grifco 1000kg sliding gate motor

Low Voltage Transformer for Grifco 1000kg sliding gate motor

135.00 135.0 AUD

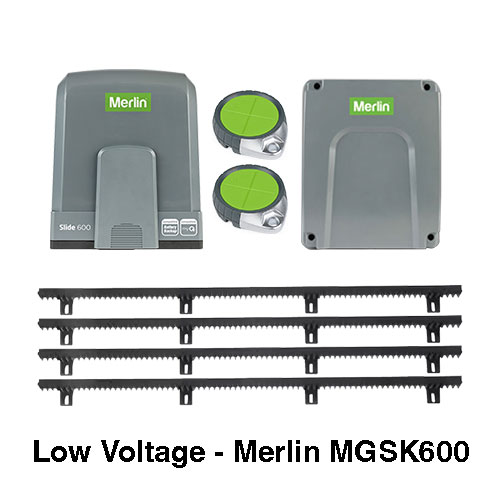

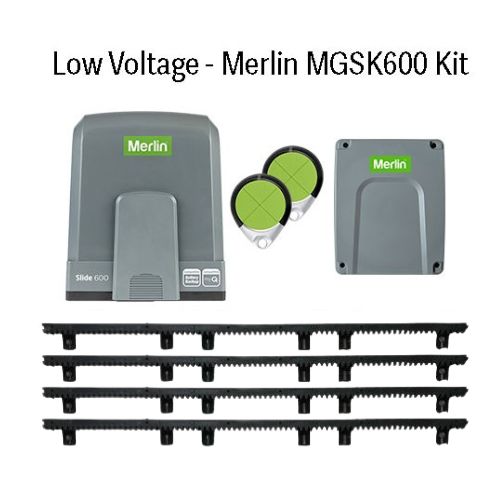

GMSG612
Low Voltage Merlin 600kg Sliding Gate Motor - Complete Kit

Experience the ultimate convenience and security with the Merlin Slide 600 Low Voltage Gate Motor - Merlin MGSK600-LV. This powerful and reliable gate opener from Merlin is designed to effortlessly automate your sliding gate. With its low voltage operation, it ensures energy efficiency and safe operation. The Merlin MGSK600-LV delivers exceptional performance, capable of handling gates up to 600 kg. Trust Tigerlink, your gate hardware supplier, to provide you with high-quality products that enhance the functionality and security of your gate system. Upgrade to Merlin Slide 600 Low Voltage and enjoy seamless gate automation like never before.

Kit Includes

  • 24V Merlin Sliding Gate Motor.
  • 1 x External transformer
  • 2 x Remotes,
  • 4 x 1m H/D Gate Racks

Maximum Gate Width and Weights

  • Maximum weight for single gate: 600kg
  • Maximum width for single gate: 8m

Standard Specifications

  • Main AC Supply: 220-240Vac; 50/60Hz or 24V Low Voltage
  • Motor Voltage: 24 VDC
  • Input Power: 120 W
  • Ambient Temperature Range: -20 - +55*C
  • Max peak pulling force: 18 Nm
  • Max Travel Speed: 31 cm/s
  • Radio Frequency: 433.30, 433.92, 434.54 MHz with Security+ 2.0 Technology
  • Compatible with myQ technology
  • Gate opener capacity of up to 64 memory registers
  • IP44 Weather Resistant

Height of the top tooth of pinion gear from the ground

- with base plate: 132 mm

- without base plate: 89 mm

959.00 889.00 889.0 AUD
MOT014
Low Voltage Centsys D5 Smart - Complete Kit

Upgrade your property's security and convenience with the comprehensive Centsys D5 Smart Gate Motor Kit. This kit includes everything you need for efficient sliding gate automation, providing a seamless solution for controlling access to your premises.

The Centsys D5 Smart gate motor is at the heart of this kit, offering advanced technology and reliable performance. With its 24V DC motor, it ensures smooth gate operation while maintaining energy efficiency. The kit also includes all necessary components for installation, simplifying the process and saving you time.

Experience the benefits of hassle-free integration with your existing access control systems, allowing you to manage entry with ease. The Centsys D5 Smart gate motor kit is designed to withstand various weather conditions, ensuring durability and consistent operation.

Elevate your property's security with the trusted quality of Centsys gate motors. Invest in the Centsys D5 Smart Gate Motor Kit and enjoy a secure, automated entrance that enhances both safety and convenience.

Kit Includes:

1. 1-metre Heavy Duty Nylon Rack x 4

2. Centurion Gate Remote x 3

3. Battery x 2

4. Centsys D5 Smart (Requires 24V) x 1

5. Low Voltage Transformer x 1

1,495.00 1495.0 AUD
MOT012
Low Voltage Centsys D5 Evo - Complete Kit

The MOT013 Low Voltage Centsys D5 Evo Complete Kit is a comprehensive package designed for low-voltage gate automation. This kit includes all the necessary components to automate your gate, providing convenience, security, and reliable operation.

The D5 Evo is a renowned sliding gate motor from Centurion Systems, known for its durability and superior performance. It has a 12V DC motor, making it suitable for low-voltage applications. The motor is designed to handle gates weighing up to 500 kilograms, providing smooth and reliable operation.

The kit includes the following components:

1. Low Voltage Centurion D5 Evo (Requires 12V) x 1

2. 1-Metre Nylon Rack x 4

3. Centurion Remotes x 3

4. 12V 7Ah Battery x 1

5. Mounting Hardware

6. Low Voltage Transformer


Maximum Gate Weights

Holds gates up to 500kg

1,045.00 1045.0 AUD
RT586
Heavy duty Steel Rack for Sliding Gates 1005x30x12mm long

Heavy duty Steel Gear Rack for Sliding Gates 1005x30x12mm long

Steel racks should be used on all gates exceeding 800kg or where a large slope is present.

It will provide a more positive mesh with drive pinion and will also provide a longer service life for both the rack and your motor.

Features

- Solid Steel come with 3 screws

- 1005 in length

- 30x12mm



25.00 25.0 AUD
RT588
Nylon Rack with Steel Core 1 Meter - Lugs Up

The RT588 Heavy-Duty Nylon Rack is a robust and dependable solution designed for rack and pinion systems. Made from high-quality nylon material, this rack offers exceptional strength and durability. With a length of 1 meter and lugs-up design, it provides secure and efficient operation for your gate or door system. The wear-resistant construction ensures long-lasting performance even in demanding environments. Upgrade your rack and pinion system with the RT588 Heavy-Duty Nylon Rack for reliable and smooth operation.

19.80 19.8 AUD
RT580
Nylon Rack with Steel Core 1 Meter - Lugs Down

The RT580 Heavy-Duty Nylon Rack is a reliable and durable solution for rack and pinion systems. This rack is made from high-quality nylon material, known for its strength and resistance to wear and tear. With a length of 1 meter, it provides ample rack space for smooth and efficient operation of your gate or door system.

The lugs-down design ensures secure attachment and optimal performance. Install the RT580 Heavy-Duty Nylon Rack for long-lasting and dependable operation of your rack and pinion system.

Please contact us for special trade price & bulk price

18.50 18.5 AUD

racking, rack, lugs down

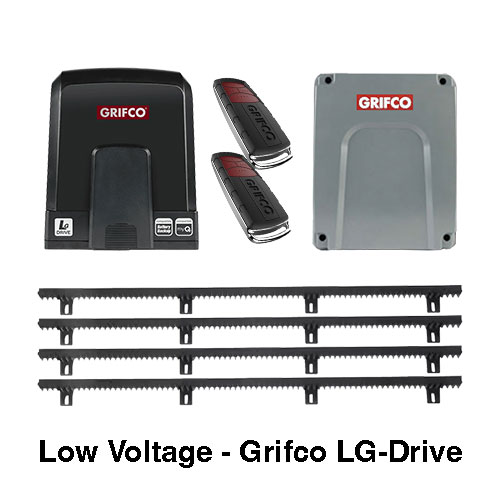

GMSG623

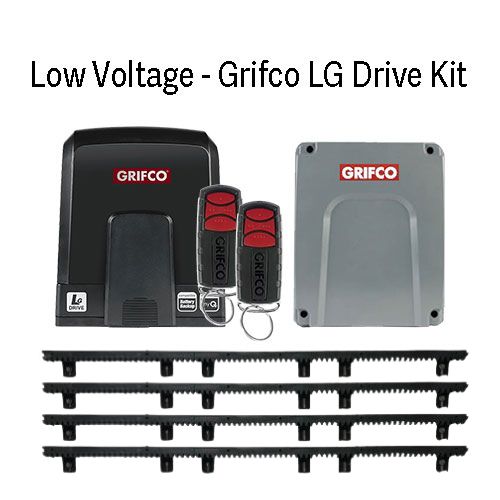

Grifco LG Drive Low Voltage Sliding Gate Motor 1000kg



1x Grifco GDL-DO-LV “LG-Drive” GGS1000 Sliding Gate Opener
1x MGTR3-120VA Transformer Box (to be mounted near 240V supply)
2x E960G Premium Keyring Transmitters
Required Hardware Fixings (Bolts Etc)
4m MGS-RACK Sliding Gate Racking


1,060.00 1060.0 AUD
ET002
External Transformer for Low Voltage Centsys D5 Evo & Vantage

External Transformer for Low Voltage Centsys D5 Evo & Vantage

(Without 30m cable)

Input: 240V

Output: 15V AC

IP68

115.00 115.0 AUD
ET004
Centsys 2-core Low Voltage Transformer Cable (30m)

Transformer Cable 30-metre for Centsys Low Voltage System (Both 12V & 24V)

59.00 59.0 AUD
