All About Gate Components

If you ever wonder what the key elements of a gate are, you are in the right place.

Diagrams below are illustrations of the different types of gate and the basic parts required:

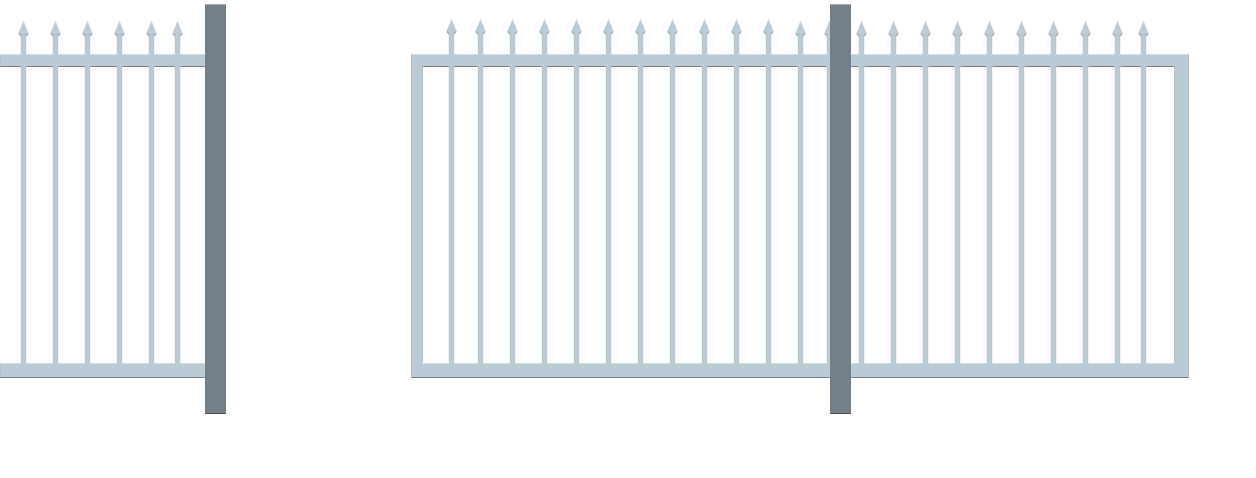

Sliding Gate

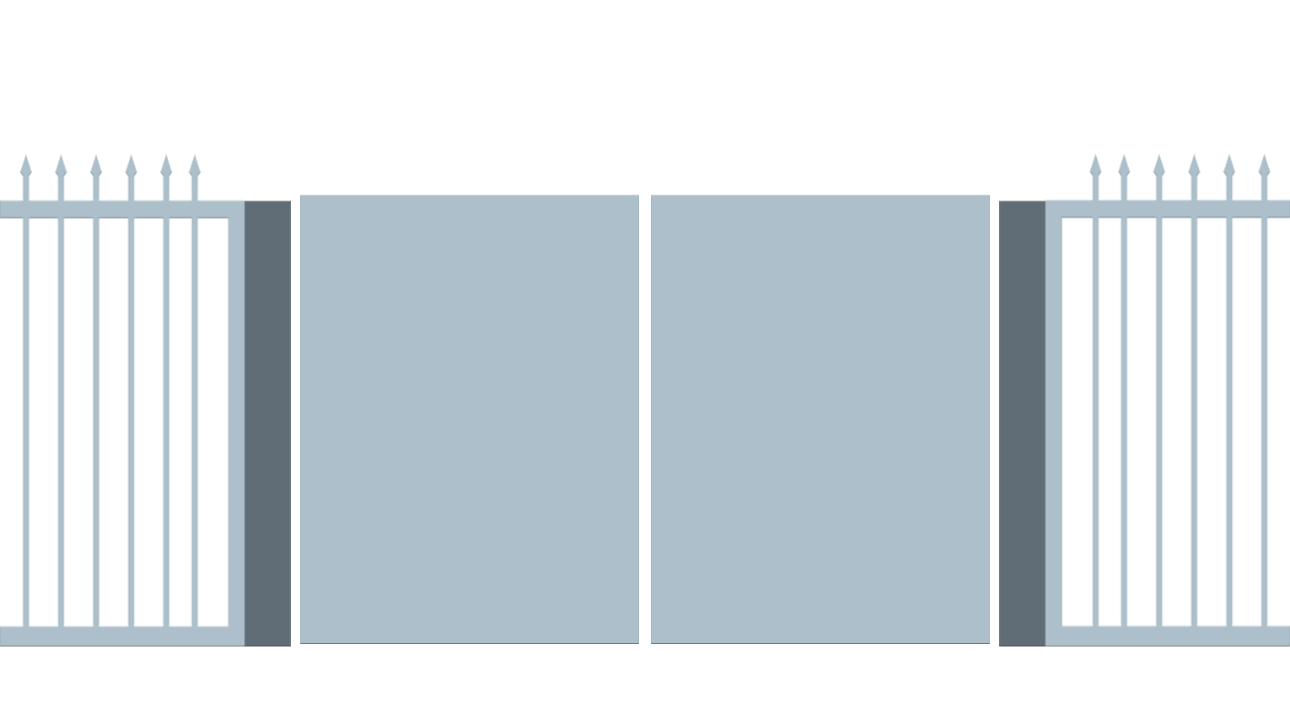

Swing Gate

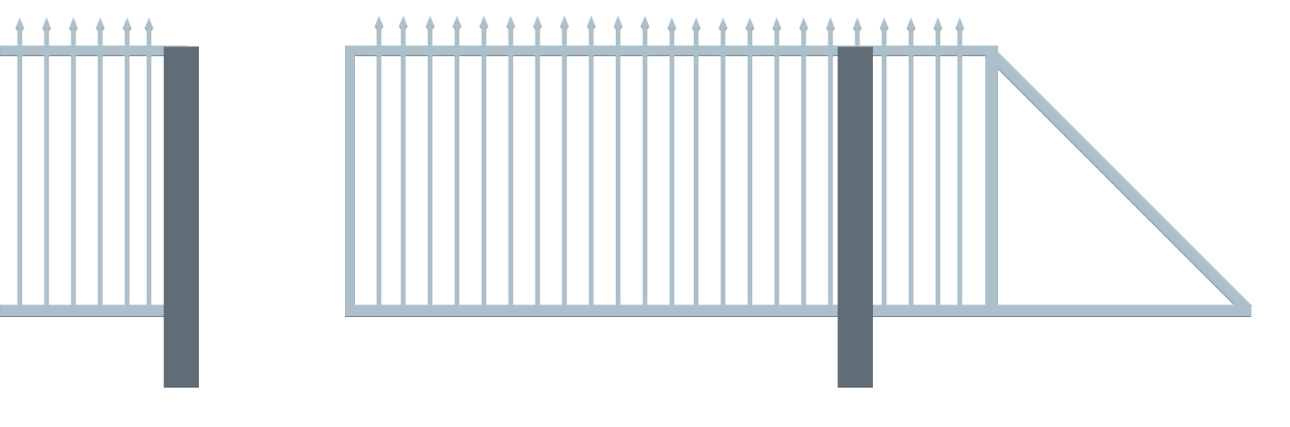

Cantilever Gate
Pedestrian Gate (coming soon)

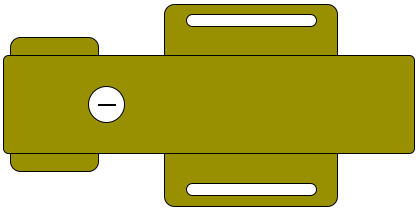

Electric Lock Set-Up (coming soon)

Sliding Gate Components

Click on each component to browse the different options

Floor Track

Nylon Rack

Nylon Rack

Nylon Rack

Gate Wheels

Gate Wheels

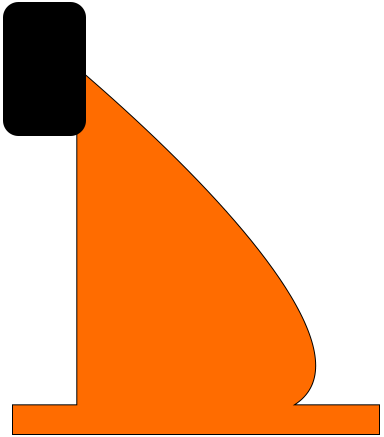

Gate Stop

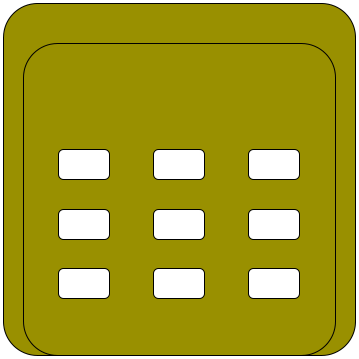

Wireless Keypad

Gate Holder

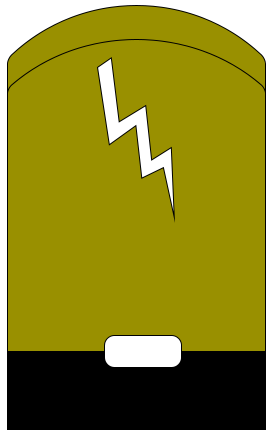

Gate Motor

The Essentials:	Optional:
Floor Tracks Gate Wheels (x2) Gate Stopper Gate Holder Rollers&Bracket	Gate Motor Wireless Keypad Nylon Racks (Lugs Down)

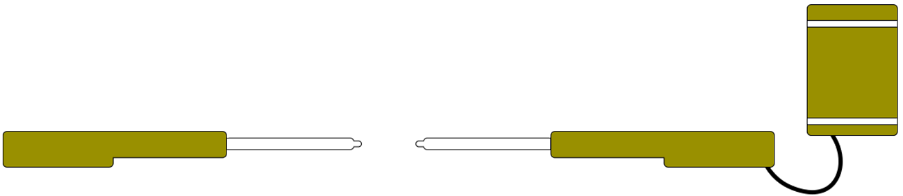

Swing Gate Components

Click on each component to browse the different options

Cantilever Gate Components

Click on each component to browse the different options

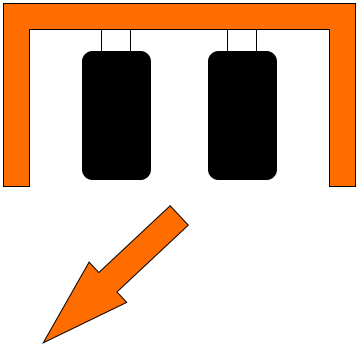

Cantilever Wheel

Residential

Commercial

Small (400kg / 4m):

RT600: 5.8m Cantilever Track
WH800: Carriage Wheels (x2)
SGSB600: Gate Holder

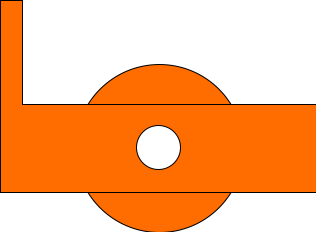

WH308: Guide Wheel

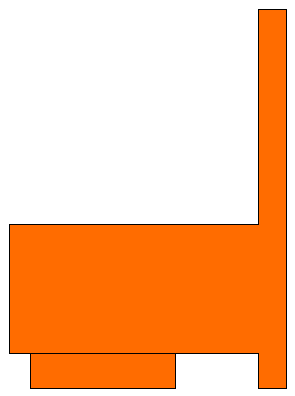

CPCG001: End Cap

Small (700kg / 5m):

RT603: 5.8m Cantilever Track
WH820: Carriage Wheels (x2)
SGSB603: Gate Holder
WH303: Guide Wheel
CPCG006: End Cap

Medium (600kg / 6m):

RT601: 5.8m Cantilever Track
WH801: Carriage Wheels (x2)
SGSB601: Gate Holder
WH310: Guide Wheel
CPCG003: End Cap

Medium (1500kg / 7m):

RT604: 5.8 Cantilever Track
WH822: Carriage Wheels (x2)
SGSB604: Gate Holder
WH304: Guide Wheel
CPCG007: End Cap

Large (1200kg / 15m):

RT602: 5.8m Cantilever Track
WH802: Carriage Wheels (x2)
SGSB602: Gate Holder
WH312: Guide Wheel
CPCG004: End Cap

Large (3000kg / 14m):

RT605: 5.8m Cantilever Track
WH824: Carriage Wheels (x2)
SGSB605: Gate Holder
WH305: Guide Wheel
CPCG008: End Cap
