Gate Wheels

WH392

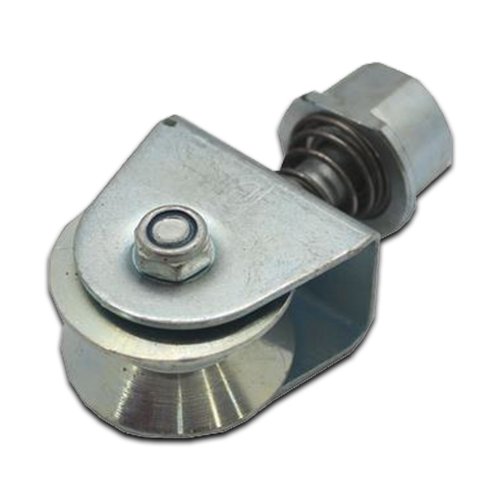

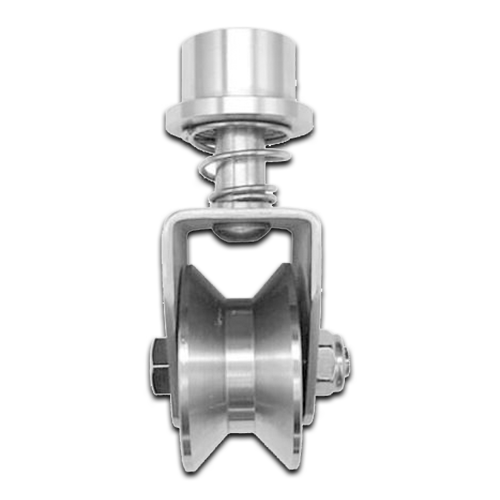

Steel Sliding Gate 360 Turn Wheel Y Groove 60mm External double bearing

The WH392 Steel Sliding Gate 360° Turn Wheel is a durable and versatile solution for your sliding gate system. With its Y-groove design and 60mm external diameter, this wheel allows for smooth and effortless 360° turning motion. The double-bearing system ensures reliable performance and minimizes friction. Crafted from high-quality steel, this wheel is built to withstand heavy loads and provide long-lasting durability. Upgrade your sliding gate with the WH392 Steel Sliding Gate 360° Turn Wheel for enhanced functionality and convenience.


Hold weight up to 180kg

$ 28.50 28.5 AUD
WH397
Stainless Steel Sliding Gate Wheel U Groove 90mm internal double bearing

The WH397 Stainless Steel Sliding Gate Wheel is a top-quality component designed for smooth and efficient operation of your sliding gate. With its U-groove design and 90mm diameter, this wheel is suitable for various sliding gate applications. Constructed from stainless steel, it offers excellent durability and resistance to corrosion. The internal double-bearing mechanism ensures effortless gate movement and enhances overall performance. Whether for residential or commercial use, this stainless steel sliding gate wheel is a reliable choice.


Hold weights up to 350kg

$ 68.00 $ 61.00 61.0 AUD
WH391
Stainless Steel Sliding Gate Wheel U Groove 90mm External double bearing

The WH391 Stainless Steel Sliding Gate Wheel is a reliable and high-performance component for your sliding gate system. This wheel features a U-groove design and has a 90mm diameter, making it compatible with various types of sliding gates. It is constructed from stainless steel, ensuring durability and resistance to corrosion. The double-bearing mechanism provides smooth and effortless gate operation. Whether for residential or commercial applications, this sliding gate wheel delivers reliable performance and long-lasting use.


Hold weight up to 190kg

$ 68.00 $ 61.00 61.0 AUD
WH399

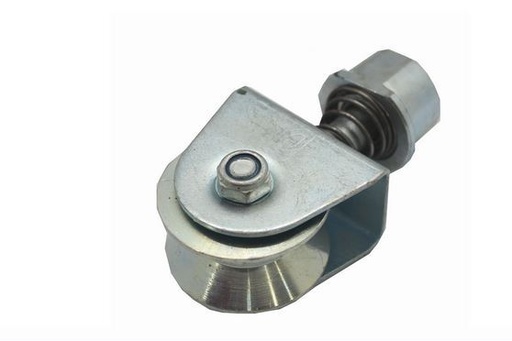

Stainless Steel Sliding Gate 360 Turn Wheel Y Groove 60mm External double bearing

The WH399 Stainless Steel Sliding Gate 360° Turn Wheel is a versatile component designed to enhance the functionality of your sliding gate system. With its Y-groove design and 60mm diameter, this wheel provides smooth and precise movement, allowing your gate to rotate freely. Made from stainless steel, it offers exceptional durability and resistance to corrosion. The external double-bearing mechanism ensures effortless operation and long-lasting performance. Whether for residential or commercial applications, this stainless steel sliding gate wheel is a reliable choice for optimal gate functionality.

$ 58.00 58.0 AUD

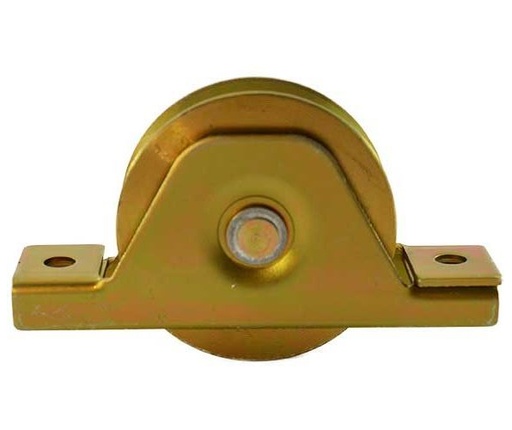

WH390
Sliding Gate Wheel/Rollers for U Groove 90mm Internal - Double Bearing

The WH390 Sliding Gate Wheel is the perfect solution for smooth and effortless movement of your sliding gate. Designed with a U-groove and a 90mm internal diameter, this wheel provides stability and durability. The double bearing mechanism ensures reliable performance and reduces friction for seamless operation. Upgrade your sliding gate system with the WH390 Sliding Gate Wheel for enhanced functionality and convenience.


Hold weight up to 350kg

$ 24.50 24.5 AUD
WH367

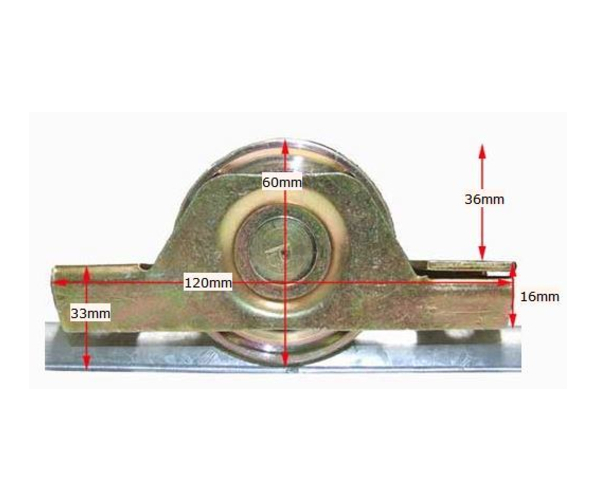

Sliding Gate Wheel/Rollers for U Groove 60mm Internal - Double Bearing

Description

Introducing the U-Groove Sliding Gate Wheel Rollers, the ideal solution for smooth and efficient operation of your sliding gate. These rollers are specifically designed for U-groove tracks, ensuring a secure fit and reliable performance.

Featuring a 60mm internal diameter and equipped with double bearings, these gate wheel rollers provide exceptional stability and durability. The double bearings allow for effortless movement, reducing friction and ensuring a quiet and smooth sliding motion.

Crafted from high-quality materials, these gate wheel rollers are built to withstand the elements and heavy use. They are resistant to rust and corrosion, making them suitable for outdoor applications. Whether you have a residential or commercial sliding gate, these rollers are designed to handle the job with ease.

Installation is quick and straightforward. Simply place the U-groove sliding gate wheel rollers onto the track, and you're ready to enjoy effortless gate operation. The smooth movement and reliable performance of these rollers will enhance the convenience and functionality of your sliding gate system.

Upgrade your sliding gate with the U-Groove Sliding Gate Wheel Rollers and experience the benefits of smooth and reliable operation. Enjoy the convenience and peace of mind knowing that your gate will open and close effortlessly every time.


Double Bearing support Max capacity weight 200 kg per wheel


$ 19.50 19.5 AUD

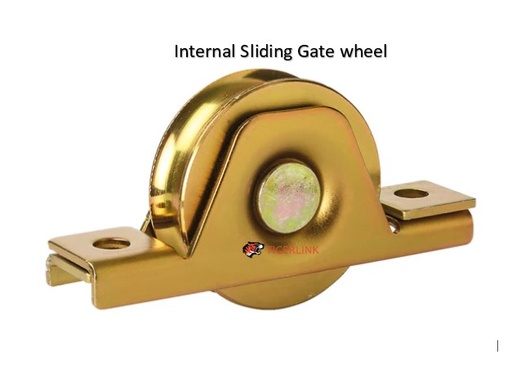

WH408
Sliding Gate Wheel/Rollers for U Groove 120mm internal Double

Sliding Gate Wheel/Rollers for U Groove 120mm internal Double Bearing

Sliding gate component wheel or rollers U groove 120mm Dia internal - Double bearing

Rated to carry 350kg each wheel

Tigerlink Hardware is Sliding Gate Automation Kits and Accessories supplier. We have full range of Sliding gate hardware

Wheels & Castors. High Quality Products. Very Competitive Prices. Over 20 Years Experience. freindly Staff.

looking inside at a wheel

Stronger and Heavyduty wheels.

Zinc - Finished

In Most cases 2 wheels are enough for Sliding gates upto 5M, if you want to add any extra wheels 2 at each end 200-300mm aparts would be better then adding a third wheel in the middle. A middle wheel would take all the weight if there is any rises in the floor track and would shorten the life of that wheel.   2 wheels or 4 wheels is the right way to do this.

How to Tip :

Cut a slot 70mm x 34mm drill a hole in each corner then cut a straight line then tek screw the wheel in place
Hint - cut these wheels in  400 - 600mm in from each end

Step by Step

1. How to join Floor Track

2. Installing the Gate Wheel

3. Double and Single Bearing Wheels

$ 37.95 37.95 AUD
WH395
Sliding Gate Wheel/Rollers for U Groove 100mm Internal - Double Bearing

The WH395 Sliding Gate Wheel is a high-quality and durable solution for smooth and efficient movement of your sliding gate. With its U-groove design and 100mm internal diameter, this wheel provides excellent stability and support. The double-bearing system ensures smooth and silent operation, minimizing friction and wear. Upgrade your gate system with the WH395 Sliding Gate Wheel for reliable performance and enhanced convenience.


Hold weight up to 350kg

$ 29.95 29.95 AUD
WH375

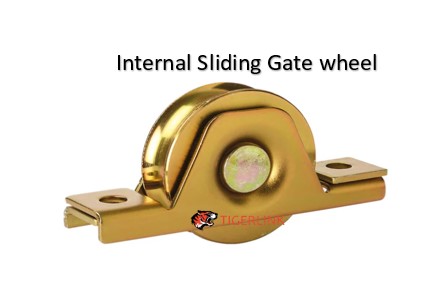

Sliding Gate Wheel for U Groove 80mm Internal -Double Bearing

The WH375 Sliding Gate Wheel is designed to provide smooth and reliable movement for your sliding gate. With its U-groove design, 80mm internal diameter, and double bearing mechanism, this wheel ensures enhanced performance and durability. It is compatible with U-groove tracks and offers easy installation and adjustment. Upgrade your sliding gate system with the WH375 Sliding Gate Wheel for effortless and efficient operation.


Hold weights up to 350kg

$ 21.00 21.0 AUD
WH476

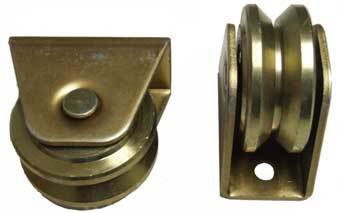

Sliding Gate Wheel V Groove Dounble bearing 78mm Dia

Sliding Gate Wheel V Groove Dounble bearing 78mm Dia

This v groove track wheel is 78mm in diameter and has double bearing.

Technical Specifications.

  • Groove Type- V Groove
  • Load Capacity- 120 Kg
  • Wheel Diameter- 78mm
  • Wheel Material- Steel
  • Finish- Zinc Plated
$ 22.90 22.900000000000002 AUD
WH472

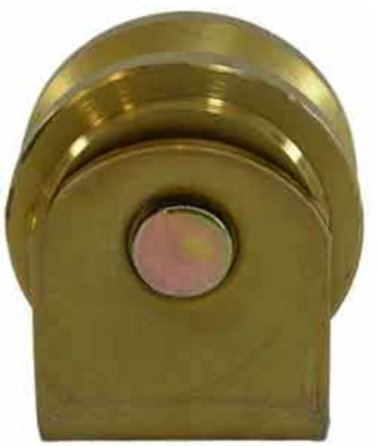

Sliding Gate Wheel V Groove Dounble bearing 58mm Dia

Sliding Gate Wheel V Groove Dounble bearing 58mm Dia

This v groove track wheel is 58mm in diameter and has double bearing.

Technical Specifications.

  • Groove Type- V Groove
  • Load Capacity- 120 Kg
  • Wheel Diameter- 58mm
  • Wheel Material- Steel
  • Finish- Zinc Plated
$ 14.50 14.5 AUD

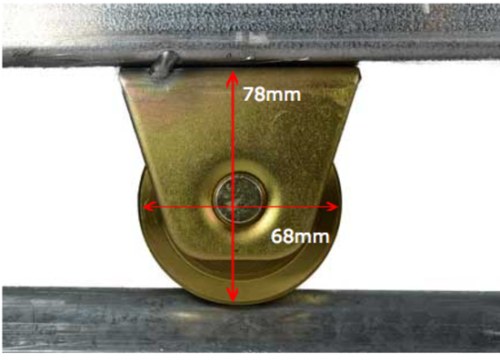

WH475
Sliding Gate Wheel V Groove Double bearing 68mm Dia

Sliding Gate Wheel V Groove Double bearing 68mm Dia

This v groove track wheel is 78mm in diameter and has double bearing.

Technical Specifications.

  • Groove Type- V Groove
  • Load Capacity- 100 Kg
  • Wheel Diameter- 68mm
  • Wheel Material- Steel
  • Finish- Zinc Plated
$ 12.20 12.200000000000001 AUD
WH465

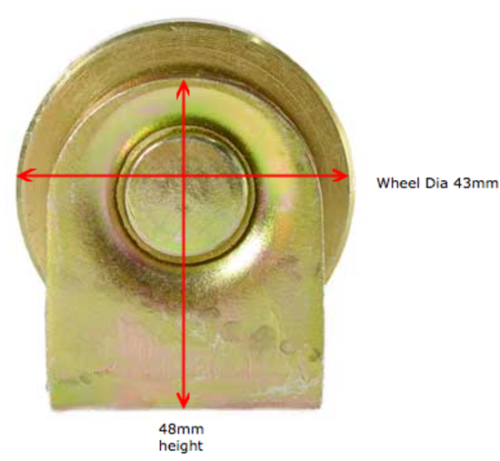

Sliding Gate Wheel V Groove Double bearing 45mm Dia

Sliding Gate Wheel V Groove Dounble bearing 45mm Dia

This v groove track wheel is 45mm in diameter and has double bearing.

Technical Specifications.

  • Groove Type- V Groove
  • Load Capacity-100Kg
  • Wheel Diameter- 45mm
  • Wheel Material- Steel
  • Finish- Zinc Plated
$ 13.40 13.4 AUD

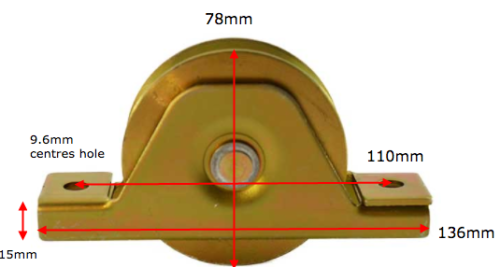

WH479
Sliding Gate Wheel V Groove 80mm Internal Double Bearing

Sliding Gate Wheel V80  internal Double bearing

$ 25.40 25.400000000000002 AUD
WH483

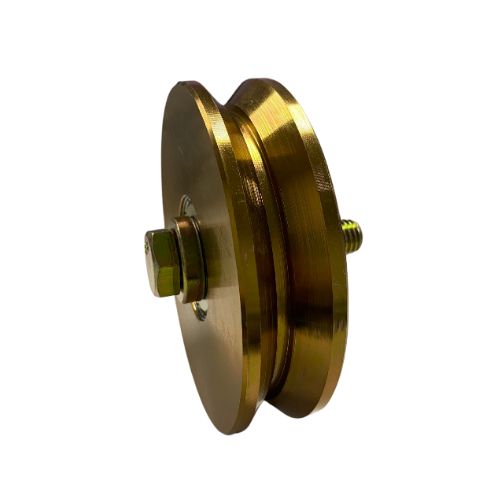

Sliding Gate Wheel V Groove 120 mm diameter

Sliding Gate Wheel V Groove 120 mm dia

482 kgs Carry capacity - Double bearings

$ 43.80 43.800000000000004 AUD
WH393

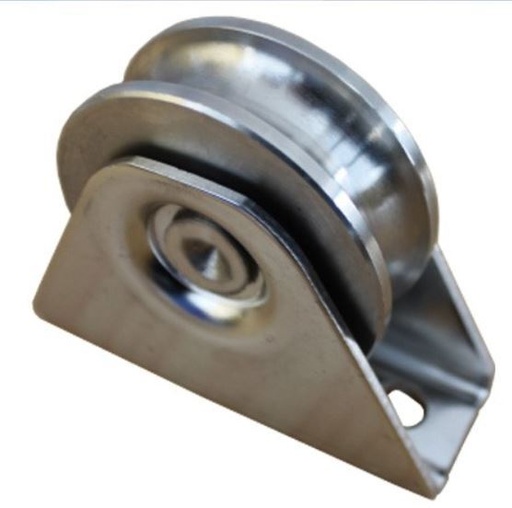

Sliding Gate Wheel U Groove 90mm External Double bearing

The WH393 Sliding Gate Wheel with U-Groove is designed to provide smooth and reliable operation for your sliding gate system. With its 90mm external diameter and U-groove design, this wheel ensures optimal traction and stability. The double-bearing system enhances the wheel's load-bearing capacity and reduces friction, resulting in effortless gate movement. Crafted from high-quality materials, this wheel is built to withstand heavy-duty use and resist wear and tear. Upgrade your sliding gate system with the WH393 Sliding Gate Wheel for improved performance and longevity.


Hold weight up to 190kg

$ 29.90 29.900000000000002 AUD

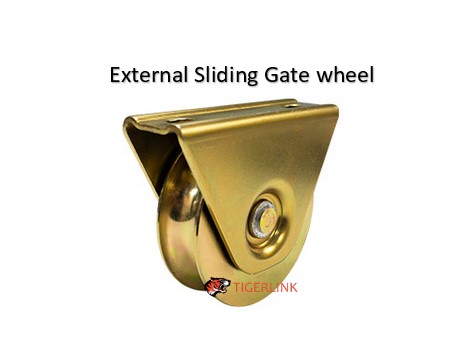

WH377
Sliding Gate Wheel U Groove 80mm External Double bearing

The WH377 Sliding Gate Wheel is designed to provide reliable and efficient operation for your sliding gate. With its U-groove design and 80mm external diameter, this wheel offers excellent stability and support. The double-bearing system ensures smooth and effortless movement, reducing friction and wear. Upgrade your sliding gate with the WH377 Sliding Gate Wheel for enhanced performance and convenience.


Hold weight up to 190kg

$ 21.00 21.0 AUD

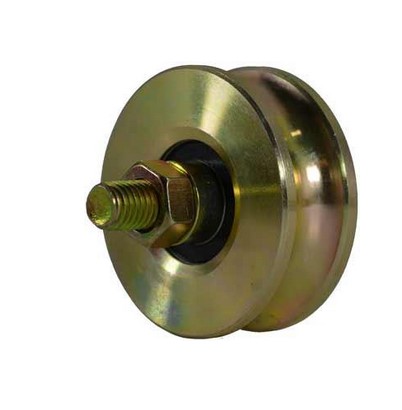

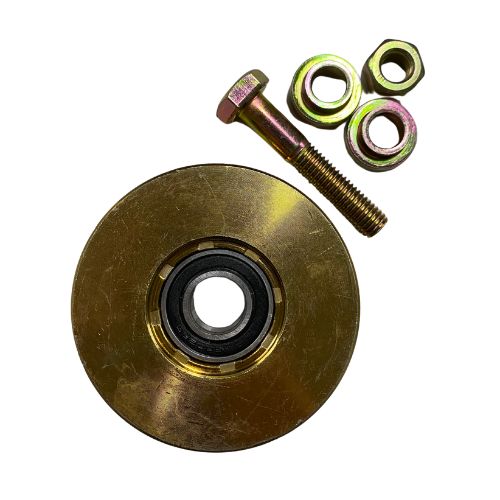

WH402
Sliding Gate Wheel U Groove 80mm Dia double bearing no Bracket

The WH402 Sliding Gate Wheel with U-Groove is designed to provide smooth and reliable operation for your sliding gate system. With its 80mm diameter and U-groove design, this wheel offers excellent traction and stability. The double-bearing system ensures smooth movement and reduces friction, allowing for effortless gate opening and closing. This wheel does not include a bracket, providing flexibility for mounting options. Upgrade your sliding gate system with the WH402 Sliding Gate Wheel for enhanced performance and durability.


Hold weight up to 300kg

$ 18.50 18.5 AUD
WH369

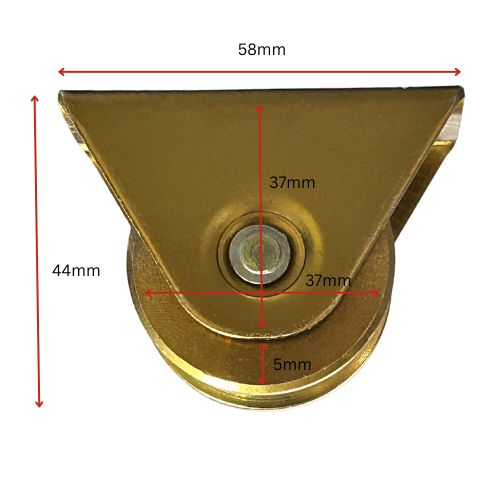

Sliding Gate Wheel U Groove 60mm External Double bearing

The WH369 Sliding Gate Wheel is designed to provide smooth and reliable operation for your sliding gate. With its U-groove design and 60mm external diameter, this wheel offers excellent stability and support. The double-bearing system ensures smooth and effortless movement, reducing friction and wear. Upgrade your sliding gate with the WH369 Sliding Gate Wheel for enhanced performance and convenience.


Hold weight up to 170kg

$ 19.50 19.5 AUD

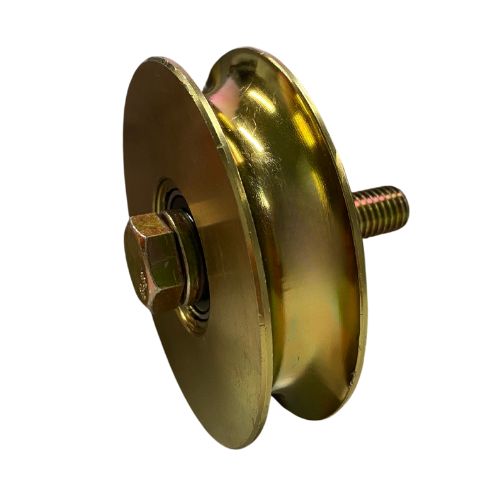

WH406
Sliding Gate Wheel U Groove 120mm Dia double bearing

Sliding Gate Wheel U Groove 120mm Dia double bearing
Fits 20mm round groove track.
- Zinc plated, Double Bearings.
- Load Capacity = 482kg/wheel.

- 20mm Hole Size



$ 21.50 21.5 AUD
