Description:

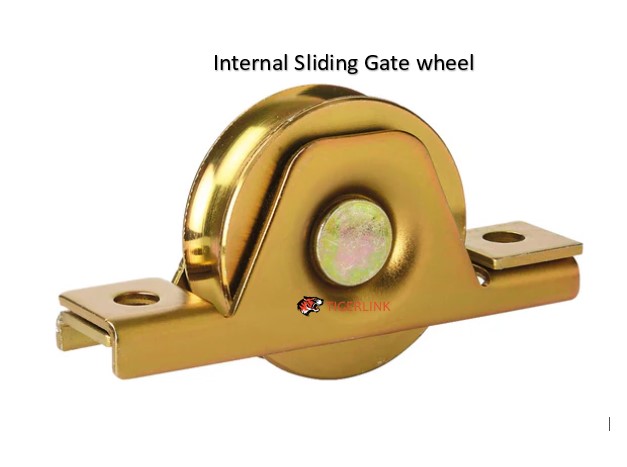

Sliding Gate Wheel/Rollers for U Groove 120mm internal Double Bearing
Sliding gate component wheel or rollers U groove 120mm Dia internal - Double bearing
Rated to carry 350kg each wheel
Tigerlink Hardware is Sliding Gate Automation Kits and Accessories supplier. We have full range of Sliding gate hardware
Wheels & Castors. High Quality Products. Very Competitive Prices. Over 20 Years Experience. freindly Staff.
Stronger and Heavyduty wheels.
Zinc - Finished
In Most cases 2 wheels are enough for Sliding gates upto 5M, if you want to add any extra wheels 2 at each end 200-300mm aparts would be better then adding a third wheel in the middle. A middle wheel would take all the weight if there is any rises in the floor track and would shorten the life of that wheel. 2 wheels or 4 wheels is the right way to do this.
How to Tip :
Cut a slot 70mm x 34mm drill a hole in each corner then cut a straight line then tek screw the wheel in place
Hint - cut these wheels in 400 - 600mm in from each end
Step by Step
1. How to join Floor Track
2. Installing the Gate Wheel
3. Double and Single Bearing Wheels
