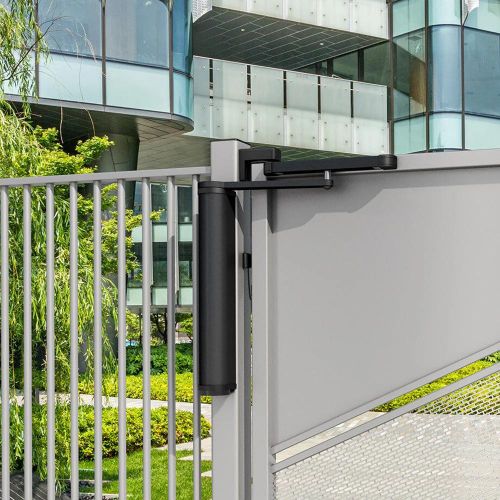

VENUS is a plug-and-play motorised gate closer for pedestrian swing gates. The compact all-in-one gate operator can easily be installed on any type of post and hinge thanks to 3 different arm types. The innovative motor’s performance remains unaffected by manual force. When combined with access control, the Venus also works as a low-energy gate opener.

The VENUS motorised gate closer is specifically designed for pedestrian gates up to 1400 mm and 100 kg.

VENUS is a brushless motor specially designed for semi-manual or fully automated outdoor use.

WHAT MAKES IT SPECIAL?

• Safe, reliable operation thanks to low-energy speed control and integrated obstacle detection.

• All-in-one gate operator with integrated power supply and circuit board, input/output connectors and indicator light.

• Easy setup with free mobile app

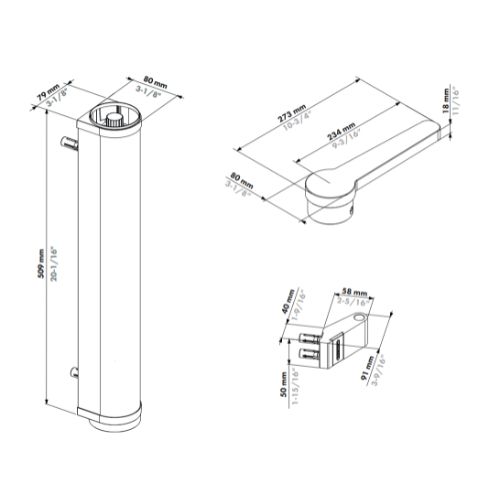

Specifications:

• Motorised gate closer with integrated electronics
• 150 Nm torque
• Fits on 80 mm profiles
• For pedestrian gates up to 1400 mm wide and 100 kg
• Steel gear box
• Anodized aluminium cover

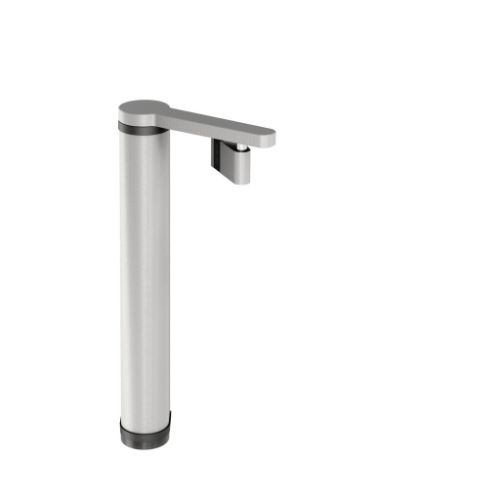

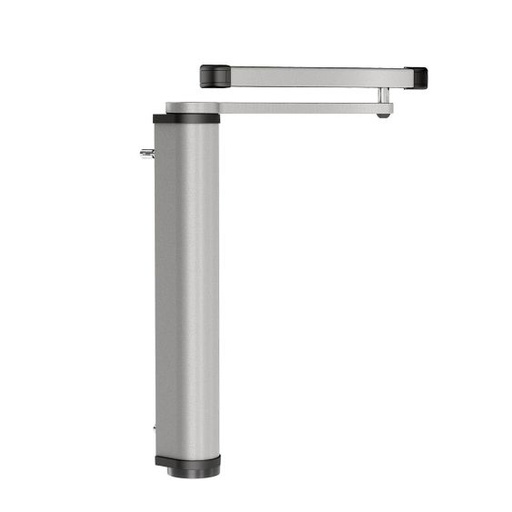

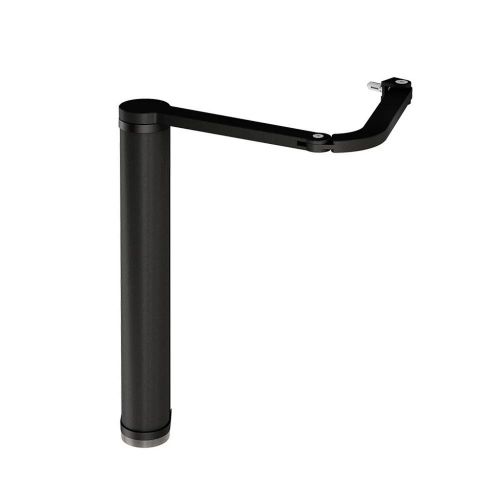

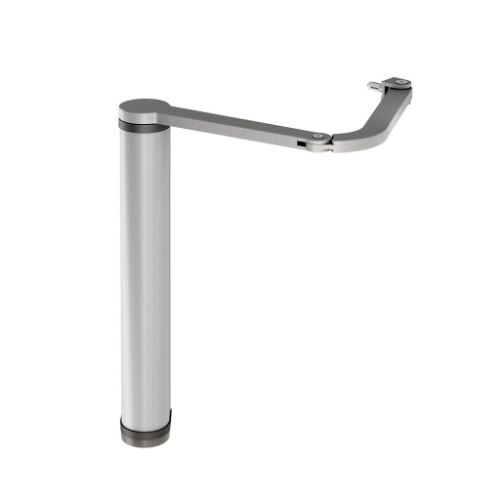

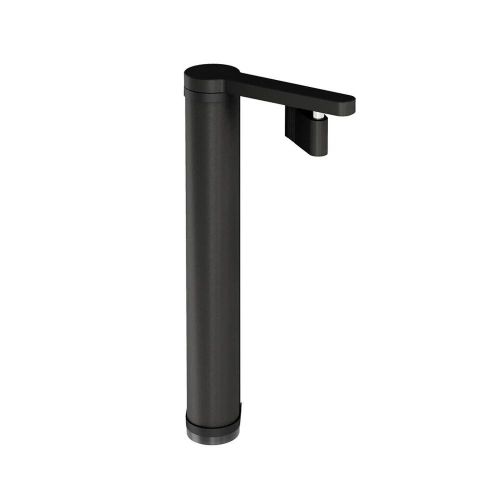

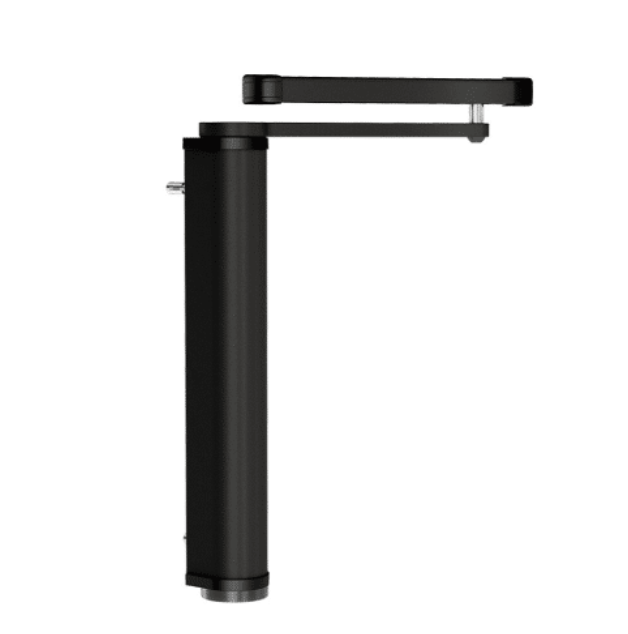

• 3 different arm options for installation
• Easy mounting with Quick-Fix

• Compact and vandal-proof design
• Input main Power supply: 115V AC ±10% (60Hz) to 230V AC ±10% (50Hz), Max 5A
• Motor voltage: 24V DC
• Integrated warning light
• Automated obstacle detection with reverse function
• Brushless motor: long lifespan and intensive usage
• Reversible motor with backdrivability for easy manual use – to be combined with a lock

PERFORMANCE

• Specifically developed for outdoor use.
• Weatherproof and dustproof.
• IP55 rated.
• Maintenance-free (no need to lubricate or add oil). Always verify if there are specific safety regulations by local authorities.
• 2 year manufacturer’s warranty.
• Tested on 500,000 movements.

INSTALLATION

• For gate profiles of at least 80 mm, with a material thickness of at least 2 mm steel
• Suitable for both left and right turning gates.
• Requires a strike to determine the zero position.
• No safety sensors required thanks to the standard low energy mode.
• 3D installation video is available in an app.
• 3 configurable inputs for connecting access control, security sensors, etc.
• 3 configurable outputs for connecting an electric strike, electromagnetic strike plate, warning lamp or ambient lamp and a fixed 24V DC power supply.

CONFIGURATION

• Programming via an app
• Step-by-step guide with video instructions available within the app
• App is available for ANDROID and IOS

MATERIAL

• Anodised aluminium housing.
• Corrosion resistance of 500 hours in salt spray test, according to ISO9227.
• UV-resistant and colour-fast.

VIDEOS

DOCUMENTS

Installation Manual
