DIY Sliding Gate Kit

DIY Sliding Gate Kit

Sliding Gate Hardware
Sliding Gate Hardware
Telescopic Sliding Gate component
Telescopic Sliding Gate component
Sliding Gate Hardware
Sliding Gate Hardware
Telescopic Sliding Gate component
Telescopic Sliding Gate component
Kit036

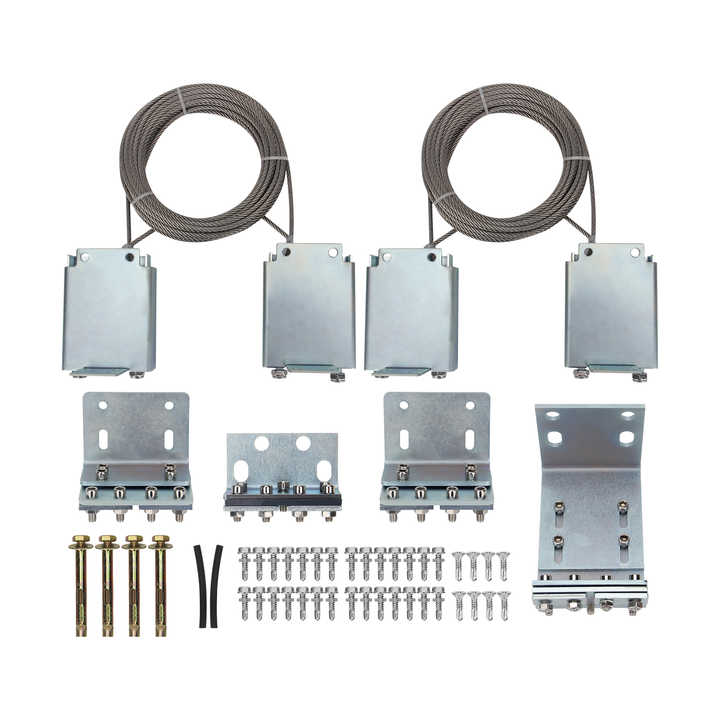

Heavy Duty Telescopic Sliding Gate 3 leaves up to 4.5M or 500kg Component Kit Gate not included

The Kit030 Heavy Duty Telescopic Gate Component Kit is designed for building a robust and durable telescopic gate system. This kit is suitable for gates up to 4.5m in width or 500kg in weight. It includes all the necessary components to construct a telescopic gate, excluding the gate itself. The heavy-duty design ensures reliable performance and long-lasting functionality. With its telescopic feature, the gate can extend and retract smoothly, optimizing space usage. The Kit030 Heavy Duty Telescopic Gate Component Kit is an ideal choice for commercial or industrial applications where strength and functionality are paramount.



$ 399.00 $ 268.18 268.18 AUD
SBHD365
Steel Sliding block holder 300x82x28mm - Steel Zinc finished

Steel Sliding block holder  300x82x40mm - Steel Zinc finished

$ 13.27 13.27 AUD
WBK002W

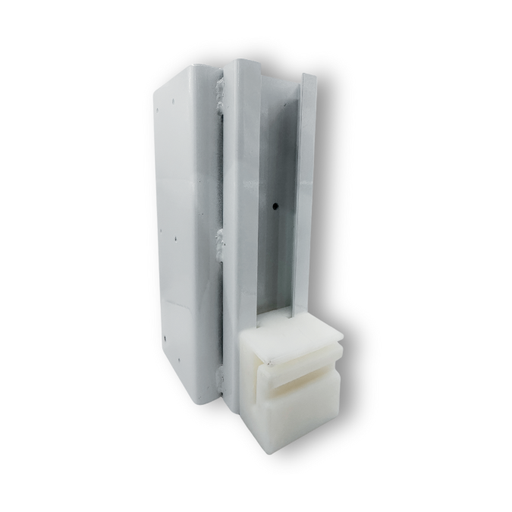

White Sliding Nylon Block + White Steel Holder Kit
$ 63.51 63.51 AUD
WH410

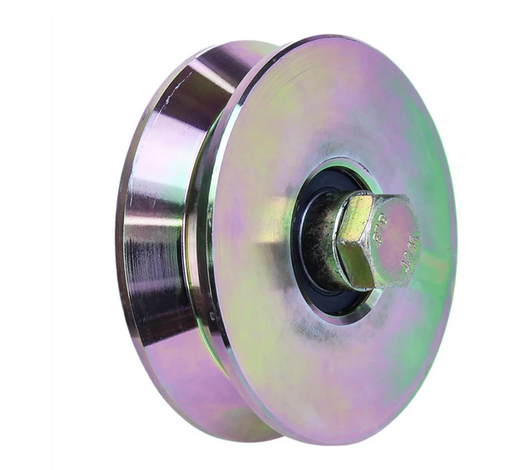

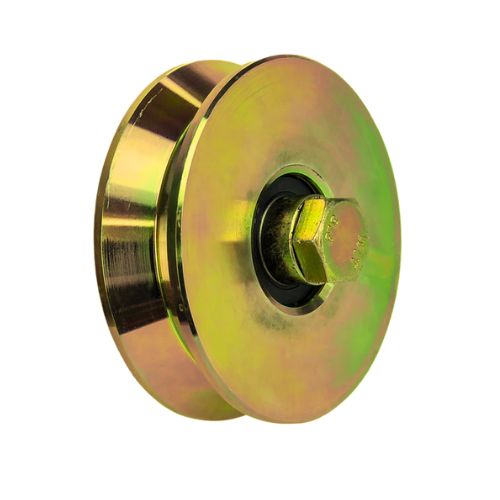

Sliding gate wheel V groove No bracket 100mm double bearing

Sliding gate wheel V groove No bracket double bearing

$ 47.27 47.27 AUD

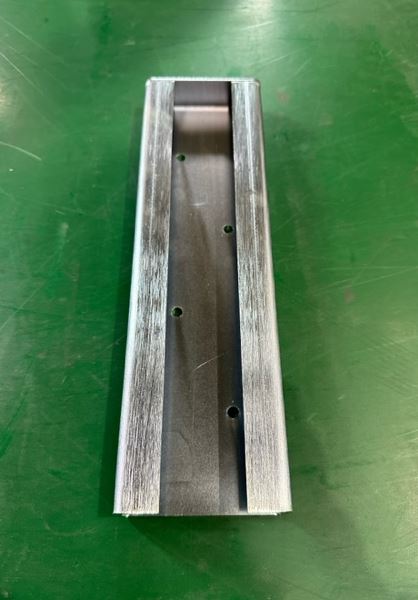

SBHD378
Steel Sliding block holder with Top Cap 280x80x27mm with Cap- Steel Zinc finished

Steel Sliding block holder with Top Cap for Picket or uneven ground Gates Dimensions :280x80x26mm - Steel Zinc finished for 75mm Block

$ 15.09 15.09 AUD
SBHD375

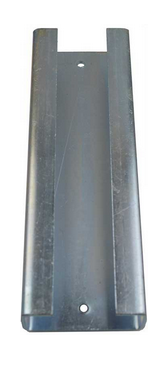

Steel Sliding block holder 300x82x40mm - Steel Zinc finished

Steel Sliding block holder  300x82x40mm - Steel Zinc finished

$ 13.27 13.27 AUD
SGSB427B

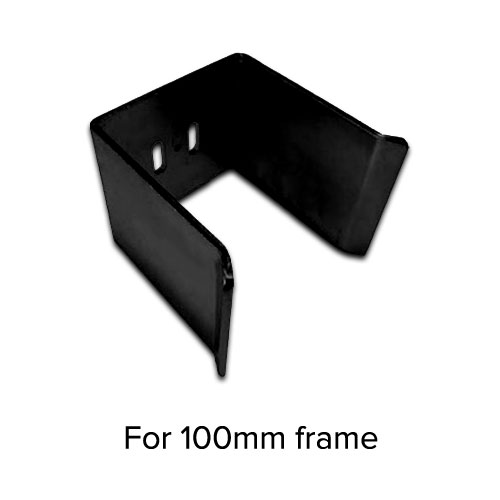

Steel Sliding Block Holder - 100mm, Black, Small Profile
$ 17.73 17.73 AUD
WH396

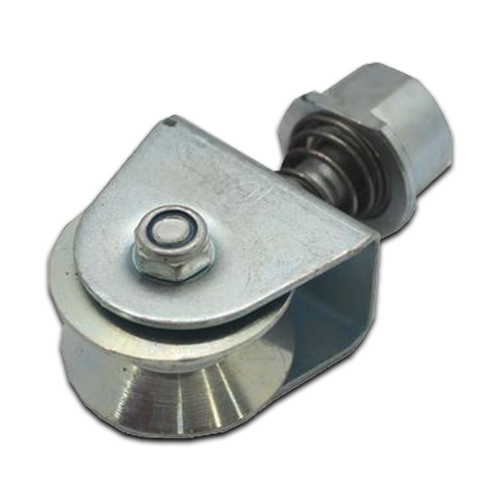

Steel Sliding Gate 360 Turn Wheel U Groove 80mm External double bearing

Steel Sliding Gate 360 Turn Wheel U Groove 80mm External double bearing

Heavy Duty  Steel Sliding gate component wheel or rollers U groove 80mm Dia - Double bearing

Double Bearing support Max capacity weight 250 kg per wheel

Material :  Steel Wheel - Zinc plated

$ 25.91 25.91 AUD

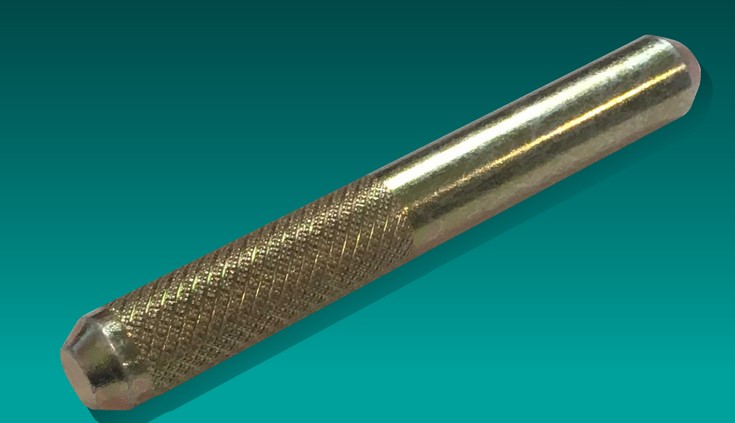

BK260
Solid steel joiner 125mmx16mm for Sliding Floor Track - Zinc plated


$ 4.50 4.5 AUD

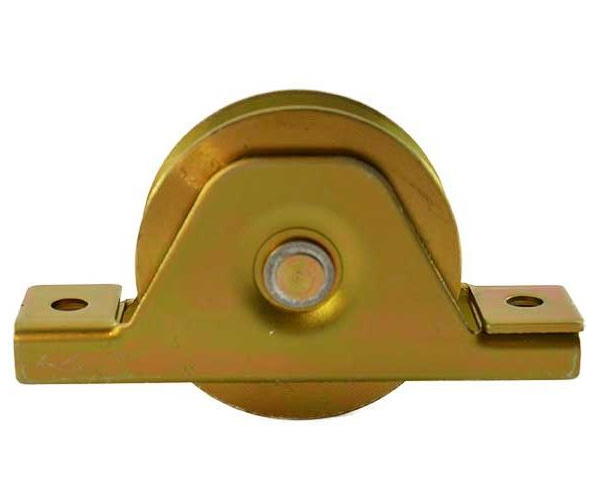

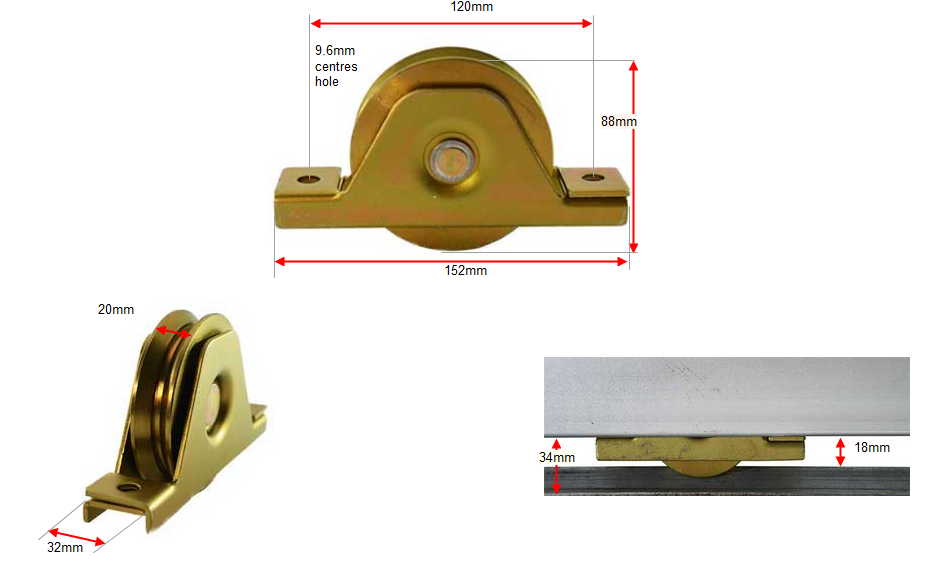

WH482
Sliding Gate Wheel V Groove 90mm Internal Double bearing

The WH482 Sliding Gate Wheel is a high-quality, Italian-made wheel designed for smooth and reliable operation of sliding gates. With a V-groove design and a diameter of 90mm, this wheel ensures proper gate alignment and reduces friction during movement. The double bearing construction further enhances the wheel's performance and durability. Whether for residential or commercial applications, the WH482 Sliding Gate Wheel provides exceptional functionality and long-lasting performance.

Installing a sliding gate wheel involves a few key steps to ensure the gate operates smoothly. Here’s a step-by-step guide to help you install it:

Materials Needed:

  • Sliding gate wheel
  • Measuring tape
  • Cutting machine
  • Drill and drill bits
  • Screws and bolts
  • Wrench or screwdriver

Steps for Installation:

Prepare the Gate and Track:

  • Before installing the wheels, ensure that your sliding gate is already installed and that the sliding track is properly laid out.
  • The track should be level and secure to ensure smooth operation.

Step One:
Measure the sliding gate wheel cradle, ensuring there's enough space to attach the wheel to the steel frame. Use a cutting wheel to make the cut, but first, drill four holes (one in each corner) using an 8-10mm drill bit. This will ensure the square hole is clean in each corner.

Step Two:
Clean up the rectangular hole with a file to ensure smooth edges, then spray the area with galvanized paint for protection.

Step Three:
Place the sliding gate wheel into the cut-out and check that it can rotate freely. Ensure there’s enough space for securing the wheel with a tek screw.

Step Four:
When screwing in the tek screws, make sure the wheel is aligned with the edge of the steel. The last thing you want is for the wheel to be out of alignment. Avoid welding the wheel if possible, as this can make replacement more difficult later on.

Try not to weld them onto the sliding gate frame it will be a nightmare to replace them later


$ 22.73 22.73 AUD
WH354

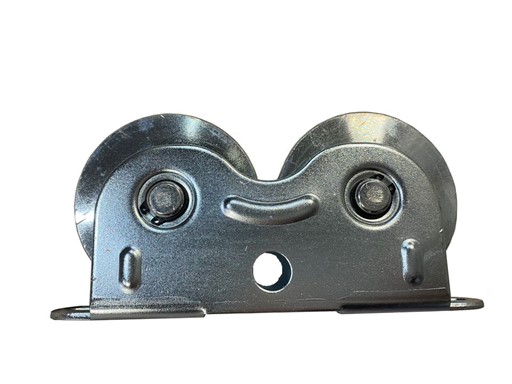

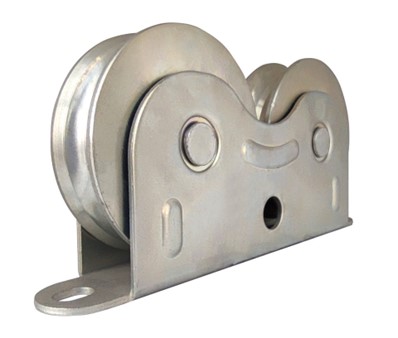

Sliding Gate Wheel U Groove 80mm 2 wheels with bracket Double bearing

Sliding Gate Wheel U Groove 80mm 2 wheels with bracket Double bearing

Installing a sliding gate wheel involves a few key steps to ensure the gate operates smoothly. Here’s a step-by-step guide to help you install it:

Materials Needed:

  • Sliding gate wheel
  • Measuring tape
  • Drill and drill bits
  • Screws and bolts
  • Wrench or screwdriver

Steps for Installation:

  1. Prepare the Gate and Track:
    • Before installing the wheels, ensure that your sliding gate is already installed and that the sliding track is properly laid out.
    • The track should be level and secure to ensure smooth operation.
  2. Determine the Wheel Placement:
    • Decide where the wheel brackets will go on the gate. Typically, the wheels should be placed at the bottom of the gate. Depending on the gate size.
    • The wheel’s placement is important for proper weight distribution and gate stability.
  3. Mark the Drill Holes:
    • Hold the wheel brackets against the gate at the desired position.
    • Use a measuring tape to ensure the placement is even and at the correct height.
    • Mark the holes where the screws or bolts will go to secure the wheels.
  4. Drill the Holes:
    • Drill holes at the marked points on the gate, making sure the holes are large enough for the screws or bolts provided in your wheel kit.
    • If you’re installing a single wheel, the hole placement should be centered along the gate's width.
  5. Attach the Wheel Bracket:
    • Secure the wheel bracket to the gate using the screws or bolts.
    • Tighten them properly to ensure the bracket is secure. Be sure the wheel can rotate freely once attached.
  6. Install the Wheel:
    • If the wheel is separate from the bracket, slide the wheel into its bracket or mounting system.
    • Tighten any screws or bolts holding the wheel in place, ensuring it rotates easily and is properly aligned.
  7. Test the Gate:
    • Test the sliding gate by moving it along the track.
    • Check that the wheels glide smoothly without any obstruction or resistance. The gate should be stable and move freely.
  8. Adjust if Necessary:
    • If the gate isn’t sliding smoothly, check the alignment of the wheels and track. You might need to adjust the wheel height or ensure that the track is level.
    • Make sure the wheels are aligned with the gate and track to avoid any friction.

Try not to weld them onto the sliding gate frame it will be a nightmare to replace them later

$ 68.18 68.18 AUD
WH350
Sliding Gate Wheel U Groove 60mm 2 wheels with bracket Double bearing

Sliding Gate Wheel U Groove 60mm 2 wheels with bracket Double bearing

Installing a sliding gate wheel involves a few key steps to ensure the gate operates smoothly. Here’s a step-by-step guide to help you install it:

Materials Needed:

  • Sliding gate wheel
  • Measuring tape
  • Drill and drill bits
  • Screws and bolts
  • Wrench or screwdriver

Steps for Installation:

  1. Prepare the Gate and Track:
    • Before installing the wheels, ensure that your sliding gate is already installed and that the sliding track is properly laid out.
    • The track should be level and secure to ensure smooth operation.
  2. Determine the Wheel Placement:
    • Decide where the wheel brackets will go on the gate. Typically, the wheels should be placed at the bottom of the gate. Depending on the gate size.
    • The wheel’s placement is important for proper weight distribution and gate stability.
  3. Mark the Drill Holes:
    • Hold the wheel brackets against the gate at the desired position.
    • Use a measuring tape to ensure the placement is even and at the correct height.
    • Mark the holes where the screws or bolts will go to secure the wheels.
  4. Drill the Holes:
    • Drill holes at the marked points on the gate, making sure the holes are large enough for the screws or bolts provided in your wheel kit.
    • If you’re installing a single wheel, the hole placement should be centered along the gate's width.
  5. Attach the Wheel Bracket:
    • Secure the wheel bracket to the gate using the screws or bolts.
    • Tighten them properly to ensure the bracket is secure. Be sure the wheel can rotate freely once attached.
  6. Install the Wheel:
    • If the wheel is separate from the bracket, slide the wheel into its bracket or mounting system.
    • Tighten any screws or bolts holding the wheel in place, ensuring it rotates easily and is properly aligned.
  7. Test the Gate:
    • Test the sliding gate by moving it along the track.
    • Check that the wheels glide smoothly without any obstruction or resistance. The gate should be stable and move freely.
  8. Adjust if Necessary:
    • If the gate isn’t sliding smoothly, check the alignment of the wheels and track. You might need to adjust the wheel height or ensure that the track is level.
    • Make sure the wheels are aligned with the gate and track to avoid any friction.

Try not to weld them onto the sliding gate frame it will be a nightmare to replace them later

$ 44.55 44.550000000000004 AUD
WH356

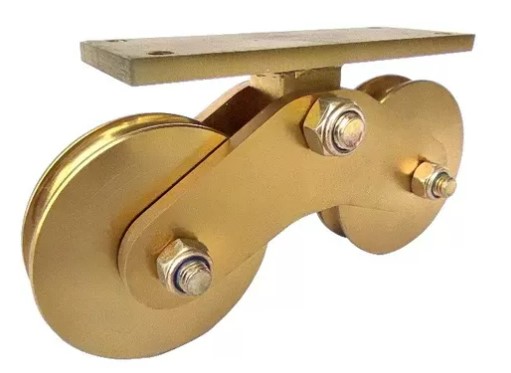

Sliding Gate Wheel U Groove 100mm 2 wheels with bracket Double bearing

Sliding Gate Wheel U Groove 100mm 2 wheels with bracket Double bearing



$ 71.36 71.36 AUD
SGSB410B

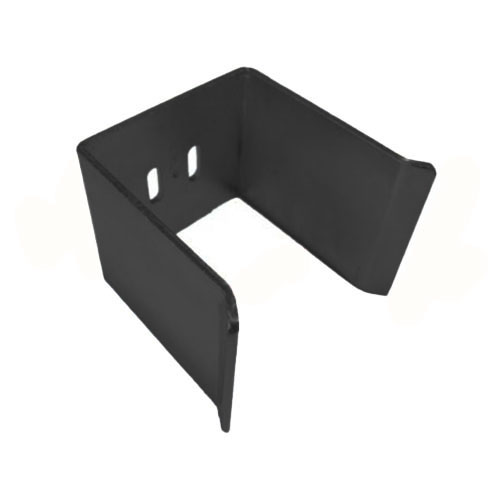

Steel Sliding Block Holder - 65mm, Black


$ 12.27 12.27 AUD

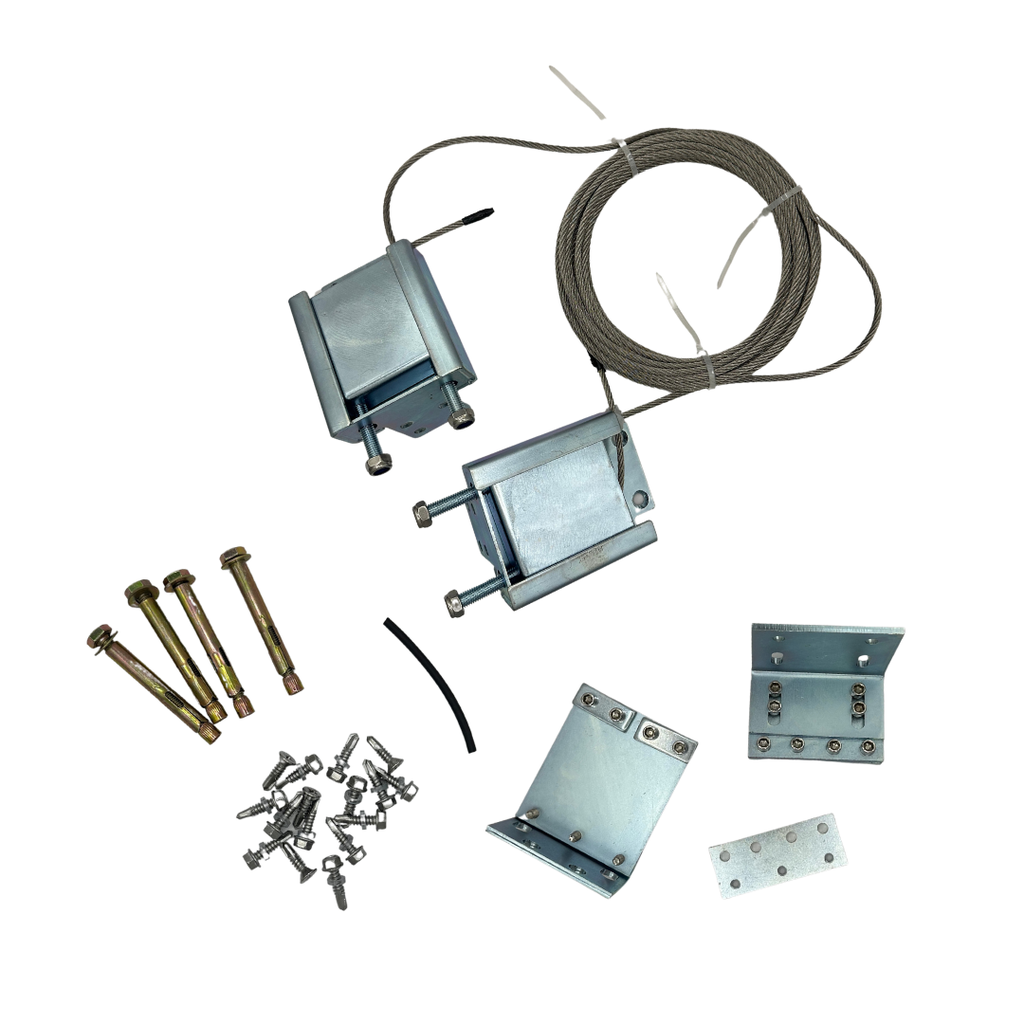

Kit030
Heavy Duty Telescopic Sliding Gate 2 leaves up to 4.5M or 500kg Component Kit Gate not included

The Kit030 Heavy Duty Telescopic Gate Component Kit is designed for building a robust and durable telescopic gate system. This kit is suitable for gates up to 4.5m in width or 500kg in weight. It includes all the necessary components to construct a telescopic gate, excluding the gate itself. The heavy-duty design ensures reliable performance and long-lasting functionality. With its telescopic feature, the gate can extend and retract smoothly, optimizing space usage. The Kit030 Heavy Duty Telescopic Gate Component Kit is an ideal choice for commercial or industrial applications where strength and functionality are paramount.



$ 399.00 $ 222.73 222.73000000000002 AUD
WH245

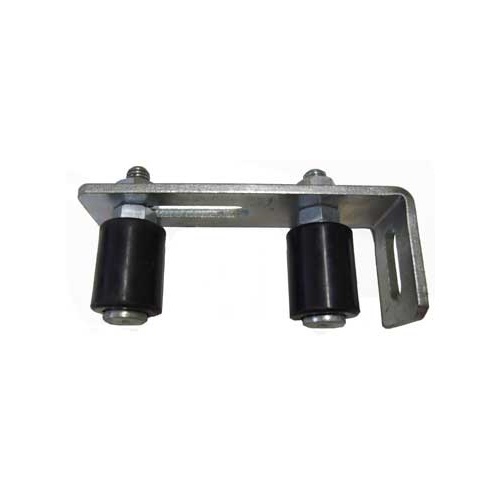

Guide bracket 165x115mm with 2 Rollers 40x60mm

The Guide Bracket with 2 Rollers is a versatile accessory designed to facilitate smooth and controlled movement for sliding gates. With a dimension of 165x115mm, this guide bracket features two rollers measuring 40x60mm each. It is constructed with high-quality materials to ensure durability and longevity. The guide bracket provides stability and support for sliding gates, allowing them to glide effortlessly along the track. It is suitable for various gate applications and offers reliable performance.

$ 35.45 35.45 AUD
Kit25

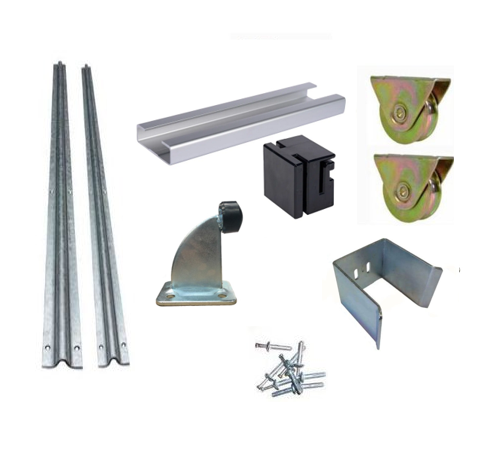

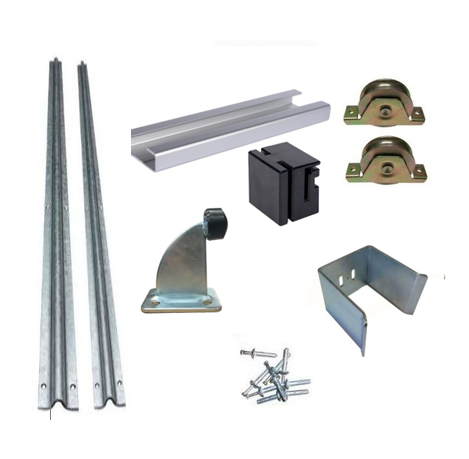

DIY Sliding Gate Kit-90mm External Wheel Double bearing 2 Tracks for Picket Top or Uneven ground Gates

The Kit25 DIY Sliding Gate Kit is designed for picket top or uneven ground gates, providing a comprehensive solution for easy installation of sliding gates. Featuring 90mm external wheels with double bearings and two tracks, this kit ensures smooth and reliable gate operation. It is specifically designed to accommodate gates with picket tops or on uneven ground, offering convenience and functionality. Whether for residential or commercial applications, the Kit25 DIY Sliding Gate Kit delivers durability and versatility.


Kit includes
Steel Sliding Gate block holder size 280x80x26mm for 75mm Sliding Block- powder coated Black x1
Sliding Gate Track Fasteners Zipfix 40mm x 6mm - Each x48
Galv Steel Sliding Gate Stopper with Base Plate Floor mount Height 120mm x1
Galvanised steel U Groove Above Ground Floor Track for Sliding Gates 3 Meters    x2
Sliding Gate Wheel U Groove 90mm External Double bearing x2
Sliding Block for Sliding Gate Nylon Guide size 75mm Black x1
50mm Sliding Gate Holder with Rubber x1

$ 208.18 208.18 AUD
Kit27
DIY Sliding Gate Kit-60mm External Wheel Double bearing 2 Tracks for Picket Top or Uneven ground Gates

The Kit27 DIY Sliding Gate Kit is the perfect solution for picket top or uneven ground gates, offering easy installation and reliable performance. Featuring 60mm external wheels with double bearings and two tracks, this kit ensures smooth operation and stability. It is designed to accommodate gates with picket tops or on uneven ground, providing convenience and functionality. Whether for residential or commercial use, the Kit27 DIY Sliding Gate Kit delivers exceptional quality and durability.


Kit includes:

Aluminium Sliding Gate block holder size 400x80mm - powder coated Black    x1
Sliding Gate Track Fasteners Zipfix 40mm x 6mm - Each    x48
Galv Steel Sliding Gate Stopper with Base Plate Floor mount Height 120mm x1
Galvanised steel U Groove Above Ground Floor Track for Sliding Gates 3 Meters    x2
50mm Sliding Gate Holder with Rubber x1
Sliding Gate Wheel U Groove 60mm External Double bearing x2
Sliding Block for Sliding Gate Nylon Guide size 75mm Black x1

$ 171.82 171.82 AUD
Kit11_6

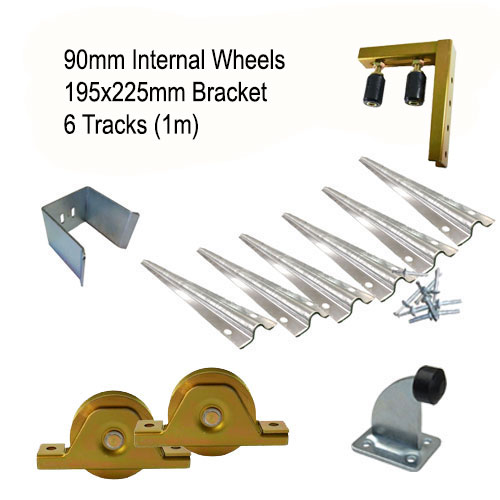

DIY Sliding Gate Kit - 90mm Internal Wheels x Large Bracket x 6 Tracks (1m)

The Kit11 DIY Sliding Gate Kit with 90mm Internal Wheels and a Large Bracket is a comprehensive solution for building your own sliding gate. This kit includes all the necessary components to create a functional and reliable sliding gate system. It features 90mm internal wheels for smooth and effortless gate movement. The bracket provides sturdy support and ensures proper alignment of the gate. With its DIY design, this kit allows for easy installation and customization to fit your specific gate size and requirements. Whether for residential or commercial use, the Kit11 DIY Sliding Gate Kit offers convenience and flexibility for a hassle-free gate solution.


Kit includes

Sliding Gate Track Fasteners Zipfix 40mm x 6mm - Each

Galv Steel Sliding Gate Stopper with Base Plate Floor mount Height 120mm x1

Galvanised steel U Groove Above Ground Floor Track for Sliding Gates 1 Meter x6

50mm Sliding Gate Holder with Rubber x1

Sliding gate Top Guide Holder 195x225mm with 2 rollers 40x60mm Black x1

Sliding Gate Wheel/Rollers for U Groove 90mm Internal - Double bearing     x2

$ 162.73 162.73 AUD
Kit11_5
DIY Sliding Gate Kit - 90mm Internal Wheels x Large Bracket x 4 Tracks(1.5m)

The Kit11 DIY Sliding Gate Kit with 90mm Internal Wheels and a Large Bracket is a comprehensive solution for building your own sliding gate. This kit includes all the necessary components to create a functional and reliable sliding gate system. It features 90mm internal wheels for smooth and effortless gate movement. The bracket provides sturdy support and ensures proper alignment of the gate. With its DIY design, this kit allows for easy installation and customization to fit your specific gate size and requirements. Whether for residential or commercial use, the Kit11 DIY Sliding Gate Kit offers convenience and flexibility for a hassle-free gate solution.


Kit includes

Sliding Gate Track Fasteners Zipfix 40mm x 6mm - Each
Galv Steel Sliding Gate Stopper with Base Plate Floor mount Height 120mm x1
Galvanised steel U Groove Above Ground Floor Track for Sliding Gates 1.5 Meters x4
50mm Sliding Gate Holder with Rubber x1
Sliding gate Top Guide Holder 195x225mm with 2 rollers 40x60mm Black x1
Sliding Gate Wheel/Rollers for U Groove 90mm Internal - Double bearing     x2

$ 168.64 168.64000000000001 AUD
