Control Boards & Transformers

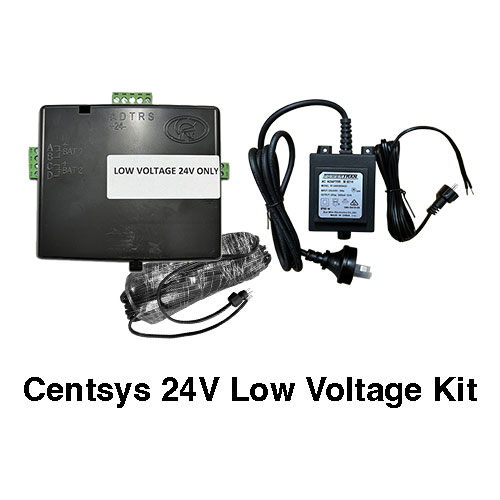

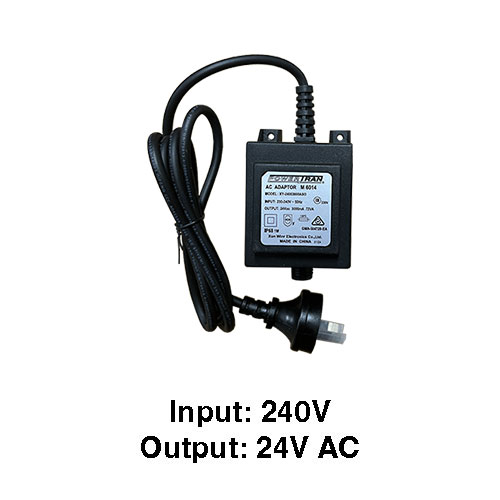

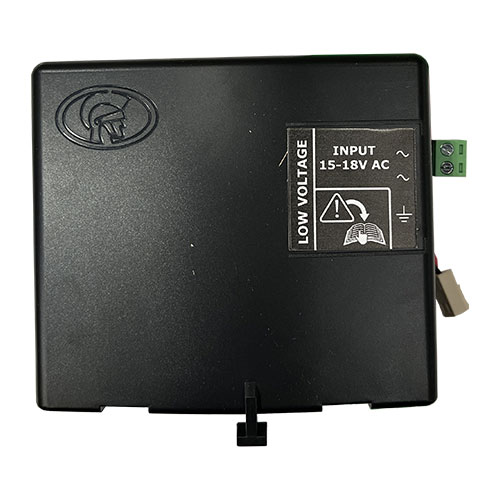

24V Low Voltage Kit for Centsys D5, D10, D20 Smart

Kit includes:

• Internal Transformer
• External Transformer
• 30m Cable

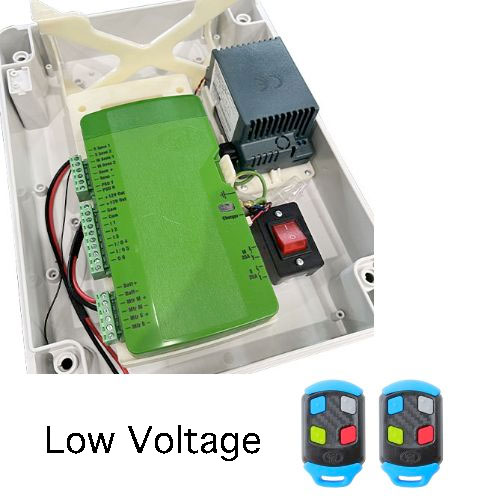

The Low Voltage Centsys VX Smart Box is a high-quality control board designed for swing gate systems. This control board offers reliable and efficient control, ensuring smooth operation and optimal performance of your swing gate. It is compatible with Centsys Vantage, allowing for easy installation and integration. The control board comes in a complete box, providing a convenient solution for your swing gate control needs. With advanced features and functionalities, it offers customization options to meet your specific requirements. With its durable construction and precise control capabilities, it ensures reliable performance and long-lasting operation.

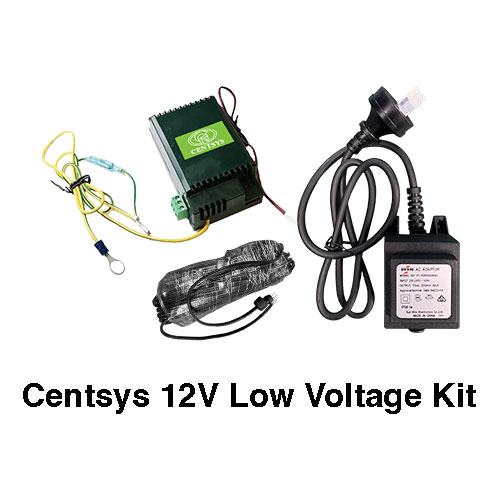

12V Low Voltage Kit for Centsys D5 Evo and Centsys Vantage 400 & 500

Kit includes:

• Internal Transformer
• External Transformer
• 30m Cable

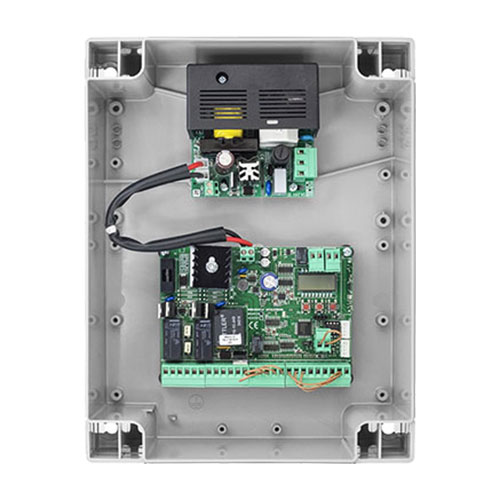

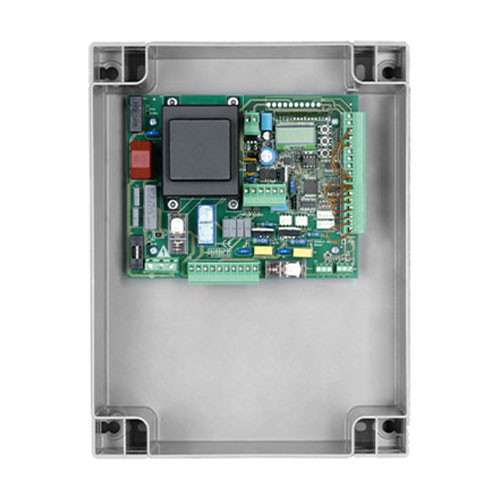

BRAINY24 PLUS

APPLICATION

1 or 2 actuators for swing gates, opposed sliding gates, and industrial folding doors with a maximum of 2 sections

CONTROL UNIT POWER SUPPLY

115 or 230 Vac (selectable) 50/60Hz

MOTORS POWER SUPPLY

24 Vdc / 240 W + 240 W

MAIN FUNCTIONS

Integrated LCD display | Integrated radio receiver 433.92 MHz 64 codes and 3 encoding systems (Advanced Rolling Code, Rolling Code, Fixed Code | Removable terminal boards | Separate limit switch inputs for each motor | Open, close, step-by-step and pedestrian inputs | Separate opening-closing and closing photocell inputs | Stop input | Input for N.C. or 8K2 sensitive edge | Encoder Input for 24 Vdc hydraulic motors | Output for 12 Vdc electric lock | 2 outputs configurable as open gate indicator, second radio channel, courtesy light, zone light or photocell testing, flashing light, open gate alarm, NC input alarm | Output for connecting flashing light | Autoset of operating parameters | Separate electronic torque adjustment for each motor | Separate electronic speed adjustment for each motor | Anti-crushing safety through amperometric detection and encoder management | Separate slowdowns for each motor in opening and closing phases | Set up for connection to KNX systems via X.BE card (optional) | Designed for managing, configuring, diagnosing and updating firmware through the BeUP app, using the PRO.UP accessory | Advantouch system to configure parameters and manage radio transmitters | Number of manoeuvres | Programming access password | Maintenance warning | Built-in battery charger

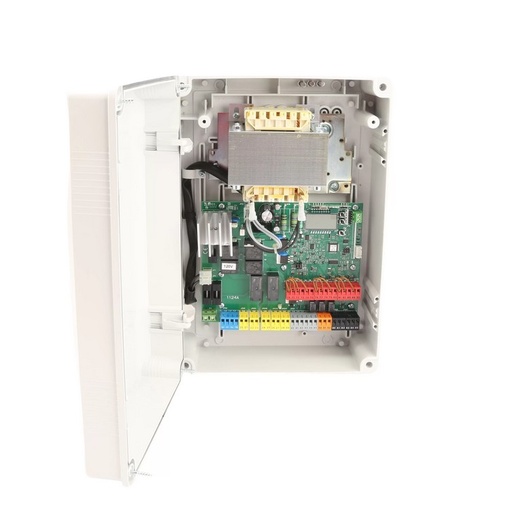

APPLICATION

1 or 2 actuators for swing gates, opposed sliding gates, hydraulic operators, and industrial folding doors

CONTROL UNIT POWER SUPPLY

230 Vac - 50/60 Hz

MOTORS POWER SUPPLY

230 Vac / 600 W + 600 W

MAIN FUNCTIONS

Integrated LCD display | Integrated 433.92 MHz 64-code radio receiver with 3 encoding systems (Advanced Rolling Code, Rolling Code, Fixed Code) | Removable terminal boards | Automatic, semi-automatic and deadman’s logic | Encoder input to detect obstacles | Separate limit switch inputs for each motor | Open, close, pedestrian, step by step and stop inputs | Separate photocell inputs in opening-closing and in closing phases | Input for N.C or 8K2 sensitive edge | Output for electric lock 230 Vac and 12 Vac/dc | Outputs for configuration as gate open indicator, service light, second radio channel and photocell testing | Output for connecting flashing light | Autosetting of operating parameters (with motors equipped with encoder) | Separate electronic torque adjustment for each motor and operating times | Adjustable slow-downs | Advantouch system to configure parameters and manage radio transmitters| Number of maneuvers | Programming access password | Maintenance warning

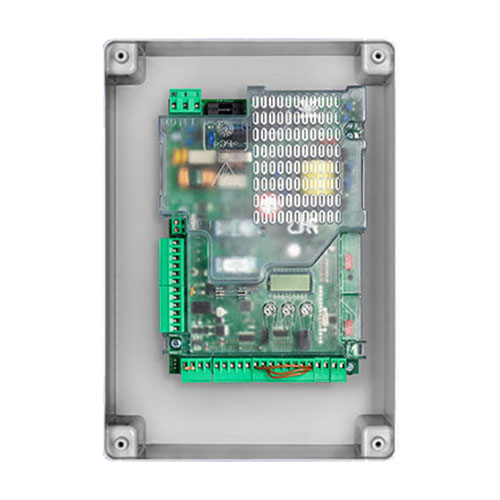

APPLICATION

1 or 2 actuators for swing gates

CONTROL UNIT POWER SUPPLY

100 ÷ 250 Vac - 50/60 Hz

MOTORS POWER SUPPLY

24 Vdc / 130 W + 130 W

POWER CONSUMPTION IN STAND-BY

0.8 W

MAIN FUNCTIONS

Integrated LCD display | Integrated radio receiver 433.92 MHz 512 codes with ARC coding | Removable terminal boards | Separate limit switch inputs for each motor | Automatic, semi-automatic and Deadman logic | Separate encoder inputs for each motor | Open, close, step-by-step and pedestrian inputs | Input for programmable photocell active in opening-closing and photocell active only in closing | Input for N.C. or 8k2 sensitive edge | Output for electric lock 12/24 Vdc | Two outputs configurable as open gate signal light, courtesy light, zone light, second radio channel, photocell testing, flashing light, alarm contact | Autoset operating parameters | Separate electronic torque adjustment for each motor| Anti-crushing safety through amperometric detection and encoder management | Electronic torque adjustment with automatic calculation for each point of the stroke (STC SYSTEM) | Separate adjustable slowdowns for each motor | Possibility of encoder- or time-based operation (managed through virtual encoder) even independently between the two motors | Built-in energy saving system ESA+ | Set up for connection to KNX systems via X.BE card (optional) | Designed for managing, configuring, diagnosing and updating firmware through the BeUP app, using the PRO.UP accessory | Advantouch system to configure parameters and manage radio transmitters | Number of manoeuvres | Programming access password | Maintenance warning | Built-in battery charger

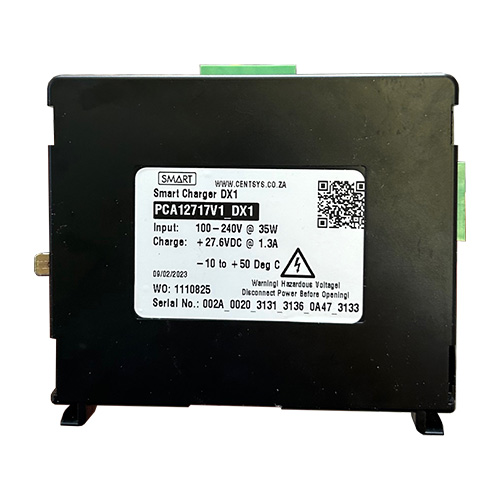

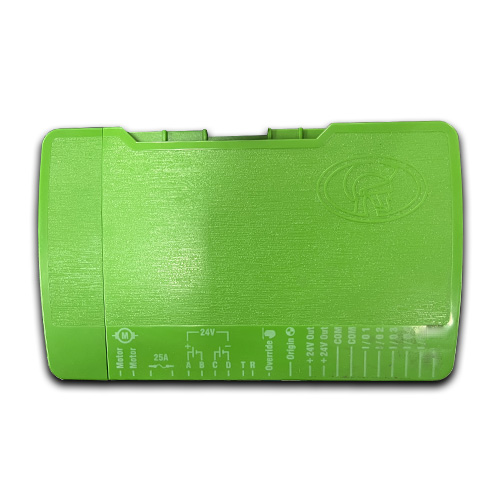

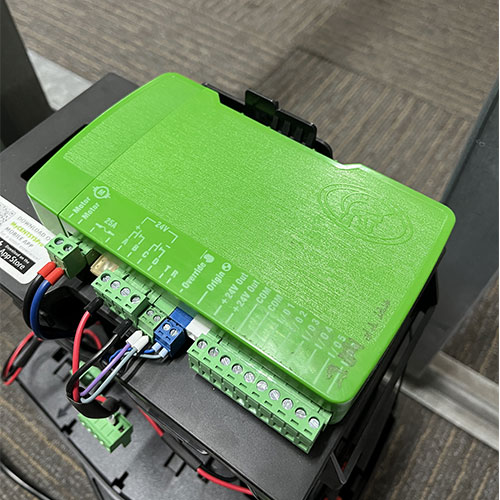

DX Smart Control Board is suitable for D5, D10, and D20 Smart

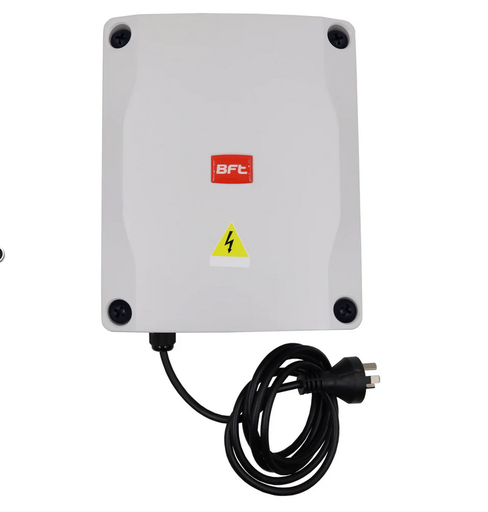

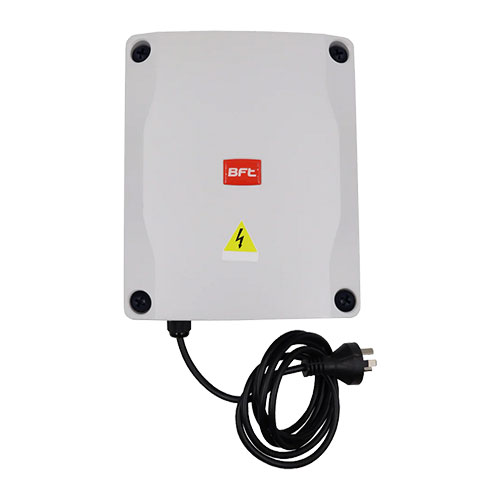

The ET802 Transformer for BFT Deimos A600/Virgo is a reliable and essential component designed for gate systems. This transformer is specifically designed for use with the BFT Deimos A600 and Virgo models, providing the necessary power supply for their operation. It ensures the proper functioning and performance of the gate system by converting the electrical input to the appropriate voltage required by the motor. The ET802 transformer offers a reliable and efficient power solution, allowing the gate system to operate smoothly. Upgrade your BFT Deimos A600 or Virgo gate system with the ET802 Transformer for reliable and consistent power supply.

The ET800 Transformer for BFT Deimos A400 is a reliable and essential component designed for gate systems. This transformer is specifically designed for use with the BFT Deimos A400 model, providing the necessary power supply for its operation. It ensures the proper functioning and performance of the gate system by converting the electrical input to the appropriate voltage required by the motor. The ET800 transformer offers a reliable and efficient power solution, allowing the gate system to operate smoothly. Upgrade your BFT Deimos A400 gate system with the ET800 Transformer for reliable and consistent power supply.

Transformer Specification Sheet Part Number: [ET800] Description: 50VA Power Transformer Electrical Specifications:Primary Voltage: [Primary Voltage, e.g., 240VAC] Secondary Voltage: ~28VAC VA Rating: 50VA Frequency: 50/60Hz Fuse Rating: 0.8A

The transformer is a replacement part for the BFT Ares gate control board. It is designed to provide the necessary power to the control board and ensure the smooth operation of the gate system. This transformer is made from high-quality materials and is built to last, making it a reliable and long-lasting solution for your gate control needs. With its easy installation process, you can quickly replace your old transformer and get your gate system up and running in no time. Keep your BFT Ares gate control board running smoothly with the transformer.

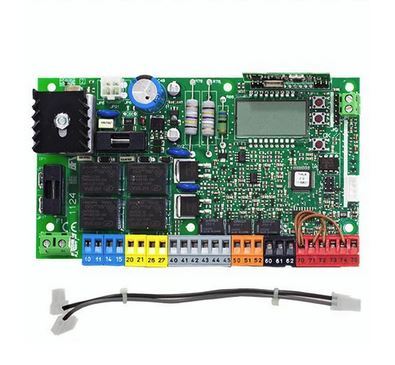

The GM322 Thalia Light BFT Control Board is a high-quality control board designed for BFT Thalia Light gate motors. This control board ensures reliable and efficient operation of your gate system, providing smooth functionality and optimal performance. It is specifically designed for compatibility with BFT Thalia Light gate motors, ensuring easy installation and integration. The GM322 control board offers advanced features and functionalities, allowing for customization according to your specific requirements. With its durable construction and precise control capabilities, it delivers reliable performance and long-lasting operation. Upgrade your BFT Thalia Light gate system with the GM322 Thalia Light BFT Control Board for enhanced control and functionality.

The GM321 Thalia Light BFT Control Board is a reliable and efficient control board designed for gate automation systems. This control board comes with a convenient box for easy installation and protection. It is compatible with BFT gate motors and provides advanced control features for smooth and secure gate operation. The Thalia Light control board offers various settings and adjustments to customize the gate's behavior, such as gate speed, obstacle detection, and safety features. With its user-friendly interface, it allows for easy programming and monitoring of gate operations. Enhance the functionality and performance of your gate system with the GM321 Thalia Light BFT Control Board.

Centsys VECTOR - control board (with buttons and screen) for Vantage 400 & 500

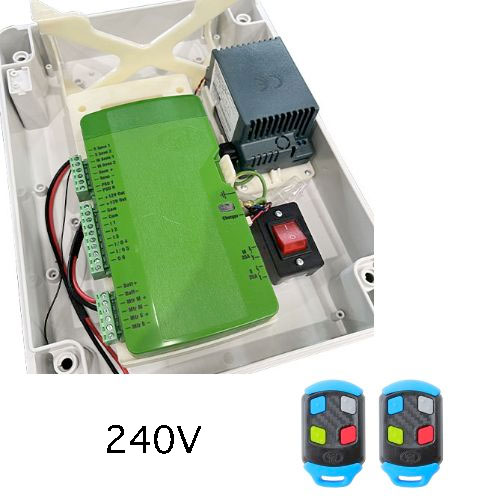

The GM317 Centsys VX Smart Box is a high-quality control board designed for swing gate systems. This control board offers reliable and efficient control, ensuring smooth operation and optimal performance of your swing gate. It is compatible with Centsys Vantage, allowing for easy installation and integration. The GM317 control board comes in a complete box, providing a convenient solution for your swing gate control needs. With advanced features and functionalities, it offers customization options to meet your specific requirements. With its durable construction and precise control capabilities, it ensures reliable performance and long-lasting operation.

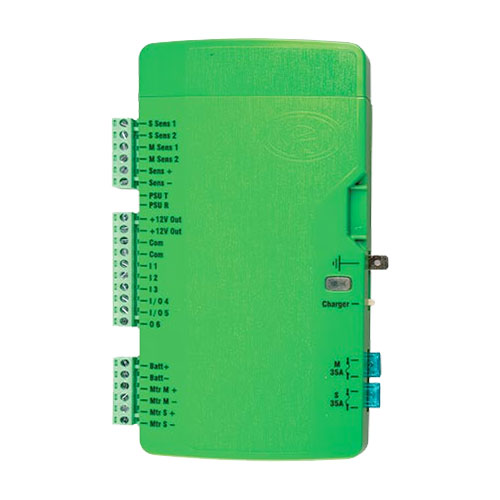

The Centsys VX Smart is designed as a reliable replacement control board in swing gate systems. With this control board, you can ensure smooth operation and optimal performance of your swing gate. It offers compatibility with Vect Centsys control boards, making installation and integration seamless. The GM318 control board provides advanced features and functionalities, allowing for customization according to your specific requirements. With its durable construction and precise control capabilities, it delivers reliable performance and long-lasting operation. Upgrade your swing gate system with the GM318 Replacement Swing Gate Control Board for enhanced control and functionality.
