GCHC105

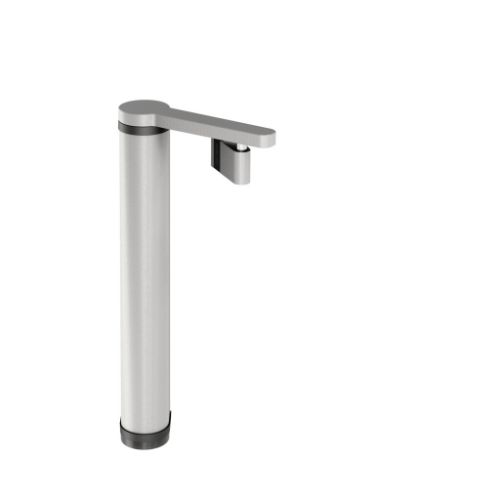

Locinox VENUS Motorised Gate Closer with Compact Arm for Pesdestrian Swing Gates with 180° Hinges - Silver

VENUS is a plug-and-play motorised gate closer for pedestrian swing gates. The compact all-in-one gate operator can easily be installed on any type of post and hinge thanks to 3 different arm types. The innovative motor’s performance remains unaffected by manual force. When combined with access control, the Venus also works as a low-energy gate opener.

The VENUS motorised gate closer is specifically designed for pedestrian gates up to 1400 mm and 100 kg.

VENUS is a brushless motor specially designed for semi-manual or fully automated outdoor use.


WHAT MAKES IT SPECIAL?

• Safe, reliable operation thanks to low-energy speed control and integrated obstacle detection.

• All-in-one gate operator with integrated power supply and circuit board, input/output connectors and indicator light.

• Easy setup with free mobile app



Specifications:

  • Motorised gate closer with integrated electronics
  • 150 Nm torque
  • Fits on 80 mm profiles
  • For pedestrian gates up to 1400 mm wide and 100 kg
  • Steel gear box
  • Anodized aluminium cover
  • 3 different arm options for installation
  • Easy mounting with Quick-Fix
  • Compact and vandal-proof design
  • Input main Power supply: 115V AC ±10% (60Hz) to 230V AC ±10% (50Hz), Max 5A
  • Motor voltage: 24V DC
  • Integrated warning light
  • Automated obstacle detection with reverse function
  • Brushless motor: long lifespan and intensive usage
  • Reversible motor with backdrivability for easy manual use – to be combined with a lock

PERFORMANCE

  • Specifically developed for outdoor use.
  • Weatherproof and dustproof.
  • IP55 rated.
  • Maintenance-free (no need to lubricate or add oil). Always verify if there are specific safety regulations by local authorities.
  • 2 year manufacturer’s warranty.
  • Tested on 500,000 movements.

INSTALLATION

  • For gate profiles of at least 80 mm, with a material thickness of at least 2 mm steel
  • Suitable for both left and right turning gates.
  • Requires a strike to determine the zero position.
  • No safety sensors required thanks to the standard low energy mode.
  • 3D installation video is available in an app.
  • 3 configurable inputs for connecting access control, security sensors, etc.
  • 3 configurable outputs for connecting an electric strike, electromagnetic strike plate, warning lamp or ambient lamp and a fixed 24V DC power supply.

CONFIGURATION

  • Programming via an app
  • Step-by-step guide with video instructions available within the app
  • App is available for ANDROID and IOS

MATERIAL

  • Anodised aluminium housing.
  • Corrosion resistance of 500 hours in salt spray test, according to ISO9227.
  • UV-resistant and colour-fast.

VIDEOS




DOCUMENTS


Installation Manual



1,864.00 1864.0 AUD
GCHC104

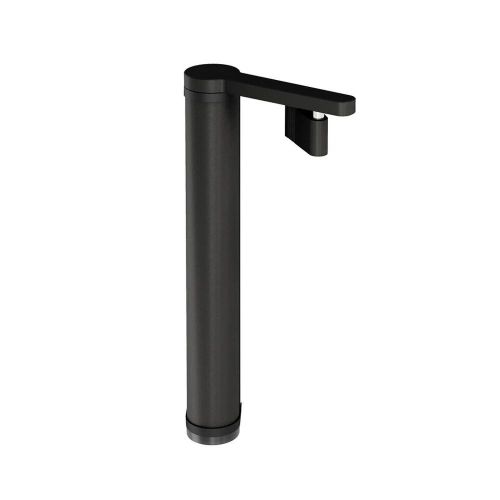

Locinox VENUS Motorised Gate Closer with Compact Arm for Pesdestrian Swing Gates with 180° Hinges - Black

VENUS is a plug-and-play motorised gate closer for pedestrian swing gates. The compact all-in-one gate operator can easily be installed on any type of post and hinge thanks to 3 different arm types. The innovative motor’s performance remains unaffected by manual force. When combined with access control, the Venus also works as a low-energy gate opener.

The VENUS motorised gate closer is specifically designed for pedestrian gates up to 1400 mm and 100 kg.

VENUS is a brushless motor specially designed for semi-manual or fully automated outdoor use.


WHAT MAKES IT SPECIAL?

• Safe, reliable operation thanks to low-energy speed control and integrated obstacle detection.

• All-in-one gate operator with integrated power supply and circuit board, input/output connectors and indicator light.

• Easy setup with free mobile app



Specifications:

  • Motorised gate closer with integrated electronics
  • 150 Nm torque
  • Fits on 80 mm profiles
  • For pedestrian gates up to 1400 mm wide and 100 kg
  • Steel gear box
  • Anodized aluminium cover
  • 3 different arm options for installation
  • Easy mounting with Quick-Fix
  • Compact and vandal-proof design
  • Input main Power supply: 115V AC ±10% (60Hz) to 230V AC ±10% (50Hz), Max 5A
  • Motor voltage: 24V DC
  • Integrated warning light
  • Automated obstacle detection with reverse function
  • Brushless motor: long lifespan and intensive usage
  • Reversible motor with backdrivability for easy manual use – to be combined with a lock

PERFORMANCE

  • Specifically developed for outdoor use.
  • Weatherproof and dustproof.
  • IP55 rated.
  • Maintenance-free (no need to lubricate or add oil). Always verify if there are specific safety regulations by local authorities.
  • 2 year manufacturer’s warranty.
  • Tested on 500,000 movements.

INSTALLATION

  • For gate profiles of at least 80 mm, with a material thickness of at least 2 mm steel
  • Suitable for both left and right turning gates.
  • Requires a strike to determine the zero position.
  • No safety sensors required thanks to the standard low energy mode.
  • 3D installation video is available in an app.
  • 3 configurable inputs for connecting access control, security sensors, etc.
  • 3 configurable outputs for connecting an electric strike, electromagnetic strike plate, warning lamp or ambient lamp and a fixed 24V DC power supply.

CONFIGURATION

  • Programming via an app
  • Step-by-step guide with video instructions available within the app
  • App is available for ANDROID and IOS

MATERIAL

  • Anodised aluminium housing.
  • Corrosion resistance of 500 hours in salt spray test, according to ISO9227.
  • UV-resistant and colour-fast.

VIDEOS




DOCUMENTS


Installation Manual



1,864.00 1864.0 AUD
GCHC103

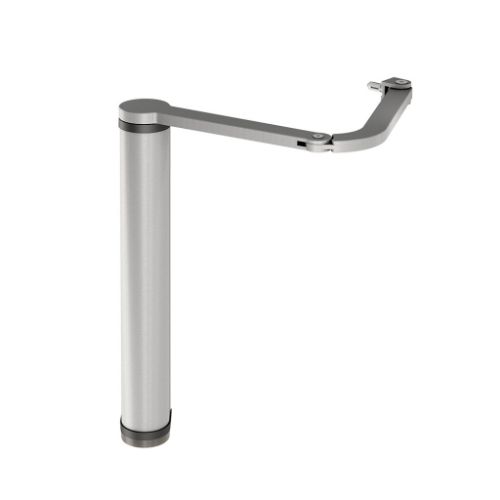

Locinox VENUS Motorised Gate Closer with Articulated Arm for Pesdestrian Swing Gates - Silver

VENUS is a plug-and-play motorised gate closer for pedestrian swing gates. The compact all-in-one gate operator can easily be installed on any type of post and hinge thanks to 3 different arm types. The innovative motor’s performance remains unaffected by manual force. When combined with access control, the Venus also works as a low-energy gate opener.

The VENUS motorised gate closer is specifically designed for pedestrian gates up to 1400 mm and 100 kg.

VENUS is a brushless motor specially designed for semi-manual or fully automated outdoor use.


WHAT MAKES IT SPECIAL?

• Safe, reliable operation thanks to low-energy speed control and integrated obstacle detection.

• All-in-one gate operator with integrated power supply and circuit board, input/output connectors and indicator light.

• Easy setup with free mobile app



Specifications:

  • Motorised gate closer with integrated electronics
  • 150 Nm torque
  • Fits on 80 mm profiles
  • For pedestrian gates up to 1400 mm wide and 100 kg
  • Steel gear box
  • Anodized aluminium cover
  • 3 different arm options for installation
  • Easy mounting with Quick-Fix
  • Compact and vandal-proof design
  • Input main Power supply: 115V AC ±10% (60Hz) to 230V AC ±10% (50Hz), Max 5A
  • Motor voltage: 24V DC
  • Integrated warning light
  • Automated obstacle detection with reverse function
  • Brushless motor: long lifespan and intensive usage
  • Reversible motor with backdrivability for easy manual use – to be combined with a lock

PERFORMANCE

  • Specifically developed for outdoor use.
  • Weatherproof and dustproof.
  • IP55 rated.
  • Maintenance-free (no need to lubricate or add oil). Always verify if there are specific safety regulations by local authorities.
  • 2 year manufacturer’s warranty.
  • Tested on 500,000 movements.

INSTALLATION

  • For gate profiles of at least 80 mm, with a material thickness of at least 2 mm steel
  • Suitable for both left and right turning gates.
  • Requires a strike to determine the zero position.
  • No safety sensors required thanks to the standard low energy mode.
  • 3D installation video is available in an app.
  • 3 configurable inputs for connecting access control, security sensors, etc.
  • 3 configurable outputs for connecting an electric strike, electromagnetic strike plate, warning lamp or ambient lamp and a fixed 24V DC power supply.

CONFIGURATION

  • Programming via an app
  • Step-by-step guide with video instructions available within the app
  • App is available for ANDROID and IOS

MATERIAL

  • Anodised aluminium housing.
  • Corrosion resistance of 500 hours in salt spray test, according to ISO9227.
  • UV-resistant and colour-fast.

VIDEOS




DOCUMENTS


Installation Manual



1,864.00 1864.0 AUD
GCHC102

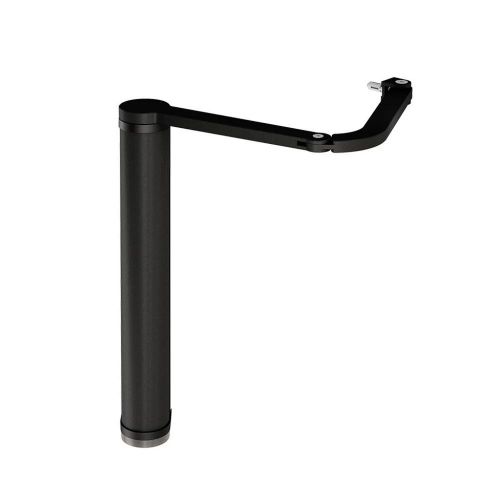

Locinox VENUS Motorised Gate Closer with Articulated Arm for Pesdestrian Swing Gates - Black

VENUS is a plug-and-play motorised gate closer for pedestrian swing gates. The compact all-in-one gate operator can easily be installed on any type of post and hinge thanks to 3 different arm types. The innovative motor’s performance remains unaffected by manual force. When combined with access control, the Venus also works as a low-energy gate opener.

The VENUS motorised gate closer is specifically designed for pedestrian gates up to 1400 mm and 100 kg.

VENUS is a brushless motor specially designed for semi-manual or fully automated outdoor use.


WHAT MAKES IT SPECIAL?

• Safe, reliable operation thanks to low-energy speed control and integrated obstacle detection.

• All-in-one gate operator with integrated power supply and circuit board, input/output connectors and indicator light.

• Easy setup with free mobile app



Specifications:

  • Motorised gate closer with integrated electronics
  • 150 Nm torque
  • Fits on 80 mm profiles
  • For pedestrian gates up to 1400 mm wide and 100 kg
  • Steel gear box
  • Anodized aluminium cover
  • 3 different arm options for installation
  • Easy mounting with Quick-Fix
  • Compact and vandal-proof design
  • Input main Power supply: 115V AC ±10% (60Hz) to 230V AC ±10% (50Hz), Max 5A
  • Motor voltage: 24V DC
  • Integrated warning light
  • Automated obstacle detection with reverse function
  • Brushless motor: long lifespan and intensive usage
  • Reversible motor with backdrivability for easy manual use – to be combined with a lock

PERFORMANCE

  • Specifically developed for outdoor use.
  • Weatherproof and dustproof.
  • IP55 rated.
  • Maintenance-free (no need to lubricate or add oil). Always verify if there are specific safety regulations by local authorities.
  • 2 year manufacturer’s warranty.
  • Tested on 500,000 movements.

INSTALLATION

  • For gate profiles of at least 80 mm, with a material thickness of at least 2 mm steel
  • Suitable for both left and right turning gates.
  • Requires a strike to determine the zero position.
  • No safety sensors required thanks to the standard low energy mode.
  • 3D installation vid
