Motor Accessories

APPLICATION

1 or 2 actuators for swing gates, opposed sliding gates, hydraulic operators, and industrial folding doors

CONTROL UNIT POWER SUPPLY

230 Vac - 50/60 Hz

MOTORS POWER SUPPLY

230 Vac / 600 W + 600 W

MAIN FUNCTIONS

Integrated LCD display | Integrated 433.92 MHz 64-code radio receiver with 3 encoding systems (Advanced Rolling Code, Rolling Code, Fixed Code) | Removable terminal boards | Automatic, semi-automatic and deadman’s logic | Encoder input to detect obstacles | Separate limit switch inputs for each motor | Open, close, pedestrian, step by step and stop inputs | Separate photocell inputs in opening-closing and in closing phases | Input for N.C or 8K2 sensitive edge | Output for electric lock 230 Vac and 12 Vac/dc | Outputs for configuration as gate open indicator, service light, second radio channel and photocell testing | Output for connecting flashing light | Autosetting of operating parameters (with motors equipped with encoder) | Separate electronic torque adjustment for each motor and operating times | Adjustable slow-downs | Advantouch system to configure parameters and manage radio transmitters| Number of maneuvers | Programming access password | Maintenance warning

BRAINY24 PLUS

APPLICATION

1 or 2 actuators for swing gates, opposed sliding gates, and industrial folding doors with a maximum of 2 sections

CONTROL UNIT POWER SUPPLY

115 or 230 Vac (selectable) 50/60Hz

MOTORS POWER SUPPLY

24 Vdc / 240 W + 240 W

MAIN FUNCTIONS

Integrated LCD display | Integrated radio receiver 433.92 MHz 64 codes and 3 encoding systems (Advanced Rolling Code, Rolling Code, Fixed Code | Removable terminal boards | Separate limit switch inputs for each motor | Open, close, step-by-step and pedestrian inputs | Separate opening-closing and closing photocell inputs | Stop input | Input for N.C. or 8K2 sensitive edge | Encoder Input for 24 Vdc hydraulic motors | Output for 12 Vdc electric lock | 2 outputs configurable as open gate indicator, second radio channel, courtesy light, zone light or photocell testing, flashing light, open gate alarm, NC input alarm | Output for connecting flashing light | Autoset of operating parameters | Separate electronic torque adjustment for each motor | Separate electronic speed adjustment for each motor | Anti-crushing safety through amperometric detection and encoder management | Separate slowdowns for each motor in opening and closing phases | Set up for connection to KNX systems via X.BE card (optional) | Designed for managing, configuring, diagnosing and updating firmware through the BeUP app, using the PRO.UP accessory | Advantouch system to configure parameters and manage radio transmitters | Number of manoeuvres | Programming access password | Maintenance warning | Built-in battery charger

Genuine NICE ERA INTI 2 Button Remote (Black Color) Garage Door / Gate Remote

Genuine Era Inti transmitter 2 channels  433.92 MHz ( Roll code transmit )

The GM852 Genuine Nice Era INTI 2-Button Remote in black color is a premium remote control designed for garage doors and gates. With its sleek and stylish design, this remote offers both functionality and aesthetics. The GM852 features two buttons for easy and convenient control of your garage door or gate. Its compact size allows for easy storage and portability. Equipped with reliable signal transmission technology, this remote ensures accurate and responsive commands, providing seamless operation of your garage door or gate. Upgrade your access control system with the GM852 Genuine Nice Era INTI Remote and enjoy secure and convenient wireless control.

Genuine NICE ERA INTI 2 Button Remote (Black Color) Garage Door / Gate Remote

Genuine Era Inti transmitter 2 channels  433.92 MHz ( Roll code transmit )

The GM852 Genuine Nice Era INTI 2-Button Remote in black color is a premium remote control designed for garage doors and gates. With its sleek and stylish design, this remote offers both functionality and aesthetics. The GM852 features two buttons for easy and convenient control of your garage door or gate. Its compact size allows for easy storage and portability. Equipped with reliable signal transmission technology, this remote ensures accurate and responsive commands, providing seamless operation of your garage door or gate. Upgrade your access control system with the GM852 Genuine Nice Era INTI Remote and enjoy secure and convenient wireless control.

12V Low Voltage Kit for Centsys D5 Evo and Centsys Vantage 400 & 500

Kit includes:

• Internal Transformer
• External Transformer
• 30m Cable


The Low Voltage Centsys VX Smart Box is a high-quality control board designed for swing gate systems. This control board offers reliable and efficient control, ensuring smooth operation and optimal performance of your swing gate. It is compatible with Centsys Vantage, allowing for easy installation and integration. The control board comes in a complete box, providing a convenient solution for your swing gate control needs. With advanced features and functionalities, it offers customization options to meet your specific requirements. With its durable construction and precise control capabilities, it ensures reliable performance and long-lasting operation.

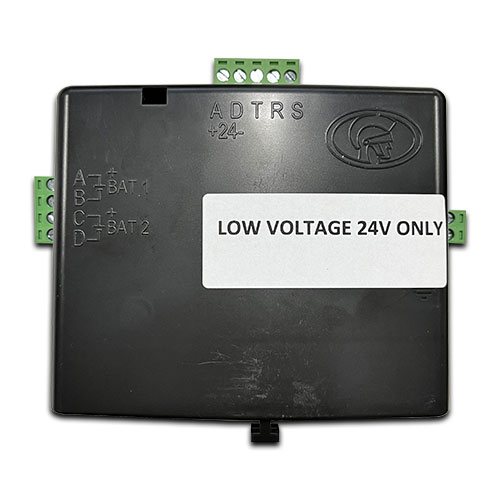

24V Low Voltage Kit for Centsys D5, D10, D20 Smart

Kit includes:

• Internal Transformer
• External Transformer
• 30m Cable
