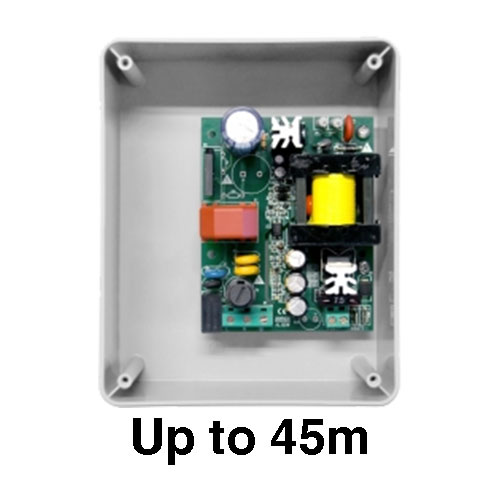

7Amp low voltage box with built-in transformer.

Up to 45m distance

Works with all Beninca Control Boards with screen.

For SW series (without screen), an adapter is required.

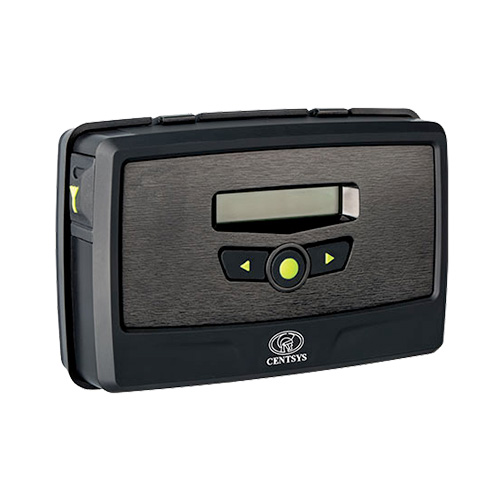

G-ULTRA – The ultimate GSM solution

With the G-ULTRA, your entire world fits into the palm of your hand, giving you complete control at your fingertips. This is the evolution of GSM technology, designed to offer you the ultimate flexible, mobile-based access control and monitoring solution and allowing you to transcend archaic notions of what GSM can achieve.

Unbridled. Unchained. Unmatched. Ultra.

Main features:

• Monitor up to four electrical devices by receiving push notifications
• Use the outputs to control up to six devices from your phone (two additional onboard relays)
• Intelligent monitoring of CENTSYS gate motors’ status outputs (for example gate opening, gate left open, etc.)
• Suitable for a wide variety of access automation applications
• Time-barring and visitor control – ideal for B & Bs and guesthouses
• LCD screen for easy access to diagnostics
• Instant activation via G-REMOTE mobile app
• Easy setup via G-WEB PLUS online interface

Devices that can be monitored via the inputs

• House alarm: activated
• Electric fence: alarm triggered
• Geyser status: On/Off
• Mains power: On/Off
• Fridge aboard your boat: On/Off
• Borehole pump status: Running/Off
• Water reservoir: Full/Empty
• Entrance gate status: Open/Pedestrian

 Devices that can be controlled via the outputs

• Automated entrance gates
• Geysers
• Appliances, e.g. the fridge aboard your boat
• Air conditioners
• Borehole pumps
• Lighting systems
• Irrigation and water features
• Alarm systems

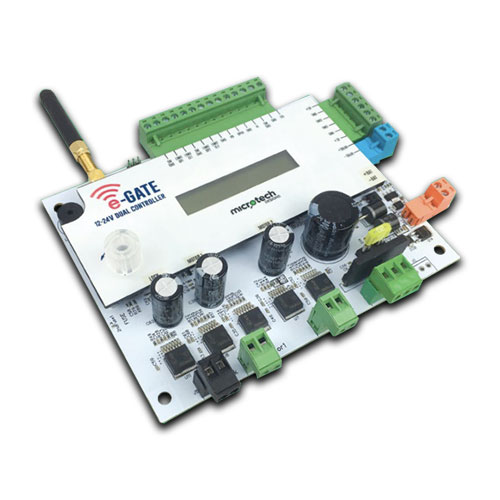

FEATURES

• 16-character x 2-line graphic display
• Easy to use menu functions
• Bidirectional control – allowing two-way communication between the controller and other Microtech devices such as e-Loops, e-Keypads and e-Remotes
• Multi-voltage 12-24V AC DC with solar selectable option
• Multi Programs - Encoder, End Stops, Limit switch 2 wire and Limit Switch 5 wire, compatible with Microtech, ATA, FAAC, Arco, Letron, Smart Openers, Powertech and many more
• 200 remote storage with remote number allocation, allowing you to log each remote to a unit number, simplifying the management process
• Also stores 4 x e-Loops 4 x e-Keypads and 4 x e-Entry buttons
• Unique lock out function that can disable auto-close and selected devices using the lock and unlock function on the e-Remote
• Unique Remote button allocation allows individual buttons to be set as Push Button, Open, Close, Pedestrian or courtesy light activation

Instruction

240V Input - Internal Transformer for D5, D10, and D20 Smart

Merlin Wireless Security Keypad E850M (IP55)

Features:

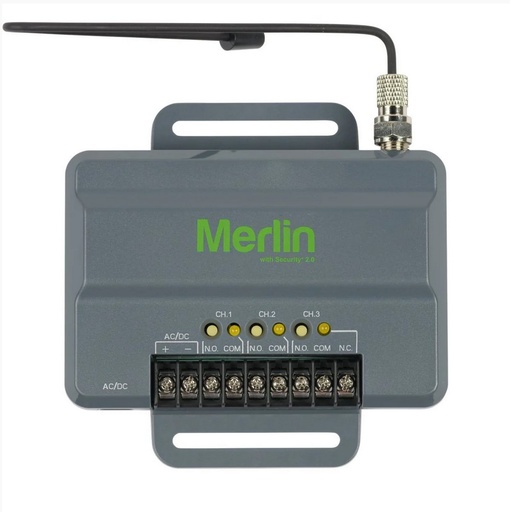

The receiver can be used as a single or three channel receiver to control up to commercial operators or residential door openers. The receiver can also be used with a 3-button remote control to operate the OPEN, CLOSE, and STOP feature on a commercial door operator. The receiver is not for use with MyQ enabled garage door openers or devices.

Security+ 2.0 technology provides improved security and transmitter range.

Each channel is compatible with a specified number of remote controls and keypads. Refer to the list below:

• CH1: 50 remote controls and 2 keypads
• CH2: 20 remote controls and 2 keypads
• CH3: 20 remote controls and 2 keypads
• 3-Channel Universal Receiver Manual


Beninca Swing Gate Motor TOM5024E Motor only

The TOM series of motors is made by Italian company Beninca which translates into quality, reliability and performance. The TOM range uses linear shaft technology for added length and strength and 24 volt DC motors.

Irreversible 24 Vdc electromechanical geared motor for intensive use, equipped with encoder | The TRUST24 control unit ensures power consumption in standby mode of < 0.8 W |The encoder device ensures maximum safety and precision in the gate moving phases | Amperometric sensor obstacle detection system to prevent crushing | Optional battery powered operation | Reliable and innovative gear motor, thanks to the 2 adjustable mechanical stops in opening and closing accessible from above and positioned under the metal cover of the shaft | Ideal for the automation of any type of swing gate thanks also to the compact footprints (only 96 mm width) and screw-in brackets | The 45° inclination of the wiring cable allows the distance from the ground to be reduced to a minimum | The rear and front brackets, aligned on the same axis, enable the better distribution of loads by optimizing the lifespan of the actuator | The worm screw protected by wiper ring and stainless steel shaft make it suitable for dusty or sandy environments, or places with aggressive weather conditions | Easy access release from above

--

24 Vdc | intensive use

• Irreversible 24 Vdc electromechanical gear motor for intensive use equipped with encoder

• The TRUST24 control unit ensures power consumption in standby mode of < 0.8 W

• The encoder guarantees maximum safety and precision while the gate is moving

• Amperometric sensor obstacle detection system to prevent crushing

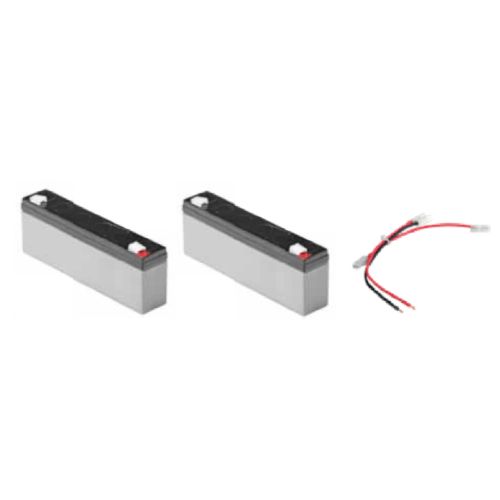

• Possibility of battery operation

Additional information

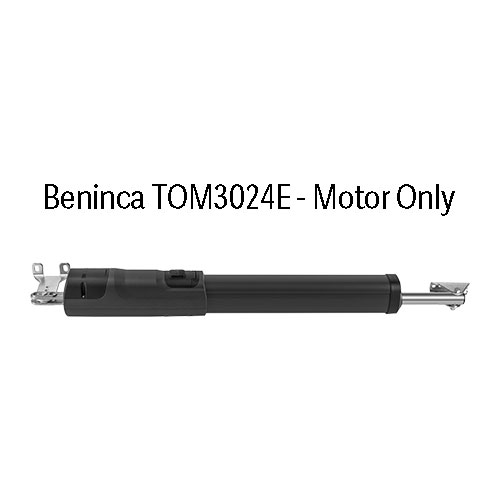

Beninca Swing Gate Motor TOM3024E Motor only

The TOM series of motors is made by Italian company Beninca which translates into quality, reliability and performance. The TOM range uses linear shaft technology for added length and strength and 24 volt DC motors.

24 VOLT ELECTRIC GATE OPERATOR – RESIDENTIAL & COMMERCIAL – 3.0 METRE LEAF

The powerful 24 volt swing gate electro mechanical operator. What makes TOM so special (and yes a little more expensive than most) is just below the top shaft cover. Easily accessible and adjustable mechanical stops. That along with ability to wire encoders makes the TOM highly adaptable to difficult sites where physical stops may be a problem to install. The TOM is a non reversible operator with key operated manual override but one of the main benefits of the 24 volt motor is the ability to use battery backup meaning you may never have to use the manual override key.

Reliable and innovative gear motor, thanks to the 2 adjustable mechanical stops in opening and closing accessible from above and positioned under the metal cover of the shaft. Ideal for the automation of any type of swing gate thanks also to the compact footprints (only 96 mm width) and screw-in brackets. The 45° inclination of the wiring cable allows the distance from the ground to be reduced to a minimum. The rear and front brackets, aligned on the same axis, enable the better distribution of loads by optimizing the lifespan of the actuator. The worm screw protected by wiper ring and stainless steel shaft make it suitable for dusty or sandy environments, or places with aggressive weather conditions

It is possible to use a variety of control boards to control the TOM but the factory designed board is the BRAINY which can be used as a one or two motor controller with a host of programmable parameters.

•At just 96 cm wide, the TOM telescopic linear motor for swing gates to 3 metres long.

•TOM features adjustable mechanical stops for opening and closing, patented FACE gears and a bronze release wheel with customised key.

•The 24 Vdc version, also guarantees standby power consumption of less than 0.8 W.

HIGH-QUALITY COMPONENTS
The release wheel is made of bronze to maximise its life, reliability, and operation. The worm gear is protected by a wiper seal and a stainless-steel shaft, making it suitable for use in dusty, sandy or harsh environments.

COMPACT DESIGN
Thanks to its compact dimensions, just 96 mm wide, TOM adapts to any situation. The 45° inclination of the cable also means that the operator can be installed flush with the floor.

EASY ACCESS TO MECHANICAL STOPS
The adjustable stops at the top are accessible once the metal cover has been slid back. These stops slide on rails and can be easily fixed in the desired position using screws.

FASTENERS DESIGNED FOR MAXIMUM ADAPTABILITY
The rear articulation, which can be fixed in three positions, reduces space requirements by adjusting for any misalignment of the panel during movement. The alignment of the front and rear brackets also ensures better load distribution by reducing bending, guaranteeing axial thrust and optimising operator life.

Additional information

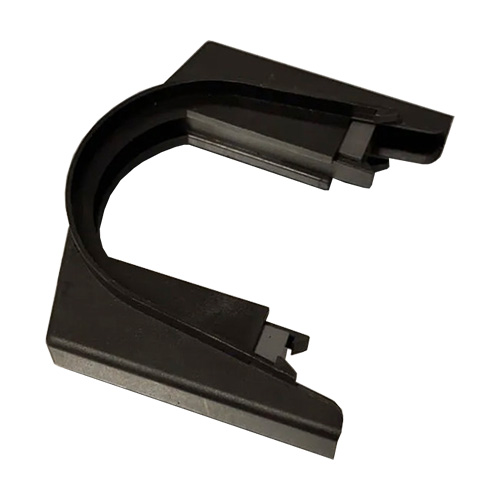

The BFT Phobos Magnetic Limit Switch is a horseshoe-shaped device that fits around the gate's mounting bracket (external of the motor). If your Phobos motor is failing to stop at its programmed limits, this limit switch is likely broken or out of place. This small but crucial component ensures your gate opens and closes correctly.

BFT  IGEA 2609227 Release kit

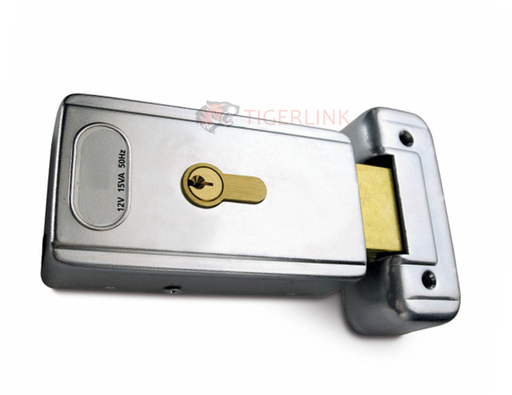

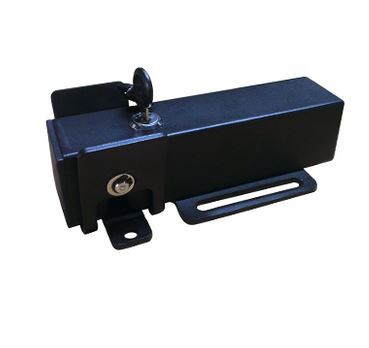

VIRO Electric Lock 12V Horizontal Automatic Electric Gate Lock for Automated Swing Gates

Electrical connections:

• Open the electric lock and connect the terminal (11) with the electric lock output on the automation’s control unit;
• For connections, use at least 1 mm2 wire suitable for external use.

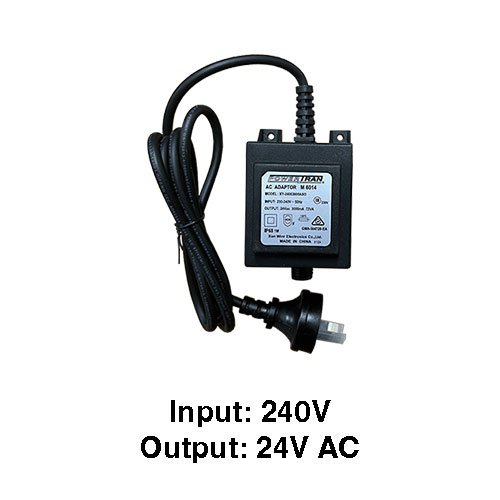

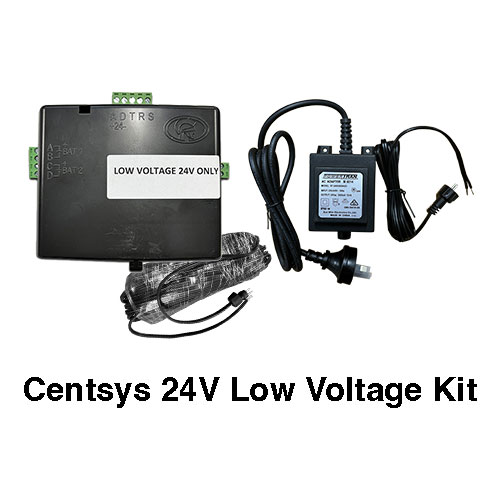

External Transformer for Low Voltage Centsys D5, D10, D20 Smart

(Without 30m cable)

Input: 240V

Output: 24V AC

IP68
