Locinox Gate Locks

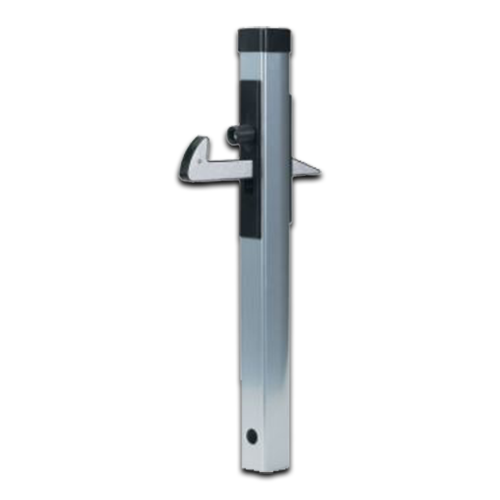

Aluminium Gate Catcher - Under Gate

Aluminium gate catcher. The adjustable catch hook can easily be reversed. The stop rubber and polyamide catch hook avoid damaging the gate frame. Very fast and strong fixing in concrete. Catches gateframes from 40 mm till 60 mm. Simple height adjustment of 40 mm.

How it works:

To release the gate, flick the latch up with your foot OR step down on the hook to push it down

  Specifications

• Aluminium silver coated chassis
• Anchoring holes for concrete
• Height adjustability of the catch hook: 40 mm
• Stop rubber and polyamide catch hook avoid damaging the gate frame
• Stop rubber adjustable for profiles 40 mm till 60 mm
• Reversibility of the catch hook: pre-mounted with hook up
• Catches under the gate

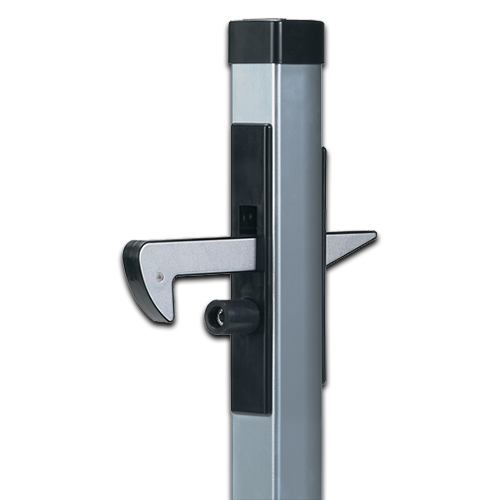

Aluminium Gate Catcher - In Gate Catch

Aluminium gate catcher. The adjustable catch hook can easily be reversed. The stop rubber and polyamide catch hook avoid damaging the gate frame. Very fast and strong fixing in concrete. Catches gateframes from 40 mm till 60 mm. Simple height adjustment of 40 mm.
How it works

When the gate swing all the way to open the bottom hook automatically
lowers under the gate and rises to catch the gate, once requiring the gate to close use your feet and gently rise to release the gate to close.

Specifications

• Aluminium powder coated chassis
• Anchoring holes for concrete
• Height adjustability of the catch hook: 40 mm
• Stop rubber and polyamide catch hook avoid damaging the gate frame
• Stop rubber adjustable for profiles 40 mm till 60 mm
• Reversibility of the catch hook: pre-mounted with hook down
• Catches upper side of the gate

Small Ornamental Swing Gate Lock F2 Square profile adjustable 40-50mm

Ornamental lock with aluminium housing and stainless steel mechanism. We advise this lock as a standard for all your ornamental gates. The 10 mm continuous adjustability of the bolts allows a perfect alignment of your locking mechanism. A solid stainless steel deadbolt with a 23 mm throw guarantees a secure locking. Standard supplied with zamac ornamental handle pair.

• ISO 9227 KTL / E-coated lockbox withstands 1000 hours of salt spray test
• Easy left or right changing of the self-latching daybolt
• Throw of the deadbolt, 23 mm in 1 turn of the key
• Adjustment of the bolts up to 10 mm continuous without dismounting the lockbox
• Key-operated self-latching bolt
• 4-hole fixing with two hexagon socket head screws
• Center distance bolts: 60 mm

Tigerlink Hardware

Call us now 1300 055 099 or Email: sales@tigerlink.com.au

VERA Digital Wireless Access Control for Insert Locks 40mm

The VERA uses advances in battery technology to operate without cables or electricians. The durable battery pack with six lithium metal batteries can withstand extreme weather and allows the VERA to open and close the gate at least 150,000 times.

Add access control to pedestrian gates easily with VERA, a battery-powered code lock for gates with insert locks (FORTY-, FIFTY-, SIXTY- or EIGHTYLOCK). Easily select, change or delete up to 100 PIN codes. Various entry and exit codes, permanently open codes and free exit are possible. The energy-efficient VERA achieves up to 150,000 open/close cycles with one battery pack, in all weather conditions (IP66). The maintenance-free code lock features aluminium housing and an LED-illuminated electronic code keypad.

• Double-sided keypad or single-sided keypad (free exit) with cover plate
• No mains power required. Battery pack (with a lifespan of up to 150,000 cycles) included
• Weatherproof and LED-illuminated electronic code keypad
• Easy installation and configuration
• Easy programming of up to 100 user codes
• Supports codes for permanently open and free exit
• Highly robust and vandal-resistant design
• Aluminium housing with textured paint (black) or anodisation (silver)
• IP66 rated

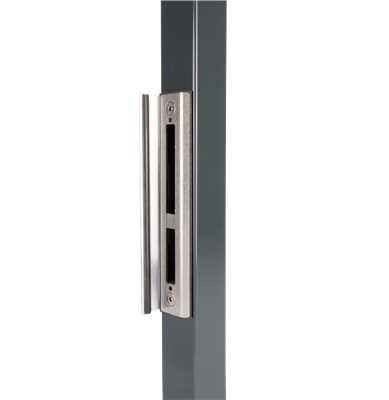

• Compatible with the SFKU-V keep
• Compatible with FORTY-, FIFTY-, SIXTY- or EIGHTYLOCK (lock not included)

Installation Guide
