Gate Locks and Latches

The Locinox Gate Lock Handle is specifically designed for sliding gates and is compatible with the 3006S Aluminium Sliding Gate Lock. It serves as both a handle and a lock, providing convenience and security for your sliding gate.

Constructed from high-quality aluminium, the Locinox Gate Lock Handle is durable and built to withstand outdoor conditions. It is designed for easy gripping and comfortable operation, allowing you to effortlessly open and close your sliding gate. The handle features a sleek and modern design, adding a stylish touch to your gate's appearance.

The Locinox Gate Keep Hybrid Insert is designed specifically for H-Metal gate profiles and offers a reliable solution for securing your gate. This gate keep is compatible with hybrid insert locks, providing enhanced security and peace of mind. It is constructed with high-quality materials to ensure durability and long-lasting performance. The Gate Keep features a versatile design that allows for easy installation on H-Metal gate profiles. With its sturdy construction and secure fit, this gate keep provides optimal gate security for your residential or commercial property.

Specifications

• Adjustable for gate profiles: 40-60 mm width
• Innovative Quick-Fix mounting
• Anchoring plate for hook
• Easy left or right changing

The Locinox Keep Hybrid Insert is specifically designed for H-Wood gates and offers a reliable solution for securing your gate. This gate keep is compatible with hybrid insert locks, providing enhanced security and peace of mind. It features a sleek black finish that complements the aesthetics of your H-Wood gate. The Keeps Hybrid Insert is constructed with high-quality materials to ensure durability and long-lasting performance. With its easy installation and secure fit, this gate keep provides optimal gate security for your residential or commercial property.

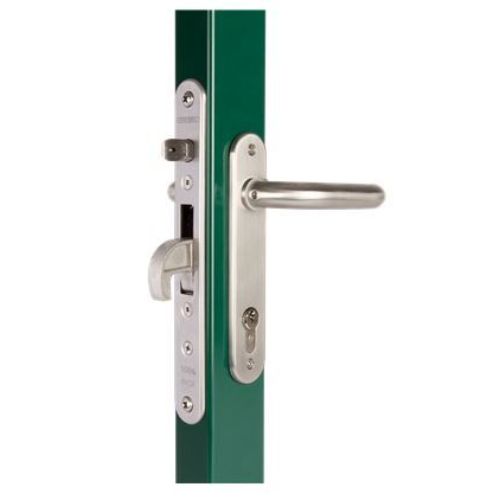

The Locinox Forty Slim Line Insert Lock is a high-quality lock designed for various applications, offering a secure locking solution. With a slim and compact design, it is suitable for installations where space is limited. This lock features a 20mm backset and is sold as a lock-only option. It is compatible with different door types, providing versatility in its usage. Upgrade your doors with the Forty Slim Line Insert Lock for reliable security and convenience.

• Lock mechanism with cover plate against dirt penetration
• Patented "Click-It" system makes thread tapping unnecessary
• Continuous adjustment of the daybolt up to 10 mm without dismounting the lock box
• Key-operated self-latching bolt
• Mechanism, hook, frontplate, latchbolt: stainless steel
• Easy left or right changing of the self-latching daybolt
• Throw of the hook: 21 mm
• Center-distance cylinder <=> handles = 92 mm

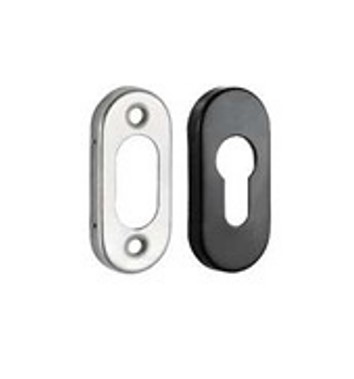

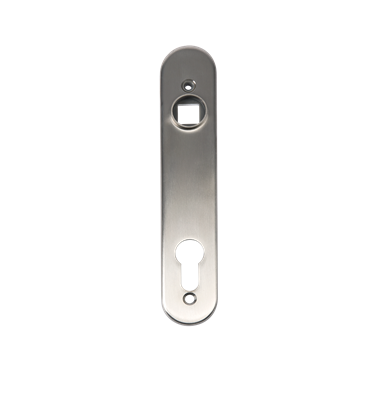

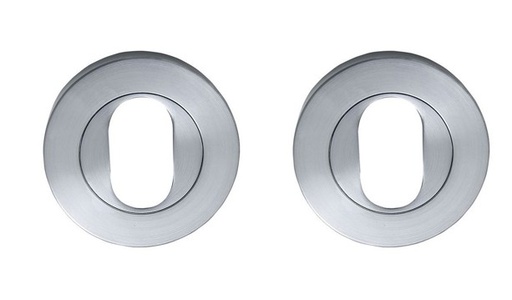

• Optional: cover shield for handle & cylinder holes in aluminium, polyamide or stainless steel
• Handles to be ordered separately
• Compatible with all Europrofile cylinders

Link for installation

The Locinox Fifty Slim Line Insert Lock is a high-quality lock designed for various applications. With a 30mm backset, this lock is specifically designed for lock-only purposes. It offers reliable security and smooth operation, ensuring the safety of your belongings. Upgrade your doors or cabinets with the Fifty Slim Line Insert Lock for enhanced protection and peace of mind.

The Locinox Electro-Magnetic Lock is a powerful locking solution designed to provide enhanced security for various applications. With a holding force of 600kg, this electromagnetic lock ensures a strong and reliable lock mechanism. It features a silver handle for easy operation and added convenience. The lock is weatherproof, making it suitable for both indoor and outdoor use. Install the Locinox Electro-Magnetic Lock for robust and reliable security.

Specifications

• 500h salt spray resistant! SGS certified (ISO 9227)
• Special two-layer protective coating developed for outdoor use
• SGS Certified
• Powder coated aluminium housing
• Anti-residual magnetism kick-off system
• Raised edge on the magnet housing makes it impossible to put a crowbar between the magnet and the armature plate
• Fail open
• Fast and easy fixing by means of 5 holes with Quick-Fix
• Current MAGMAG6000: 460 mA / 12 V or 230 mA / 24 V
• Voltage: 12V / 24V DC
• MAG6000: Minimal pulling force: 6000N (600 kg)
• Guaranteed holding force tested on every magnetic lock

The FK572 Locinox Electro-Magnetic Lock is a high-quality and reliable locking solution for your gate system. With a maximum holding force of 300kg, this electro-magnetic lock ensures strong and secure locking. The included handle provides convenience for manual operation. The silver color adds a sleek and modern touch to your gate aesthetics. With its durable construction, the FK572 Electro-Magnetic Lock offers long-lasting performance and enhanced security for your gate. Upgrade your gate system with the FK572 Locinox Electro-Magnetic Lock with handle.

Specifications

• 500h salt spray resistant! SGS certified (ISO 9227)
• Special two-layer protective coating developed for outdoor use
• SGS Certified
• Powder coated aluminium housing
• Anti-residual magnetism kick-off system
• Raised edge on the magnet housing makes it impossible to put a crowbar between the magnet and the armature plate
• Fail open
• Fast and easy fixing by means of 5 holes with Quick-Fix
• Current MAGMAG3000: 500 mA / 12 V or 250 mA / 24 V
• Voltage: 12V / 24V DC
• MAG3000: Minimal pulling force: 3000N (300 kg)
• Guaranteed holding force tested on every magnetic lock

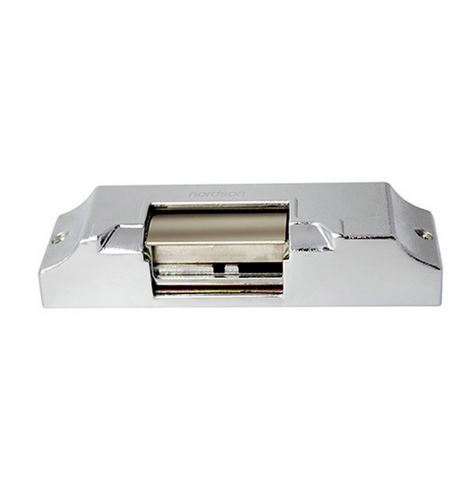

The Locinox Built-In Electric Strike is specifically designed for use with Forty, Fifty, and SixtyLock gate frame systems. This electric strike is installed within the gate frame, providing a concealed and streamlined solution for secure access control. With a fail-close mechanism, it ensures that the lock remains securely locked even during power outages. The 40mm size makes it compatible with gate frames of that dimension. The built-in design offers enhanced security and convenience for your access control system.

Specifications

• Tested up to 500.000 movements

• Fast and easy fixing with Quick-Fix

• Resistance to pressure on the latch bolt: 300 kg

• Easy left or right changing

• Corrosion-resistant: black anodized aluminium housing

• Adjustable for gate profiles: 40-60 mm width

• Voltage: 12V-24V AC/DC

• Consumption: 12V - 1,25A / 24V - 0,62A

• Power: 15W

The Locinox Built-in Electric Strike is specifically designed for gate frames with a 50mm profile. This electric strike offers a reliable and secure locking solution for your gate system. It is installed directly into the gate frame, ensuring a seamless and integrated look. The fail-close functionality ensures that the gate remains securely locked in case of power failure or emergencies. Enhance the access control and security of your gate with the Built-in Electric Strike.

Specifications

• Tested up to 500.000 movements

• Fast and easy fixing with Quick-Fix

• Resistance to pressure on the latch bolt: 300 kg

• Easy left or right changing

• Corrosion-resistant: black anodized aluminium housing

• Adjustable for gate profiles: 40-60 mm width

• Voltage: 12V-24V AC/DC

• Consumption: 12V - 1,25A / 24V - 0,62A

• Power: 15W

The Locinox Black Motorised Electrical Drop Bolt is a premium solution for automated gate security. This motorized drop bolt features a sleek black design that adds a touch of sophistication to any gate. With its advanced electrical operation, it offers convenient and secure locking and unlocking with the push of a button. The drop bolt is constructed with high-quality materials to ensure durability and resistance to outdoor elements. It offers adjustable settings for optimal functionality and can be easily integrated into existing access control systems. Upgrade your gate security with the Locinox Black Motorised Electrical Drop Bolt.

Specifications

• Vandal-proof, powder coated aluminium housing
• To be connected to the warning light on automated gates (min 3 sec prewarning signal) or directly on the gate automation
• Automatic detection and memorisation of the continuous or pulse signal
• Mechanical release possible (by key) in case of emergency
• The integrated obstacle detection will automatically stop the drop bolt movement in case of overpressure to avoid injuries.
• Throw: 120 mm (with the exception of Electradrop-ZILV: 115 mm)
• Drop bolt diameter: 20 mm
• For gate profiles: 40 mm or more
• Power consumption: Normal: 25 W / Peak: 55W / Standby: 0,2 W
• 5 m cable included
• Included: 3012-37-STD cylinder
• To connect to a Locinox PowerStone 60W

The Locinox Aluminium Handle is a high-quality gate handle designed for use with gates. Made from durable aluminium material, this handle is built to withstand outdoor conditions and provide long-lasting performance.

The Locinox handle features a square spindle with a length of 120mm, making it compatible with the Forty Fifty lock pair. The handle is specifically designed for easy gripping and comfortable operation, allowing you to effortlessly open and close your gate. The ergonomic design ensures a secure and comfortable grip, making it suitable for both residential and commercial applications.

The Locinox Aluminium Handle is a durable and stylish handle designed for commercial and ornamental gates. It features an aluminium construction with a black finish, adding a sleek and modern touch to your gate. This handle is specifically designed with a square 66.5mm spindle for compatibility with commercial ornamental lock pairs.

The Aluminium Handle offers a comfortable grip and smooth operation, making it easy to open and close your gate. Its sturdy construction ensures durability and reliability even in high-traffic areas. The handle is designed to withstand outdoor conditions and is resistant to rust and corrosion.
