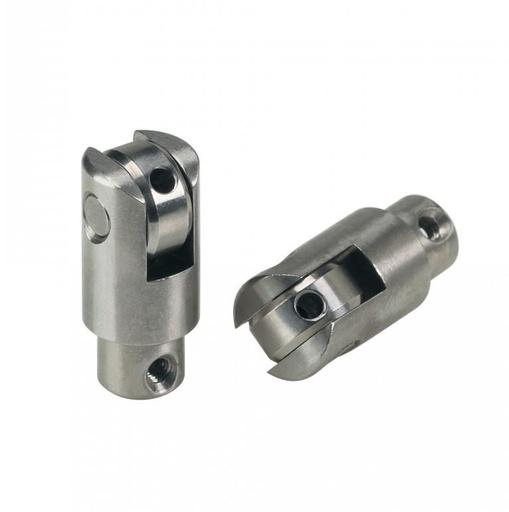

Spare part for Locinox lock ROLLTOP-30 Adjustable Rollerbolt

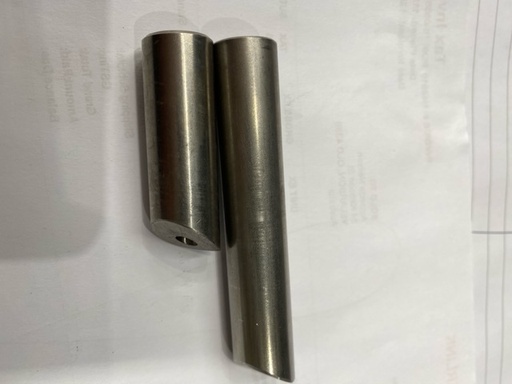

Spare part for Gatemaster lock 40-60mm

Spare part for Gatemaster lock 10-30mm

Spare part for Gatemaster Superlock 40-60mm

Spare part for Gatemaster Super lock 10-30mm

Spare part Key Barrel cover for Gatemaster lock

Spare Axe part for sliding gate lock 50mm

Small Ornamental Swing Gate Lock F2 Square profile adjustable 40-50mm

Ornamental lock with aluminium housing and stainless steel mechanism. We advise this lock as a standard for all your ornamental gates. The 10 mm continuous adjustability of the bolts allows a perfect alignment of your locking mechanism. A solid stainless steel deadbolt with a 23 mm throw guarantees a secure locking. Standard supplied with zamac ornamental handle pair.

• ISO 9227 KTL / E-coated lockbox withstands 1000 hours of salt spray test
• Easy left or right changing of the self-latching daybolt
• Throw of the deadbolt, 23 mm in 1 turn of the key
• Adjustment of the bolts up to 10 mm continuous without dismounting the lockbox
• Key-operated self-latching bolt
• 4-hole fixing with two hexagon socket head screws
• Center distance bolts: 60 mm

Tigerlink Hardware

Call us now 1300 055 099 or Email: sales@tigerlink.com.au

Small Ornamental Lock F2 Flat profile adjustable 10-20mm

Locinox Ornamental lock with aluminium housing and stainless steel mechanism. We advise this lock as a standard for all your ornamental gates. The 10 mm continuous adjustability of the bolts allows a perfect alignment of your locking mechanism. A solid stainless steel deadbolt with a 23 mm throw guarantees a secure locking. Standard supplied with zamac ornamental handle pair.

• ISO 9227 KTL / E-coated lockbox withstands 1000 hours of salt spray test
• Easy left or right changing of the self-latching daybolt
• Throw of the deadbolt, 23 mm in 1 turn of the key
• Adjustment of the bolts up to 10 mm continuous without dismounting the lockbox
• Key-operated self-latching bolt
• 4-hole fixing with two hexagon socket head screws
• Center distance bolts: 60 mm

Slim Line Narrow swing Gate Lock

Description

This heavy hookbolt projects 24mm when locked. The lock is perfect on sliding gates or hinged gates where the hook can locate into the gate post. This will prevent anyone forcing the gate open.  Lock fits in the box section gate frame for a neat and unobtrusive method of securing a gate. For a neat and unobtrusive finish to your gate, the narrow hook lock can be mortised into a box section of anything bigger than 40 x 40mm box section.

• Neat – Slim lock design gives the gate a neat finish
• Long throw – Hook protrudes 22mm with one turn of the key
• Unobtrusive – Fits inside any box section bigger than 40 x 40mm
• Secure – Hook prevents hinged gates being forced open by spreading
• Supplied with a 60mm eurocylinder and 3 keys
• KEY FEATURES
• Hook moves 24mm
• Ideal on sliding and hinged gates
• Neat and unobtrusive

Sliding Gate Wheel/Rollers for U Groove 120mm internal Double Bearing

Sliding gate component wheel or rollers U groove 120mm Dia internal - Double bearing

Rated to carry 350kg each wheel

Tigerlink Hardware is Sliding Gate Automation Kits and Accessories supplier. We have full range of Sliding gate hardware

Wheels & Castors. High Quality Products. Very Competitive Prices. Over 20 Years Experience. freindly Staff.

Stronger and Heavyduty wheels.

Zinc - Finished

In Most cases 2 wheels are enough for Sliding gates upto 5M, if you want to add any extra wheels 2 at each end 200-300mm aparts would be better then adding a third wheel in the middle. A middle wheel would take all the weight if there is any rises in the floor track and would shorten the life of that wheel.   2 wheels or 4 wheels is the right way to do this.

Installing a sliding gate wheel involves a few key steps to ensure the gate operates smoothly. Here’s a step-by-step guide to help you install it:

Materials Needed:

• Sliding gate wheel
• Measuring tape
• Cutting machine
• Drill and drill bits
• Screws and bolts
• Wrench or screwdriver

Steps for Installation:

Prepare the Gate and Track:

• Before installing the wheels, ensure that your sliding gate is already installed and that the sliding track is properly laid out.
• The track should be level and secure to ensure smooth operation.

Step One:
Measure the sliding gate wheel cradle, ensuring there's enough space to attach the wheel to the steel frame. Use a cutting wheel to make the cut, but first, drill four holes (one in each corner) using an 8-10mm drill bit. This will ensure the square hole is clean in each corner.

Step Two:
Clean up the rectangular hole with a file to ensure smooth edges, then spray the area with galvanized paint for protection.

Step Three:
Place the sliding gate wheel into the cut-out and check that it can rotate freely. Ensure there’s enough space for securing the wheel with a tek screw.

Step Four:
When screwing in the tek screws, make sure the wheel is aligned with the edge of the steel. The last thing you want is for the wheel to be out of alignment. Avoid welding the wheel if possible, as this can make replacement more difficult later on.

Step by Step

1. How to join Floor Track

2. Installing the Gate Wheel

3. Double and Single Bearing Wheels

Sliding Gate Wheel V Groove Dounble bearing 58mm Dia

This v groove track wheel is 58mm in diameter and has double bearing.

Technical Specifications.

• Groove Type- V Groove
• Load Capacity- 120 Kg
• Wheel Diameter- 58mm
• Wheel Material- Steel
• Finish- Zinc Plated
