The WH398 Sliding Gate Wheel with U-Groove is the perfect solution for smooth and effortless sliding gate operation. With its 100mm external diameter and U-groove design, this wheel provides exceptional traction and stability. The double-bearing system ensures optimal load-bearing capacity and reduces friction, resulting in seamless gate movement. Crafted from high-quality materials, this wheel is built to withstand heavy-duty use and resist wear and tear. Upgrade your sliding gate system with the WH398 Sliding Gate Wheel for reliable performance and durability.

Hold weights up to 350kg

Installing a sliding gate wheel involves a few key steps to ensure the gate operates smoothly. Here’s a step-by-step guide to help you install it:

Materials Needed:

• Sliding gate wheel
• Measuring tape
• Drill and drill bits
• Screws and bolts
• Wrench or screwdriver

Steps for Installation:

1. Prepare the Gate and Track:
   • Before installing the wheels, ensure that your sliding gate is already installed and that the sliding track is properly laid out.
   • The track should be level and secure to ensure smooth operation.
2. Determine the Wheel Placement:
   • Decide where the wheel brackets will go on the gate. Typically, the wheels should be placed at the bottom of the gate. Depending on the gate size.
   • The wheel’s placement is important for proper weight distribution and gate stability.
3. Mark the Drill Holes:
   • Hold the wheel brackets against the gate at the desired position.
   • Use a measuring tape to ensure the placement is even and at the correct height.
   • Mark the holes where the screws or bolts will go to secure the wheels.
4. Drill the Holes:
   • Drill holes at the marked points on the gate, making sure the holes are large enough for the screws or bolts provided in your wheel kit.
   • If you’re installing a single wheel, the hole placement should be centered along the gate's width.
5. Attach the Wheel Bracket:
   • Secure the wheel bracket to the gate using the screws or bolts.
   • Tighten them properly to ensure the bracket is secure. Be sure the wheel can rotate freely once attached.
6. Install the Wheel:
   • If the wheel is separate from the bracket, slide the wheel into its bracket or mounting system.
   • Tighten any screws or bolts holding the wheel in place, ensuring it rotates easily and is properly aligned.
7. Test the Gate:
   • Test the sliding gate by moving it along the track.
   • Check that the wheels glide smoothly without any obstruction or resistance. The gate should be stable and move freely.
8. Adjust if Necessary:
   • If the gate isn’t sliding smoothly, check the alignment of the wheels and track. You might need to adjust the wheel height or ensure that the track is level.
   • Make sure the wheels are aligned with the gate and track to avoid any friction.

Try not to weld them onto the sliding gate frame it will be a nightmare to replace them later

The WH405 Sliding Gate U-Groove Wheel with a 100mm diameter is a high-quality component designed for smooth and efficient operation of your sliding gate. With its U-groove design and Class A rating, this wheel offers excellent traction and durability. The wheel does not include a bracket, providing flexibility for mounting options. Upgrade your sliding gate system with the WH405 Sliding Gate U-Groove Wheel for reliable performance and long-lasting durability.

Hold weight up to 300kg

The SGSB407 Sliding Gate Holder with Mounting Bracket is designed for use with 50mm tubes. It provides secure support and easy installation for sliding gates. The sliding gate holder features a durable construction and a mounting bracket for convenient attachment to the gate structure. With its sturdy design and reliable performance, the SGSB407 Sliding Gate Holder with Mounting Bracket is an ideal choice for your sliding gate system.

The Short Heavy-Duty Timber Swing Gate Strap Hinges are designed specifically for timber swing gates. With a size of 145x50mm and a 14mm pin, these hinges provide robust support and reliable performance. This pair of hinges features a right-hand configuration, ensuring a secure and sturdy connection for smooth swinging motion. Crafted from heavy-duty materials, they are built to withstand the weight and stress of timber gates. Suitable for various gate sizes, these strap hinges are ideal for both residential and commercial applications. Upgrade your timber swing gate with the Short Heavy-Duty Timber Swing Gate Strap Hinges to ensure durability and seamless operation.

Hold weights up to 100kg

The Short Heavy-Duty Timber Swing Gate Strap Hinges are specially designed hinges for timber swing gates. With a size of 145x50mm and a 14mm pin, these hinges offer robust support and reliable performance for your gate. The left-hand pair ensures a secure and sturdy connection, allowing smooth swinging motion. Crafted from heavy-duty materials, these strap hinges are built to withstand the weight and stress of timber gates. Suitable for various gate sizes, they are an ideal choice for both residential and commercial applications. Upgrade your timber swing gate with the Short Heavy-Duty Timber Swing Gate Strap Hinges to ensure durability and smooth operation.

Hold weights up to 120kg

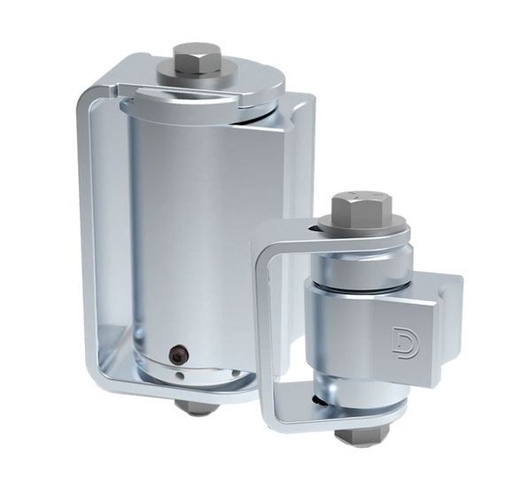

The Self-Closing Badass Hinge Set is specifically designed for gates weighing up to 140 kg, providing a convenient self-closing feature. This set includes all the necessary components for a complete hinge installation. The self-closing mechanism ensures that the gate automatically closes behind you, offering convenience and enhanced security. Crafted with durability in mind, these hinges are built to withstand regular use and various weather conditions. Suitable for both residential and commercial applications, the Self-Closing Badass Hinge Set is the ideal choice for secure and hassle-free gate installations.

Hold weights up to 130kg

The Self Closing Gate Hinge is designed for gates weighing up to 45kg and features a no alignment leg design. This hinge ensures a reliable self-closing mechanism, automatically closing the gate behind you for added convenience and security. The absence of alignment legs simplifies the installation process and allows for flexible positioning. With its durable construction, the Self Closing Gate Hinge offers long-lasting performance. Whether for residential or light commercial use, this hinge is an excellent choice for smaller gates requiring self-closing functionality.

Hold weights up to 45kg

Introducing the Safe-T Self-Closing Gate Hinge with Alignment Legs, the perfect solution for ensuring safety and convenience in your gate system. Designed for gates weighing up to 45kg, this hinge offers a reliable self-closing feature, providing peace of mind and eliminating the risk of gates being left open accidentally.

With its innovative alignment legs, installation becomes a breeze. The alignment legs help maintain gate alignment, ensuring smooth and effortless operation. Whether you have a pedestrian gate or a heavier gate, this hinge is built to handle the job efficiently and effectively.

Crafted from high-quality materials, the Safe-T Self-Closing Gate Hinge is built to withstand the test of time. Its sturdy construction ensures durability and long-lasting performance, making it suitable for both residential and commercial applications.

Safety is paramount, and this gate hinge is designed with that in mind. Its self-closing mechanism ensures that the gate automatically closes behind you, preventing unauthorized access and enhancing security. Whether you have children or pets, the self-closing feature provides an added layer of protection, giving you peace of mind knowing that your property is secure.

Upgrade your gate system with the Safe-T Self-Closing Gate Hinge with Alignment Legs. Experience the perfect combination of safety, convenience, and durability.

Hold weights up to 45kg
