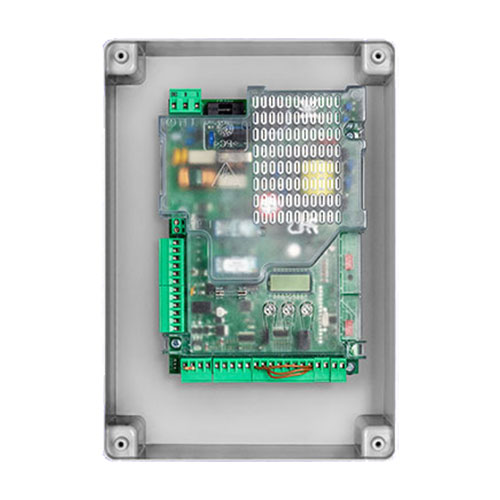

Beninca - TRUST24 Control Board

GM334

0.0000 kg

https://www.tigerlink.com.au/web/image/product.template/10286/image_1920?unique=a27114f
(0 review)

545.00 https://www.tigerlink.com.au/web/image/product.template/10286/image_1920?unique=a27114f 545.0 AUD 545.00 GST Inclusive

545.00 GST Inclusive

Not Available For Sale

    This combination does not exist.


    Description:

    APPLICATION

    1 or 2 actuators for swing gates

    CONTROL UNIT POWER SUPPLY

    100 ÷ 250 Vac - 50/60 Hz

    MOTORS POWER SUPPLY

    24 Vdc / 130 W + 130 W

    POWER CONSUMPTION IN STAND-BY

    0.8 W

    MAIN FUNCTIONS

    Integrated LCD display | Integrated radio receiver 433.92 MHz 512 codes with ARC coding | Removable terminal boards | Separate limit switch inputs for each motor | Automatic, semi-automatic and Deadman logic | Separate encoder inputs for each motor | Open, close, step-by-step and pedestrian inputs | Input for programmable photocell active in opening-closing and photocell active only in closing | Input for N.C. or 8k2 sensitive edge | Output for electric lock 12/24 Vdc | Two outputs configurable as open gate signal light, courtesy light, zone light, second radio channel, photocell testing, flashing light, alarm contact | Autoset operating parameters | Separate electronic torque adjustment for each motor| Anti-crushing safety through amperometric detection and encoder management | Electronic torque adjustment with automatic calculation for each point of the stroke (STC SYSTEM) | Separate adjustable slowdowns for each motor | Possibility of encoder- or time-based operation (managed through virtual encoder) even independently between the two motors | Built-in energy saving system ESA+ | Set up for connection to KNX systems via X.BE card (optional) | Designed for managing, configuring, diagnosing and updating firmware through the BeUP app, using the PRO.UP accessory | Advantouch system to configure parameters and manage radio transmitters | Number of manoeuvres | Programming access password | Maintenance warning | Built-in battery charger
