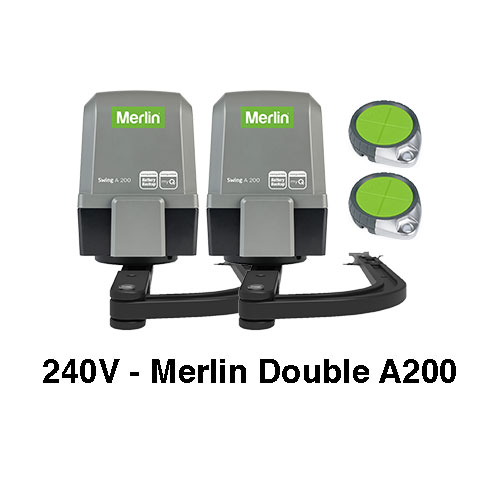

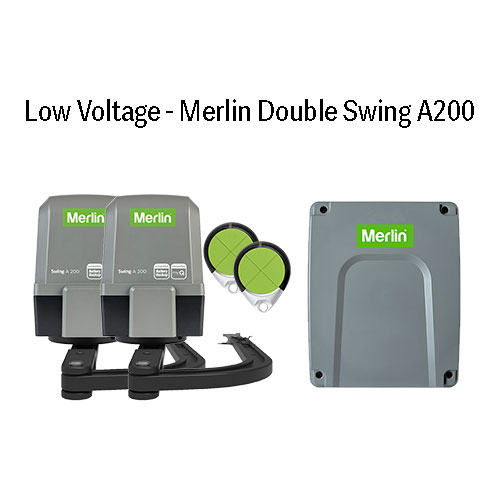

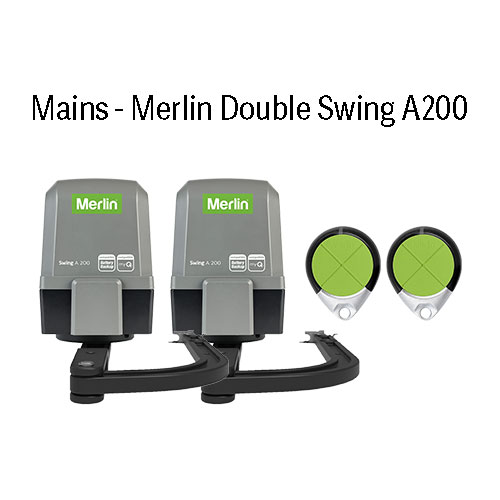

Swing A 200 Articulated Arm Double Swing Gate Opener

Merlin's Swing A 200 Swing Gate Opener is suitable for residential dual swing gates up to 2.5 metres. IP44 rated, the Merlin Swing A 200 provides heavy lifting power performance for two swing gates up to:200kg for 1.5m gate150kg for 2m gate100kg for 2.5m gate Mains or Low Voltage options available.  myQ capable and Battery Backup compatible.Powerful, quiet and compliant to Australian and New Zealand Standards, enjoy complete peace of mind with 3 Year Warranty and built in premium safety reversal technology, to ensure your family and possessions are protected.Loaded with Merlin Security+2.0 encryption rolling code technology means perfect operation under all environment conditions and from a greater distance than ever before.

• 200kg for a 1.5m gate
• 150kg for a 2m gate
• 100kg for a 2.5m gate

Both Mains and Low Voltage are available. This device is compatible with a battery backup as well as myQ capable. The disengagement mechanism also allows you to manually open and close the gate when needed.

MyQ App Compatibility:

• iPhone/ iPod Touch requires iOS 13.0 or higher
• Apple Watch requires watchOS5.0 or higher
• Android devices requires Android 7.0 Nougat or higher
• Windows and Blackberry devices are not compatible

Swing A 200 Articulated Arm Double Swing Gate Opener

Merlin's Swing A 200 Swing Gate Opener is suitable for residential dual swing gates up to 2.5 metres. IP44 rated, the Merlin Swing A 200 provides heavy lifting power performance for two swing gates up to:200kg for 1.5m gate150kg for 2m gate100kg for 2.5m gate Mains or Low Voltage options available.  myQ capable and Battery Backup compatible.Powerful, quiet and compliant to Australian and New Zealand Standards, enjoy complete peace of mind with 3 Year Warranty and built in premium safety reversal technology, to ensure your family and possessions are protected.Loaded with Merlin Security+2.0 encryption rolling code technology means perfect operation under all environment conditions and from a greater distance than ever before.

• 200kg for a 1.5m gate
• 150kg for a 2m gate
• 100kg for a 2.5m gate

Both Mains and Low Voltage are available. This device is compatible with a battery backup as well as myQ capable. The disengagement mechanism also allows you to manually open and close the gate when needed.

MyQ App Compatibility:

• iPhone/ iPod Touch requires iOS 13.0 or higher
• Apple Watch requires watchOS5.0 or higher
• Android devices requires Android 7.0 Nougat or higher
• Windows and Blackberry devices are not compatible

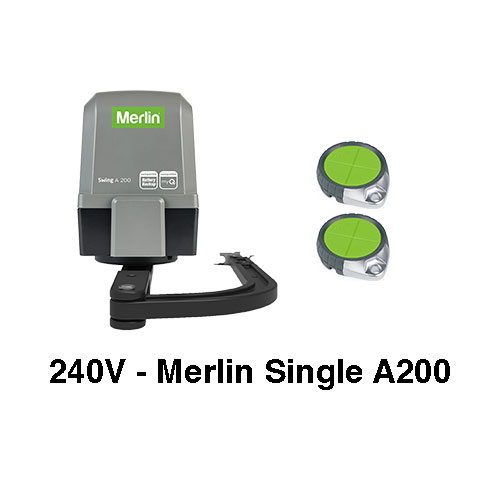

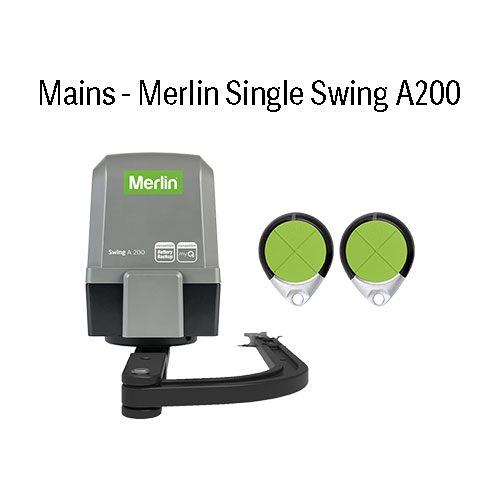

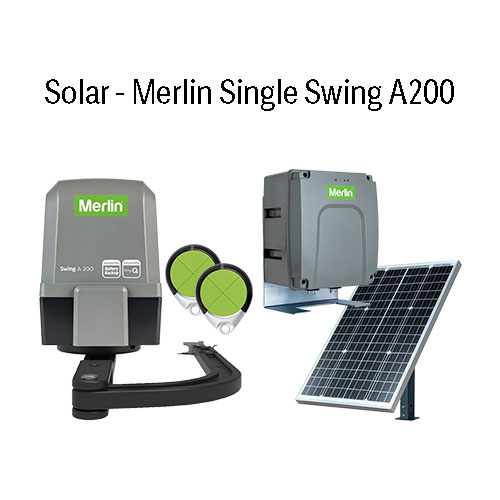

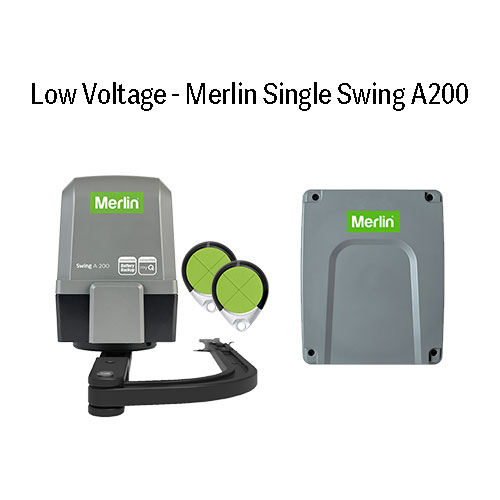

Swing A 200 Articulated Arm Single Swing Gate Opener

Merlin's Swing A 200 Swing Gate Opener is suitable for residential single swing gates up to 2.5 metres. IP44 rated, the Merlin Swing A 200 provides heavy lifting power performance for two swing gates up to:200kg for 1.5m gate150kg for 2m gate100kg for 2.5m gateMains or Low Voltage options available.  myQ capable and Battery Backup compatible.Powerful, quiet and compliant to Australian and New Zealand Standards, enjoy complete peace of mind with 3 Year Warranty and built in premium safety reversal technology, to ensure your family and possessions are protected.Loaded with Merlin Security+2.0 encryption rolling code technology means perfect operation under all environment conditions and from a greater distance than ever before.

• 200kg for a 1.5m gate
• 150kg for a 2m gate
• 100kg for a 2.5m gate

Both Mains and Low Voltage are available. This device is compatible with a battery backup as well as myQ capable. The disengagement mechanism also allows you to manually open and close the gate when needed.

MyQ App Compatibility:

• iPhone/ iPod Touch requires iOS 13.0 or higher
• Apple Watch requires watchOS5.0 or higher
• Android devices requires Android 7.0 Nougat or higher
• Windows and Blackberry devices are not compatible

Compatible with all Merlin and Grifco gate openers.

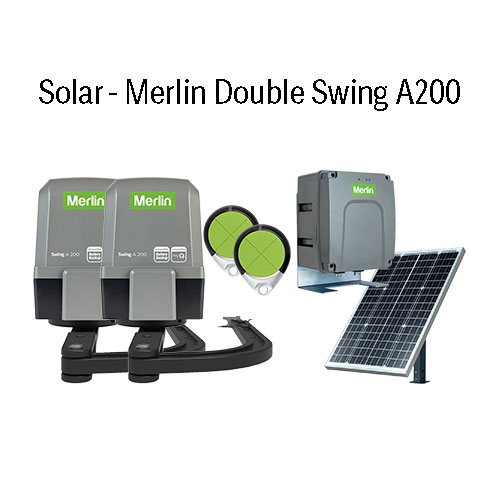

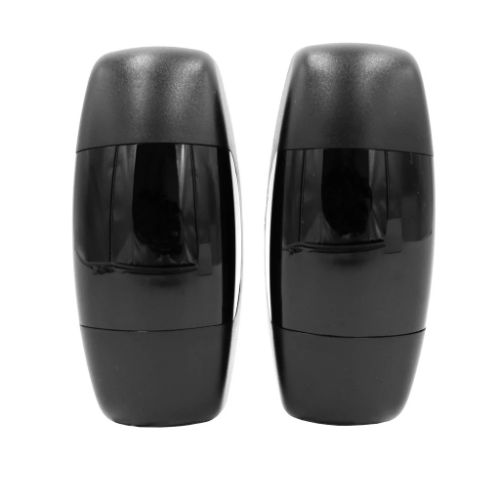

1. Performance & Suitability - Perfect for residential & light commercial use with limited daily cycles. Under typical conditions (e.g. 6 hours of sunlight per day on the Australian East Coast), you can expect around 20 cycles per day with one set of 772ANZ Safety Beams Connected. Actual performance depends on sunlight availability, gate condition, connected accessories and environmental factors. Refer to the manual for detailed performance calculations & suitability to your location.
2. Installation Tips & Site Selection - To get the best performance from your Solar Kit, consider panel placement. Install the solar panel where it gets full sunlight—ideally facing due North. Avoid shaded or obstructed areas, as this will reduce charging efficiency. It is important to keep the solar panel close to the power supply enclosure, and ensure the enclosure is within reach of your gate opener.
3. Choosing the Right Setup - Solar performance depends on your location, sunlight hours, and how often the gate is used. Some setups may need two solar panels for reliable operation—especially in areas with less sun or higher usage. During long periods of low sunlight, you may need to recharge the system using the AC charging adaptor (included).

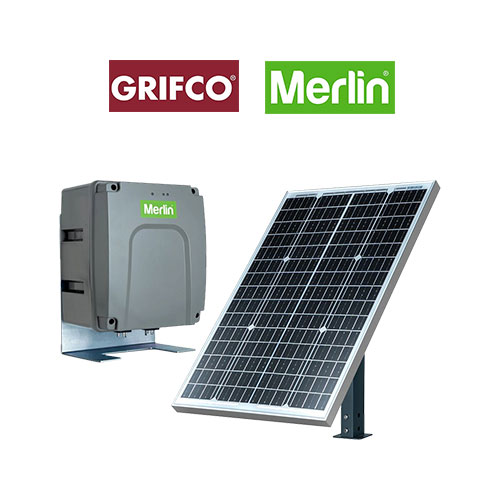

• IP65 Weather Resistant Power Supply Enclosure/Control Unit and Solar Panel
• 2 x 18Ah batteries
• 40W Solar Panel (a second 40W Solar Panel can be added for areas with low sunlight exposure*)
• Adjustable Solar Panel Mounting Kit
• 240V Mains Power Pack included to fully charge the SOLAR-KIT before installation

* If a second 40W Solar Panel is added, the Dual Solar Panel Cable Connector with 4m cable (041A0573) is required.  The Solar Panel Mounting Kit (SP-MOUNT-KIT) is also recommended.

Built for Local Conditions
Designed in Australia to withstand the unique environmental demands of both Australian and New Zealand climates.
Weather Resistant & Durable
Features an IP65-rated Power Supply Enclosure, offering strong protection against dust, rain, and harsh weather.
Reliable Power Storage
Includes 2 x 18Ah high-capacity batteries to keep your gate opener running smoothly.
Solar Powered Convenience
Comes with a 40W Solar Panel for clean, efficient energy—no mains power required.
Expandable System
Need more power? Add a second 40W Solar Panel for improved performance in low-sunlight areas.*
Flexible Mounting Options
Includes a sturdy, adjustable mounting kit to position the solar panel for maximum sunlight exposure.
Pre-Installation Charging
A 240V Mains Power Pack is included to fully charge the system before setup.
3-Year Warranty*
Merlin Peace of Mind

*The warranty period for the Solar Kit Batteries is 12 months from the date of purchase.

Grifco/Merlin Receiver STAR1000

Merlin MS105MYQ Garage Door Opener Includes

1x Merlin “Commander Elite” MS105MYQ Garage Door Opener

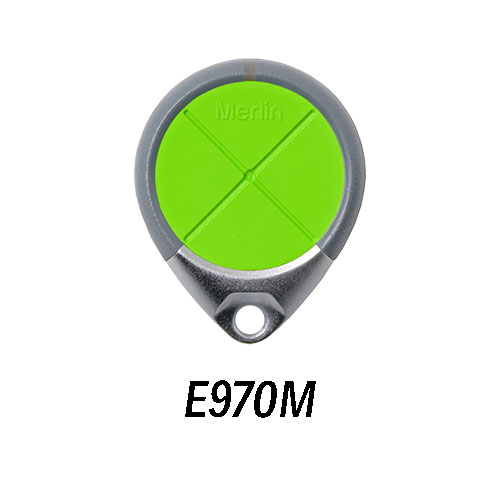

2x E970M Premium Keyring Transmitters
1x E138M Premium Wireless Wall Button
1 x 2.5m Belt Rail

1 x Installation Instructions

Specifications

• 24V DC motor with thermal overload protection
• Input voltage: 240V AC
• Rated door area up to 20m²
• Max door weight: up to 150kg
• Max peak pulling force: 1000 N
• C-rail with belt drive
• 433.92, 433.30, 434.54 MHz AM radio with Chamberlain Security + 2.0 rolling code technology
• Up to 64 memory registers
• Courtesy light: Powerful LED Lighting
• Min headroom required: 30mm
• Maximum lifting under spring tension = 20kg
• Suitable for steel and timber spring balanced doors
• Door opening time: 18 seconds
• Door closing time: 22 seconds
• Based on a 2.4m high door
• Door height: 3.5m
• Door width: 5.7m

• Double dwelling

Merlin Warranty Terms:

For DIY installs, Merlin offers 1 year warranty.

For authorised garage technician/installer installs and when the door is serviced by a certified technician once in the first 12 months and every 24 months thereafter, a 7 year warranty applies.

Download Brochure: https://cgi.widen.net/s/tpdbkhmnxm/ms105myq-commander-elite-spec-sheet-aus-out-digital---114s5957a

Swing A 200 Articulated Arm Single Swing Gate Opener

Merlin's Swing A 200 Swing Gate Opener is suitable for residential single swing gates up to 2.5 metres. IP44 rated, the Merlin Swing A 200 provides heavy lifting power performance for two swing gates up to:200kg for 1.5m gate150kg for 2m gate100kg for 2.5m gateMains or Low Voltage options available.  myQ capable and Battery Backup compatible.Powerful, quiet and compliant to Australian and New Zealand Standards, enjoy complete peace of mind with 3 Year Warranty and built in premium safety reversal technology, to ensure your family and possessions are protected.Loaded with Merlin Security+2.0 encryption rolling code technology means perfect operation under all environment conditions and from a greater distance than ever before.

• 200kg for a 1.5m gate
• 150kg for a 2m gate
• 100kg for a 2.5m gate

Both Mains and Low Voltage are available. This device is compatible with a battery backup as well as myQ capable. The disengagement mechanism also allows you to manually open and close the gate when needed.

MyQ App Compatibility:

• iPhone/ iPod Touch requires iOS 13.0 or higher
• Apple Watch requires watchOS5.0 or higher
• Android devices requires Android 7.0 Nougat or higher
• Windows and Blackberry devices are not compatible

Swing A 200 Articulated Arm Double Swing Gate Opener

Merlin's Swing A 200 Swing Gate Opener is suitable for residential dual swing gates up to 2.5 metres. IP44 rated, the Merlin Swing A 200 provides heavy lifting power performance for two swing gates up to:200kg for 1.5m gate150kg for 2m gate100kg for 2.5m gate Mains or Low Voltage options available.  myQ capable and Battery Backup compatible.Powerful, quiet and compliant to Australian and New Zealand Standards, enjoy complete peace of mind with 3 Year Warranty and built in premium safety reversal technology, to ensure your family and possessions are protected.Loaded with Merlin Security+2.0 encryption rolling code technology means perfect operation under all environment conditions and from a greater distance than ever before.

• 200kg for a 1.5m gate
• 150kg for a 2m gate
• 100kg for a 2.5m gate

Both Mains and Low Voltage are available. This device is compatible with a battery backup as well as myQ capable. The disengagement mechanism also allows you to manually open and close the gate when needed.

MyQ App Compatibility:

• iPhone/ iPod Touch requires iOS 13.0 or higher
• Apple Watch requires watchOS5.0 or higher
• Android devices requires Android 7.0 Nougat or higher
• Windows and Blackberry devices are not compatible

Merlin Wireless Security Keypad E850M (IP55)

Features:

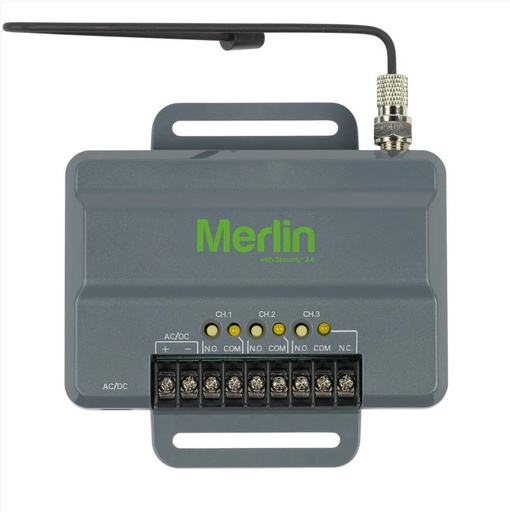

The receiver can be used as a single or three channel receiver to control up to commercial operators or residential door openers. The receiver can also be used with a 3-button remote control to operate the OPEN, CLOSE, and STOP feature on a commercial door operator. The receiver is not for use with MyQ enabled garage door openers or devices.

Security+ 2.0 technology provides improved security and transmitter range.

Each channel is compatible with a specified number of remote controls and keypads. Refer to the list below:

• CH1: 50 remote controls and 2 keypads
• CH2: 20 remote controls and 2 keypads
• CH3: 20 remote controls and 2 keypads
• 3-Channel Universal Receiver Manual

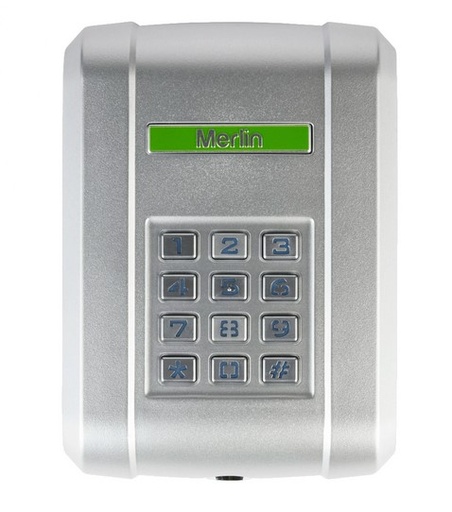

Merlin Wireless Security Keypad E850M (IP55)

Features:

• Built to withstand extreme temperatures (-20’C to 60’C).
• Rated IP55
• Allows up to 5 permanent and 10 temporary PINS to give friends, family or trades people easy access.
• Easy to see at night with backlight keys when pressed.
• Unique code generated with each activation
• Controls one gate or garage door opener

Includes:

• Genuine Merlin Keypad
• 1 x 9V Lithium Battery
• 2 x Keys
• Wall Plug/Screws
• Installation Instructions

Compatibility List:

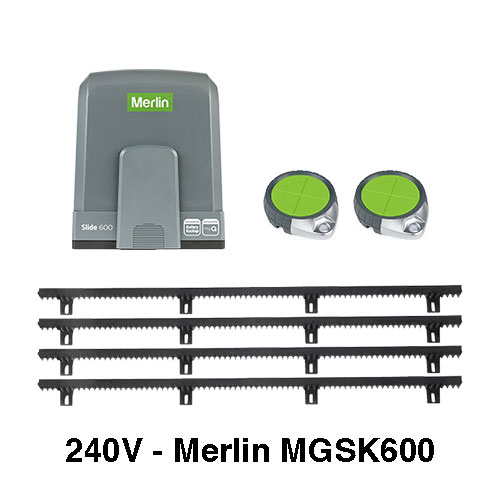

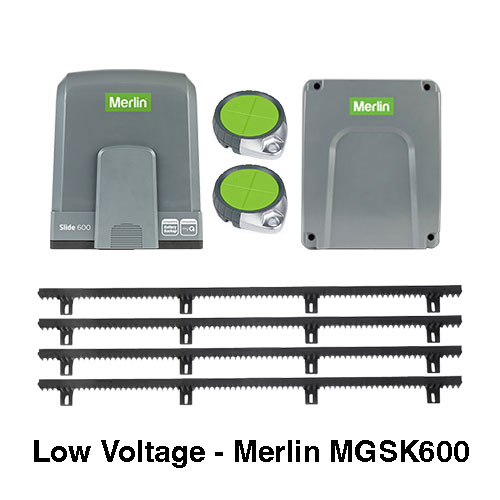

• Slide 600 (MGSK600 MGSK600-LV),
• Swing A 200 (MGASK MGASK-LV MGADK MGADK-LV),
• Swing L 300 (MGLSK MGLSK-LV MGLDK MGLDK-LV)
• Commander Essential (MS65MYQ)
• Commander Elite (MS105MYQ)
• Commander Extreme (MS125MYQ)

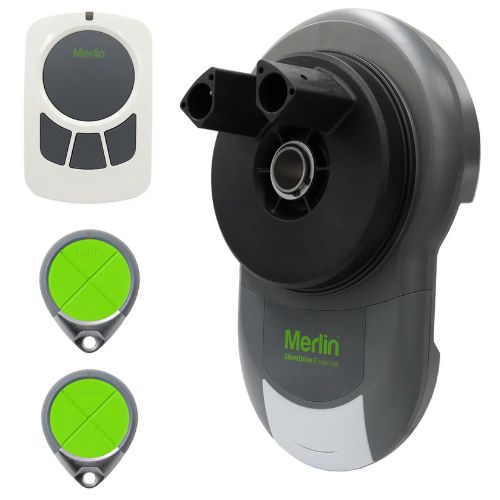

• SilentDrive™ Essential (MR655MYQ)
• SilentDrive™ Elite (MR855MYQ)
• Commander Ultimate (MJ3800MYQ)
• Commander MyQ
• WhisperDrive
• TiltMaster
• PowerAce
• CyclonePro
• OverDrive
• SilentDrive Elite MyQ
• SilentDrive BBU
• SilentDrive Pro
• QuietDrive Pro
• WeatherDrive
• MJ3800BBU and Security+ 2.0 garage door openers

Typical Setup:

1. Merlin Sliding Gate Motor (GMSG611)

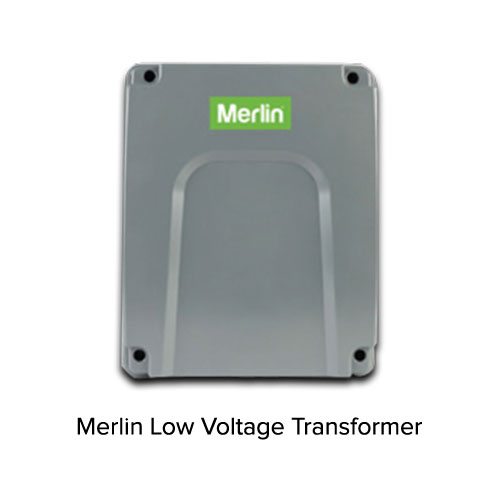

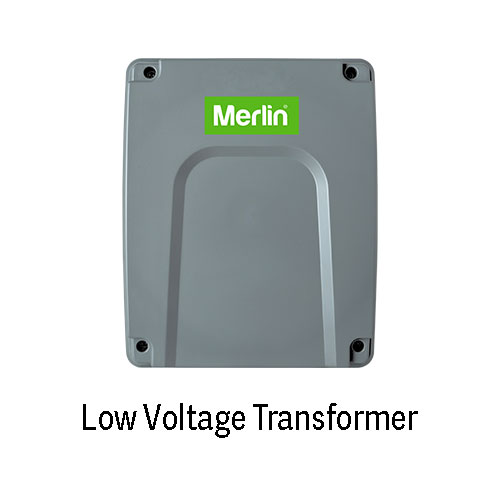

2. Low Voltage Transformer (ET840)
3. Magnetic Limit Switches
4. Merlin Remote Control (GM833)

Recommended Power Wiring:

Flexible 3-core wire between the Merlin Slider (1) and the Transformer Box (2).
