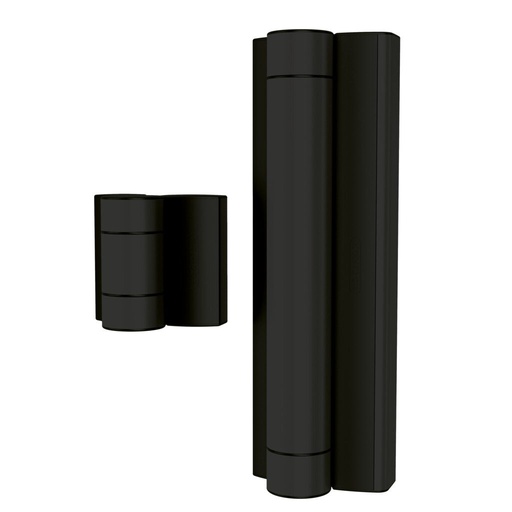

MAGNUS is a motorised gate closer and hinge in one, designed for the automation of pedestrian gates. The brushless and reversible motor is insensitive to unpredictable pedestrian behaviour, and operates in low-energy mode. The settings and access control can be configured via an intuitive app. Includes lower hinge and compact connection box.

Specifications:

• Motorised gate closer with integrated electronics
• 75 Nm torque
• Fits on post profiles from 60 mm and gate profiles from 40 mm
• Steel gear box
• Anodized aluminium cover
• Fast and easy fixing with Quick-Fix
• ETL-tested
• Input main power supply: 110 AC to 240V AC
• Motor voltage: 24V DC
• External connection box with 3 inputs and 3 outputs (Max. 48W, 24V DC)
• Automated obstacle detection with reverse function
• Brushless motor: long lifespan and intensive usage
• Reversible motor with backdrivability for easy manual use – to be combined with a lock
• 2m cable between motor and connection module
• Compact and vandal-proof design
• Configuration via app
• Tested up to 500.000 cycles
• EN 16005 Compliant

MAGNUS is the first-of-its-kind motorized hinge that seamlessly blends convenience and safety in a sleek, integrated design.

It enables full automation of pedestrian gates without the need for external safety sensors or complicated wiring. The advanced brushless, reversible motor is designed with pedestrian safety in mind, offering easy configuration and reliable performance even under heavy daily use.

Enjoy smooth operation, secure access, and consistent closure—MAGNUS elevates the functionality of pedestrian gates.

Key Features:

• Intelligent motor enables automatic opening and closing
• Durable, brushless, and reversible motor technology
• Integrated obstacle detection and push-to-open capability
• Ideal for public areas, educational institutions, and healthcare facilities
• Fully compliant with global safety standards:
  EN16005, PMR, ADA, and UL325

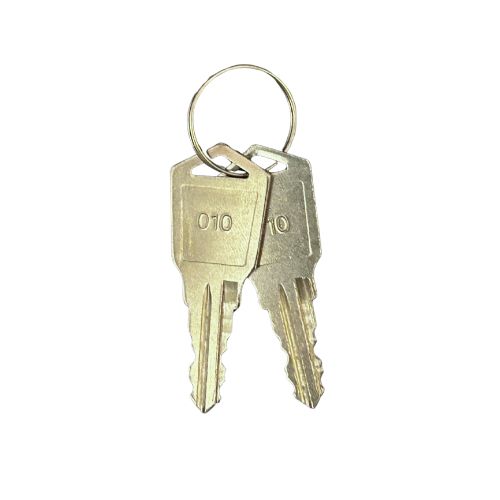

2 pieces replacement gate key for manual release for Merlin and Grifco gate motors

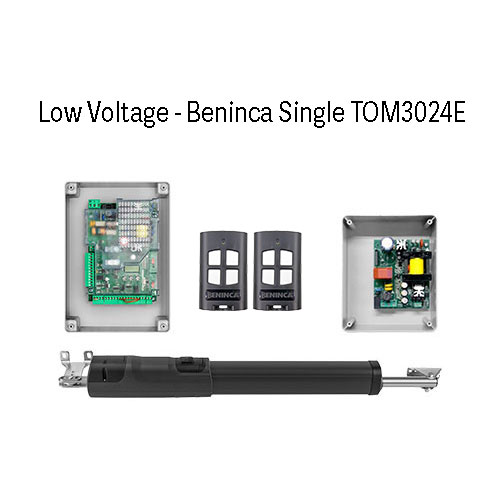

Beninca Single Swing Gate Motor TOM3024E Motor Kit

The TOM series of motors is made by Italian company Beninca which translates into quality, reliability and performance. The TOM range uses linear shaft technology for added length and strength and 24 volt DC motors.

24 VOLT ELECTRIC GATE OPERATOR – RESIDENTIAL & COMMERCIAL – 3.0 METRE LEAF

The powerful 24 volt swing gate electro mechanical operator. What makes TOM so special (and yes a little more expensive than most) is just below the top shaft cover. Easily accessible and adjustable mechanical stops. That along with ability to wire encoders makes the TOM highly adaptable to difficult sites where physical stops may be a problem to install. The TOM is a non reversible operator with key operated manual override but one of the main benefits of the 24 volt motor is the ability to use battery backup meaning you may never have to use the manual override key.

Reliable and innovative gear motor, thanks to the 2 adjustable mechanical stops in opening and closing accessible from above and positioned under the metal cover of the shaft. Ideal for the automation of any type of swing gate thanks also to the compact footprints (only 96 mm width) and screw-in brackets. The 45° inclination of the wiring cable allows the distance from the ground to be reduced to a minimum. The rear and front brackets, aligned on the same axis, enable the better distribution of loads by optimizing the lifespan of the actuator. The worm screw protected by wiper ring and stainless steel shaft make it suitable for dusty or sandy environments, or places with aggressive weather conditions

It is possible to use a variety of control boards to control the TOM but the factory designed board is the BRAINY which can be used as a one or two motor controller with a host of programmable parameters.

•At just 96 cm wide, the TOM telescopic linear motor for swing gates to 3 metres long.

•TOM features adjustable mechanical stops for opening and closing, patented FACE gears and a bronze release wheel with customised key.

•The 24 Vdc version, also guarantees standby power consumption of less than 0.8 W.

HIGH-QUALITY COMPONENTS
The release wheel is made of bronze to maximise its life, reliability, and operation. The worm gear is protected by a wiper seal and a stainless-steel shaft, making it suitable for use in dusty, sandy or harsh environments.

COMPACT DESIGN
Thanks to its compact dimensions, just 96 mm wide, TOM adapts to any situation. The 45° inclination of the cable also means that the operator can be installed flush with the floor.

EASY ACCESS TO MECHANICAL STOPS
The adjustable stops at the top are accessible once the metal cover has been slid back. These stops slide on rails and can be easily fixed in the desired position using screws.

FASTENERS DESIGNED FOR MAXIMUM ADAPTABILITY
The rear articulation, which can be fixed in three positions, reduces space requirements by adjusting for any misalignment of the panel during movement. The alignment of the front and rear brackets also ensures better load distribution by reducing bending, guaranteeing axial thrust and optimising operator life.

Additional information

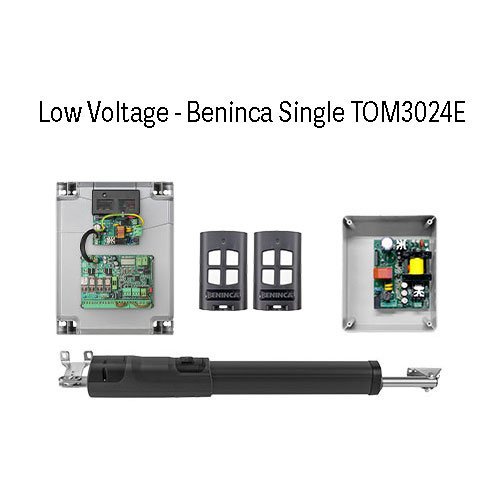

Beninca Single Swing Gate Motor TOM3024E Motor Kit

The TOM series of motors is made by Italian company Beninca which translates into quality, reliability and performance. The TOM range uses linear shaft technology for added length and strength and 24 volt DC motors.

24 VOLT ELECTRIC GATE OPERATOR – RESIDENTIAL & COMMERCIAL – 3.0 METRE LEAF

The powerful 24 volt swing gate electro mechanical operator. What makes TOM so special (and yes a little more expensive than most) is just below the top shaft cover. Easily accessible and adjustable mechanical stops. That along with ability to wire encoders makes the TOM highly adaptable to difficult sites where physical stops may be a problem to install. The TOM is a non reversible operator with key operated manual override but one of the main benefits of the 24 volt motor is the ability to use battery backup meaning you may never have to use the manual override key.

Reliable and innovative gear motor, thanks to the 2 adjustable mechanical stops in opening and closing accessible from above and positioned under the metal cover of the shaft. Ideal for the automation of any type of swing gate thanks also to the compact footprints (only 96 mm width) and screw-in brackets. The 45° inclination of the wiring cable allows the distance from the ground to be reduced to a minimum. The rear and front brackets, aligned on the same axis, enable the better distribution of loads by optimizing the lifespan of the actuator. The worm screw protected by wiper ring and stainless steel shaft make it suitable for dusty or sandy environments, or places with aggressive weather conditions

It is possible to use a variety of control boards to control the TOM but the factory designed board is the BRAINY which can be used as a one or two motor controller with a host of programmable parameters.

•At just 96 cm wide, the TOM telescopic linear motor for swing gates to 3 metres long.

•TOM features adjustable mechanical stops for opening and closing, patented FACE gears and a bronze release wheel with customised key.

•The 24 Vdc version, also guarantees standby power consumption of less than 0.8 W.

HIGH-QUALITY COMPONENTS
The release wheel is made of bronze to maximise its life, reliability, and operation. The worm gear is protected by a wiper seal and a stainless-steel shaft, making it suitable for use in dusty, sandy or harsh environments.

COMPACT DESIGN
Thanks to its compact dimensions, just 96 mm wide, TOM adapts to any situation. The 45° inclination of the cable also means that the operator can be installed flush with the floor.

EASY ACCESS TO MECHANICAL STOPS
The adjustable stops at the top are accessible once the metal cover has been slid back. These stops slide on rails and can be easily fixed in the desired position using screws.

FASTENERS DESIGNED FOR MAXIMUM ADAPTABILITY
The rear articulation, which can be fixed in three positions, reduces space requirements by adjusting for any misalignment of the panel during movement. The alignment of the front and rear brackets also ensures better load distribution by reducing bending, guaranteeing axial thrust and optimising operator life.

Additional information

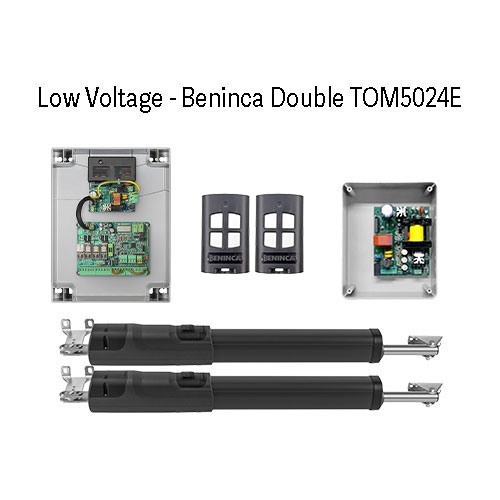

Beninca Double Swing Gate Motor TOM5024E Motor Kit

The TOM series of motors is made by Italian company Beninca which translates into quality, reliability and performance. The TOM range uses linear shaft technology for added length and strength and 24 volt DC motors.

24 VOLT ELECTRIC GATE OPERATOR – RESIDENTIAL & COMMERCIAL –5.0 METRE LEAF

The powerful 24 volt swing gate electro mechanical operator. What makes TOM so special (and yes a little more expensive than most) is just below the top shaft cover. Easily accessible and adjustable mechanical stops. That along with ability to wire encoders makes the TOM highly adaptable to difficult sites where physical stops may be a problem to install. The TOM is a non reversible operator with key operated manual override but one of the main benefits of the 24 volt motor is the ability to use battery backup meaning you may never have to use the manual override key.

Reliable and innovative gear motor, thanks to the 2 adjustable mechanical stops in opening and closing accessible from above and positioned under the metal cover of the shaft. Ideal for the automation of any type of swing gate thanks also to the compact footprints (only 96 mm width) and screw-in brackets. The 45° inclination of the wiring cable allows the distance from the ground to be reduced to a minimum. The rear and front brackets, aligned on the same axis, enable the better distribution of loads by optimizing the lifespan of the actuator. The worm screw protected by wiper ring and stainless steel shaft make it suitable for dusty or sandy environments, or places with aggressive weather conditions

It is possible to use a variety of control boards to control the TOM but the factory designed board is the BRAINY which can be used as a one or two motor controller with a host of programmable parameters.

•At just 96 cm wide, the TOM telescopic linear motor for swing gates to 5 metres long.

•TOM features adjustable mechanical stops for opening and closing, patented FACE gears and a bronze release wheel with customised key.

•The 24 Vdc version, also guarantees standby power consumption of less than 0.8 W.

HIGH-QUALITY COMPONENTS
The release wheel is made of bronze to maximise its life, reliability, and operation. The worm gear is protected by a wiper seal and a stainless-steel shaft, making it suitable for use in dusty, sandy or harsh environments.

COMPACT DESIGN
Thanks to its compact dimensions, just 96 mm wide, TOM adapts to any situation. The 45° inclination of the cable also means that the operator can be installed flush with the floor.

EASY ACCESS TO MECHANICAL STOPS
The adjustable stops at the top are accessible once the metal cover has been slid back. These stops slide on rails and can be easily fixed in the desired position using screws.

FASTENERS DESIGNED FOR MAXIMUM ADAPTABILITY
The rear articulation, which can be fixed in three positions, reduces space requirements by adjusting for any misalignment of the panel during movement. The alignment of the front and rear brackets also ensures better load distribution by reducing bending, guaranteeing axial thrust and optimising operator life.

Additional information

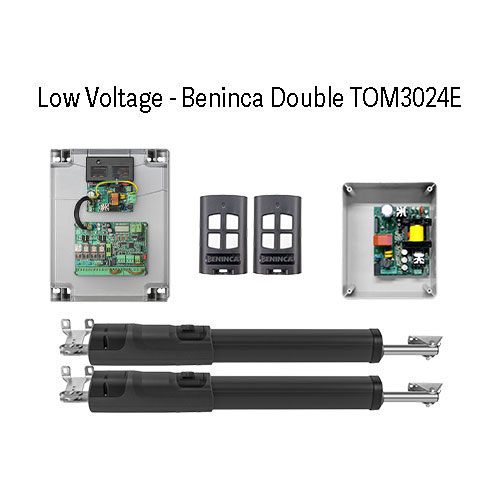

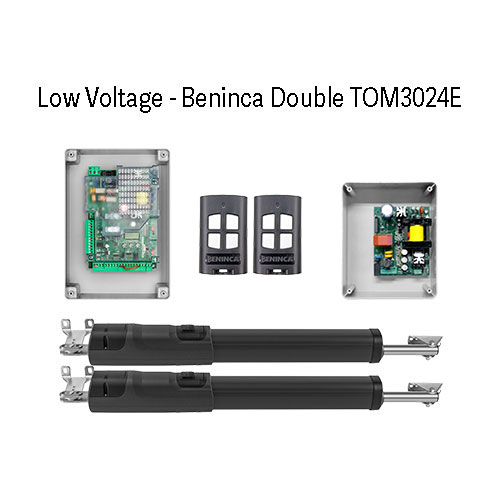

Beninca Double Swing Gate Motor TOM3024E Motor Kit

The TOM series of motors is made by Italian company Beninca which translates into quality, reliability and performance. The TOM range uses linear shaft technology for added length and strength and 24 volt DC motors.

24 VOLT ELECTRIC GATE OPERATOR – RESIDENTIAL & COMMERCIAL – 3.0 METRE LEAF

The powerful 24 volt swing gate electro mechanical operator. What makes TOM so special (and yes a little more expensive than most) is just below the top shaft cover. Easily accessible and adjustable mechanical stops. That along with ability to wire encoders makes the TOM highly adaptable to difficult sites where physical stops may be a problem to install. The TOM is a non reversible operator with key operated manual override but one of the main benefits of the 24 volt motor is the ability to use battery backup meaning you may never have to use the manual override key.

Reliable and innovative gear motor, thanks to the 2 adjustable mechanical stops in opening and closing accessible from above and positioned under the metal cover of the shaft. Ideal for the automation of any type of swing gate thanks also to the compact footprints (only 96 mm width) and screw-in brackets. The 45° inclination of the wiring cable allows the distance from the ground to be reduced to a minimum. The rear and front brackets, aligned on the same axis, enable the better distribution of loads by optimizing the lifespan of the actuator. The worm screw protected by wiper ring and stainless steel shaft make it suitable for dusty or sandy environments, or places with aggressive weather conditions

It is possible to use a variety of control boards to control the TOM but the factory designed board is the BRAINY which can be used as a one or two motor controller with a host of programmable parameters.

•At just 96 cm wide, the TOM telescopic linear motor for swing gates to 3 metres long.

•TOM features adjustable mechanical stops for opening and closing, patented FACE gears and a bronze release wheel with customised key.

•The 24 Vdc version, also guarantees standby power consumption of less than 0.8 W.

HIGH-QUALITY COMPONENTS
The release wheel is made of bronze to maximise its life, reliability, and operation. The worm gear is protected by a wiper seal and a stainless-steel shaft, making it suitable for use in dusty, sandy or harsh environments.

COMPACT DESIGN
Thanks to its compact dimensions, just 96 mm wide, TOM adapts to any situation. The 45° inclination of the cable also means that the operator can be installed flush with the floor.

EASY ACCESS TO MECHANICAL STOPS
The adjustable stops at the top are accessible once the metal cover has been slid back. These stops slide on rails and can be easily fixed in the desired position using screws.

FASTENERS DESIGNED FOR MAXIMUM ADAPTABILITY
The rear articulation, which can be fixed in three positions, reduces space requirements by adjusting for any misalignment of the panel during movement. The alignment of the front and rear brackets also ensures better load distribution by reducing bending, guaranteeing axial thrust and optimising operator life.

Additional information

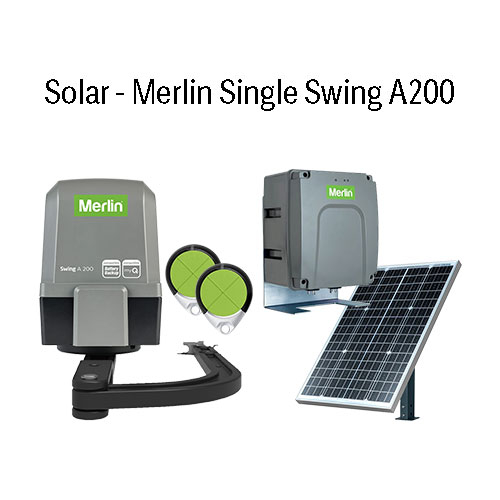

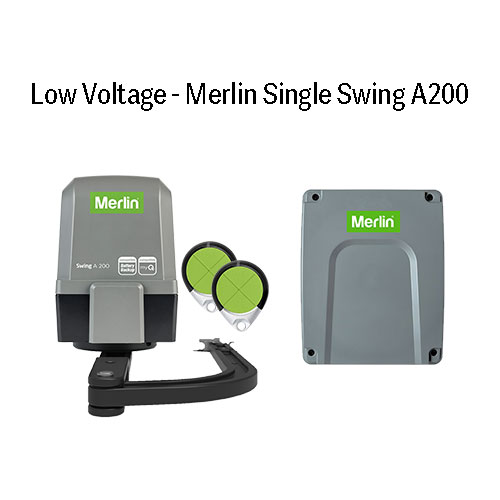

Swing A 200 Articulated Arm Single Swing Gate Opener

Merlin's Swing A 200 Swing Gate Opener is suitable for residential single swing gates up to 2.5 metres. IP44 rated, the Merlin Swing A 200 provides heavy lifting power performance for two swing gates up to:200kg for 1.5m gate150kg for 2m gate100kg for 2.5m gateMains or Low Voltage options available.  myQ capable and Battery Backup compatible.Powerful, quiet and compliant to Australian and New Zealand Standards, enjoy complete peace of mind with 3 Year Warranty and built in premium safety reversal technology, to ensure your family and possessions are protected.Loaded with Merlin Security+2.0 encryption rolling code technology means perfect operation under all environment conditions and from a greater distance than ever before.

• 200kg for a 1.5m gate
• 150kg for a 2m gate
• 100kg for a 2.5m gate

Both Mains and Low Voltage are available. This device is compatible with a battery backup as well as myQ capable. The disengagement mechanism also allows you to manually open and close the gate when needed.

MyQ App Compatibility:

• iPhone/ iPod Touch requires iOS 13.0 or higher
• Apple Watch requires watchOS5.0 or higher
• Android devices requires Android 7.0 Nougat or higher
• Windows and Blackberry devices are not compatible

Swing A 200 Articulated Arm Single Swing Gate Opener

Merlin's Swing A 200 Swing Gate Opener is suitable for residential single swing gates up to 2.5 metres. IP44 rated, the Merlin Swing A 200 provides heavy lifting power performance for two swing gates up to:200kg for 1.5m gate150kg for 2m gate100kg for 2.5m gateMains or Low Voltage options available.  myQ capable and Battery Backup compatible.Powerful, quiet and compliant to Australian and New Zealand Standards, enjoy complete peace of mind with 3 Year Warranty and built in premium safety reversal technology, to ensure your family and possessions are protected.Loaded with Merlin Security+2.0 encryption rolling code technology means perfect operation under all environment conditions and from a greater distance than ever before.

• 200kg for a 1.5m gate
• 150kg for a 2m gate
• 100kg for a 2.5m gate

Both Mains and Low Voltage are available. This device is compatible with a battery backup as well as myQ capable. The disengagement mechanism also allows you to manually open and close the gate when needed.

MyQ App Compatibility:

• iPhone/ iPod Touch requires iOS 13.0 or higher
• Apple Watch requires watchOS5.0 or higher
• Android devices requires Android 7.0 Nougat or higher
• Windows and Blackberry devices are not compatible

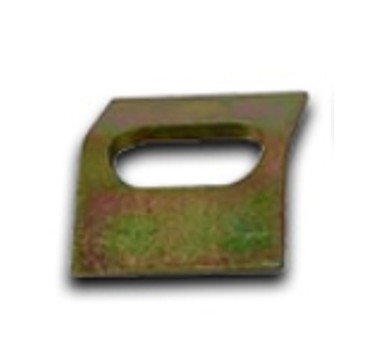

Striker Back plate for 14mm Pin Slam Lock suit FK408

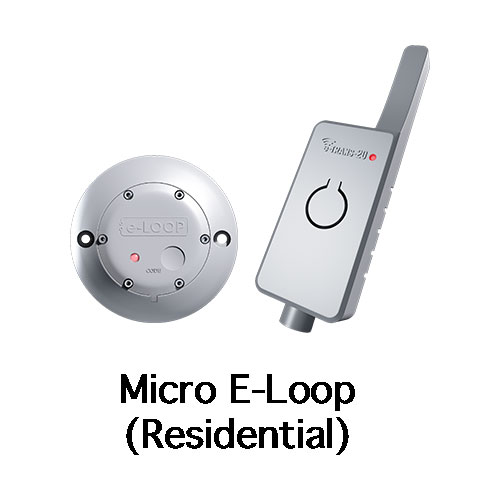

Automatic Wireless Vehicle Micro E-Loop Kit

The e-Loop Micro offers a fantastic low-cost solution to domestic gate control, offering a simple installation, impressive battery life for the form factor and a discreet and sleek design. Packaged with an e-Trans 20 as an all-in-one solution, the e-Loop Micro kit is the perfect product for any gate installer; offering a reasonably priced to up-sell a vehicle detection on a traditional gate installation.

Compact Profile – Height: 27mm | Diameter: 110mm

The e-Loop Micro’s Vehicle Detection System relies on magnetometer sensors to detect approaching vehicles. Upon detection, the system transmits this information to a nearby Microtech transceiver, facilitating gate activation/traffic control. Installation involves affixing sensors to the surface of entry or exit passages using dyna-bolts. These sensors are designed to withstand the rigors of vehicle traffic.

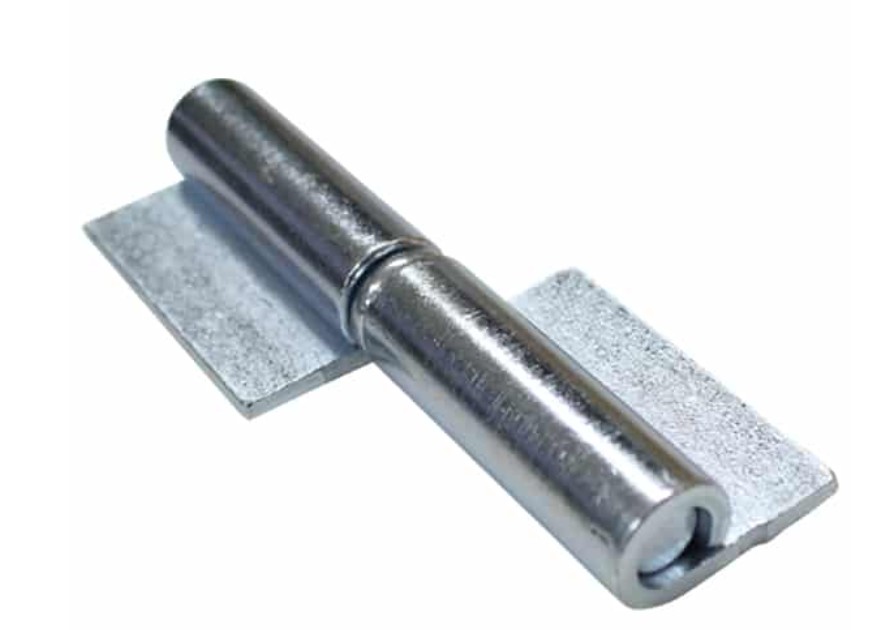

The Swing Gate Weld-to-Weld Hinge is a reliable and sturdy hinge designed for swing gates. This hinge features a 16mm left-hand threaded design and comes in a pair. It is zinc-plated for enhanced durability and corrosion resistance, making it suitable for outdoor applications. The weld-to-weld installation provides a secure attachment, ensuring the stability and longevity of your gate. With its robust construction and convenient threaded design, the Swing Gate Weld-to-Weld Hinge is an excellent choice for gate installations.

Hold weights up to 100kg

Installation instruction for Weld on hinges

1. Weld the sockets onto the gate itself.
2. Measure the distance between the sockets.
3. Weld the pins onto your post, one at the bottom, and one at the top. Make sure you have left plenty of room at the bottom so the gate clears the ground. Double check the pins are the same distance apart as your sockets. The pins should be pointing up.
4. Lift your gate up and drop it on the pins.

To make sure your gate is secure :

1. Weld the bottom pin onto your post & pin pointing up and your bottom socket on your gate.
2. Sit your gate on the bottom pin.
3. Weld the top socket to your gate.
4. Drop the pin into the top socket. so Pin is pointing down
5. Weld the pin to the post.

Tip: Measure correctly before welding. If need to change anything you will need to cut them off and re-weld them again.
