Spare part for Mortice Lock Sharp Spindle handle 150mm

Extended Spindle for use with all Mortice Locks. 150mm long and able to be cut down to suit the size needed.

Can be used in other locks requiring an 7.5mm Sq. Extended Spindle.

PRODUCT SPECIFICATION

• Size: 7.5 x 7.5 x 150mm
• Sold individually

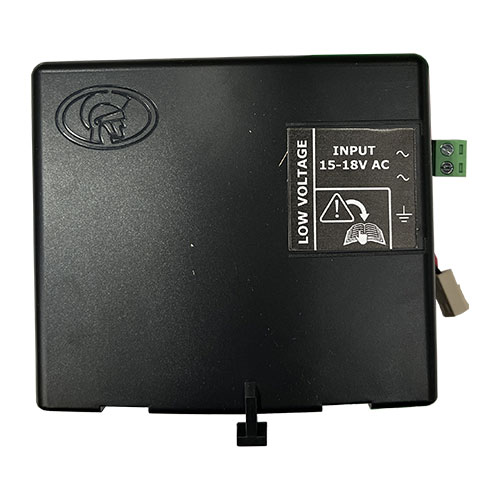

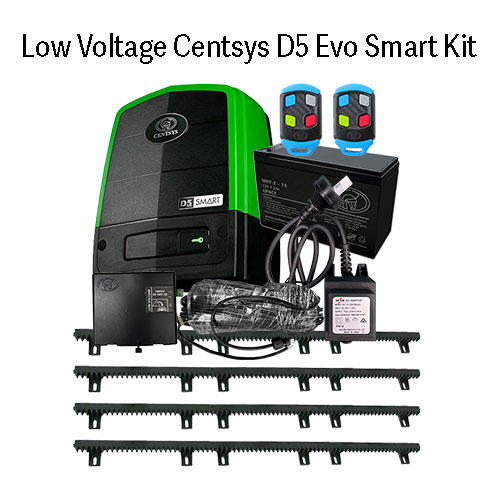

Low Voltage Centsys D5 Evo Smart Kit

Long rear bracket for Beninca TOM5024E.

Custom made rear bracket attached to the post providing you with the most appropriate geometry for swing gate.

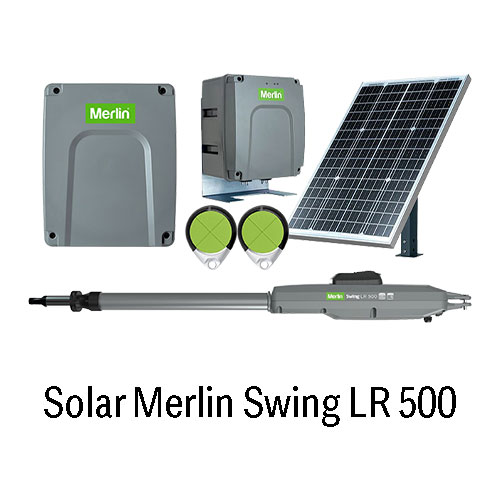

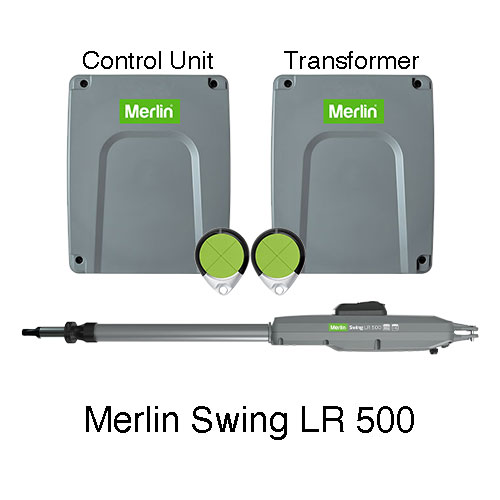

Experience effortless, dependable access with the Merlin Swing LR 500 Swing Gate Opener — a farm rural gate opener engineered for reliability, convenience and all-weather performance. Created specifically for wide and rural farm gates alike, it offers a simple transition from manual to automatic operation, giving you consistent, smooth access to your property.

Ideal for locations with mains power, this farm gate opener connects easily through a plug-and-play setup. Whether you’re dealing with downpours, heatwaves or frosty winter mornings, the LR 500 delivers consistent operation across all seasons.

Even during power outages, the optional battery backup will keep your rural farm gates operational without interruption. Backed by a 3-year Merlin warranty, the LR 500 combines practical design with long-term durability, making it the perfect solution when you’re seeking reliable access control tailored to rural lifestyles. Invest in your comfort, convenience and peace of mind today with the Merlin Swing LR 500 Swing Gate Opener.

Maximum Gate Width
-200kg for 5m gate
-250kg for 4m gate
-300kg for 3m gate

Maximum width for single gate: 5m

Kit includes:

- Linear Arm

- Control Box

- Solar Kit

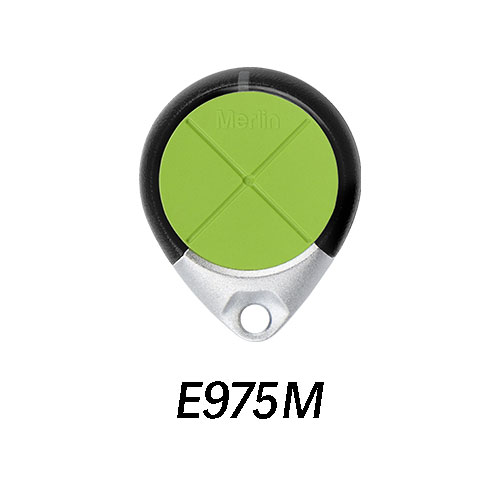

- Remote x 2

Spare bracket for Beninca TOM5024E and TOM3024E.

The bracket is situated by the hilt of the motor, where the motor meets the gate.

Experience effortless, dependable access with the Merlin Swing LR 500 Swing Gate Opener — a farm rural gate opener engineered for reliability, convenience and all-weather performance. Created specifically for wide and rural farm gates alike, it offers a simple transition from manual to automatic operation, giving you consistent, smooth access to your property.

Ideal for locations with mains power, this farm gate opener connects easily through a plug-and-play setup. Whether you’re dealing with downpours, heatwaves or frosty winter mornings, the LR 500 delivers consistent operation across all seasons.

Even during power outages, the optional battery backup will keep your rural farm gates operational without interruption. Backed by a 3-year Merlin warranty, the LR 500 combines practical design with long-term durability, making it the perfect solution when you’re seeking reliable access control tailored to rural lifestyles. Invest in your comfort, convenience and peace of mind today with the Merlin Swing LR 500 Swing Gate Opener.

Maximum Gate Width
-200kg for 5m gate
-250kg for 4m gate
-300kg for 3m gate

Maximum width for single gate: 5m

Kit includes:

- Linear Arm

- Control Box

- Transformer

- Remote x 2

Beninca Single Swing Gate Motor TOM3024E Motor Kit

The TOM series of motors is made by Italian company Beninca which translates into quality, reliability and performance. The TOM range uses linear shaft technology for added length and strength and 24 volt DC motors.

24 VOLT ELECTRIC GATE OPERATOR – RESIDENTIAL & COMMERCIAL – 3.0 METRE LEAF

The powerful 24 volt swing gate electro mechanical operator. What makes TOM so special (and yes a little more expensive than most) is just below the top shaft cover. Easily accessible and adjustable mechanical stops. That along with ability to wire encoders makes the TOM highly adaptable to difficult sites where physical stops may be a problem to install. The TOM is a non reversible operator with key operated manual override but one of the main benefits of the 24 volt motor is the ability to use battery backup meaning you may never have to use the manual override key.

Reliable and innovative gear motor, thanks to the 2 adjustable mechanical stops in opening and closing accessible from above and positioned under the metal cover of the shaft. Ideal for the automation of any type of swing gate thanks also to the compact footprints (only 96 mm width) and screw-in brackets. The 45° inclination of the wiring cable allows the distance from the ground to be reduced to a minimum. The rear and front brackets, aligned on the same axis, enable the better distribution of loads by optimizing the lifespan of the actuator. The worm screw protected by wiper ring and stainless steel shaft make it suitable for dusty or sandy environments, or places with aggressive weather conditions

It is possible to use a variety of control boards to control the TOM but the factory designed board is the BRAINY which can be used as a one or two motor controller with a host of programmable parameters.

•At just 96 cm wide, the TOM telescopic linear motor for swing gates to 3 metres long.

•TOM features adjustable mechanical stops for opening and closing, patented FACE gears and a bronze release wheel with customised key.

•The 24 Vdc version, also guarantees standby power consumption of less than 0.8 W.

HIGH-QUALITY COMPONENTS
The release wheel is made of bronze to maximise its life, reliability, and operation. The worm gear is protected by a wiper seal and a stainless-steel shaft, making it suitable for use in dusty, sandy or harsh environments.

COMPACT DESIGN
Thanks to its compact dimensions, just 96 mm wide, TOM adapts to any situation. The 45° inclination of the cable also means that the operator can be installed flush with the floor.

EASY ACCESS TO MECHANICAL STOPS
The adjustable stops at the top are accessible once the metal cover has been slid back. These stops slide on rails and can be easily fixed in the desired position using screws.

FASTENERS DESIGNED FOR MAXIMUM ADAPTABILITY
The rear articulation, which can be fixed in three positions, reduces space requirements by adjusting for any misalignment of the panel during movement. The alignment of the front and rear brackets also ensures better load distribution by reducing bending, guaranteeing axial thrust and optimising operator life.

Additional information

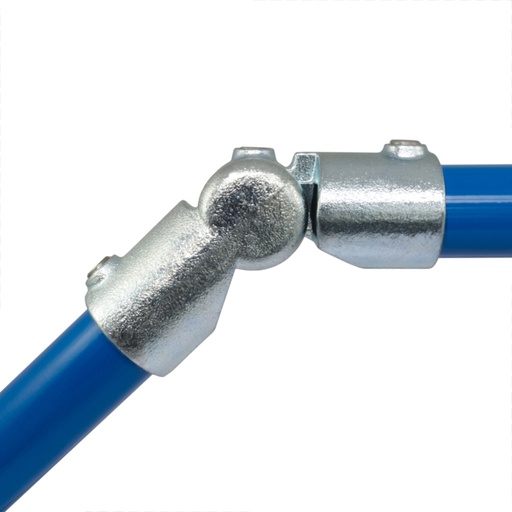

Tigerclamp 166 series Adjustable Angle Connector

fit 25NB pipe (34mm)

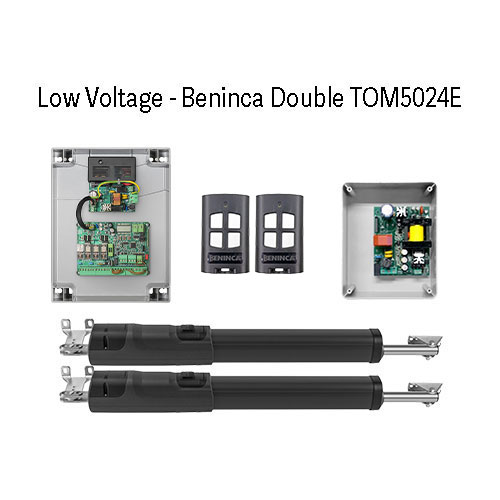

Beninca Double Swing Gate Motor TOM5024E Motor Kit

The TOM series of motors is made by Italian company Beninca which translates into quality, reliability and performance. The TOM range uses linear shaft technology for added length and strength and 24 volt DC motors.

24 VOLT ELECTRIC GATE OPERATOR – RESIDENTIAL & COMMERCIAL –5.0 METRE LEAF

The powerful 24 volt swing gate electro mechanical operator. What makes TOM so special (and yes a little more expensive than most) is just below the top shaft cover. Easily accessible and adjustable mechanical stops. That along with ability to wire encoders makes the TOM highly adaptable to difficult sites where physical stops may be a problem to install. The TOM is a non reversible operator with key operated manual override but one of the main benefits of the 24 volt motor is the ability to use battery backup meaning you may never have to use the manual override key.

Reliable and innovative gear motor, thanks to the 2 adjustable mechanical stops in opening and closing accessible from above and positioned under the metal cover of the shaft. Ideal for the automation of any type of swing gate thanks also to the compact footprints (only 96 mm width) and screw-in brackets. The 45° inclination of the wiring cable allows the distance from the ground to be reduced to a minimum. The rear and front brackets, aligned on the same axis, enable the better distribution of loads by optimizing the lifespan of the actuator. The worm screw protected by wiper ring and stainless steel shaft make it suitable for dusty or sandy environments, or places with aggressive weather conditions

It is possible to use a variety of control boards to control the TOM but the factory designed board is the BRAINY which can be used as a one or two motor controller with a host of programmable parameters.

•At just 96 cm wide, the TOM telescopic linear motor for swing gates to 5 metres long.

•TOM features adjustable mechanical stops for opening and closing, patented FACE gears and a bronze release wheel with customised key.

•The 24 Vdc version, also guarantees standby power consumption of less than 0.8 W.

HIGH-QUALITY COMPONENTS
The release wheel is made of bronze to maximise its life, reliability, and operation. The worm gear is protected by a wiper seal and a stainless-steel shaft, making it suitable for use in dusty, sandy or harsh environments.

COMPACT DESIGN
Thanks to its compact dimensions, just 96 mm wide, TOM adapts to any situation. The 45° inclination of the cable also means that the operator can be installed flush with the floor.

EASY ACCESS TO MECHANICAL STOPS
The adjustable stops at the top are accessible once the metal cover has been slid back. These stops slide on rails and can be easily fixed in the desired position using screws.

FASTENERS DESIGNED FOR MAXIMUM ADAPTABILITY
The rear articulation, which can be fixed in three positions, reduces space requirements by adjusting for any misalignment of the panel during movement. The alignment of the front and rear brackets also ensures better load distribution by reducing bending, guaranteeing axial thrust and optimising operator life.

Additional information
