Experience effortless, dependable access with the Merlin Swing LR 500 Swing Gate Opener — a farm rural gate opener engineered for reliability, convenience and all-weather performance. Created specifically for wide and rural farm gates alike, it offers a simple transition from manual to automatic operation, giving you consistent, smooth access to your property.
Ideal for locations with mains power, this farm gate opener connects easily through a plug-and-play setup. Whether you’re dealing with downpours, heatwaves or frosty winter mornings, the LR 500 delivers consistent operation across all seasons.
Even during power outages, the optional battery backup will keep your rural farm gates operational without interruption. Backed by a 3-year Merlin warranty, the LR 500 combines practical design with long-term durability, making it the perfect solution when you’re seeking reliable access control tailored to rural lifestyles. Invest in your comfort, convenience and peace of mind today with the Merlin Swing LR 500 Swing Gate Opener.
Maximum Gate Width-200kg for 5m gate-250kg for 4m gate-300kg for 3m gate
Maximum width for single gate: 5m
Kit includes:
- Linear Arm
- Control Box
- Transformer
- Remote x 2
The E5 BT A18 Low Voltage Vehicular Electromechanical Reversible Swing Gate Opener by BFT can be installed to pillars or columns using the Thalia Control Unit. This swing gate operator is ideal for pedestrian gates up to 1.5M wide and up to 100kg. It features U-Link Platform compatibility, D-Track path tracking with smart torque management, and an absolute encoder that recognizes position and manages slow down times. Ideal for multi-residential and commercial sites, this Low Voltage Electromechanical Swing Gate Operator includes automatic closing settings and remote opening for added security.
2 x E5 BT A18 Motor
1 x Thalia A80
2 x Linear sliding arm
2 x BFT Remotes
• Installs to pillars or columns
• For pedestrian gates up to 220 lbs
• For pedestrian gates up to 5 ft wide
• Ideal for multi-resident and commercial sites
• Push & go function to manually open gate completely
• Easy to install fixing bracket for columns and pillars
• Compact, reversible electromechanical swing gate opener
• U-Link connectivity platform compatible using THALIA control unit
• Absolute encoder recognizes position to manage slowdown at all times
• THALIA unit has standard color terminal blocks for output/input for quick assembly
• D-Track path tracking includes smart torque management, constant updating for accuracy
• Safety enhancements include ability to set gate automatic closing after opening and remote opening
• 4.5-6.5s opening speed (90° maneuver including slowdown) based on weight/dimensions of the leaf
The BFT Kustos Ultra BT B40 Single Swing Gate Motor Kit is a reliable and efficient solution for automating your single swing gate.
Max Weight : 700kg per leafMax Width of Gate: 4m per leafMax Width WITHOUT Electric Lock: 3m per leaf
1 x BFT Kustos Ultra B40 24V DC
2 x Remotes
1 x Flashing Light
1 x Safety Sensor
1 x Clonix Receiver
1 x 3-pin Plug
1 x Control Board (240V)

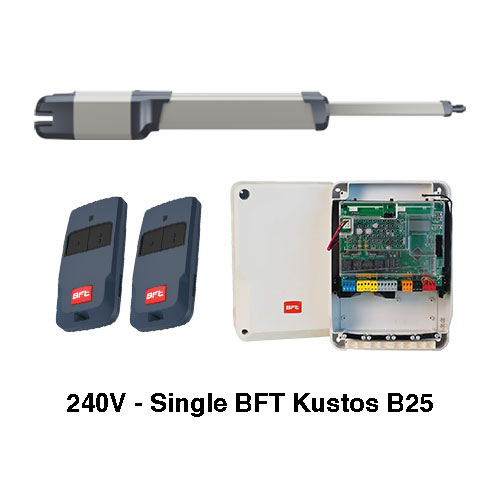

The BFT Kustos Ultra BT B25 Single Swing Gate Motor Kit (240V) is a reliable and efficient solution for automating your single swing gate.
Max Weight : 400kg per leafMax Width of Gate: 3m per leafMax Width WITHOUT Electric Lock: 2m per leaf
1 x BFT Kustos Ultra B25 24V DC
The BFT Kustos Ultra BT B25 Double Swing Gate Motor Kit is a reliable and efficient solution for automating your double swing gate.
2 x BFT Kustos Ultra B25 24V DC

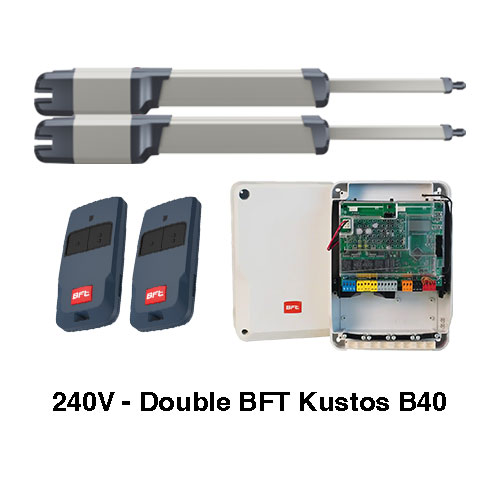

The BFT Kustos Ultra BT B40 Double Swing Gate Motor Kit is a comprehensive solution for automating your double swing gate.
2 x BFT Kustos Ultra B40 24V DC
Swing A 200 Articulated Arm Single Swing Gate Opener
Merlin's Swing A 200 Swing Gate Opener is suitable for residential single swing gates up to 2.5 metres. IP44 rated, the Merlin Swing A 200 provides heavy lifting power performance for two swing gates up to:200kg for 1.5m gate150kg for 2m gate100kg for 2.5m gateMains or Low Voltage options available. myQ capable and Battery Backup compatible.Powerful, quiet and compliant to Australian and New Zealand Standards, enjoy complete peace of mind with 3 Year Warranty and built in premium safety reversal technology, to ensure your family and possessions are protected.Loaded with Merlin Security+2.0 encryption rolling code technology means perfect operation under all environment conditions and from a greater distance than ever before.
Both Mains and Low Voltage are available. This device is compatible with a battery backup as well as myQ capable. The disengagement mechanism also allows you to manually open and close the gate when needed.
MyQ App Compatibility:
VENUS is a plug-and-play motorised gate closer for pedestrian swing gates. The compact all-in-one gate operator can easily be installed on any type of post and hinge thanks to 3 different arm types. The innovative motor’s performance remains unaffected by manual force. When combined with access control, the Venus also works as a low-energy gate opener.
The VENUS motorised gate closer is specifically designed for pedestrian gates up to 1400 mm and 100 kg.
VENUS is a brushless motor specially designed for semi-manual or fully automated outdoor use.
WHAT MAKES IT SPECIAL?
• Safe, reliable operation thanks to low-energy speed control and integrated obstacle detection.
• All-in-one gate operator with integrated power supply and circuit board, input/output connectors and indicator light.
• Easy setup with free mobile app
Specifications:
PERFORMANCE
INSTALLATION
CONFIGURATION
MATERIAL
VIDEOS
DOCUMENTS
Installation Manual
Beninca Underground Double Swing Gate Motor DU.IT 24NVE Double KIT
Electromechanical underground operator
Product Details:
Yes
24Vdc
Electromechanical
300Kg
99%
Light breeze
Residential
15 seconds
Motor Only, Single Kit, Pair Kit
Donwload installation DU.IT 24NVE
Power supply: 240 Vac (50-60Hz)
Motor supply: 24 Vdc
Max absorbed current: 11 A
Torque: 280 Nm
Opening time: 15”
Duty cycle: intensive use
Protection level: IP67
Operating temperature: -20°C /+50°C
Leaf max dimension: 3.5 m
Weight: 10 kg
DU.ITIX weight: 8.1 kg
DU.ITCF weight: 9.6 kg
Irreversible 24V DC Gear Motor for Intensive Use
✔ Available With or Without a Control Unit – Choose the option that best suits your setup.
✔ Easy Installation & Maintenance – The control unit is positioned on a removable support for quick access to mechanical stops and simplified installation.
✔ Efficient & Long-Lasting – 100-250V AC switching power supply reduces energy consumption and extends the actuator’s lifespan.
✔ Designed for Large Swing Gates – Suitable for gates with large columns and leaf hinges up to 280mm deep (only 170mm wide).
✔ Maximum Safety & Precision – The encoder system ensures accurate gate movement and obstacle detection with an amperometric sensor to prevent crushing.
✔ Smart Torque Control (STC System) – Manages torque based on gate position for optimal performance and safety.
✔ Strong & Secure Arm Design – Includes a closing lock that helps define the limit switch position during installation.
✔ Reliable in Power Outages – Compatible with backup batteries that seamlessly integrate into the motor for uninterrupted operation.
✔ Weather-Resistant Cable Management – Motor fixing bracket with a cable gland ensures a secure and tidy cable setup.
✔ KNX Home Automation Ready – Can be connected to the X.BE module for seamless integration into smart home systems, programmable via the BeUP app and PRO.UP interface.
✔ External Manual Release Option – The adjustable flush release allows gate opening from the outside in case of a power failure.
Swing A 200 Articulated Arm Double Swing Gate Opener
Merlin's Swing A 200 Swing Gate Opener is suitable for residential dual swing gates up to 2.5 metres. IP44 rated, the Merlin Swing A 200 provides heavy lifting power performance for two swing gates up to:200kg for 1.5m gate150kg for 2m gate100kg for 2.5m gate Mains or Low Voltage options available. myQ capable and Battery Backup compatible.Powerful, quiet and compliant to Australian and New Zealand Standards, enjoy complete peace of mind with 3 Year Warranty and built in premium safety reversal technology, to ensure your family and possessions are protected.Loaded with Merlin Security+2.0 encryption rolling code technology means perfect operation under all environment conditions and from a greater distance than ever before.
Beninca Double Swing Gate Motor TOM5024E Motor Kit
The TOM series of motors is made by Italian company Beninca which translates into quality, reliability and performance. The TOM range uses linear shaft technology for added length and strength and 24 volt DC motors.
24 VOLT ELECTRIC GATE OPERATOR – RESIDENTIAL & COMMERCIAL –5.0 METRE LEAF
The powerful 24 volt swing gate electro mechanical operator. What makes TOM so special (and yes a little more expensive than most) is just below the top shaft cover. Easily accessible and adjustable mechanical stops. That along with ability to wire encoders makes the TOM highly adaptable to difficult sites where physical stops may be a problem to install. The TOM is a non reversible operator with key operated manual override but one of the main benefits of the 24 volt motor is the ability to use battery backup meaning you may never have to use the manual override key.
Reliable and innovative gear motor, thanks to the 2 adjustable mechanical stops in opening and closing accessible from above and positioned under the metal cover of the shaft. Ideal for the automation of any type of swing gate thanks also to the compact footprints (only 96 mm width) and screw-in brackets. The 45° inclination of the wiring cable allows the distance from the ground to be reduced to a minimum. The rear and front brackets, aligned on the same axis, enable the better distribution of loads by optimizing the lifespan of the actuator. The worm screw protected by wiper ring and stainless steel shaft make it suitable for dusty or sandy environments, or places with aggressive weather conditions
It is possible to use a variety of control boards to control the TOM but the factory designed board is the BRAINY which can be used as a one or two motor controller with a host of programmable parameters.
•At just 96 cm wide, the TOM telescopic linear motor for swing gates to 5 metres long.
•TOM features adjustable mechanical stops for opening and closing, patented FACE gears and a bronze release wheel with customised key.
•The 24 Vdc version, also guarantees standby power consumption of less than 0.8 W.
HIGH-QUALITY COMPONENTS The release wheel is made of bronze to maximise its life, reliability, and operation. The worm gear is protected by a wiper seal and a stainless-steel shaft, making it suitable for use in dusty, sandy or harsh environments.
COMPACT DESIGN Thanks to its compact dimensions, just 96 mm wide, TOM adapts to any situation. The 45° inclination of the cable also means that the operator can be installed flush with the floor.
EASY ACCESS TO MECHANICAL STOPS The adjustable stops at the top are accessible once the metal cover has been slid back. These stops slide on rails and can be easily fixed in the desired position using screws.
FASTENERS DESIGNED FOR MAXIMUM ADAPTABILITY The rear articulation, which can be fixed in three positions, reduces space requirements by adjusting for any misalignment of the panel during movement. The alignment of the front and rear brackets also ensures better load distribution by reducing bending, guaranteeing axial thrust and optimising operator life.
24 volts DC
0mA
5.5A
89W
1500Nm
19"
5000mm
80%
114mm
96mm
1575mm
9.4 Kg
IP44
Beninca Single Swing Gate Motor TOM5024E Motor Kit
Beninca Swing Gate Motor TOM5024E Motor only
Irreversible 24 Vdc electromechanical geared motor for intensive use, equipped with encoder | The TRUST24 control unit ensures power consumption in standby mode of < 0.8 W |The encoder device ensures maximum safety and precision in the gate moving phases | Amperometric sensor obstacle detection system to prevent crushing | Optional battery powered operation | Reliable and innovative gear motor, thanks to the 2 adjustable mechanical stops in opening and closing accessible from above and positioned under the metal cover of the shaft | Ideal for the automation of any type of swing gate thanks also to the compact footprints (only 96 mm width) and screw-in brackets | The 45° inclination of the wiring cable allows the distance from the ground to be reduced to a minimum | The rear and front brackets, aligned on the same axis, enable the better distribution of loads by optimizing the lifespan of the actuator | The worm screw protected by wiper ring and stainless steel shaft make it suitable for dusty or sandy environments, or places with aggressive weather conditions | Easy access release from above
--
24 Vdc | intensive use
• Irreversible 24 Vdc electromechanical gear motor for intensive use equipped with encoder
• The TRUST24 control unit ensures power consumption in standby mode of < 0.8 W
• The encoder guarantees maximum safety and precision while the gate is moving
• Amperometric sensor obstacle detection system to prevent crushing
• Possibility of battery operation
