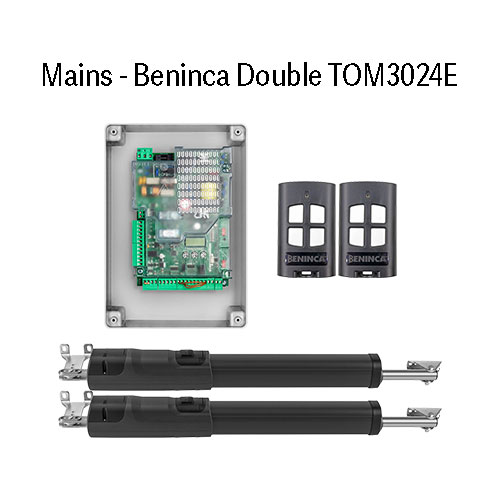

Beninca Double Swing Gate Motor TOM3024E Motor Kit
The TOM series of motors is made by Italian company Beninca which translates into quality, reliability and performance. The TOM range uses linear shaft technology for added length and strength and 24 volt DC motors.
24 VOLT ELECTRIC GATE OPERATOR – RESIDENTIAL & COMMERCIAL – 3.0 METRE LEAF
The powerful 24 volt swing gate electro mechanical operator. What makes TOM so special (and yes a little more expensive than most) is just below the top shaft cover. Easily accessible and adjustable mechanical stops. That along with ability to wire encoders makes the TOM highly adaptable to difficult sites where physical stops may be a problem to install. The TOM is a non reversible operator with key operated manual override but one of the main benefits of the 24 volt motor is the ability to use battery backup meaning you may never have to use the manual override key.
Reliable and innovative gear motor, thanks to the 2 adjustable mechanical stops in opening and closing accessible from above and positioned under the metal cover of the shaft. Ideal for the automation of any type of swing gate thanks also to the compact footprints (only 96 mm width) and screw-in brackets. The 45° inclination of the wiring cable allows the distance from the ground to be reduced to a minimum. The rear and front brackets, aligned on the same axis, enable the better distribution of loads by optimizing the lifespan of the actuator. The worm screw protected by wiper ring and stainless steel shaft make it suitable for dusty or sandy environments, or places with aggressive weather conditions
It is possible to use a variety of control boards to control the TOM but the factory designed board is the BRAINY which can be used as a one or two motor controller with a host of programmable parameters.
•At just 96 cm wide, the TOM telescopic linear motor for swing gates to 3 metres long.
•TOM features adjustable mechanical stops for opening and closing, patented FACE gears and a bronze release wheel with customised key.
•The 24 Vdc version, also guarantees standby power consumption of less than 0.8 W.
HIGH-QUALITY COMPONENTS The release wheel is made of bronze to maximise its life, reliability, and operation. The worm gear is protected by a wiper seal and a stainless-steel shaft, making it suitable for use in dusty, sandy or harsh environments.
COMPACT DESIGN Thanks to its compact dimensions, just 96 mm wide, TOM adapts to any situation. The 45° inclination of the cable also means that the operator can be installed flush with the floor.
EASY ACCESS TO MECHANICAL STOPS The adjustable stops at the top are accessible once the metal cover has been slid back. These stops slide on rails and can be easily fixed in the desired position using screws.
FASTENERS DESIGNED FOR MAXIMUM ADAPTABILITY The rear articulation, which can be fixed in three positions, reduces space requirements by adjusting for any misalignment of the panel during movement. The alignment of the front and rear brackets also ensures better load distribution by reducing bending, guaranteeing axial thrust and optimising operator life.
24 volts DC
0mA
5.5A
89W
1800Nm
9-21 seconds to 90 degrees
3000mm
80%
132mm
88mm
796mm
8.2 Kg
IP44

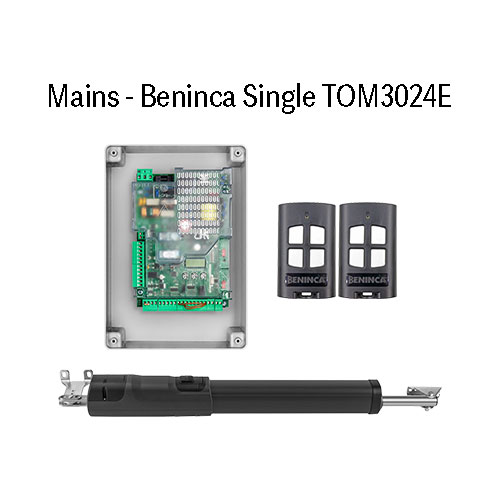

Beninca Single Swing Gate Motor TOM3024E Motor Kit
Beninca Swing Gate Motor TOM3024E Motor only

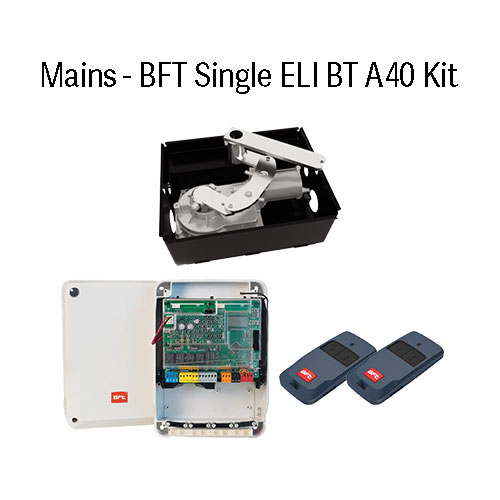

The BFT Eli BT A40 is an underground single swing gate motor designed for smooth and efficient operation of swing gates. With a 24V DC motor and a maximum weight capacity of 400kg, it is suitable for medium-sized gates. The underground installation keeps the motor hidden, providing a sleek and aesthetic gate appearance. The Eli BT A40 offers advanced safety features such as obstacle detection and adjustable slow-down during opening and closing. It comes with a control board and two remote controls for convenient access.
Max Weight : 400kgMax Width of Gate/Door: 4m
1Â BFT ELI BT A40Â
2 Remotes
1 Thalia Light Control Board

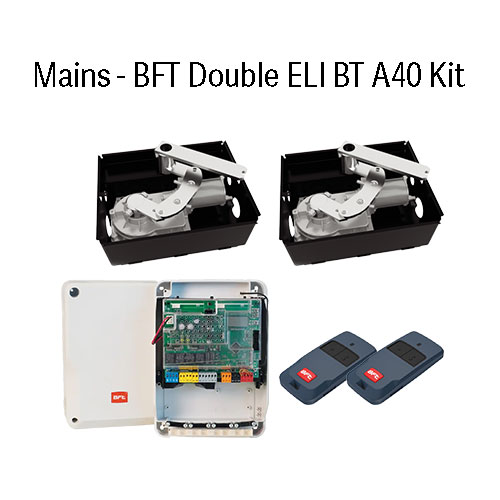

The BFT Eli BT A40 is an underground double swing gate motor designed for smooth and efficient operation of swing gates. With a 24V DC motor and a maximum weight capacity of 400kg, it is suitable for medium-sized gates. The underground installation keeps the motor hidden, providing a sleek and aesthetic gate appearance. The Eli BT A40 offers advanced safety features such as obstacle detection and adjustable slow-down during opening and closing. It comes with a control board and two remote controls for convenient access.
2 BFT ELI BT A40Â

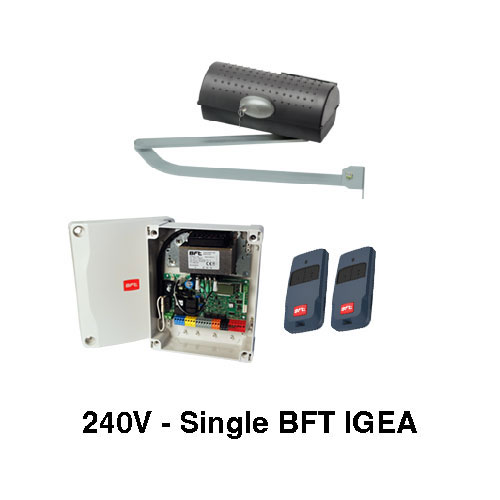

The BFT Igea Single Swing Arm Gate Motor BT Kit is a reliable and efficient solution for operating single swing gates. With a maximum weight capacity of 250kg and a gate length of up to 2.5m, it is suitable for various residential and light commercial applications. The kit includes a powerful motor, a control board, and two remote controls for convenient access. The motor features adjustable slow-down during opening and closing, ensuring smooth and safe gate operation. It is designed for easy installation and is built to withstand harsh weather conditions.
Max Weight : 250kgMax Width of Gate/Door: 2.5m
1 BFT Igea BT
1 Control Board

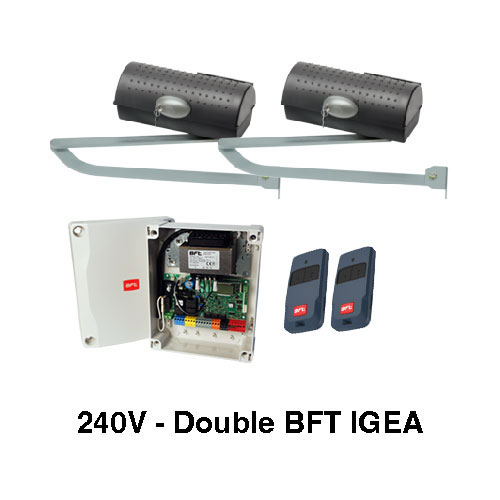

The BFT Igea Double Swing Arm Gate Motor BT Kit is a robust and high-performance solution for operating double swing gates. With a maximum weight capacity of 250kg and a gate length of up to 2.5m per leaf, it provides reliable and smooth operation for residential and light commercial applications. The kit includes two powerful motors, a control board, and remote controls for convenient access. The motors feature adjustable slow-down during opening and closing, ensuring safe and efficient gate operation. Designed for easy installation and durability, the BFT Igea Double Swing Arm Gate Motor BT Kit is built to withstand various weather conditions.
Max Weight : 250kg per leafMax Width of Gate/Door: 2.5m per leaf
2 BFT Igea BT

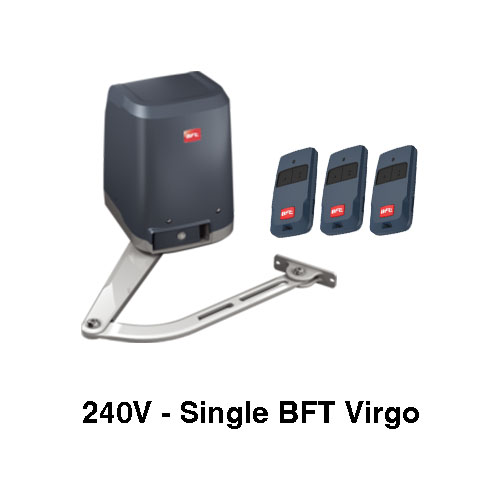

The BFT Virgo Smart BT A20 Single Swing Gate Motor Kit is a motor kit designed for single swing gates. It includes the Virgo Smart BT A20 motor, control board, mounting brackets, and other necessary components for efficient gate automation. The motor operates on a 240V power supply and is suitable for gates weighing up to 200 kg and with a maximum length of 2 meters. With smart technology integration, the motor can be easily controlled remotely using a smartphone app or integrated with other gate automation systems.
Max Weight : 200kgMax Width of Gate/Door: 2m
1 BFT Virgo Smart (Requires 240v)
3 Remotes

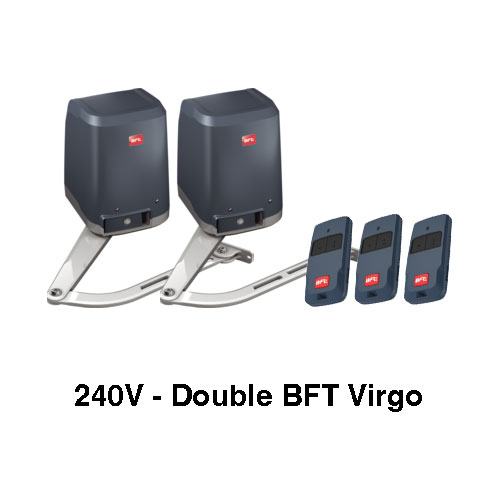

The MOT210 BFT Virgo Smart BT A20 Double Swing Gate Motor Kit is a high-quality solution for automating your double swing gate. This kit includes BFT Virgo Smart BT A20 motors that are designed for reliable and efficient performance. With their 240V power supply, these motors offer powerful operation and can handle various gate sizes and weights. The kit comes with all the necessary components for easy installation and includes user-friendly controls. With the BFT Virgo Smart BT A20 Double Swing Gate Motor Kit, you can enjoy convenient and secure automated access to your property.
Max Weight : 200kg per leafMax Width of Gate/Door: 2m per leaf
1 BFT Virgo Smart BT A20 240v w/ Double Swing

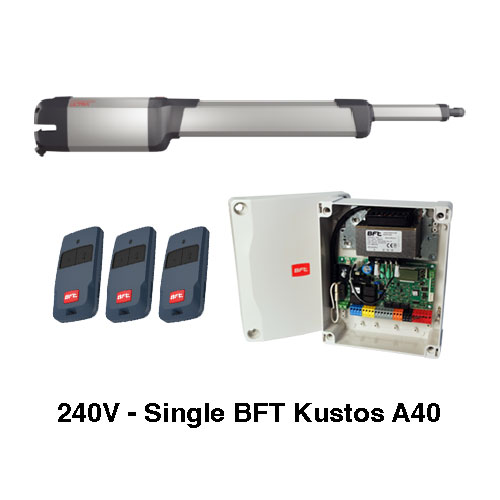

The MOT312 BFT Motor Single is a comprehensive kit designed for single swing gate automation. It features the BFT Kustos Ultra BT A40 motor, specifically engineered for reliable and efficient operation of single swing gates. With its 240V power supply, this kit offers convenient and powerful gate automation for residential and commercial applications. The motor is equipped with advanced technology for smooth and quiet operation, ensuring optimal performance and longevity. The kit includes all the necessary components for installation, including the motor, control panel, receiver, and accessories. Upgrade your gate system with the MOT312 BFT Motor Single for secure and convenient access control.
Max Weight : 500kgMax Width of Gate/Door: 4m
1 BFT Kustos Ultra A40
1 Control Board w/ 240v power supply

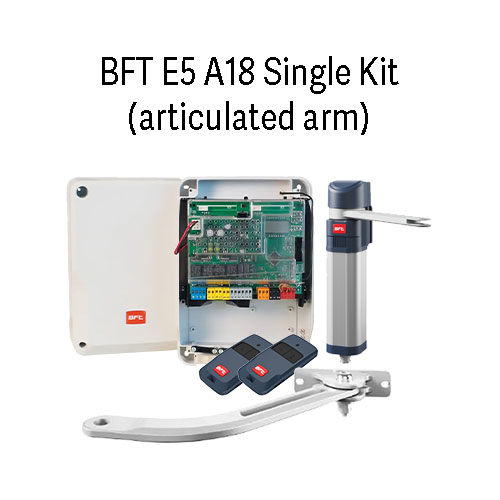

The E5 BT A18 Low Voltage Vehicular Electromechanical Reversible Swing Gate Opener by BFT can be installed to pillars or columns using the Thalia Control Unit. This swing gate operator is ideal for pedestrian gates up to 1.5M wide and up to 100kg. It features U-Link Platform compatibility, D-Track path tracking with smart torque management, and an absolute encoder that recognizes position and manages slow down times. Ideal for multi-residential and commercial sites, this Low Voltage Electromechanical Swing Gate Operator includes automatic closing settings and remote opening for added security.
Kit includes:
1 x E5 BT A18 Motor
1 x Articulated arm
1 x Thalia A80
2 x BFT Remotes
Â
• Installs to pillars or columns
• For pedestrian gates up to 220 lbs
• For pedestrian gates up to 5 ft wide
• Ideal for multi-resident and commercial sites
• Push & go function to manually open gate completely
• Easy to install fixing bracket for columns and pillars
• Compact, reversible electromechanical swing gate opener
• U-Link connectivity platform compatible using THALIA control unit
• Absolute encoder recognizes position to manage slowdown at all times
• THALIA unit has standard color terminal blocks for output/input for quick assembly
• D-Track path tracking includes smart torque management, constant updating for accuracy
• Safety enhancements include ability to set gate automatic closing after opening and remote opening
• 4.5-6.5s opening speed (90° maneuver including slowdown) based on weight/dimensions of the leaf

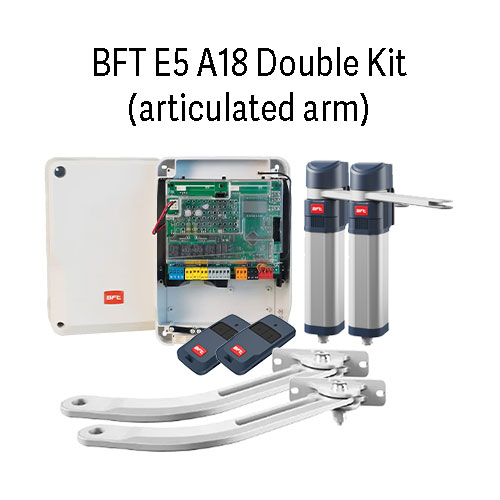

2 x E5 BT A18 Motor
2 x BFT remotes
2 x Articulated Arm
Features:
• Push & Go function to manually open gate completely
• Easy-to-install fixing bracket for columns and pillar
 • Compact, reversible electromechanical swing gate opener
• Absolute encoder recognizes position to manage slow down at all times
• Safety enhancements include the ability to set gate automatic closing after opening and remote opening
Specifications:
• Control Unit: THALIA A80
• Board Power Supply: 230V
• Motor Voltage: 24V
• Power Consumption: 40W
• Max Width of Door/Gate Wing: 1.8m (5 ft)
• Cycle Time: 14s
• Limit Switch: Absolute Encoder
• Release Type: Reversible
• Impact Reaction: D-Track
• Frequency of Use: Semi-Intensive
• Degree of Protection: IP44
• Interconnectivity: YES
• Max Weight of Door/Gate Wing: 100kg (220 lbs)
• Average Opening Time: 4.5-6.5s
• Model: E5 BT A18
