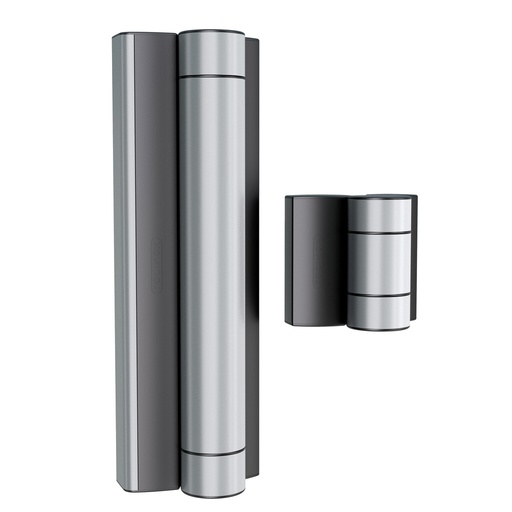

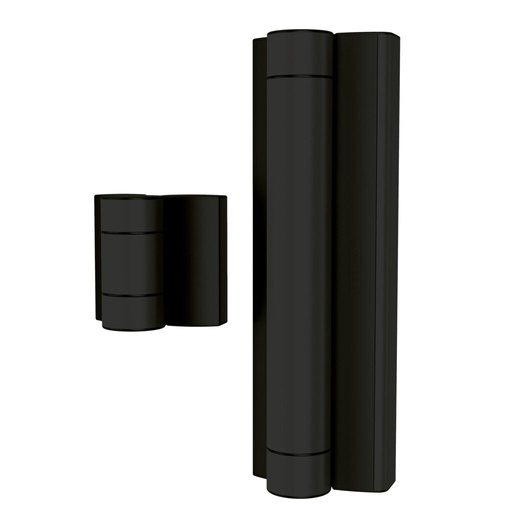

MAGNUS is a motorised gate closer and hinge in one, designed for the automation of pedestrian gates. The brushless and reversible motor is insensitive to unpredictable pedestrian behaviour, and operates in low-energy mode. The settings and access control can be configured via an intuitive app. Includes lower hinge and compact connection box.

Specifications:

• Motorised gate closer with integrated electronics
• 75 Nm torque
• Fits on post profiles from 60 mm and gate profiles from 40 mm
• Steel gear box
• Anodized aluminium cover
• Fast and easy fixing with Quick-Fix
• ETL-tested
• Input main power supply: 110 AC to 240V AC
• Motor voltage: 24V DC
• External connection box with 3 inputs and 3 outputs (Max. 48W, 24V DC)
• Automated obstacle detection with reverse function
• Brushless motor: long lifespan and intensive usage
• Reversible motor with backdrivability for easy manual use – to be combined with a lock
• 2m cable between motor and connection module
• Compact and vandal-proof design
• Configuration via app
• Tested up to 500.000 cycles
• EN 16005 Compliant

MAGNUS is the first-of-its-kind motorized hinge that seamlessly blends convenience and safety in a sleek, integrated design.

It enables full automation of pedestrian gates without the need for external safety sensors or complicated wiring. The advanced brushless, reversible motor is designed with pedestrian safety in mind, offering easy configuration and reliable performance even under heavy daily use.

Enjoy smooth operation, secure access, and consistent closure—MAGNUS elevates the functionality of pedestrian gates.

Key Features:

• Intelligent motor enables automatic opening and closing
• Durable, brushless, and reversible motor technology
• Integrated obstacle detection and push-to-open capability
• Ideal for public areas, educational institutions, and healthcare facilities
• Fully compliant with global safety standards:
  EN16005, PMR, ADA, and UL325

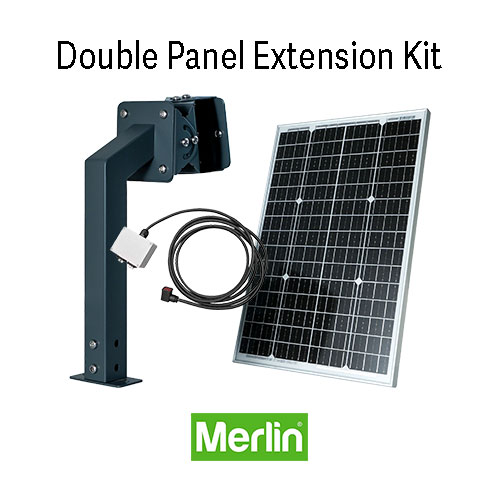

Extension Kit Only - Requires SOL003 as the primary kit

Kit Includes:

- 40W Solar Panel x 1

- Solar Panel Mounting Kit

- Cable Connector

In some cases, installing an additional solar panel at another location or facing another direction could often lead to higher sun exposure than swapping for a bigger solar panel.

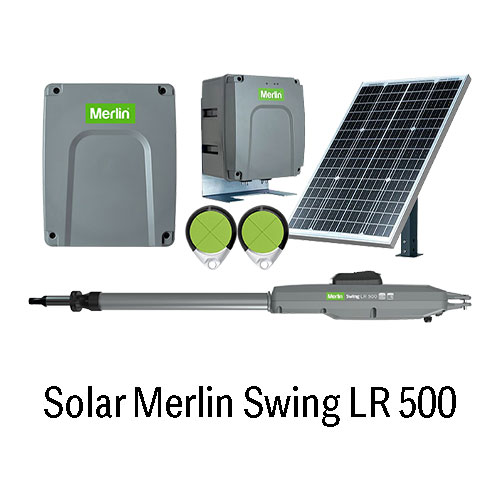

Experience effortless, dependable access with the Merlin Swing LR 500 Swing Gate Opener — a farm rural gate opener engineered for reliability, convenience and all-weather performance. Created specifically for wide and rural farm gates alike, it offers a simple transition from manual to automatic operation, giving you consistent, smooth access to your property.

Ideal for locations with mains power, this farm gate opener connects easily through a plug-and-play setup. Whether you’re dealing with downpours, heatwaves or frosty winter mornings, the LR 500 delivers consistent operation across all seasons.

Even during power outages, the optional battery backup will keep your rural farm gates operational without interruption. Backed by a 3-year Merlin warranty, the LR 500 combines practical design with long-term durability, making it the perfect solution when you’re seeking reliable access control tailored to rural lifestyles. Invest in your comfort, convenience and peace of mind today with the Merlin Swing LR 500 Swing Gate Opener.

Maximum Gate Width
-200kg for 5m gate
-250kg for 4m gate
-300kg for 3m gate

Maximum width for single gate: 5m

Kit includes:

- Linear Arm

- Control Box

- Solar Kit

- Remote x 2

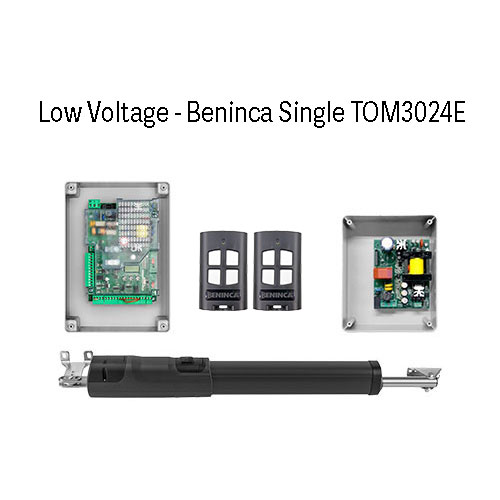

Beninca Single Swing Gate Motor TOM3024E Motor Kit

The TOM series of motors is made by Italian company Beninca which translates into quality, reliability and performance. The TOM range uses linear shaft technology for added length and strength and 24 volt DC motors.

24 VOLT ELECTRIC GATE OPERATOR – RESIDENTIAL & COMMERCIAL – 3.0 METRE LEAF

The powerful 24 volt swing gate electro mechanical operator. What makes TOM so special (and yes a little more expensive than most) is just below the top shaft cover. Easily accessible and adjustable mechanical stops. That along with ability to wire encoders makes the TOM highly adaptable to difficult sites where physical stops may be a problem to install. The TOM is a non reversible operator with key operated manual override but one of the main benefits of the 24 volt motor is the ability to use battery backup meaning you may never have to use the manual override key.

Reliable and innovative gear motor, thanks to the 2 adjustable mechanical stops in opening and closing accessible from above and positioned under the metal cover of the shaft. Ideal for the automation of any type of swing gate thanks also to the compact footprints (only 96 mm width) and screw-in brackets. The 45° inclination of the wiring cable allows the distance from the ground to be reduced to a minimum. The rear and front brackets, aligned on the same axis, enable the better distribution of loads by optimizing the lifespan of the actuator. The worm screw protected by wiper ring and stainless steel shaft make it suitable for dusty or sandy environments, or places with aggressive weather conditions

It is possible to use a variety of control boards to control the TOM but the factory designed board is the BRAINY which can be used as a one or two motor controller with a host of programmable parameters.

•At just 96 cm wide, the TOM telescopic linear motor for swing gates to 3 metres long.

•TOM features adjustable mechanical stops for opening and closing, patented FACE gears and a bronze release wheel with customised key.

•The 24 Vdc version, also guarantees standby power consumption of less than 0.8 W.

HIGH-QUALITY COMPONENTS
The release wheel is made of bronze to maximise its life, reliability, and operation. The worm gear is protected by a wiper seal and a stainless-steel shaft, making it suitable for use in dusty, sandy or harsh environments.

COMPACT DESIGN
Thanks to its compact dimensions, just 96 mm wide, TOM adapts to any situation. The 45° inclination of the cable also means that the operator can be installed flush with the floor.

EASY ACCESS TO MECHANICAL STOPS
The adjustable stops at the top are accessible once the metal cover has been slid back. These stops slide on rails and can be easily fixed in the desired position using screws.

FASTENERS DESIGNED FOR MAXIMUM ADAPTABILITY
The rear articulation, which can be fixed in three positions, reduces space requirements by adjusting for any misalignment of the panel during movement. The alignment of the front and rear brackets also ensures better load distribution by reducing bending, guaranteeing axial thrust and optimising operator life.

Additional information

Beninca Single Swing Gate Motor TOM3024E Motor Kit

The TOM series of motors is made by Italian company Beninca which translates into quality, reliability and performance. The TOM range uses linear shaft technology for added length and strength and 24 volt DC motors.

24 VOLT ELECTRIC GATE OPERATOR – RESIDENTIAL & COMMERCIAL – 3.0 METRE LEAF

The powerful 24 volt swing gate electro mechanical operator. What makes TOM so special (and yes a little more expensive than most) is just below the top shaft cover. Easily accessible and adjustable mechanical stops. That along with ability to wire encoders makes the TOM highly adaptable to difficult sites where physical stops may be a problem to install. The TOM is a non reversible operator with key operated manual override but one of the main benefits of the 24 volt motor is the ability to use battery backup meaning you may never have to use the manual override key.

Reliable and innovative gear motor, thanks to the 2 adjustable mechanical stops in opening and closing accessible from above and positioned under the metal cover of the shaft. Ideal for the automation of any type of swing gate thanks also to the compact footprints (only 96 mm width) and screw-in brackets. The 45° inclination of the wiring cable allows the distance from the ground to be reduced to a minimum. The rear and front brackets, aligned on the same axis, enable the better distribution of loads by optimizing the lifespan of the actuator. The worm screw protected by wiper ring and stainless steel shaft make it suitable for dusty or sandy environments, or places with aggressive weather conditions

It is possible to use a variety of control boards to control the TOM but the factory designed board is the BRAINY which can be used as a one or two motor controller with a host of programmable parameters.

•At just 96 cm wide, the TOM telescopic linear motor for swing gates to 3 metres long.

•TOM features adjustable mechanical stops for opening and closing, patented FACE gears and a bronze release wheel with customised key.

•The 24 Vdc version, also guarantees standby power consumption of less than 0.8 W.

HIGH-QUALITY COMPONENTS
The release wheel is made of bronze to maximise its life, reliability, and operation. The worm gear is protected by a wiper seal and a stainless-steel shaft, making it suitable for use in dusty, sandy or harsh environments.

COMPACT DESIGN
Thanks to its compact dimensions, just 96 mm wide, TOM adapts to any situation. The 45° inclination of the cable also means that the operator can be installed flush with the floor.

EASY ACCESS TO MECHANICAL STOPS
The adjustable stops at the top are accessible once the metal cover has been slid back. These stops slide on rails and can be easily fixed in the desired position using screws.

FASTENERS DESIGNED FOR MAXIMUM ADAPTABILITY
The rear articulation, which can be fixed in three positions, reduces space requirements by adjusting for any misalignment of the panel during movement. The alignment of the front and rear brackets also ensures better load distribution by reducing bending, guaranteeing axial thrust and optimising operator life.

Additional information

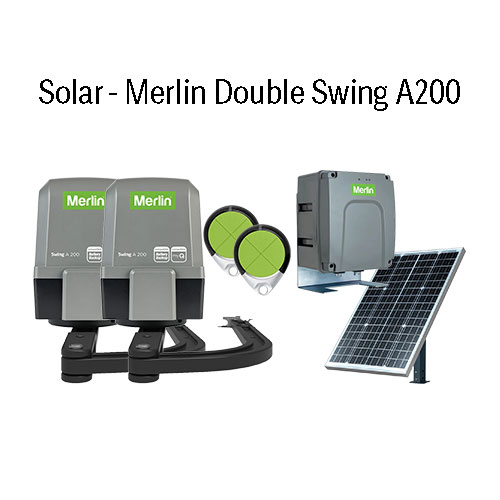

Swing A 200 Articulated Arm Double Swing Gate Opener

Merlin's Swing A 200 Swing Gate Opener is suitable for residential dual swing gates up to 2.5 metres. IP44 rated, the Merlin Swing A 200 provides heavy lifting power performance for two swing gates up to:200kg for 1.5m gate150kg for 2m gate100kg for 2.5m gate Mains or Low Voltage options available.  myQ capable and Battery Backup compatible.Powerful, quiet and compliant to Australian and New Zealand Standards, enjoy complete peace of mind with 3 Year Warranty and built in premium safety reversal technology, to ensure your family and possessions are protected.Loaded with Merlin Security+2.0 encryption rolling code technology means perfect operation under all environment conditions and from a greater distance than ever before.

• 200kg for a 1.5m gate
• 150kg for a 2m gate
• 100kg for a 2.5m gate

Both Mains and Low Voltage are available. This device is compatible with a battery backup as well as myQ capable. The disengagement mechanism also allows you to manually open and close the gate when needed.

MyQ App Compatibility:

• iPhone/ iPod Touch requires iOS 13.0 or higher
• Apple Watch requires watchOS5.0 or higher
• Android devices requires Android 7.0 Nougat or higher
• Windows and Blackberry devices are not compatible

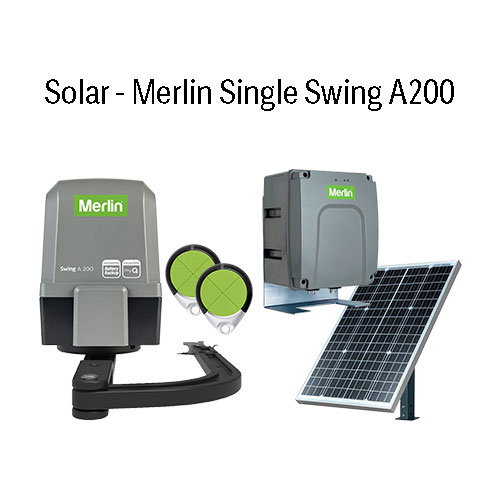

Swing A 200 Articulated Arm Single Swing Gate Opener

Merlin's Swing A 200 Swing Gate Opener is suitable for residential single swing gates up to 2.5 metres. IP44 rated, the Merlin Swing A 200 provides heavy lifting power performance for two swing gates up to:200kg for 1.5m gate150kg for 2m gate100kg for 2.5m gateMains or Low Voltage options available.  myQ capable and Battery Backup compatible.Powerful, quiet and compliant to Australian and New Zealand Standards, enjoy complete peace of mind with 3 Year Warranty and built in premium safety reversal technology, to ensure your family and possessions are protected.Loaded with Merlin Security+2.0 encryption rolling code technology means perfect operation under all environment conditions and from a greater distance than ever before.

• 200kg for a 1.5m gate
• 150kg for a 2m gate
• 100kg for a 2.5m gate

Both Mains and Low Voltage are available. This device is compatible with a battery backup as well as myQ capable. The disengagement mechanism also allows you to manually open and close the gate when needed.

MyQ App Compatibility:

• iPhone/ iPod Touch requires iOS 13.0 or higher
• Apple Watch requires watchOS5.0 or higher
• Android devices requires Android 7.0 Nougat or higher
• Windows and Blackberry devices are not compatible

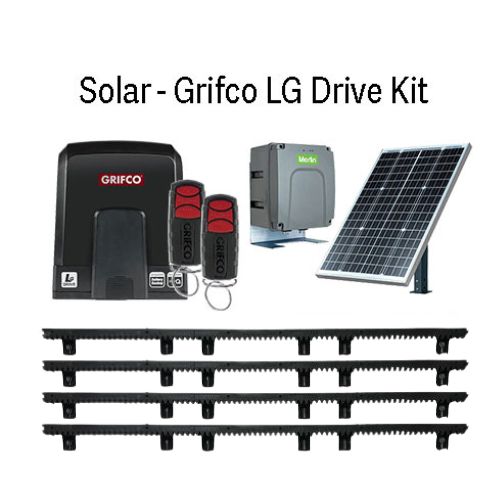

Kit includes:
- 1x Grifco GDL-DO-LV “LG-Drive” GGS1000 Sliding Gate Opener
- 1x Merlin Solar kit
- 2x E960G Premium Keyring Transmitters
- Required Hardware Fixings (Bolts Etc)
- 4x 1m Sliding Gate Racking Lugs Down


Compatible with all Merlin and Grifco gate openers.

1. Performance & Suitability - Perfect for residential & light commercial use with limited daily cycles. Under typical conditions (e.g. 6 hours of sunlight per day on the Australian East Coast), you can expect around 20 cycles per day with one set of 772ANZ Safety Beams Connected. Actual performance depends on sunlight availability, gate condition, connected accessories and environmental factors. Refer to the manual for detailed performance calculations & suitability to your location.
2. Installation Tips & Site Selection - To get the best performance from your Solar Kit, consider panel placement. Install the solar panel where it gets full sunlight—ideally facing due North. Avoid shaded or obstructed areas, as this will reduce charging efficiency. It is important to keep the solar panel close to the power supply enclosure, and ensure the enclosure is within reach of your gate opener.
3. Choosing the Right Setup - Solar performance depends on your location, sunlight hours, and how often the gate is used. Some setups may need two solar panels for reliable operation—especially in areas with less sun or higher usage. During long periods of low sunlight, you may need to recharge the system using the AC charging adaptor (included).

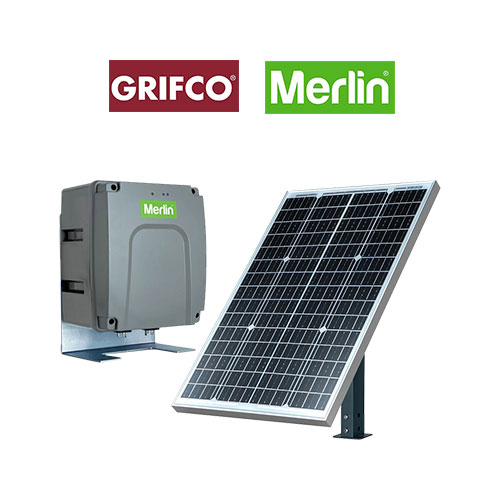

• IP65 Weather Resistant Power Supply Enclosure/Control Unit and Solar Panel
• 2 x 18Ah batteries
• 40W Solar Panel (a second 40W Solar Panel can be added for areas with low sunlight exposure*)
• Adjustable Solar Panel Mounting Kit
• 240V Mains Power Pack included to fully charge the SOLAR-KIT before installation

* If a second 40W Solar Panel is added, the Dual Solar Panel Cable Connector with 4m cable (041A0573) is required.  The Solar Panel Mounting Kit (SP-MOUNT-KIT) is also recommended.

Built for Local Conditions
Designed in Australia to withstand the unique environmental demands of both Australian and New Zealand climates.
Weather Resistant & Durable
Features an IP65-rated Power Supply Enclosure, offering strong protection against dust, rain, and harsh weather.
Reliable Power Storage
Includes 2 x 18Ah high-capacity batteries to keep your gate opener running smoothly.
Solar Powered Convenience
Comes with a 40W Solar Panel for clean, efficient energy—no mains power required.
Expandable System
Need more power? Add a second 40W Solar Panel for improved performance in low-sunlight areas.*
Flexible Mounting Options
Includes a sturdy, adjustable mounting kit to position the solar panel for maximum sunlight exposure.
Pre-Installation Charging
A 240V Mains Power Pack is included to fully charge the system before setup.
3-Year Warranty*
Merlin Peace of Mind

*The warranty period for the Solar Kit Batteries is 12 months from the date of purchase.
