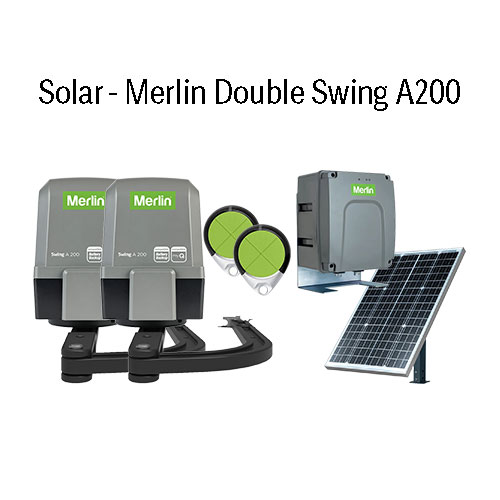

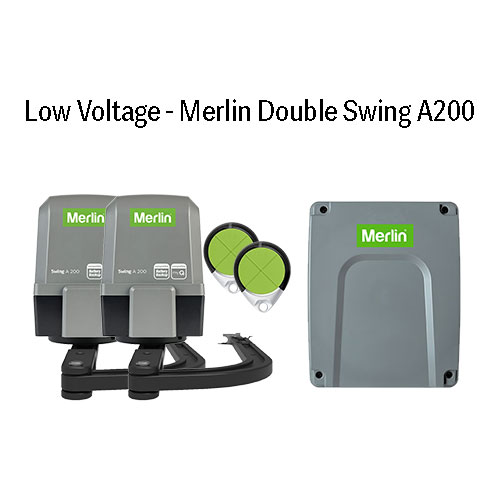

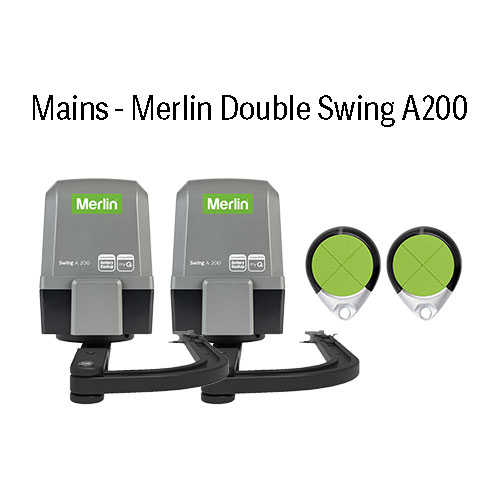

Swing A 200 Articulated Arm Double Swing Gate Opener
Merlin's Swing A 200 Swing Gate Opener is suitable for residential dual swing gates up to 2.5 metres. IP44 rated, the Merlin Swing A 200 provides heavy lifting power performance for two swing gates up to:200kg for 1.5m gate150kg for 2m gate100kg for 2.5m gate Mains or Low Voltage options available. myQ capable and Battery Backup compatible.Powerful, quiet and compliant to Australian and New Zealand Standards, enjoy complete peace of mind with 3 Year Warranty and built in premium safety reversal technology, to ensure your family and possessions are protected.Loaded with Merlin Security+2.0 encryption rolling code technology means perfect operation under all environment conditions and from a greater distance than ever before.
Both Mains and Low Voltage are available. This device is compatible with a battery backup as well as myQ capable. The disengagement mechanism also allows you to manually open and close the gate when needed.
MyQ App Compatibility:

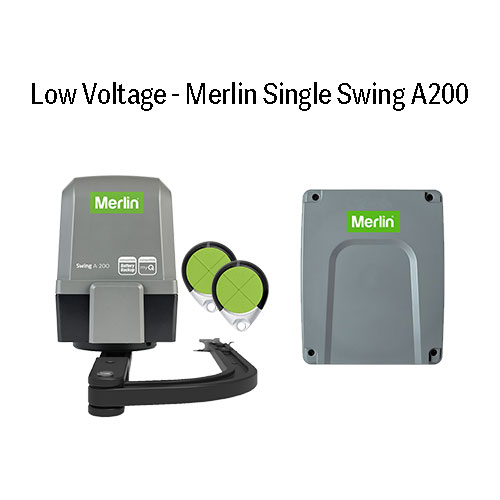

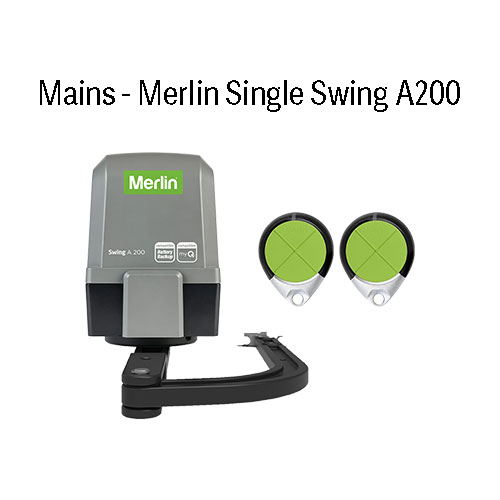

Swing A 200 Articulated Arm Single Swing Gate Opener
Merlin's Swing A 200 Swing Gate Opener is suitable for residential single swing gates up to 2.5 metres. IP44 rated, the Merlin Swing A 200 provides heavy lifting power performance for two swing gates up to:200kg for 1.5m gate150kg for 2m gate100kg for 2.5m gateMains or Low Voltage options available. myQ capable and Battery Backup compatible.Powerful, quiet and compliant to Australian and New Zealand Standards, enjoy complete peace of mind with 3 Year Warranty and built in premium safety reversal technology, to ensure your family and possessions are protected.Loaded with Merlin Security+2.0 encryption rolling code technology means perfect operation under all environment conditions and from a greater distance than ever before.
Experience the ultimate convenience and security with the Merlin Slide 600 Low Voltage Gate Motor - Merlin MGSK600-LV. This powerful and reliable gate opener from Merlin is designed to effortlessly automate your sliding gate. With its low voltage operation, it ensures energy efficiency and safe operation. The Merlin MGSK600-LV delivers exceptional performance, capable of handling gates up to 600 kg. Trust Tigerlink, your gate hardware supplier, to provide you with high-quality products that enhance the functionality and security of your gate system. Upgrade to Merlin Slide 600 Low Voltage and enjoy seamless gate automation like never before.
For more info: SOL003
Height of the top tooth of pinion gear from the ground
- with base plate: 132 mm

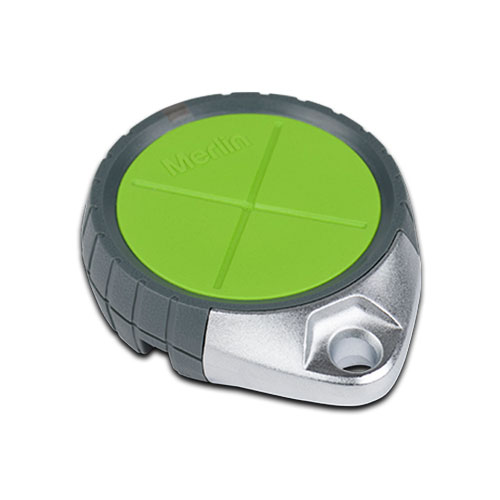

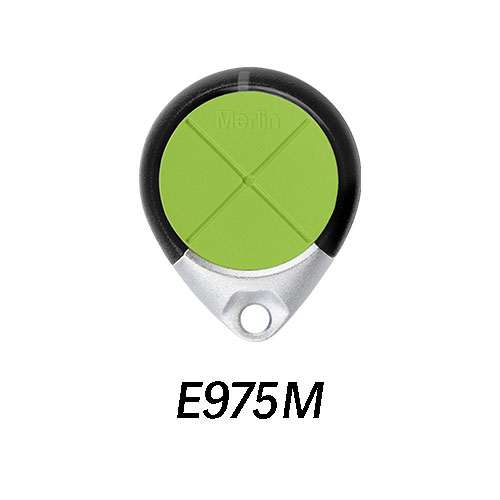

Next Generation Genuine Merlin 4 button remote with ability to code both Merlin Security+ & Merlin Security+ 2.0. Courtesy green LED Light flash for confirmation of function.Compatible with any Merlin garage door opener manufactured since 2009.
Compatible with:
Merlin garage door opener models:Commander Essential (MS65MYQ), Commander Elite (MS105MYQ), Commander Extreme (MS125MYQ), SilentDrive™ Essential (MR655MYQ), SilentDrive™ Elite (MR855MYQ), Commander Ultimate (MJ3800MYQ), Commander MyQ, WhisperDrive, TiltMaster, PowerAce, CyclonePro, OverDrive, SilentDrive Elite MyQ, SilentDrive BBU, SilentDrive Pro, QuietDrive Pro, WeatherDrive, MJ3800BBU, MT800, MT600, MT1000, MT3850, MT5580P, MT60P, MT60, MT230, RollerAce (MR60), MR600, MR800, MR1000, MJ3800, MJ3800R and all other Merlin Security+and Security+ 2.0 garage door openers
Merlin gate opener models:Slide 600 (MGSK600, MGSK600-LV), Swing A 200 (MGASK, MGASK-LV, MGADK, MGADK-LV) Swing L 300 (MGLSK, MGLSK-LV, MGLDK, MGLDK-LV)
* If a second 40W Solar Panel is added, the Dual Solar Panel Cable Connector with 4m cable (041A0573) is required. The Solar Panel Mounting Kit (SP-MOUNT-KIT) is also recommended.

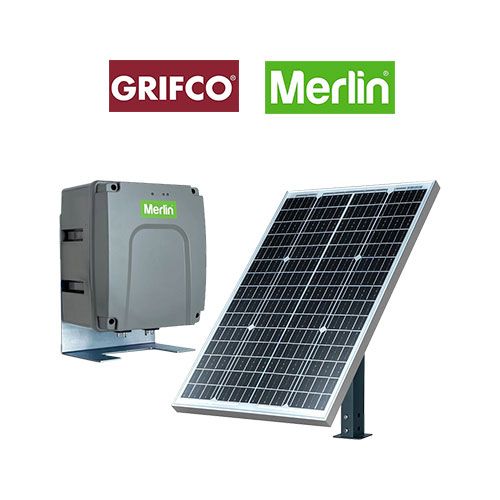

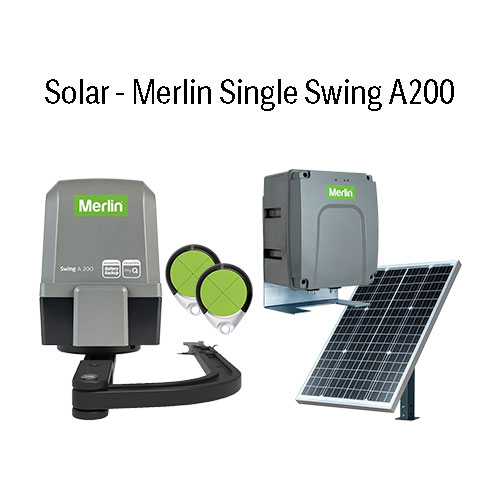

Built for Local ConditionsDesigned in Australia to withstand the unique environmental demands of both Australian and New Zealand climates.Weather Resistant & DurableFeatures an IP65-rated Power Supply Enclosure, offering strong protection against dust, rain, and harsh weather.Reliable Power StorageIncludes 2 x 18Ah high-capacity batteries to keep your gate opener running smoothly.Solar Powered ConvenienceComes with a 40W Solar Panel for clean, efficient energy—no mains power required.Expandable SystemNeed more power? Add a second 40W Solar Panel for improved performance in low-sunlight areas.*Flexible Mounting OptionsIncludes a sturdy, adjustable mounting kit to position the solar panel for maximum sunlight exposure.Pre-Installation ChargingA 240V Mains Power Pack is included to fully charge the system before setup.3-Year Warranty*Merlin Peace of Mind
*The warranty period for the Solar Kit Batteries is 12 months from the date of purchase.
Grifco/Merlin Receiver STAR1000
1x Merlin “Commander Elite” MS105MYQ Garage Door Opener 2x E970M Premium Keyring Transmitters 1x E138M Premium Wireless Wall Button 1 x 2.5m Belt Rail
1 x Installation Instructions
Merlin Warranty Terms:
For DIY installs, Merlin offers 1 year warranty.
For authorised garage technician/installer installs and when the door is serviced by a certified technician once in the first 12 months and every 24 months thereafter, a 7 year warranty applies.
Download Brochure: https://cgi.widen.net/s/tpdbkhmnxm/ms105myq-commander-elite-spec-sheet-aus-out-digital---114s5957a
Included:

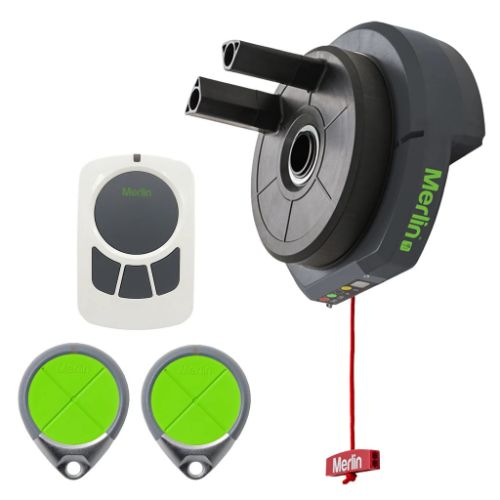

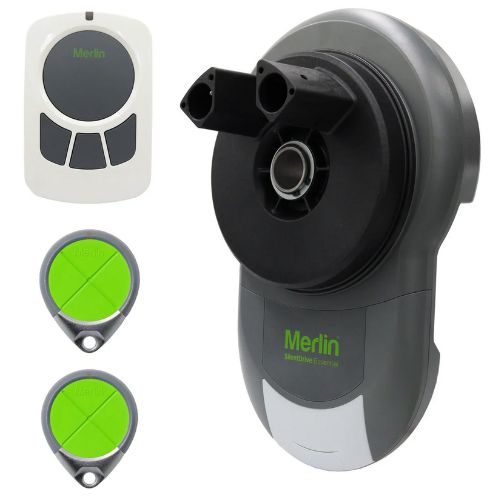

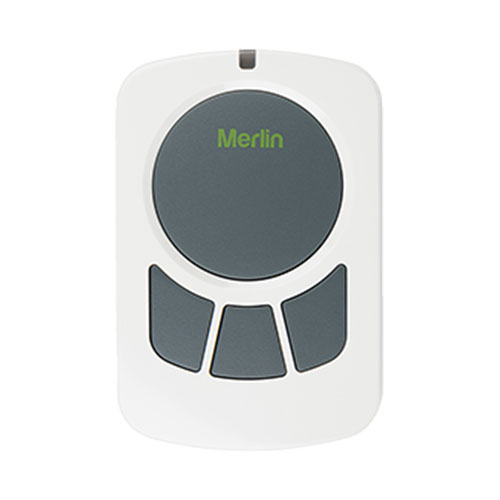

1 x MERLIN SilentDrive Essential MR655MYQ Roller Garage Door Motor 2 x Four Button Remote Control (Security+ 2.0 & Security+) (E970M) 1 x Four Button Wireless Wall Mount Remote Control (Security+ 2.0) (E148M) 1 x Weight Bar1 x Installation Instructions
Download Brochure : https://cgi.widen.net/s/nfkhdmmxlx/mr655myq-silentdrive-essential-spec-sheet-out-digital---114s5952a

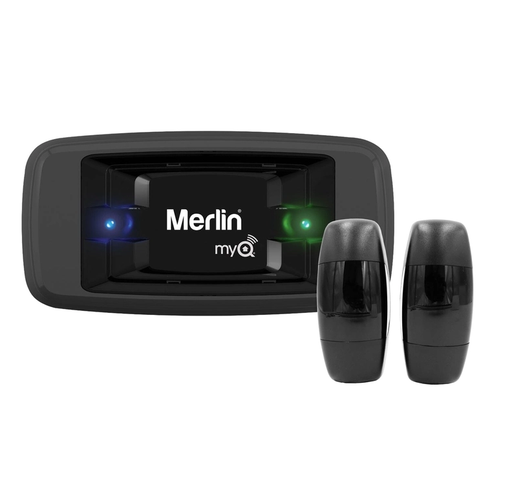

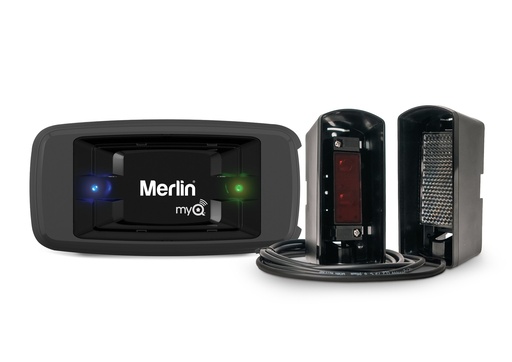

With the Gate myQ Connectivity Bundle you can add the ability to monitor and control your gate with the myQ App while you are away from home.

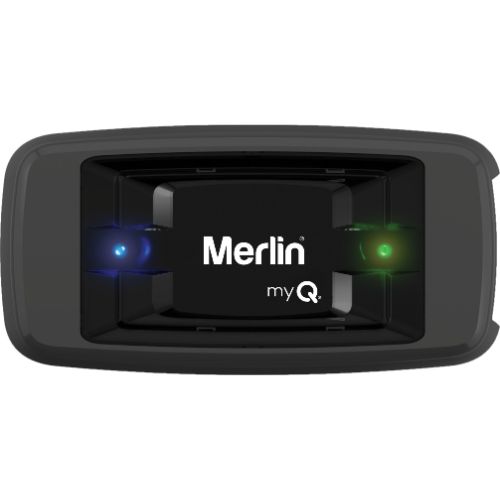

The Gate myQ Connectivity includes myQ Gateway and the Outdoor Protector System™ (IP67 Reflector Safety IR Beams**) to protect your loved ones and belongings.
Merlin gate opener models:
Slide 600 (MGSK600, MGSK600-LV), Swing A 200 (MGASK, MGASK-LV, MGADK, MGADK-LV) Swing L 300 (MGLSK, MGLSK-LV, MGLDK, MGLDK-LV)
Grifco gate opener models:
LG-Drive
The myQ App will run on Apple devices (iPhone/ iPod Touch) using iOS 13.0* or higher, Apple Watch requires watchOS5.0 or higher. Android devices requires Android 7.0 Nougat* or higher. Windows and Blackberry devices are not compatible.
Gate myQ Connectivity Bundle you can add the ability to monitor and control your gate with the myQ App while you are away from home.
Key Features:
Please note that the app may be installed on earlier versions, however features and functionality may not work as expected. As updated versions of the myQ App becomes available, older iOS's may no longer be compatible. Linking your myQ account to partners may require a subscription fee.
Please note: The Outdoor Protector System™ (IP44 Safety IR Beams) does not include any brackets or wires.
* The app may be installed on earlier versions, however features and functionality may not work as expected. As updated versions of the myQ App becomes available, older iOS's may no longer be compatible. Linking your myQ account to partners may require a subscription fee.

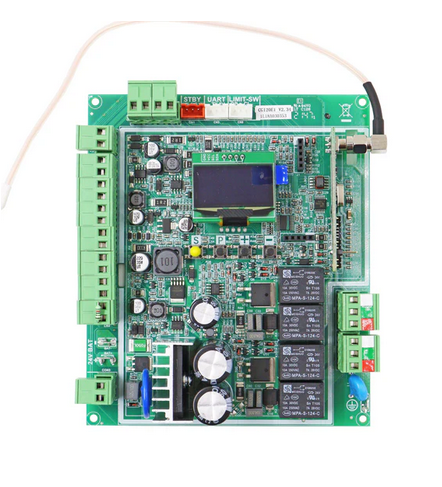

This is a replacement gate control board which suits all of Merlin's current gate openers, both slide and swing models.
Important safety information is contained in the product installation and operation instruction manual. Please read the manual thoroughly before proceeding with any service work.
Please Note: All spare parts must be replaced by a qualified garage/gate service technician.
Merlin Wireless Security Keypad E850M (IP55)
The receiver can be used as a single or three channel receiver to control up to commercial operators or residential door openers. The receiver can also be used with a 3-button remote control to operate the OPEN, CLOSE, and STOP feature on a commercial door operator. The receiver is not for use with MyQ enabled garage door openers or devices.
Security+ 2.0 technology provides improved security and transmitter range.
Each channel is compatible with a specified number of remote controls and keypads. Refer to the list below:
Sliding or Swing Gate Safety Reflector Beam Kit with Protective Hood — Compatible with Merlin & Grifco
The Safety Beam Protector System reliably prevents the gate from closing when the beam is obstructed or broken. This safety feature helps protect people, pets, and vehicles from potential injury or damage.
Both the photoelectric sensor and reflector are fitted with protective rain hoods for reliable weather resistance (IP65 rated). The kit includes mounting brackets and a 2-metre cable.
Compatible with all Merlin and Grifco gate openers sold in Australia and New Zealand.

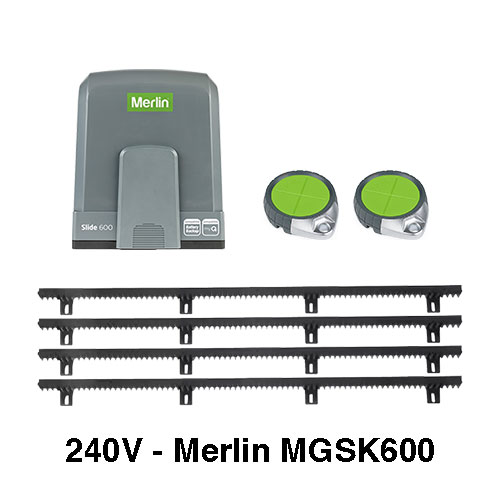

Elevate the functionality and security of your gate system with the Merlin Slide 600 Gate Motor - Merlin MGSK600. Designed to perfection, this high-quality gate opener from Merlin delivers reliable and efficient gate automation. With its robust construction and powerful performance, it effortlessly handles the sliding gates with ease. The Merlin MGSK600 offers smooth and quiet operation, providing you with convenience and peace of mind. Trust Tigerlink, the leading gate hardware supplier, to bring you top-notch products that enhance your home's security and convenience. Upgrade to the Merlin Slide 600 Gate Motor and experience a new level of gate automation excellence.
- without base plate: 89 mm
gate motor
Flexible 3-core wire between the Merlin Slider (1) and the Transformer Box (2).
Distance
Cable Size
Less than 20m
Min 1.5mm
20-50m
Min 2.5mm
50-100m
Min 4mm
