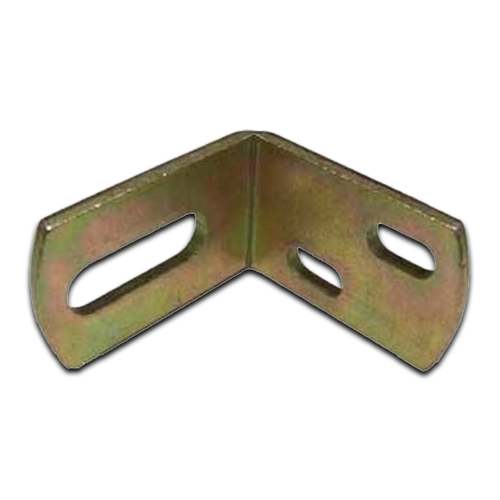

The BKGB299 Steel Angle Bracket is a versatile and durable accessory designed for various applications. With a size of 85x80mm and a thickness of 16mm, this angle bracket provides exceptional strength and stability. Made of zinc-plated steel, the BKGB299 Angle Bracket offers corrosion resistance and long-lasting performance. It is suitable for connecting and supporting different components, making it ideal for construction, DIY projects, and more. Upgrade your projects with the BKGB299 Steel Angle Bracket for reliable performance and secure connections.

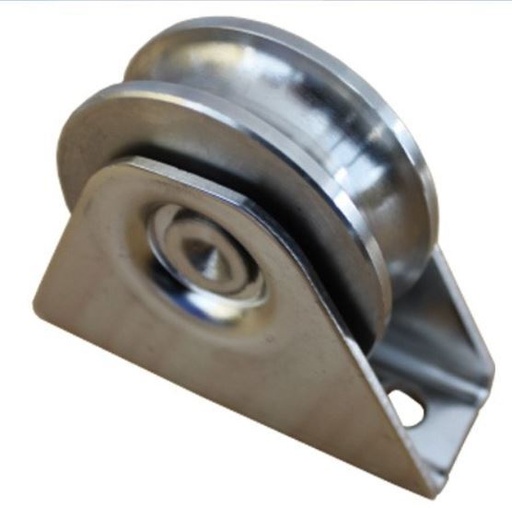

The WH397 Stainless Steel Sliding Gate Wheel is a top-quality component designed for smooth and efficient operation of your sliding gate. With its U-groove design and 90mm diameter, this wheel is suitable for various sliding gate applications. Constructed from stainless steel, it offers excellent durability and resistance to corrosion. The internal double-bearing mechanism ensures effortless gate movement and enhances overall performance. Whether for residential or commercial use, this stainless steel sliding gate wheel is a reliable choice.

Hold weights up to 350kg

Installing a sliding gate wheel involves a few key steps to ensure the gate operates smoothly. Here’s a step-by-step guide to help you install it:

Materials Needed:

• Sliding gate wheel
• Measuring tape
• Cutting machine
• Drill and drill bits
• Screws and bolts
• Wrench or screwdriver

Steps for Installation:

Prepare the Gate and Track:

• Before installing the wheels, ensure that your sliding gate is already installed and that the sliding track is properly laid out.
• The track should be level and secure to ensure smooth operation.

Step One:
Measure the sliding gate wheel cradle, ensuring there's enough space to attach the wheel to the steel frame. Use a cutting wheel to make the cut, but first, drill four holes (one in each corner) using an 8-10mm drill bit. This will ensure the square hole is clean in each corner.

Step Two:
Clean up the rectangular hole with a file to ensure smooth edges, then spray the area with galvanized paint for protection.

Step Three:
Place the sliding gate wheel into the cut-out and check that it can rotate freely. Ensure there’s enough space for securing the wheel with a tek screw.

Step Four:
When screwing in the tek screws, make sure the wheel is aligned with the edge of the steel. The last thing you want is for the wheel to be out of alignment. Avoid welding the wheel if possible, as this can make replacement more difficult later on.

The WH391 Stainless Steel Sliding Gate Wheel is a reliable and high-performance component for your sliding gate system. This wheel features a U-groove design and has a 90mm diameter, making it compatible with various types of sliding gates. It is constructed from stainless steel, ensuring durability and resistance to corrosion. The double-bearing mechanism provides smooth and effortless gate operation. Whether for residential or commercial applications, this sliding gate wheel delivers reliable performance and long-lasting use.

Hold weight up to 190kg

Installing a sliding gate wheel involves a few key steps to ensure the gate operates smoothly. Here’s a step-by-step guide to help you install it:

Materials Needed:

• Sliding gate wheel
• Measuring tape
• Drill and drill bits
• Screws and bolts
• Wrench or screwdriver

Steps for Installation:

1. Prepare the Gate and Track:
   • Before installing the wheels, ensure that your sliding gate is already installed and that the sliding track is properly laid out.
   • The track should be level and secure to ensure smooth operation.
2. Determine the Wheel Placement:
   • Decide where the wheel brackets will go on the gate. Typically, the wheels should be placed at the bottom of the gate. Depending on the gate size.
   • The wheel’s placement is important for proper weight distribution and gate stability.
3. Mark the Drill Holes:
   • Hold the wheel brackets against the gate at the desired position.
   • Use a measuring tape to ensure the placement is even and at the correct height.
   • Mark the holes where the screws or bolts will go to secure the wheels.
4. Drill the Holes:
   • Drill holes at the marked points on the gate, making sure the holes are large enough for the screws or bolts provided in your wheel kit.
   • If you’re installing a single wheel, the hole placement should be centered along the gate's width.
5. Attach the Wheel Bracket:
   • Secure the wheel bracket to the gate using the screws or bolts.
   • Tighten them properly to ensure the bracket is secure. Be sure the wheel can rotate freely once attached.
6. Install the Wheel:
   • If the wheel is separate from the bracket, slide the wheel into its bracket or mounting system.
   • Tighten any screws or bolts holding the wheel in place, ensuring it rotates easily and is properly aligned.
7. Test the Gate:
   • Test the sliding gate by moving it along the track.
   • Check that the wheels glide smoothly without any obstruction or resistance. The gate should be stable and move freely.
8. Adjust if Necessary:
   • If the gate isn’t sliding smoothly, check the alignment of the wheels and track. You might need to adjust the wheel height or ensure that the track is level.
   • Make sure the wheels are aligned with the gate and track to avoid any friction.

Try not to weld them onto the sliding gate frame it will be a nightmare to replace them later

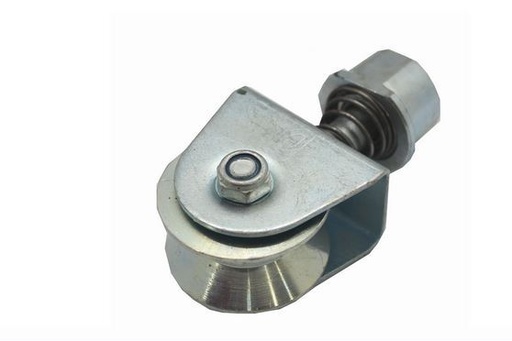

The WH399 Stainless Steel Sliding Gate 360° Turn Wheel is a versatile component designed to enhance the functionality of your sliding gate system. With its Y-groove design and 60mm diameter, this wheel provides smooth and precise movement, allowing your gate to rotate freely. Made from stainless steel, it offers exceptional durability and resistance to corrosion. The external double-bearing mechanism ensures effortless operation and long-lasting performance. Whether for residential or commercial applications, this stainless steel sliding gate wheel is a reliable choice for optimal gate functionality.

The 304 Stainless Steel Badass Hinge is designed for gates weighing up to 450 kg, offering a strong and durable hinge solution. Made from stainless steel , this hinge provides exceptional strength and corrosion resistance, making it suitable for outdoor use. With its sleek design and reliable performance, it adds a modern touch to gate installations. Whether for residential or commercial applications, the Stainless Steel Badass Hinge ensures secure and smooth operation for gates, providing convenience and peace of mind.

• 304 stainless steel inc. the bearings, shaft (bolt), washers and lock nut
• Two sealed maintenance free bearings (no greasing)
• Adjustable yoke for perfect installations
• Ideal for both square and round post installations
• Load rating per gate: 900kg (2,000 lbs)
• Maximum gate weight: 500kg (1,100 lbs)

The Stainless Steel 180-Degree Weld-On Hinges are specifically designed for bi-fold gates, offering a reliable and sturdy hinge solution. Made from high-quality stainless steel, these hinges provide excellent corrosion resistance, ensuring long-lasting performance in outdoor environments. With a 180-degree opening angle, they allow for wide gate swing and easy access. Each hinge is capable of handling gate weights of up to 60 kg, making them suitable for medium to heavy-duty applications. The weld-on design ensures secure and permanent installation, providing stability and durability to the gate system. These stainless steel hinges are a practical choice for bi-fold gates, combining functionality, strength, and resistance to harsh weather conditions.

Hold weights up to 60kg

The GM189 Spare Part for BFT Kustos is a high-quality and essential component designed for BFT Kustos gate motors. This spare part is specifically crafted to provide reliable and efficient operation, ensuring the smooth functioning of your BFT Kustos motor. It serves as a replacement for damaged or worn-out components, allowing you to restore the performance of your gate motor. The GM189 spare part is made with durable materials and undergoes strict quality control, ensuring its compatibility and reliability. With its easy installation, it offers convenience and flexibility in maintaining your gate motor. Upgrade your BFT Kustos motor with the GM189 Spare Part for optimal performance and longevity.

The GSRB954 Solid Rubber Gate Stop is a reliable and sturdy gate accessory designed to provide a secure stopping point for gates. With a height of 45mm, this gate stop offers excellent impact absorption and prevents gate swing. It features a solid rubber construction that ensures durability and long-lasting performance. The GSRB954 Solid Rubber Gate Stop is suitable for various gate types, including swing gates and sliding gates, and enhances the safety and functionality of your gate system.
