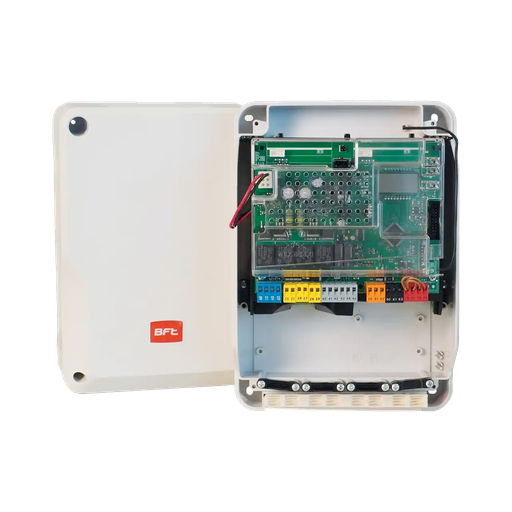

APPLICATION
1 or 2 actuators for swing gates
CONTROL UNIT POWER SUPPLY
100 ÷ 250 Vac - 50/60 Hz
MOTORS POWER SUPPLY
24Â Vdc / 130 W + 130 W
POWER CONSUMPTION IN STAND-BY
0.8 W
MAIN FUNCTIONS
Integrated LCD display | Integrated radio receiver 433.92 MHz 512 codes with ARC coding | Removable terminal boards | Separate limit switch inputs for each motor | Automatic, semi-automatic and Deadman logic | Separate encoder inputs for each motor | Open, close, step-by-step and pedestrian inputs | Input for programmable photocell active in opening-closing and photocell active only in closing | Input for N.C. or 8k2 sensitive edge | Output for electric lock 12/24 Vdc | Two outputs configurable as open gate signal light, courtesy light, zone light, second radio channel, photocell testing, flashing light, alarm contact | Autoset operating parameters | Separate electronic torque adjustment for each motor| Anti-crushing safety through amperometric detection and encoder management | Electronic torque adjustment with automatic calculation for each point of the stroke (STC SYSTEM) | Separate adjustable slowdowns for each motor | Possibility of encoder- or time-based operation (managed through virtual encoder) even independently between the two motors | Built-in energy saving system ESA+ | Set up for connection to KNX systems via X.BE card (optional) | Designed for managing, configuring, diagnosing and updating firmware through the BeUP app, using the PRO.UP accessory | Advantouch system to configure parameters and manage radio transmitters | Number of manoeuvres | Programming access password | Maintenance warning | Built-in battery charger
Lockton Stainless steel inflame Swing Gate Lock 23 MMÂ 40-50mm Gate Frame - Kit
PRODUCT DESCRIPTION
The LOCKTON Art. SG-SBML23 Narrow Stile Mortice Lock (23mm Backset).
Optional availableÂ
 Â
Stainless Steel 360 Degree Flag Hinge Ball Bearing Lift Off Thickened Heavy Duty 130x100mm
VENUS is a plug-and-play motorised gate closer for pedestrian swing gates. The compact all-in-one gate operator can easily be installed on any type of post and hinge thanks to 3 different arm types. The innovative motor’s performance remains unaffected by manual force. When combined with access control, the Venus also works as a low-energy gate opener.
The VENUS motorised gate closer is specifically designed for pedestrian gates up to 1400 mm and 100 kg.
VENUS is a brushless motor specially designed for semi-manual or fully automated outdoor use.
WHAT MAKES IT SPECIAL?
• Safe, reliable operation thanks to low-energy speed control and integrated obstacle detection.
• All-in-one gate operator with integrated power supply and circuit board, input/output connectors and indicator light.
• Easy setup with free mobile app
Specifications:
PERFORMANCE
INSTALLATION
CONFIGURATION
MATERIAL
VIDEOS
DOCUMENTS
Installation Manual
VENUS is a plug-and-play motorised gate closer for pedestrian swing gates. The compact all-in-one gate operator can easily be installed on any type of post and hinge thanks to 3 different arm types. The innovative motor’s performance remains unaffected by manual force. When combined with access control, the Venus also works as a low-energy gate opener.
Nylon Bush for light gate hinge 25x25mm
Pair of photocells adjustable to 180°, 22÷30 Vac / 20÷28 Vdc power supply | Possibility to synchronise up to 4 pairs | Easy adjustment through a LED that signals optimal alignment
Photocells represent an important tool to prevent impacts on things or people in every stage of handling of gates, doors or front door. IRI.CELL consists in a real photocell protection against outside tampering or accidental breakage. The cover is all made of metal and consists in a solid frontal case with a refined design, hidden screws and a metal bottom. The assembly is fast and easy and it allows to keep the photocells adjustable by 180°.
This is a replacement gate control board which suits all of Merlin's current gate openers, both slide and swing models.
Important safety information is contained in the product installation and operation instruction manual. Please read the manual thoroughly before proceeding with any service work.
Please Note: All spare parts must be replaced by a qualified garage/gate service technician.
The MITTO COOL BFT Remote is a versatile 4-button remote control designed for BFT gate systems. With its seamless compatibility, this remote allows you to conveniently operate your gate with ease. The 4-button design provides intuitive control, allowing you to perform various gate functions effortlessly. With its reliable signal transmission, the GM845 ensures accurate and responsive commands, ensuring smooth and efficient gate control. This remote control is built with high-quality materials for durability and long-lasting performance. Upgrade your BFT gate system with the GM845 BFT Remote and enjoy convenient and reliable wireless control.
Colour: Dark Blue
New Version of the BFT Mitto Remote
The Butt Hinges are a set of two stainless steel hinges with a fixed pin design. Measuring 100x70x2.5mm, these hinges provide reliable support and smooth operation for doors, cabinets, and other applications. Made from high-quality stainless steel, they offer excellent durability and resistance to rust and corrosion. The fixed pin ensures stability and security, making them suitable for both residential and commercial use. Whether you're working on a renovation project or building new furniture, the Butt Hinges deliver reliable performance and long-lasting functionality.
Aluminium D Handle Long Plate Black, The Palladium Series represents the highest standard in residential and semi-commercial door hardware and is brought to you through modern innovative designs, combined with quality manufacturing. A wide range of lever options is available to enable a common style throughout the home.Features:Stylish range of contemporary non handed lever designsRange of available finishes.Solid metal lever escutcheonThe Series mechanism incorporates a lever handle torsion spring and shuttle mechanism which provides a positive feel and increased product lifeAll lever handles are reversible SuitabilityResidential and semi-commercial buildingsDimensions222 x 28x 10mmHandingEasy, field selectable handing.MaterialsAluminium Black color
Stainless steel inflame Swing Gate Lock 20 MM BACKSET For 40x40mm Frame Kit
This is a Kit that contains a 20mm Backset Mortice Lock, Euro Cylinder and Suitable 40x40mm gate frame.Kit contains:
PRODUCT SPECIFICATION
Â
Beninca Underground Double Swing Gate Motor DU.IT 24NVE Double KIT
Electromechanical underground operator
Product Details:
Yes
24Vdc
Electromechanical
300Kg
99%
Light breeze
Residential
15 seconds
Motor Only, Single Kit, Pair Kit
Donwload installation DU.IT 24NVEÂ
