CPAC160
Aluminium End Cap Square for tube size 50x25mm (1.5mm wall)

Aluminum End Cap Square for tube size 50x25mm (1.5mm wall)

Aluminum cap for tube 50x25mm 1.6mm wall thickness (Also have more wall thickness if required)

Features

  • Great for finishing off edges on metal fencing, roll bars, trailers, etc.
  • Tube inserts can prevent dirt & dust ingress.
  • Push in application for tight fit.
  • Material: Aluminium

Tigerlink Hardware supply all type of post end caps, steel, plastic, aluminium end cap with varity of sizes.

Please contact us for more detail: 1300 055 099 or Email: sales@gatesplus.com.au

$ 3.41 3.41 AUD
WH603
Nylon Overhead Sliding Gate Carriage, 2 Wheel - Type B, up to 120kg

Overhead Sliding Gate/Hanging Barn Door 2 Nylon Wheel for Gate up to 120kg

$ 45.00 45.0 AUD
MKLH026
Gate Handle - Push / Pull Handle - Stainless Steel in Bright Chrome Silver - Pair

Swing Gate Stainless steel PULL and Push PLATE with Handle

LOCKTON PPP-SET-SS - Contains one of each Stainless Steel "Push" Plate & "Pull" Plate.

Fixing holes on each plate allows handles to be mounted either back to back or at different heights if needed.

Supplied in a box with fixing screws. Often also used to cover existing holes & or damage to doors.

PRODUCT SPECIFICATION

  • Material: Stainless Steel
  • Thickness: 1.5mm each
  • Dimensions: 300mm x 100mm each
  • Pull Handle Protrusion: 60mm
  • Pack Quantity: 2 x Plates (1 x Push, 1 x Pull)
  • 19mm Diameter Pull Handle
  • Fixing Screws provided



$ 52.55 52.550000000000004 AUD
MKLH014
Gate Handle - Pull Handle Only suits 60mm Mortice Lock - Stainless Steel in Bright Chrome Silver

Swing Gate OFFSET Pull D Handle to suit 60mm Backset Locks

Offset  "D" Handle  - suits 60mm Mortice Lock.

Often used with Access Control and Electric Strikes. When used with a plate with a cylinder hole it still allows access to the cylinder.

PRODUCT SPECIFICATION

  • Material: Solid Brass
  • Handing: Non-Handed
  • 5 Year Warranty
  • Clearance: 44mm (from rear of handle to door)
  • Handle Diameter: 16mm
  • Mounting Screw Distance: 160mm
  • Screw Thread: M5
  • Supplied with 2 x Mounting Screws



$ 78.64 78.64 AUD
GMSG707MVK
Beninca BULL624 Turbo 600kg Kit

Italian Sliding Gate Motor Beninca BULL624 TURBO 24V 600kg KIT


Max Speed: 25m/min



Power supply 115 Vac / 230 Vac (50-60Hz)
Motor supply 24 Vdc
Max absorbed current 5 / 3 A
Maximum thrust 330 N
Opening speed 12,5 ÷ 25,5 m/min
Duty cycle 60%
Protection level IP44
Built-in control unit
Integrated receiver
Encoder
Virtual encoder
Magnetic limit switches
Pinion for rack M4 Z18
Operating temperature -20°C /+50°C
Lubrication GREASE
Maximum gate weight 600 kg
Weight 10 kg
N. motors per pallet 40
Kit weight 10.6 kg




$ 981.82 981.82 AUD
GMSG707
Beninca BULL624 Turbo 600kg + 2 Remotes

Italian Sliding Gate Motor Beninca BULL624 TURBO 24V 600kg


Max Speed: 25m/min



Power supply 115 Vac / 230 Vac (50-60Hz)
Motor supply 24 Vdc
Max absorbed current 5 / 3 A
Maximum thrust 330 N
Opening speed 12,5 ÷ 25,5 m/min
Duty cycle 60%
Protection level IP44
Built-in control unit
Integrated receiver
Encoder
Virtual encoder
Magnetic limit switches
Pinion for rack M4 Z18
Operating temperature -20°C /+50°C
Lubrication GREASE
Maximum gate weight 600 kg
Weight 10 kg
N. motors per pallet 40
Kit weight 10.6 kg




$ 922.73 922.73 AUD
ET009

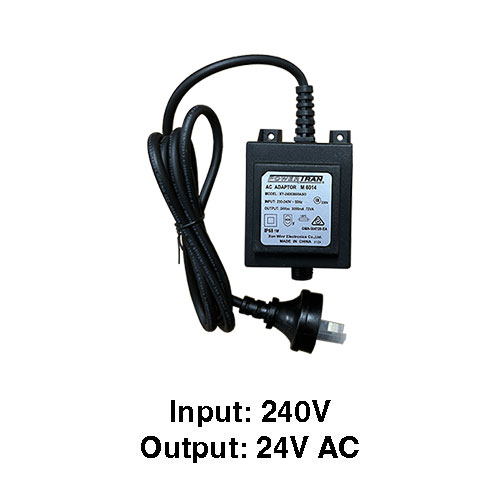

Internal Transformer for Mains Voltage Centsys D6, D10, and D20 Smart

240V Input - Internal Transformer for D5, D10, and D20 Smart

$ 204.55 204.55 AUD
BKKC132E
Tigerclamp 132 E60 Railing Base Flange series, fit 50NB pipe (60mm OD)

The TigerClamp 132 E60 Series Base Foot Flange is a reliable and robust pipe fitting designed to provide a secure base for 50NB pipes with a diameter of 60mm. This base foot flange is used to attach and support pipes, ensuring stability and structural integrity in various applications. It features a durable construction and is suitable for both indoor and outdoor use. The flange is easy to install and offers a secure connection for your pipe system. With its high-quality design and functionality, the TigerClamp Base Foot Flange is an essential component for any pipe installation project.

$ 36.00 36.0 AUD
SBHD365

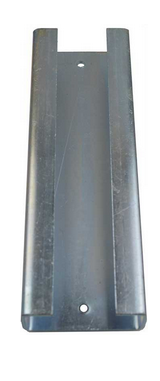

Steel Sliding block holder 300x82x28mm - Steel Zinc finished

Steel Sliding block holder  300x82x40mm - Steel Zinc finished

$ 13.27 13.27 AUD
WH176
Sliding Gate Guide Roller - 40x150mm, M18 Bolt, Black

The Wh176 Top Guide Roller for Sliding Gate is a reliable accessory designed to enhance the performance of sliding gates. With a size of 40x150mm, this guide roller ensures smooth and effortless operation for your gate. It is made of high-quality materials for durability and longevity. The Wh375 Guide Roller is specifically designed to be installed on top posts, providing effective guidance and support. The black color adds a sleek and modern touch to your gate. Upgrade your sliding gate with this top guide roller for improved functionality and convenience.

$ 13.18 13.18 AUD

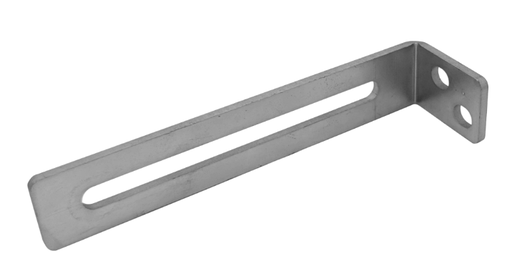

BKGB302
Sliding Gate Guide Angle Bracket - 220x60mm, To Suit M18, Silver

The BKGB302 Steel Angle Bracket is a versatile and durable accessory designed for various applications. With a size of 220x60mm and a thickness of 5mm, this angle bracket provides exceptional strength and stability. Made of zinc-plated steel, the BKGB302 Angle Bracket offers corrosion resistance and long-lasting performance. It is suitable for connecting and supporting different components, making it ideal for construction, DIY projects, and more. Upgrade your projects with the BKGB302 Steel Angle Bracket for reliable performance and secure connections.

$ 10.55 10.55 AUD

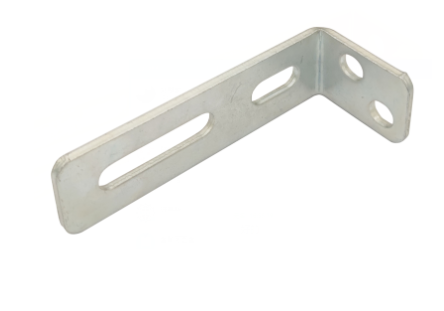

BKGB301
Sliding Gate Guide Angle Bracket - 150x60mm, To Suit M18, Silver

The BKGB301 Steel Angle Bracket is a versatile and durable accessory designed for various applications. With a size of 150x60mm and a thickness of 5mm, this angle bracket provides exceptional strength and stability. Made of zinc-plated steel, the BKGB301 Angle Bracket offers corrosion resistance and long-lasting performance. It is suitable for connecting and supporting different components, making it ideal for construction, DIY projects, and more. Upgrade your projects with the BKGB305 Steel Angle Bracket for reliable performance and secure connections.

$ 8.36 8.36 AUD

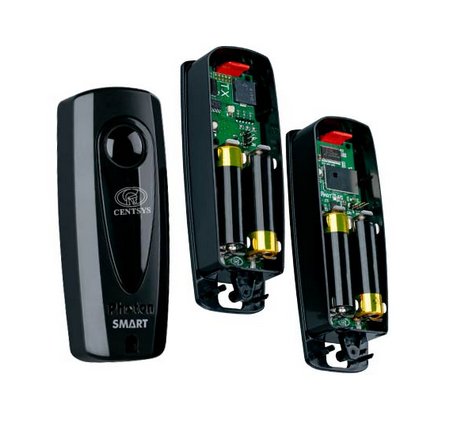

ET365
Centsys Photon Smart Fully wireless PE Safety Beams

Centsys Photon Smart Fully wireless PE Safety Beams


Totally Wireless. Only works with Smart control board.


Main features:

  • Connects wirelessly to your SMART solution – saves time and money
  • Pair and align in seconds
  • Beautifully styled – adds an air of sophistication to your swing or sliding gate
  • Outstanding reliability offering up to 2 years of battery life
  • Long range – brings safety to even the widest entrance gates
  • Fully sealed unit – prevents insect ingress
  • Can be easily added to sites with existing hard-wired beam sets

Technical Specifications:
Power supply 2 x AA Alkaline Batteries1 (supplied for each transmitter and receiver)
Battery life >2 years
Battery-low indication Notified via MyCentsys Pro Mobile Application
Maximum operating distance 30m
Alignment between beams2 Automatic – 1m circle @ 10m
Maximum Operating Distance Photon SMΔRT Receiver to SMΔRT Controller 10m
Operating temperature -15°C to +65°C
Operating humidity 0 - 90° (non-condensing)
Housing material ABS
Lens material PC
Degree of Protection IP54
Packaging weight 200g
Packaging dimensions Length: 137mm Width: 72mm Height: 58mm


Brochure Click

Installation  Click

$ 172.27 172.27 AUD
GM605

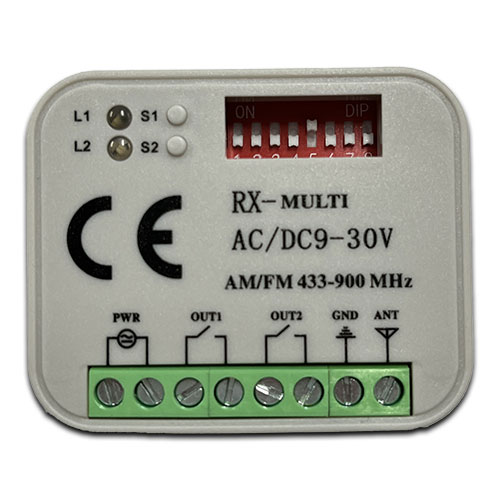

Universal RX Multi Receiver

Description

Introducing the GM605

Product Introduction
  • Name: Universal Radio Receiver 433-868 MHz for Came, Liftmaster,Hormann HSM, Marantec
  • Brand selector: With 8 dip switches user can make different combination for different remote brands.
  • It can worrk with many main different brands in the market, like FAAC, BFT, DITEC, CAME, HORMMAN, BENINCA, MHOUSE, NICE….
  • Multi frequency: 300-868mhz
  •  Learn Button and LED: There are 2 independent channels. Each channel has independent learn button S1, S2 and L1, L2.
  • Power Input Selector: This receiver can work at AC/DC 12V~30V. However, it’s better to change the PIS according to the power input.
  • If the input is great than 24V, shorten pin 2&3; shorten 1&2 if input less than 24V
  • Distance: 50-100 meters
  • Very mini size: 5.5cm*4.5cm*1.0cm
  • One receiver can work with 400 codes
  • It don’t interference other remotes and receivers
  • Compatible brands: nice flors, Marantec 433.92mhz, FAAC SLH rolling code 433.92mhz and 868mhz, liftmaster 310, 390, 433.92mhz, 315mhz, Hormann and Marantec, Berner 868mhz, Prastel, Clemsa Mastercode 433.92mhz, DITEC 433 and 315mhz, V2, Aprimatic, JCM GO 868MHZ, JCM TECH, PNC, FORSA, ALMA, ROPER 868MHZ, BFT, FACC… and many other main brands in the market
  • Programming a new remote 1) First, select the correct brand for remote that will be entry (by dip switch) 2) Press the learning button 1 or 2, the corresponding LED turns on 3) Press the button on the remote, the led 1 or led 2 flashes4 times, the remote button is learned successfully
  • 2 independent relays
  • Delete code:
  • Press and hold either learn button. The LED will start flash. Keep this button pressed, until the LED will turn off. All saved data in the memory card will be erased permanently and can not be recovered


$ 59.09 59.09 AUD

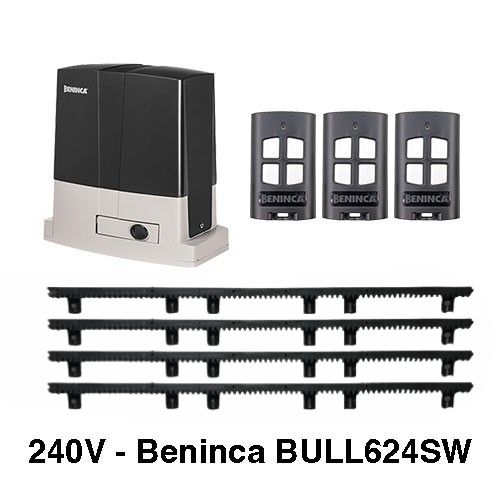

GMSG705MVK
Beninca BULL624 SW 600kg Kit

Italian Sliding Gate Motor Beninca BULL424 SW 24V 600kg- Motor kit



The BULL624SW is a 24 volt motor designed for residential and commercial sliding gates up to 600kg in weight. 24 VOLT ELECTRIC GATE OPERATOR - RESIDENTIAL - 600KG The BULL624SW by Beninca is plain and simple Beninca quality and reliability throughout. The BULL424SW is designed for residential and commercial sliding automatic gates up to 600kg in weight.

24 Vdc gear motor for intensive use with integrated control unit and virtual encoder | Switching power supply 240 Vac which reduces energy consumption and ensures a long lifespan of the actuator | Control unit with trimmers and dip-switches | The virtual encoder enables optimal management of slowing-down phases, movement tracking (STC system) and torque management in relation to the position of the gate, guaranteeing maximum safety | Operation guaranteed even in the event of a power supply failure through batteries that can be perfectly integrated in the motor (2 x 1.2 Ah) | Anti-crushing system with amperometric obstacle detection.

The BULL624SW has a built in control board in its own seperate enclosure with a dedicated 433mhz wireless receiver and inputs for photocells and switches etc. The BULL also comes with a base plate. Battery backup is optional with the addition of the battery module and two 1.3Ah rechargeable batteries.

 Motor Voltage - 24 volts DC

Current Standby - 8mA

Current at use - 3.2A

Motor power - 80W

Maximum thrust - 428N

Operating speed - 11 metres per minute (adjustable)

Maximum gate size - 600 kg

Duty cycle - 80%

Height - 330mm Width - 326mm Depth - 140mm

Weight - 7.6 Kg

IP rating - IP44





Additional information

Weight 15 kg
Motor Voltage

24 volts DC
Standby Current

8mA
Maximum Current

0.4A
Motor Power

80W
Maximum Thrust

428N
Operating Speed

11 Metres per minute
Maximum Gate Weight

600 Kg
IP Rating

IP44
Height (mm)

330mm
Width (mm)

140mm
Length (mm)

326mm
Weight (kg)

10.2 Kg
Duty Cycle

80%



$ 799.00 $ 635.45 635.45 AUD

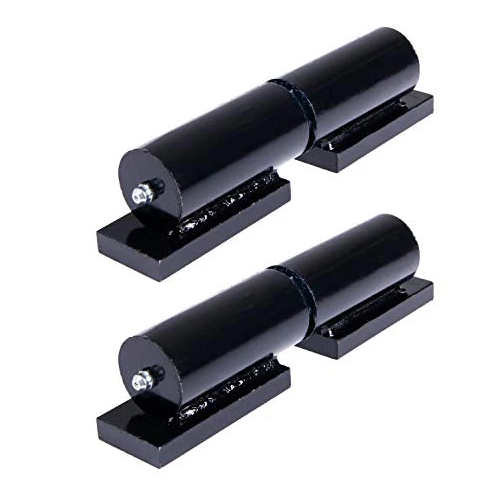

HGSK251
Weld-On Shackle Hinges - Black Steel, 20mm Pin, 600kg - Pair

The Swing Gate Hinges Shackle Weld-on Hinges are heavy-duty hinges designed for swing gates that require strength and reliability. With a 20mm pin size, these hinges offer robust performance and smooth gate operation. The shackle design helps prevent gate sagging and ensures proper alignment. These hinges are sold as a pair and feature a weld-on installation for secure and permanent attachment. Suitable for industrial and commercial applications, the Swing Gate Hinges Shackle Weld-on Hinges provide long-lasting durability and reliable gate functionality.


Colour: Dark Grey

Hold weights up to 600kg


Installation instruction for Weld on hinges

  1. Weld the sockets onto the gate itself.
  2. Measure the distance between the sockets.
  3. Weld the pins onto your post, one at the bottom, and one at the top. Make sure you have left plenty of room at the bottom so the gate clears the ground. Double check the pins are the same distance apart as your sockets. The pins should be pointing up.
  4. Lift your gate up and drop it on the pins.

To make sure your gate is secure :

  1. Weld the bottom pin onto your post & pin pointing up and your bottom socket on your gate.
  2. Sit your gate on the bottom pin.
  3. Weld the top socket to your gate.
  4. Drop the pin into the top socket. so Pin is pointing down
  5. Weld the pin to the post.

Tip: Measure correctly before welding. If need to change anything you will need to cut them off and re-weld them again.


$ 11.68 11.68 AUD
MT207

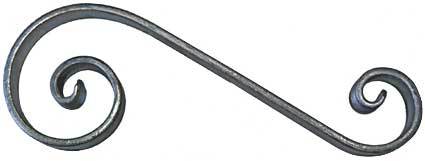

Single Scroll 300x100x12x6mm - Zinc plated

SS - Scroll  300x110x65x12x6mm

Tigerlink Hardware offer a large range of Zinc coated steel Iron Scrolls that are easy to weld and are the perfect touch for decorations.

These scrolls are ideal for giving your gates and fences a modern stylish boost and they can also be used as balcony and staircase railing decorations too.


Please contact us for Bulk price & availability

scrolls on top of the gate

S Scroll inserted into a gate

$ 7.18 7.18 AUD
KB605

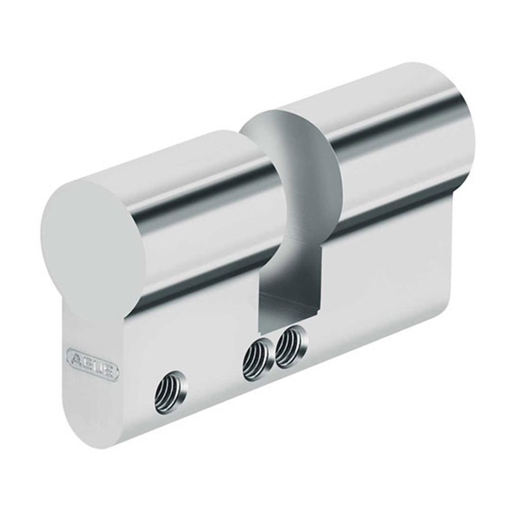

Euro Key Barrel, 60mm Full Cylinder, Dummy Cylinder - Bright Chrome

ABUS CYL EURO DUMMY 60MM TITALIUM



Description

ABUS dummy euro cylinder.

Several fixing points allows it to replace offset euro cylinders that are 10/50, 25/35 or 30/30.

Overall length 60 mm.

Finished in Titaliumâ„¢.


$ 35.91 35.910000000000004 AUD

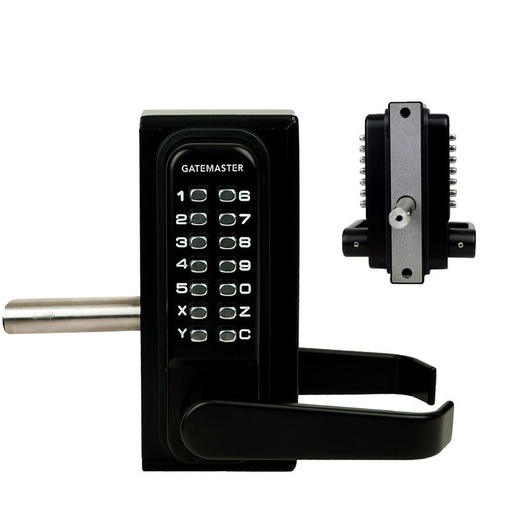

LKBL077

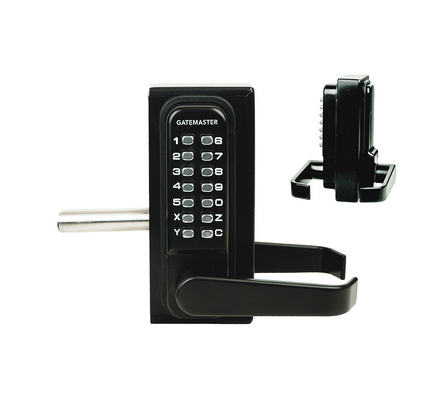

Gatemaster Super Digital Lock Double Sided Keypad to fit 40-60mm gate frame with Lever handle

The Gatemaster Super Lock is a double-sided keypad designed to fit 40-60mm gate frames. With its durable construction and user-friendly keypad, this lock provides enhanced security and convenient access control for your gate. The double-sided keypad allows authorized individuals to enter a personal code for easy and controlled entry.

Download PDF

$ 453.09 453.09000000000003 AUD
HGSK262
Zinc Plated Weld-On Shackle Hinges - Black, 35mm Pin, 1000kg - Pair

Heavy Duty Swing Gate Barrel Weld on Hinges designed for swing gates that require strength and reliability. these hinges offer robust performance and smooth gate operation. The shackle design helps prevent gate sagging and ensures proper alignment. These hinges are sold as a pair and feature a weld-on installation for secure and permanent attachment. Suitable for industrial and commercial applications, the Swing Gate Hinges Shackle Weld-on Hinges provide long-lasting durability and reliable gate functionality.


Hold weights up to 1000kg


Installation instruction for Weld on hinges

  1. Weld the sockets onto the gate itself.
  2. Measure the distance between the sockets.
  3. Weld the pins onto your post, one at the bottom, and one at the top. Make sure you have left plenty of room at the bottom so the gate clears the ground. Double check the pins are the same distance apart as your sockets. The pins should be pointing up.
  4. Lift your gate up and drop it on the pins.

To make sure your gate is secure :

  1. Weld the bottom pin onto your post & pin pointing up and your bottom socket on your gate.
  2. Sit your gate on the bottom pin.
  3. Weld the top socket to your gate.
  4. Drop the pin into the top socket. so Pin is pointing down
  5. Weld the pin to the post.

Tip: Measure correctly before welding. If need to change anything you will need to cut them off and re-weld them again.


$ 59.86 59.86 AUD
