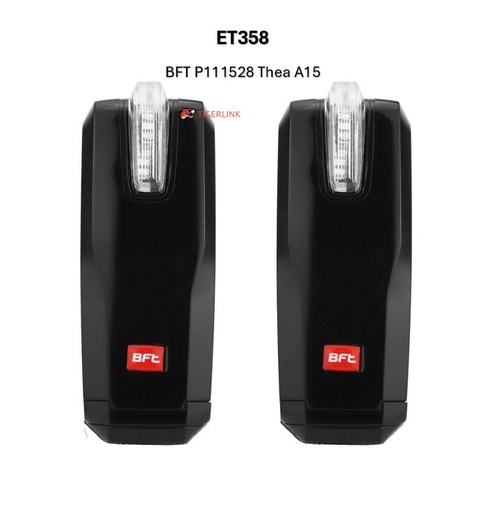

BFT P111528 Thea A15 Photocell Gate PE Safety Beams

BFT Thea A15 PE Beams Compatibility

The BFT Thea safety beam kit will suit the entire Deimos / Ares / Virgo / Kustos / Phobos Range.



BFT Thea A15 PE Beams Features

The BFT Thea A15 PE Beams are an essential safety feature for any automated gate or garage door system. Mounted on either side of the opening, these beams transmit an infrared signal, directly interfacing with the gate or garage door motor to ensure safe operation. The system smartly responds to the movement of the door or gate:

1. During Closure: If the beam is interrupted, the motor instantly stops and reverses direction, preventing potential accidents. For gates, this means stopping and reopening automatically.
2. During Opening: The motor continues without interruption if the beam is broken, ensuring smooth operation.
3. When Idle: If the beam is broken while the motor is not in motion, it prevents the door or gate from operating, avoiding accidental closures on objects or individuals.

Photocell PE Beams are not just safety enhancements; they are a legal requirement in many countries for the operation of garage doors and gate openers. Particularly in Australia, PE Beams are strongly recommended for all gates and are mandatory for the operation of smartphone-controlled gate systems. The BFT Thea A15 PE Beams, therefore, offers not only enhanced safety for your family and property but also ensures compliance with safety regulations.

Each photocell in the BFT A15 Thea set features an adjustable design with the possibility of directing the beam 40° horizontally and 10° vertically. This flexibility allows for precise alignment and optimal functionality. Additionally, an integrated flashing light adds a visual warning during operation, enhancing safety. The photocells use a synchronized infrared signal, eliminating any risk of blinding and ensuring reliable detection. With a substantial range of 30 meters, these beams offer extensive coverage for a variety of gate and garage sizes. Designed for outdoor use, the BFT BFT Thea gate safety beam kit boast a protection rating of IP55, ensuring durability against dust and water ingress. Their 24 V ac/dc power supply makes them suitable for a wide range of external applications.

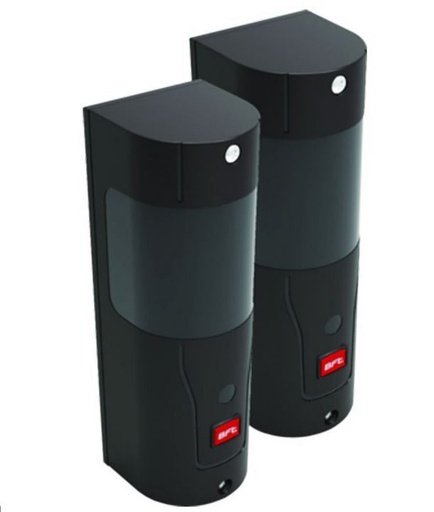

BFT ERIS A30 WIRELESS PHOTOCELL

Price GST included

If you're looking for a reliable wireless photocell for your gate system, look no further than the BFT Eris A30. Designed to provide safe and secure operation, this wireless photocell is the perfect solution for your gate safety needs. With a range of up to 30 meters and an adjustable detection angle, the BFT Eris A30 provides reliable detection of any obstacles in your gate's path. And with its easy installation and setup process, you can have your system up and running in no time.
After sales support and 24 months warranty

• Product Details

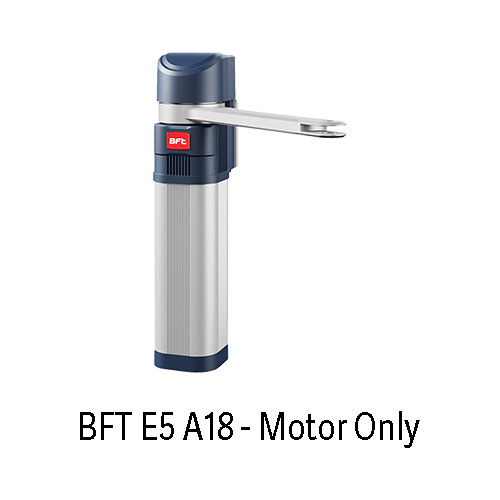

BFT E5 BT A18 Reversible Electromechanical Single Swing Gate Opener Motor only

The E5 BT A18 Low Voltage Vehicular Electromechanical Reversible Swing Gate Opener by BFT can be installed to pillars or columns using the Thalia Control Unit. This swing gate operator is ideal for pedestrian gates up to 1.5M wide and up to 100kg. It features U-Link Platform compatibility, D-Track path tracking with smart torque management, and an absolute encoder that recognizes position and manages slow down times. Ideal for multi-residential and commercial sites, this Low Voltage Electromechanical Swing Gate Operator includes automatic closing settings and remote opening for added security.


Features:

• Installs to pillars or columns

• For pedestrian gates up to 220 lbs

• For pedestrian gates up to 5 ft wide

• Ideal for multi-resident and commercial sites

• Push & Go function to manually open gate completely

• Easy-to-install fixing bracket for columns and pillars

• Compact, reversible electromechanical swing gate opener

• U-Link connectivity platform compatible using THALIA control unit

• Absolute encoder recognizes position to manage slow down at all times

• THALIA unit has standard color terminal blocks for output/input for quick assembly

• D-Track path tracking includes smart torque management, constant updating for accuracy

• Safety enhancements include ability to set gate automatic closing after opening and remote opening

• 4.5-6.5s opening speed (90° maneuver including slowdown) based on weight/dimensions of the leaf

Specifications:

• Motor voltage: 24V

• Power consumption: 40W

• Max width of door/gate wing: 1.8m (5 ft)

• Cycle time: 14s

• Limit switch: absolute encoder

• Release type: reversible

• Impact reaction: D-Track

• Frequency of use: semi-intensive

• Degree of protection: IP44

• Interconnectivity: Yes

• Max weight of door/gate wing: 100kg (220 lbs)

• Average opening time: 4.5-6.5s

• Model: E5 BT A18

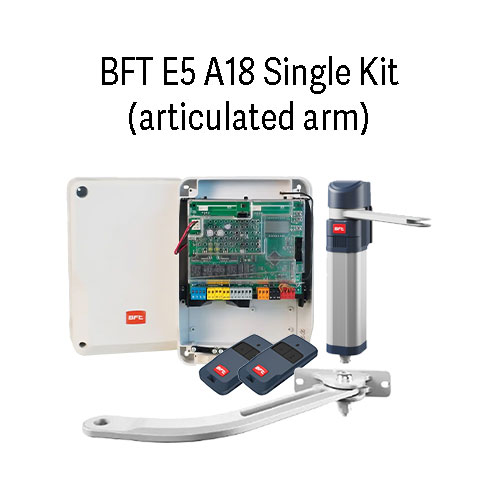

BFT E5 BT A18 Low Voltage Electromechanical Single Swing Gate Opener kit with 2 remotes

The E5 BT A18 Low Voltage Vehicular Electromechanical Reversible Swing Gate Opener by BFT can be installed to pillars or columns using the Thalia Control Unit. This swing gate operator is ideal for pedestrian gates up to 1.5M wide and up to 100kg. It features U-Link Platform compatibility, D-Track path tracking with smart torque management, and an absolute encoder that recognizes position and manages slow down times. Ideal for multi-residential and commercial sites, this Low Voltage Electromechanical Swing Gate Operator includes automatic closing settings and remote opening for added security.

Kit includes:

1 x E5 BT A18 Motor

1 x Articulated arm

1 x Thalia A80

2 x BFT Remotes

Features:

• Installs to pillars or columns

• For pedestrian gates up to 220 lbs

• For pedestrian gates up to 5 ft wide

• Ideal for multi-resident and commercial sites

• Push & go function to manually open gate completely

• Easy to install fixing bracket for columns and pillars

• Compact, reversible electromechanical swing gate opener

• U-Link connectivity platform compatible using THALIA control unit

• Absolute encoder recognizes position to manage slowdown at all times

• THALIA unit has standard color terminal blocks for output/input for quick assembly

• D-Track path tracking includes smart torque management, constant updating for accuracy

• Safety enhancements include ability to set gate automatic closing after opening and remote opening

• 4.5-6.5s opening speed (90° maneuver including slowdown) based on weight/dimensions of the leaf

Specifications:

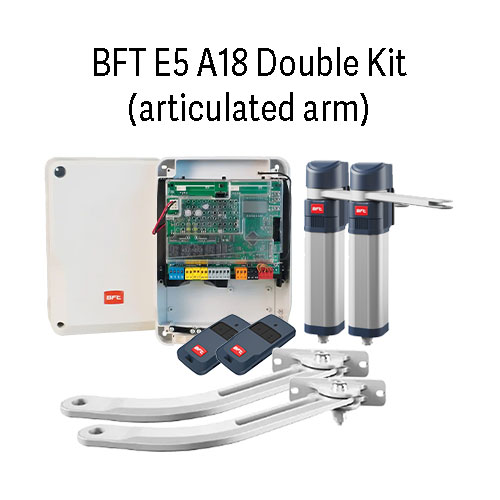

BFT E5 BT A18 Reversible Electromechanical Double Swing Gate Opener

The E5 BT A18 Low Voltage Vehicular Electromechanical Reversible Swing Gate Opener by BFT can be installed to pillars or columns using the Thalia Control Unit. This swing gate operator is ideal for pedestrian gates up to 1.5M wide and up to 100kg. It features U-Link Platform compatibility, D-Track path tracking with smart torque management, and an absolute encoder that recognizes position and manages slow down times. Ideal for multi-residential and commercial sites, this Low Voltage Electromechanical Swing Gate Operator includes automatic closing settings and remote opening for added security.

Kit includes:

2 x E5 BT A18 Motor

1 x Thalia A80

2 x BFT remotes

2 x Articulated Arm

Features:

• Installs to pillars or columns

• For pedestrian gates up to 220 lbs

• For pedestrian gates up to 5 ft wide

• Ideal for multi-resident and commercial sites

• Push & Go function to manually open gate completely

• Easy-to-install fixing bracket for columns and pillar

 • Compact, reversible electromechanical swing gate opener

• U-Link connectivity platform compatible using THALIA control unit

• Absolute encoder recognizes position to manage slow down at all times

• THALIA unit has standard color terminal blocks for output/input for quick assembly

• D-Track path tracking includes smart torque management, constant updating for accuracy

• Safety enhancements include the ability to set gate automatic closing after opening and remote opening

• 4.5-6.5s opening speed (90° maneuver including slowdown) based on weight/dimensions of the leaf

Specifications:

• Control Unit: THALIA A80

• Board Power Supply: 230V

• Motor Voltage: 24V

• Power Consumption: 40W

• Max Width of Door/Gate Wing: 1.8m (5 ft)

• Cycle Time: 14s

• Limit Switch: Absolute Encoder

• Release Type: Reversible

• Impact Reaction: D-Track

• Frequency of Use: Semi-Intensive

• Degree of Protection: IP44

• Interconnectivity: YES

• Max Weight of Door/Gate Wing: 100kg (220 lbs)

• Average Opening Time: 4.5-6.5s

• Model: E5 BT A18
