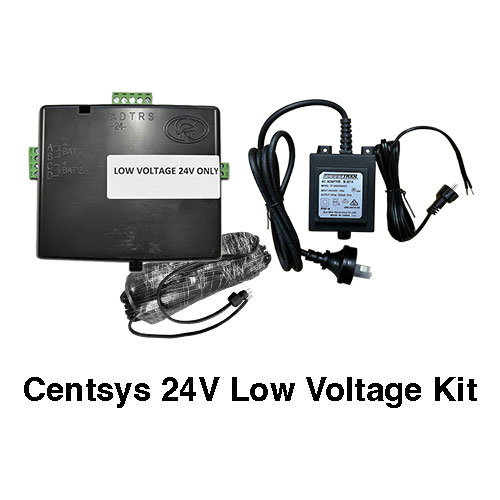

24V Low Voltage Kit for Centsys D5, D10, D20 Smart

Kit includes:

• Internal Transformer
• External Transformer
• 30m Cable

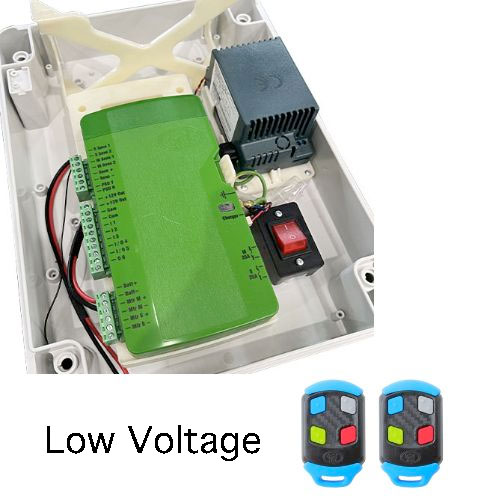

The Low Voltage Centsys VX Smart Box is a high-quality control board designed for swing gate systems. This control board offers reliable and efficient control, ensuring smooth operation and optimal performance of your swing gate. It is compatible with Centsys Vantage, allowing for easy installation and integration. The control board comes in a complete box, providing a convenient solution for your swing gate control needs. With advanced features and functionalities, it offers customization options to meet your specific requirements. With its durable construction and precise control capabilities, it ensures reliable performance and long-lasting operation.

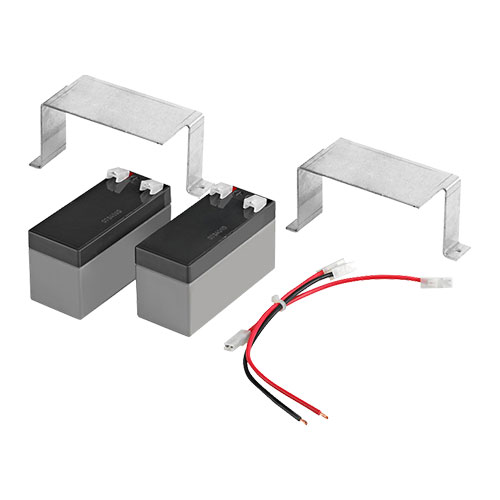

The Beninca battery back up 1.3Ah 12VDC battery backup KIT suitable for BULL424 SW, BULL 624 SW, Brainy 24+

& Hybra 24. Brackets only for Brainy24+ and Hybra 24.

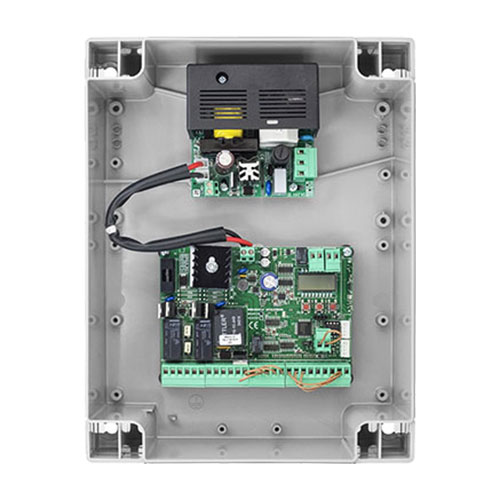

BRAINY24 PLUS

APPLICATION

1 or 2 actuators for swing gates, opposed sliding gates, and industrial folding doors with a maximum of 2 sections

CONTROL UNIT POWER SUPPLY

115 or 230 Vac (selectable) 50/60Hz

MOTORS POWER SUPPLY

24 Vdc / 240 W + 240 W

MAIN FUNCTIONS

Integrated LCD display | Integrated radio receiver 433.92 MHz 64 codes and 3 encoding systems (Advanced Rolling Code, Rolling Code, Fixed Code | Removable terminal boards | Separate limit switch inputs for each motor | Open, close, step-by-step and pedestrian inputs | Separate opening-closing and closing photocell inputs | Stop input | Input for N.C. or 8K2 sensitive edge | Encoder Input for 24 Vdc hydraulic motors | Output for 12 Vdc electric lock | 2 outputs configurable as open gate indicator, second radio channel, courtesy light, zone light or photocell testing, flashing light, open gate alarm, NC input alarm | Output for connecting flashing light | Autoset of operating parameters | Separate electronic torque adjustment for each motor | Separate electronic speed adjustment for each motor | Anti-crushing safety through amperometric detection and encoder management | Separate slowdowns for each motor in opening and closing phases | Set up for connection to KNX systems via X.BE card (optional) | Designed for managing, configuring, diagnosing and updating firmware through the BeUP app, using the PRO.UP accessory | Advantouch system to configure parameters and manage radio transmitters | Number of manoeuvres | Programming access password | Maintenance warning | Built-in battery charger

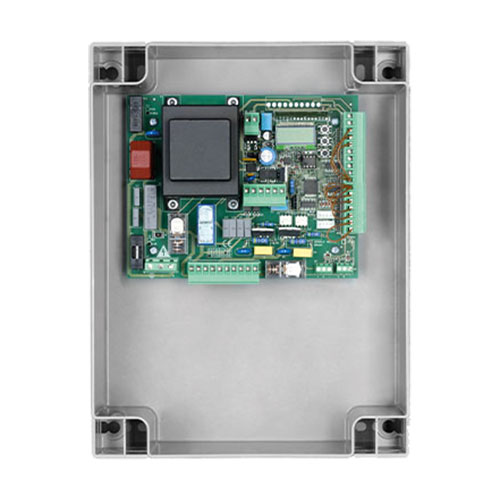

APPLICATION

1 or 2 actuators for swing gates, opposed sliding gates, hydraulic operators, and industrial folding doors

CONTROL UNIT POWER SUPPLY

230 Vac - 50/60 Hz

MOTORS POWER SUPPLY

230 Vac / 600 W + 600 W

MAIN FUNCTIONS

Integrated LCD display | Integrated 433.92 MHz 64-code radio receiver with 3 encoding systems (Advanced Rolling Code, Rolling Code, Fixed Code) | Removable terminal boards | Automatic, semi-automatic and deadman’s logic | Encoder input to detect obstacles | Separate limit switch inputs for each motor | Open, close, pedestrian, step by step and stop inputs | Separate photocell inputs in opening-closing and in closing phases | Input for N.C or 8K2 sensitive edge | Output for electric lock 230 Vac and 12 Vac/dc | Outputs for configuration as gate open indicator, service light, second radio channel and photocell testing | Output for connecting flashing light | Autosetting of operating parameters (with motors equipped with encoder) | Separate electronic torque adjustment for each motor and operating times | Adjustable slow-downs | Advantouch system to configure parameters and manage radio transmitters| Number of maneuvers | Programming access password | Maintenance warning

The Safety DC Power 24V 60W is a reliable power supply specifically designed for motorized electrical drop bolts. This safety power unit ensures a stable and consistent power output of 24V, providing the necessary energy to operate the drop bolt effectively. With a power rating of 60W, it delivers sufficient power to ensure smooth and reliable operation of the motorized drop bolt, enhancing the overall security of your gate system. The  Safety DC Power is built with safety features, including overload and short circuit protection, to prevent any electrical damage or accidents. Upgrade your motorized drop bolt system with the Safety DC Power for reliable and secure gate operation.

• Mounting on DIN-rail or directly
• Input: 110-240 VAC, 50-60Hz, 1.2A maximum
• Output: +24V DC, 2.5A maximum, 60W
• Resettable overload indicator
• Auxiliary 24V DC output available
