The Swing Gate Hinges Shackle Weld-on Hinges are heavy-duty hinges designed for swing gates that require strength and reliability. With a 20mm pin size, these hinges offer robust performance and smooth gate operation. The shackle design helps prevent gate sagging and ensures proper alignment. These hinges are sold as a pair and feature a weld-on installation for secure and permanent attachment. Suitable for industrial and commercial applications, the Swing Gate Hinges Shackle Weld-on Hinges provide long-lasting durability and reliable gate functionality.

Hold weights up to 600kg

Installation instruction for Weld on hinges

1. Weld the sockets onto the gate itself.
2. Measure the distance between the sockets.
3. Weld the pins onto your post, one at the bottom, and one at the top. Make sure you have left plenty of room at the bottom so the gate clears the ground. Double check the pins are the same distance apart as your sockets. The pins should be pointing up.
4. Lift your gate up and drop it on the pins.

To make sure your gate is secure :

1. Weld the bottom pin onto your post & pin pointing up and your bottom socket on your gate.
2. Sit your gate on the bottom pin.
3. Weld the top socket to your gate.
4. Drop the pin into the top socket. so Pin is pointing down
5. Weld the pin to the post.

Tip: Measure correctly before welding. If need to change anything you will need to cut them off and re-weld them again.

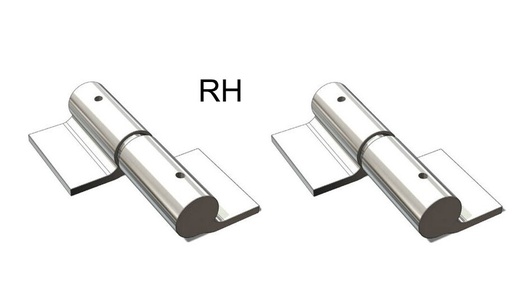

The Swing Gate Weld-to-Weld Hinge is a reliable hinge solution for swing gates. With a 16mm right-hand threaded design, this hinge ensures secure and durable gate operation. The pair of hinges are zinc-plated for added corrosion resistance, making them suitable for outdoor and harsh environments. The weld-to-weld installation provides a strong and stable connection, ensuring the gate remains securely attached. Whether for residential or commercial applications, the Swing Gate Weld-to-Weld Hinge offers reliable performance and ease of installation.

Hold weights up to 100kg

Installation instruction for Weld on hinges

1. Weld the sockets onto the gate itself.
2. Measure the distance between the sockets.
3. Weld the pins onto your post, one at the bottom, and one at the top. Make sure you have left plenty of room at the bottom so the gate clears the ground. Double check the pins are the same distance apart as your sockets. The pins should be pointing up.
4. Lift your gate up and drop it on the pins.

To make sure your gate is secure :

1. Weld the bottom pin onto your post & pin pointing up and your bottom socket on your gate.
2. Sit your gate on the bottom pin.
3. Weld the top socket to your gate.
4. Drop the pin into the top socket. so Pin is pointing down
5. Weld the pin to the post.

Tip: Measure correctly before welding. If need to change anything you will need to cut them off and re-weld them again.

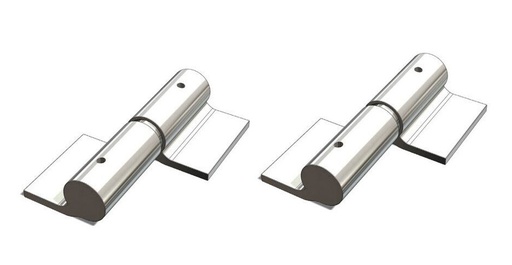

The Swing Gate Weld-to-Weld Hinge is a reliable and sturdy hinge designed for swing gates. This hinge features a 16mm left-hand threaded design and comes in a pair. It is zinc-plated for enhanced durability and corrosion resistance, making it suitable for outdoor applications. The weld-to-weld installation provides a secure attachment, ensuring the stability and longevity of your gate. With its robust construction and convenient threaded design, the Swing Gate Weld-to-Weld Hinge is an excellent choice for gate installations.

Hold weights up to 100kg

Installation instruction for Weld on hinges

1. Weld the sockets onto the gate itself.
2. Measure the distance between the sockets.
3. Weld the pins onto your post, one at the bottom, and one at the top. Make sure you have left plenty of room at the bottom so the gate clears the ground. Double check the pins are the same distance apart as your sockets. The pins should be pointing up.
4. Lift your gate up and drop it on the pins.

To make sure your gate is secure :

1. Weld the bottom pin onto your post & pin pointing up and your bottom socket on your gate.
2. Sit your gate on the bottom pin.
3. Weld the top socket to your gate.
4. Drop the pin into the top socket. so Pin is pointing down
5. Weld the pin to the post.

Tip: Measure correctly before welding. If need to change anything you will need to cut them off and re-weld them again.

The Swing Gate Weld-to-Screw Hinge is a durable and reliable hinge designed for swing gates. With a right-hand configuration, this hinge ensures smooth and efficient gate operation. The 16mm lockable pin provides secure gate closure and enhances overall gate stability. The zinc-plated finish offers corrosion resistance, making it suitable for outdoor applications. Sold as a pair, these hinges are easy to install with their weld-to-screw design. Upgrade your swing gate with the Swing Gate Weld-to-Screw Hinge for dependable and long-lasting gate hardware.

Hold weights up to 100kg

Step-by-step guide for installation:

Tools and Materials:

• Weld-to-screw hinge
• Welding machine
• Screws (bolts or threaded screws)
• Drill with bits
• Screwdriver or wrench
• Measuring tape or ruler
• Marker
• Protective gear (gloves, goggles)

Instructions:

1. Preparation:
   • Ensure you have all parts and confirm the hinge is weld-to-screw. Wear protective gear.
2. Mark Hinge Placement:
   • Measure and mark where the hinge will be welded on the frame.
3. Weld the Hinge:
   • Position and weld the hinge to the frame. Allow it to cool.
4. Drill Holes for Screws:
   • Mark and drill holes for screws on the opposite hinge end.
5. Install Screws/Bolts:
   • Align the screw holes, insert screws/bolts, and tighten securely.
6. Test Functionality:
   • Check that the hinge opens/closes smoothly and that all connections are tight.

The Swing Gate Weld-to-Screw Hinge is a reliable and versatile hinge designed for swing gates. With a left-hand configuration, this hinge offers smooth and efficient gate operation. The 16mm lockable pin ensures secure gate closure and enhances the overall stability of the gate. The zinc-plated finish provides corrosion resistance, making it suitable for outdoor applications. Sold as a pair, these hinges are easy to install with their weld-to-screw design. Upgrade your swing gate with the Swing Gate Weld-to-Screw Hinge for reliable and durable gate hardware.

Hold weights up to 100kg

Step-by-step guide for installation:

Tools and Materials:

• Weld-to-screw hinge
• Welding machine
• Screws (bolts or threaded screws)
• Drill with bits
• Screwdriver or wrench
• Measuring tape or ruler
• Marker
• Protective gear (gloves, goggles)

Instructions:

1. Preparation:
   • Ensure you have all parts and confirm the hinge is weld-to-screw. Wear protective gear.
2. Mark Hinge Placement:
   • Measure and mark where the hinge will be welded on the frame.
3. Weld the Hinge:
   • Position and weld the hinge to the frame. Allow it to cool.
4. Drill Holes for Screws:
   • Mark and drill holes for screws on the opposite hinge end.
5. Install Screws/Bolts:
   • Align the screw holes, insert screws/bolts, and tighten securely.
6. Test Functionality:
   • Check that the hinge opens/closes smoothly and that all connections are tight.

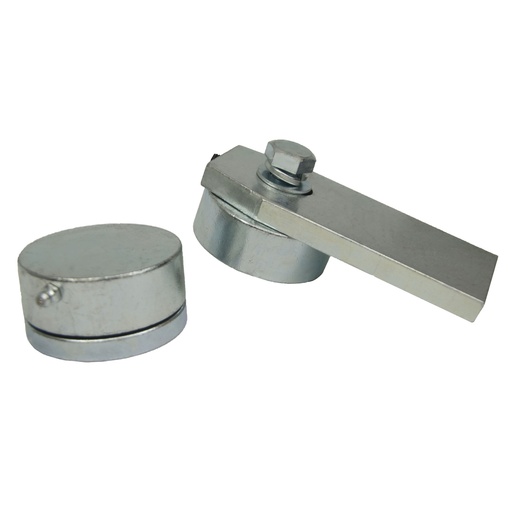

The Swing Gate Weld on Bearing Hinges are designed for gates weighing up to 600kg. These hinges offer a sturdy and durable solution for smooth gate operation. The weld-on design ensures a secure and permanent attachment to the gate and post. With their high load capacity and reliable bearing mechanism, these hinges provide easy opening and closing of the gate. The Swing Gate Weld on Bearing Hinges are an excellent choice for heavy-duty gates that require long-lasting performance and dependable functionality.

Hold weights up to 600kg

The Swing Gate Self Closing Gate Hinge is designed for gates weighing up to 85kg and features a two-leg design for enhanced stability. This hinge ensures a secure and reliable self-closing mechanism, automatically closing the gate behind you and eliminating the risk of leaving it open accidentally. With its sturdy construction and two-leg support, it offers excellent durability and stability. Whether for residential or commercial use, the Swing Gate Self Closing Gate Hinge provides convenience, safety, and peace of mind for your gates.

Hold weights up to 85kg

The Swing Gate Self-Closing Gate Hinge is specifically designed for gates weighing up to 85kg. This hinge ensures a secure and reliable self-closing mechanism for your gate without the need for an additional leg. It provides convenience and peace of mind by automatically closing the gate behind you, eliminating the risk of leaving it open accidentally. With its sturdy construction, this hinge offers durability and long-lasting performance. Whether for residential or commercial use, the Swing Gate Self-Closing Gate Hinge is an ideal choice for ensuring gate closure and enhancing security.

Hold weights up to 85kg

19mm gap

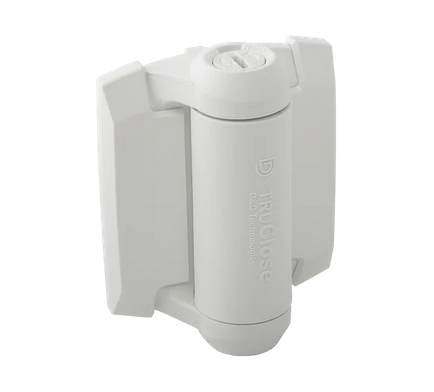

The Swing Gate Self Closing Gate Hinge Tru-Close (2 Legs) is a reliable hinge designed for swing gates weighing up to 30kg. Featuring a self-closing mechanism, this hinge ensures that your gate closes securely and automatically after each use, providing convenience and peace of mind. With its two-leg design, it offers enhanced stability and strength for your gate. The hinge is easy to install and suitable for a wide range of gate applications. Crafted with durability in mind, it is built to withstand various weather conditions, ensuring long-lasting performance. Upgrade your swing gate with the dependable hinge for smooth and secure operation.

Hold weights up to 30kg

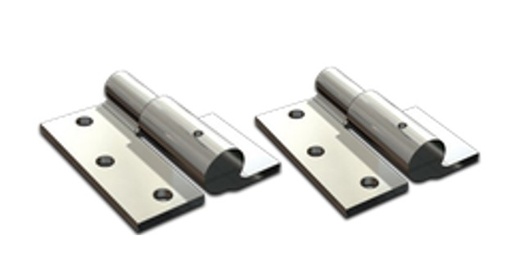

The Swing Gate Screw-to-Screw Hinge is a reliable hinge designed for swing gates. It features a 19mm screw-to-screw distance and a right-hand configuration. The hinge is zinc-plated for enhanced durability and corrosion resistance. Sold as a pair, it includes all necessary screws for easy installation. Whether you're installing a new gate or replacing existing hinges, the Swing Gate Screw-to-Screw Hinge provides a sturdy and convenient solution.

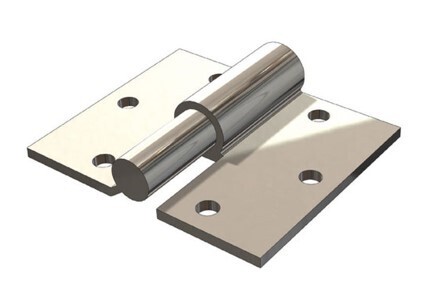

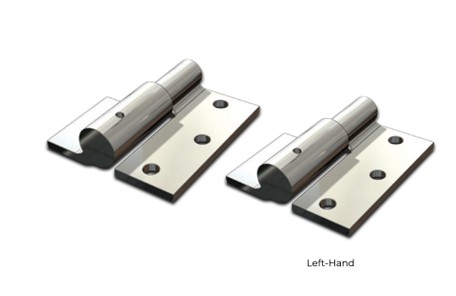

The Swing Gate Screw-to-Screw Hinge is a versatile hinge designed for swing gates. It features a 19mm screw-to-screw distance and a left-hand configuration. The hinge is zinc-plated for enhanced durability and corrosion resistance. Sold as a pair, it includes all necessary screws for easy installation. Whether you need to install a new gate or replace existing hinges, the Swing Gate Screw-to-Screw Hinge provides a reliable and convenient solution.

Can carry up to 120kg

The Swing Gate Screw-to-Screw Hinge is a reliable and sturdy hinge designed for swing gates. With a 16mm pin size and a right-hand hinge configuration, this hinge provides secure attachment and smooth operation for your gate. The screw-to-screw installation method ensures easy and convenient installation, allowing you to securely fasten the hinge to both the gate and the gate post. The zinc-plated finish adds durability and corrosion resistance, making it suitable for outdoor applications. Sold as a pair, the Swing Gate Screw-to-Screw Hinge is a versatile and dependable choice for your gate hardware needs.

Hold weights up to 100kg

Step-by-step guide for installation:

Tools and Materials:

• Screw-to-screw hinge
• Screws (appropriate size)
• Drill with bits
• Screwdriver or wrench
• Measuring tape or ruler
• Marker
• Protective gear (gloves, goggles)

Instructions:

1. Preparation:
   • Gather all materials and tools. Wear protective gear.
2. Mark Hinge Placement:
   • Measure and mark the positions for the hinge on both the door/lid and the frame.
3. Drill Holes for Screws:
   • Drill pilot holes at the marked spots where the hinge will be attached, ensuring they align on both the frame and door.
4. Attach the Hinge:
   • Position the screw-to-screw hinge on both surfaces. Insert screws into the holes and tighten them securely with a screwdriver or wrench.
5. Test Functionality:
   • Open and close the door or lid to ensure the hinge operates smoothly and is securely attached.

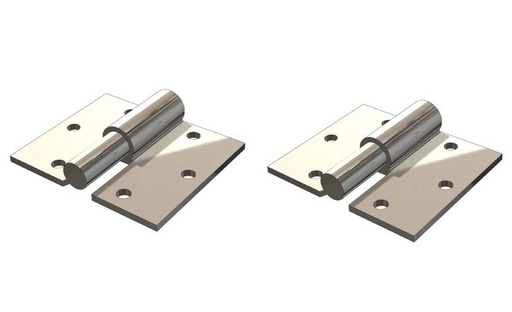

The Swing Gate Screw-to-Screw Hinge is a reliable and versatile hinge designed for swing gates. With a 16mm pin size, this hinge offers strength and stability for your gate. The screw-to-screw installation method provides convenience and ease of installation, allowing you to securely attach the hinge to both the gate and the gate post. The zinc-plated finish adds corrosion resistance and durability, ensuring long-lasting performance even in outdoor environments. Sold as a pair, the Swing Gate Screw-to-Screw Hinge is suitable for various gate applications, providing smooth and reliable operation.

Hold weights up to 100kg

Step-by-step guide for installation:

Tools and Materials:

• Screw-to-screw hinge
• Screws (appropriate size)
• Drill with bits
• Screwdriver or wrench
• Measuring tape or ruler
• Marker
• Protective gear (gloves, goggles)

Instructions:

1. Preparation:
   • Gather all materials and tools. Wear protective gear.
2. Mark Hinge Placement:
   • Measure and mark the positions for the hinge on both the door/lid and the frame.
3. Drill Holes for Screws:
   • Drill pilot holes at the marked spots where the hinge will be attached, ensuring they align on both the frame and door.
4. Attach the Hinge:
   • Position the screw-to-screw hinge on both surfaces. Insert screws into the holes and tighten them securely with a screwdriver or wrench.
5. Test Functionality:
   • Open and close the door or lid to ensure the hinge operates smoothly and is securely attached.

The Swing Gate Rising Hinge, also known as an Up Hill Hinge Type B, is designed for swing gates that require an upward rising motion on the left-hand side. This hinge provides reliable support and smooth operation for gates, accommodating uneven or sloping terrain. The upward rising motion ensures proper clearance and functionality, making it suitable for various installations. Crafted with durability in mind, this hinge is built to withstand regular use and various weather conditions. Whether for residential or commercial applications, the Swing Gate Rising Hinge is the perfect choice for secure and versatile gate installations on uneven surfaces.

Hold weights up to 120kg

 Video link on how to install rising hinges: https://www.youtube.com/watch?v=NZP8GppXsMM

The Swing Gate Rising Hinge, also known as an Up Hill Hinge Type B, is designed for swing gates that require an upward rising motion on the right-hand side. This hinge provides reliable support and smooth operation for gates, accommodating uneven or sloping terrain. The upward rising motion ensures proper clearance and functionality, making it suitable for various installations. Crafted with durability in mind, this hinge is built to withstand regular use and various weather conditions. Whether for residential or commercial applications, the Swing Gate Rising Hinge is the perfect choice for secure and versatile gate installations on uneven surfaces.

Hold weights up to 120kg

 Video link on how to install rising hinges: https://www.youtube.com/watch?v=NZP8GppXsMM

The Swing Gate Rising Hinge, also known as an Up Hill Hinge Type A, is specifically designed for swing gates that require an upward rising motion on the right-hand side. This hinge provides reliable support and smooth operation for gates, accommodating uneven or sloping terrain. The upward rising motion ensures proper clearance and functionality, making it suitable for various installations. Crafted with durability in mind, this hinge is built to withstand regular use and various weather conditions. Whether for residential or commercial applications, the Swing Gate Rising Hinge is the perfect choice for secure and versatile gate installations on uneven surfaces.

Hold weights up to 120kg

 Video link on how to install rising hinges: https://www.youtube.com/watch?v=NZP8GppXsMM

The Swing Gate Rising Hinge, also known as an Up-Hill Hinge Type A, is designed for swing gates that require an upward rising motion. Specifically designed for the left-hand side, this hinge provides reliable support and smooth operation for gates. The upward rising motion helps accommodate uneven or sloping terrain, ensuring proper clearance and functionality. Crafted with durability in mind, this hinge is built to withstand regular use and various weather conditions. Whether for residential or commercial applications, the Swing Gate Rising Hinge is the perfect choice for secure and versatile gate installations on uneven surfaces.

Hold weights up to 120kg

Video link on how to install rising hinges: https://www.youtube.com/watch?v=NZP8GppXsMM

The Swing Gate Hinges KwikFit Non-Spring Hinge is a pair of hinges designed for swing gates. These non-spring hinges provide smooth and reliable gate operation without the need for a self-closing mechanism. With the KwikFit design, installation is quick and easy, ensuring a hassle-free setup. The hinges are built to last, offering durability and long-lasting performance. Suitable for various gate types, the Swing Gate Hinges KwikFit Non-Spring Hinge is a reliable choice for those seeking a simple yet effective hinge solution.

Holds up to 25kg
