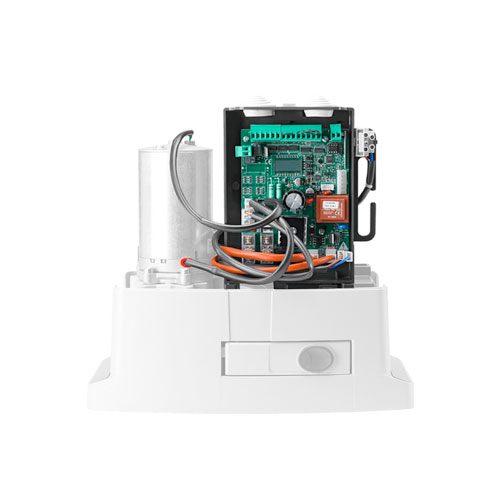

Control Board for Beninca BULL624-ESA
APPLICATION
1 or 2 actuators for swing gates
CONTROL UNIT POWER SUPPLY
100 ÷ 250 Vac - 50/60 Hz
MOTORS POWER SUPPLY
24 Vdc / 130 W + 130 W
POWER CONSUMPTION IN STAND-BY
0.8 W
MAIN FUNCTIONS
Integrated LCD display | Integrated radio receiver 433.92 MHz 512 codes with ARC coding | Removable terminal boards | Separate limit switch inputs for each motor | Automatic, semi-automatic and Deadman logic | Separate encoder inputs for each motor | Open, close, step-by-step and pedestrian inputs | Input for programmable photocell active in opening-closing and photocell active only in closing | Input for N.C. or 8k2 sensitive edge | Output for electric lock 12/24 Vdc | Two outputs configurable as open gate signal light, courtesy light, zone light, second radio channel, photocell testing, flashing light, alarm contact | Autoset operating parameters | Separate electronic torque adjustment for each motor| Anti-crushing safety through amperometric detection and encoder management | Electronic torque adjustment with automatic calculation for each point of the stroke (STC SYSTEM) | Separate adjustable slowdowns for each motor | Possibility of encoder- or time-based operation (managed through virtual encoder) even independently between the two motors | Built-in energy saving system ESA+ | Set up for connection to KNX systems via X.BE card (optional) | Designed for managing, configuring, diagnosing and updating firmware through the BeUP app, using the PRO.UP accessory | Advantouch system to configure parameters and manage radio transmitters | Number of manoeuvres | Programming access password | Maintenance warning | Built-in battery charger

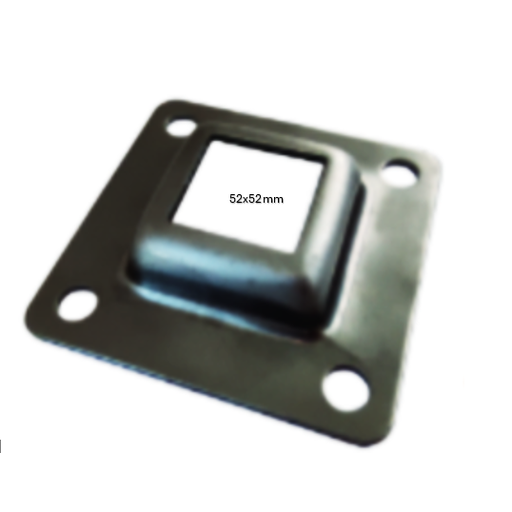

Industrial Steel Pallet / Post Feet 3mm 125x52mm Square Zinc Finished
If you're looking for a reliable and durable solution for pallet stacking, our Industrial Feet are the perfect choice. Made from high-quality 2.5mm steel with a zinc finish, these pallet feet provide strong and secure support, ensuring maximum safety for your goods.
Measuring 125 square, our industrial feet offer ample surface area for stable and secure stacking of your pallets. Their heavy-duty design makes them suitable for a range of industrial applications, providing a long-lasting and reliable solution for your pallet stacking needs.

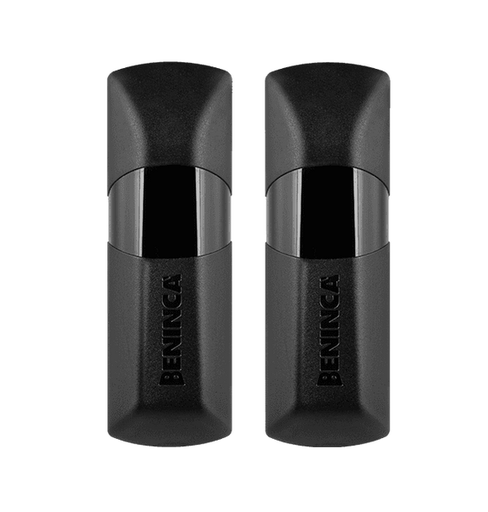

Pair of photocells adjustable to 180°, 22÷30 Vac / 20÷28 Vdc power supply | Possibility to synchronise up to 4 pairs | Easy adjustment through a LED that signals optimal alignment

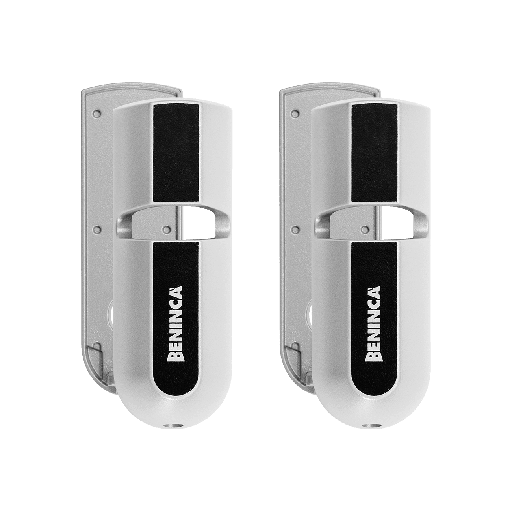

Photocells represent an important tool to prevent impacts on things or people in every stage of handling of gates, doors or front door. IRI.CELL consists in a real photocell protection against outside tampering or accidental breakage. The cover is all made of metal and consists in a solid frontal case with a refined design, hidden screws and a metal bottom. The assembly is fast and easy and it allows to keep the photocells adjustable by 180°.

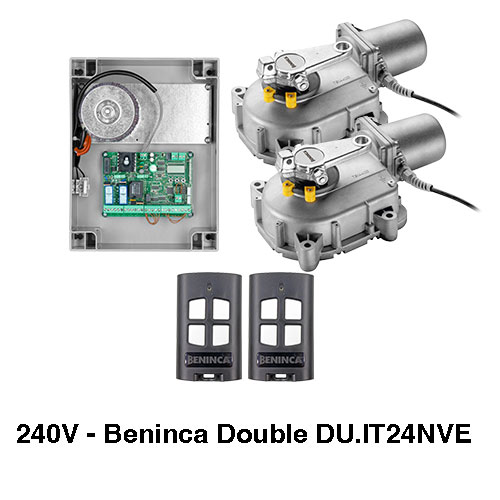

Beninca Underground Double Swing Gate Motor DU.IT 24NVE Double KIT
Electromechanical underground operator
Product Details:
Yes
24Vdc
Electromechanical
300Kg
99%
Light breeze
Residential
15 seconds
Motor Only, Single Kit, Pair Kit
Donwload installation DU.IT 24NVE
Power supply: 240 Vac (50-60Hz)
Motor supply: 24 Vdc
Max absorbed current: 11 A
Torque: 280 Nm
Opening time: 15”
Duty cycle: intensive use
Protection level: IP67
Operating temperature: -20°C /+50°C
Leaf max dimension: 3.5 m
Weight: 10 kg
DU.ITIX weight: 8.1 kg
DU.ITCF weight: 9.6 kg
Kit Includes:
Beninca 424SW x 1
Beninca Low Voltage Box x 1
Beninca Low Voltage Connector x 1

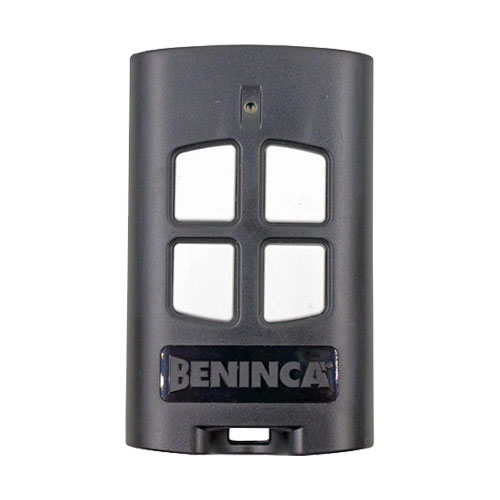

Beninca Remotes x 3
Lugs down nylon racks x 4

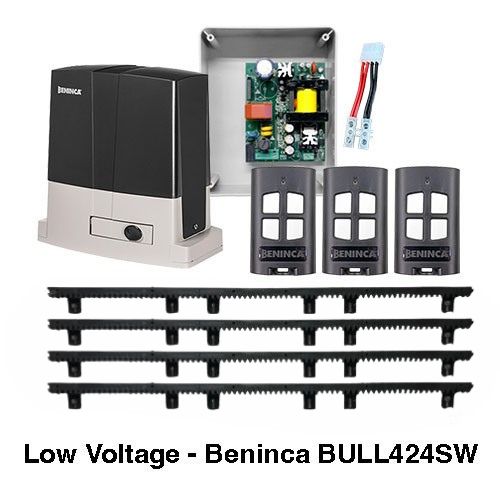

The BULL424SW is a 24 volt motor designed for residential and commercial sliding gates up to 450kg in weight. 24 VOLT ELECTRIC GATE OPERATOR - RESIDENTIAL - 450KG The BULL424SW by Beninca is plain and simple Beninca quality and reliability throughout. The BULL424SW is designed for residential and commercial sliding automatic gates up to 450kg in weight. The BULL424SW has a built in control board in its own seperate enclosure with a dedicated 433mhz wireless receiver and inputs for photocells and switches etc. The BULL also comes with a base plate. Battery backup is optional with the addition of the battery module and two 1.3Ah rechargeable batteries.
Motor Voltage - 24 volts DC
Current Standby - 8mA
Current at use - 3.2A
Motor power - 80W
Maximum thrust - 428N
Operating speed - 11 metres per minute (adjustable)
Maximum gate size - 450 kg
Duty cycle - 80%
Height - 330mm Width - 326mm Depth - 140mm
Weight - 7.6 Kg
IP rating - IP44
24 volts DC
8mA
0.4A
80W
428N
11 Metres per minute
400 Kg
IP44
330mm
140mm
326mm
10.2 Kg
80%
Battery Back upWireless Keypad

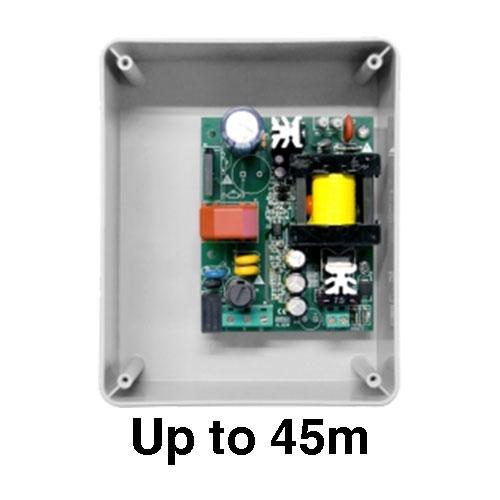

7Amp low voltage box with built-in transformer.
Up to 45m distance
Works with all Beninca Control Boards with screen.
For SW series (without screen), an adapter is required.

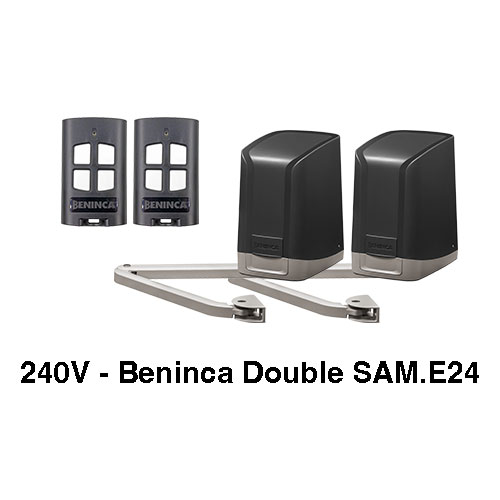

Irreversible 24V DC Gear Motor for Intensive Use
✔ Available With or Without a Control Unit – Choose the option that best suits your setup.
✔ Easy Installation & Maintenance – The control unit is positioned on a removable support for quick access to mechanical stops and simplified installation.
✔ Efficient & Long-Lasting – 100-250V AC switching power supply reduces energy consumption and extends the actuator’s lifespan.
✔ Designed for Large Swing Gates – Suitable for gates with large columns and leaf hinges up to 280mm deep (only 170mm wide).
✔ Maximum Safety & Precision – The encoder system ensures accurate gate movement and obstacle detection with an amperometric sensor to prevent crushing.
✔ Smart Torque Control (STC System) – Manages torque based on gate position for optimal performance and safety.
✔ Strong & Secure Arm Design – Includes a closing lock that helps define the limit switch position during installation.
✔ Reliable in Power Outages – Compatible with backup batteries that seamlessly integrate into the motor for uninterrupted operation.
✔ Weather-Resistant Cable Management – Motor fixing bracket with a cable gland ensures a secure and tidy cable setup.
✔ KNX Home Automation Ready – Can be connected to the X.BE module for seamless integration into smart home systems, programmable via the BeUP app and PRO.UP interface.
✔ External Manual Release Option – The adjustable flush release allows gate opening from the outside in case of a power failure.
Features:

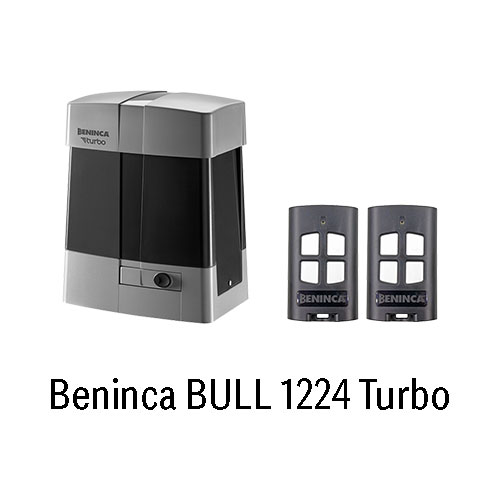

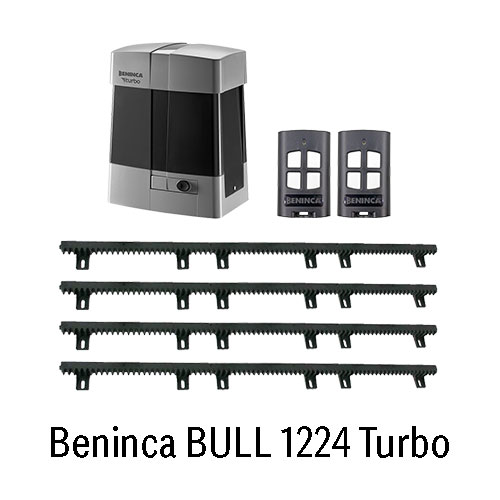

Beninca BULL1224 Turbo 1200kg - Complete Kit with 3 remotes
Max Speed: 24m/min
Beninca BULL1224 Turbo 1200kg - Motor Only with 2 remotes
Max Speed: 25m/min

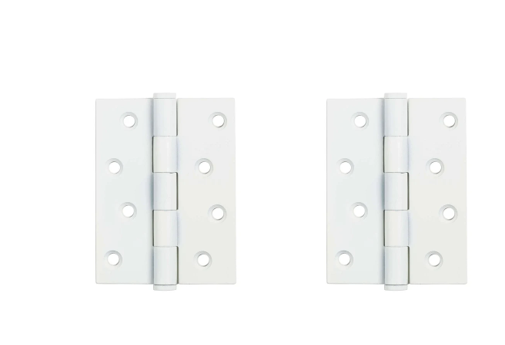

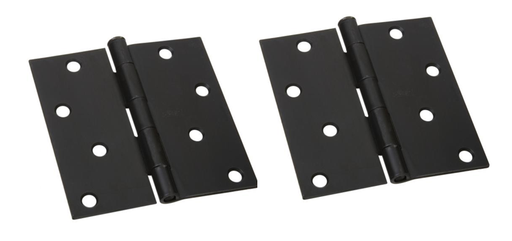

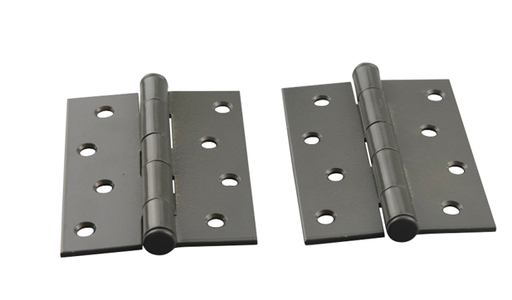

The Pair of Steel Butt Hinges is a durable and versatile hinge option for various applications. With a size of 100x75x2.5mm, these butt hinges are designed to provide strength and stability to doors, cabinets, gates, and other wooden or metal structures. The hinges are finished with a zinc plating, offering protection against corrosion and ensuring long-lasting performance. Whether you're working on a new construction project or need to replace existing hinges, the Pair of Steel Butt Hinges is a reliable choice for smooth and secure movement.

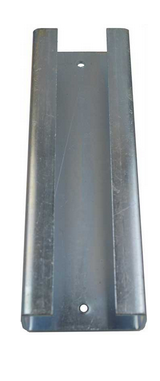

Steel Sliding block holder 300x82x40mm - Steel Zinc finished
