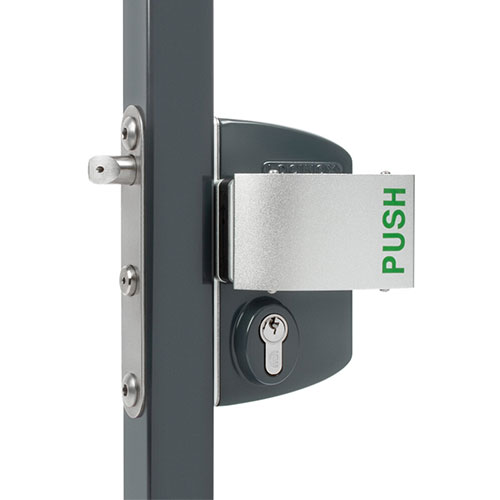

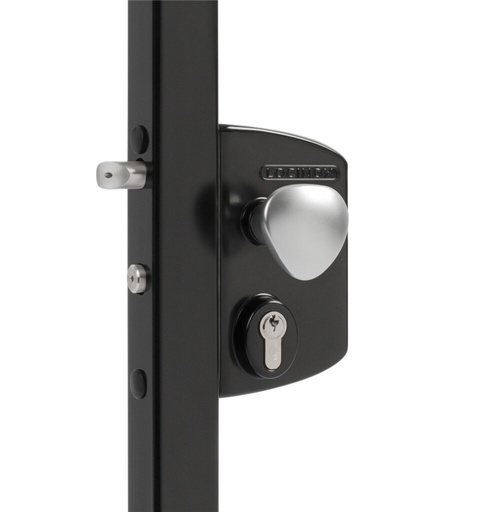

The Locinox Industrial Anti-Panic Swing Gate Lock U2 is a specialized locking solution designed for square tube gates with a 40-60mm profile. This industrial lock features an anti-panic mechanism and comes with a push set, providing added safety and convenience. The Swing Gate Lock U2 ensures secure and controlled access, especially in emergency situations. With its sturdy construction and precise engineering, this lock offers reliable performance and peace of mind. Whether for commercial or industrial use, the Industrial Anti-Panic Swing Gate Lock U2 is a trusted choice for secure and convenient gate locking.

The Hot-Dip galvanised 3-Way Adjustable Hinge is a high-quality hinge designed for superior performance and durability. Made from hot-dip stainless steel, this hinge offers exceptional resistance to corrosion and ensures long-lasting functionality, even in harsh environments. With its 3-way adjustability, it provides precise alignment and smooth operation for gates, doors, and other applications. The hinge is sold in pairs, making installation easy and providing balanced support. Whether for residential or commercial use, the Hot-Dip Stainless Steel 3-Way Adjustable Hinge is a reliable choice to enhance the security and functionality of your project.

Holds gates up to 150kg

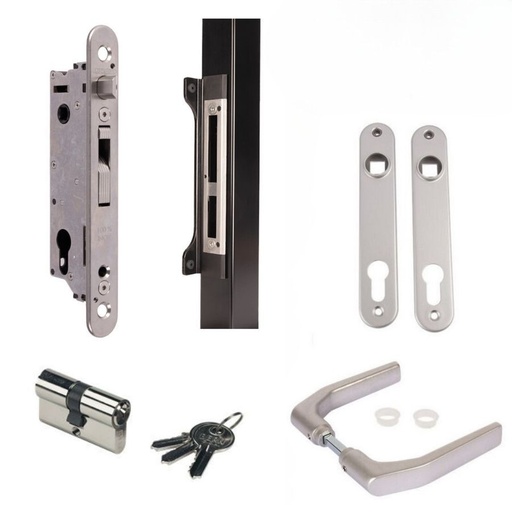

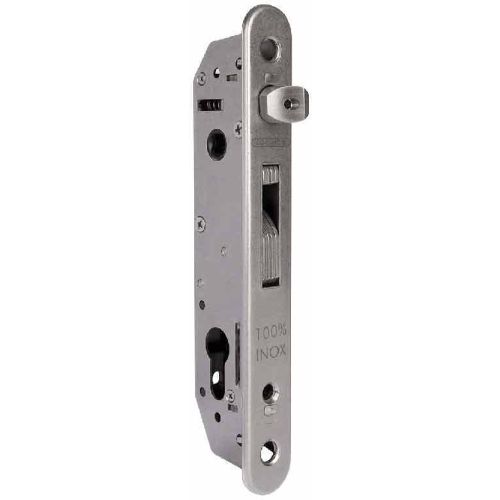

The Locinox Forty Slim Line Insert Lock is a high-quality lock designed for various applications, offering a secure locking solution. With a slim and compact design, it is suitable for installations where space is limited. This lock features a 20mm backset and is sold as a lock-only option. It is compatible with different door types, providing versatility in its usage. Upgrade your doors with the Forty Slim Line Insert Lock for reliable security and convenience.

• Lock mechanism with cover plate against dirt penetration
• Patented "Click-It" system makes thread tapping unnecessary
• Continuous adjustment of the daybolt up to 10 mm without dismounting the lock box
• Key-operated self-latching bolt
• Mechanism, hook, frontplate, latchbolt: stainless steel
• Easy left or right changing of the self-latching daybolt
• Throw of the hook: 21 mm
• Center-distance cylinder <=> handles = 92 mm
• Optional: cover shield for handle & cylinder holes in aluminium, polyamide or stainless steel
• Handles to be ordered separately
• Compatible with all Europrofile cylinders

Link for installation

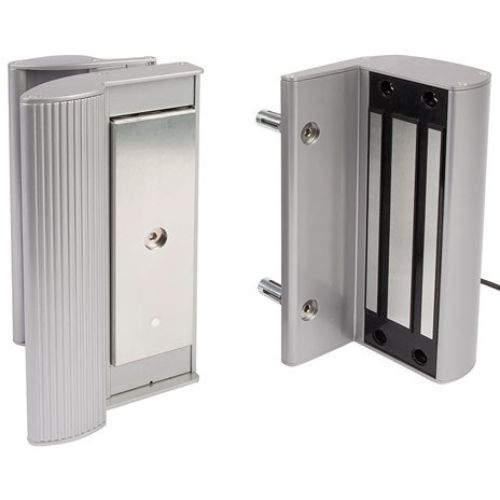

The Locinox Electro-Magnetic Lock is a powerful locking solution designed to provide enhanced security for various applications. With a holding force of 600kg, this electromagnetic lock ensures a strong and reliable lock mechanism. It features a silver handle for easy operation and added convenience. The lock is weatherproof, making it suitable for both indoor and outdoor use. Install the Locinox Electro-Magnetic Lock for robust and reliable security.

Specifications

• 500h salt spray resistant! SGS certified (ISO 9227)
• Special two-layer protective coating developed for outdoor use
• SGS Certified
• Powder coated aluminium housing
• Anti-residual magnetism kick-off system
• Raised edge on the magnet housing makes it impossible to put a crowbar between the magnet and the armature plate
• Fail open
• Fast and easy fixing by means of 5 holes with Quick-Fix
• Current MAGMAG6000: 460 mA / 12 V or 230 mA / 24 V
• Voltage: 12V / 24V DC
• MAG6000: Minimal pulling force: 6000N (600 kg)
• Guaranteed holding force tested on every magnetic lock

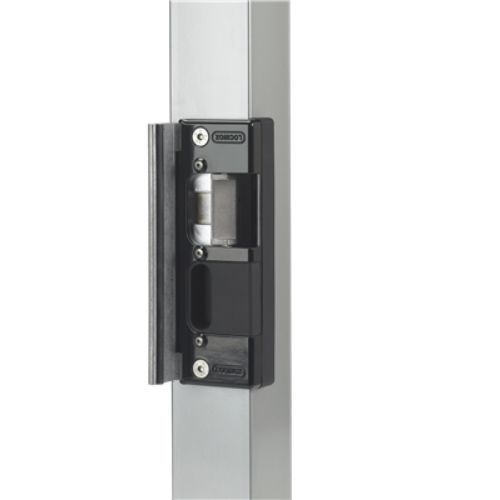

The FK540 Locinox Electric Strike is designed specifically for swing gates with surface-mounted locks. This electric strike ensures secure locking and easy access control for your gate system. With its fail-close feature, it provides reliable functionality even during power outages or emergencies. The FK540 is compatible with surface-mounted locks, offering a seamless integration and enhanced security for your swing gate. Upgrade your gate system with the FK540 Locinox Electric Strike for surface-mounted locks.

Specifications

• Type SE.E: Emissa - Fail Close
• Nightbolt receiver reinforced and out of stainless steel
• For post profiles of 50 mm and more
• Voltage: 12V AC/DC
• Current Emissa: 1A
• Water resistant & weatherproof
• Pressure resistance on self-latching bolt: 500 kg

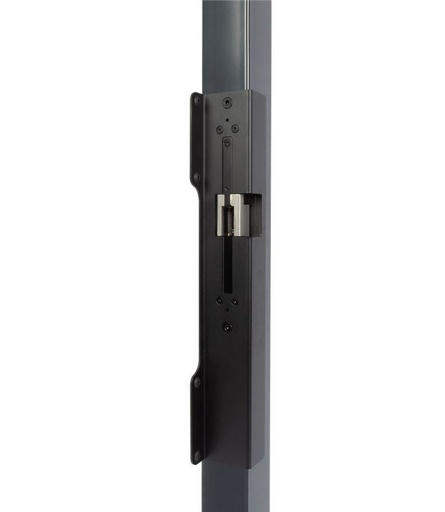

The Locinox Built-In Electric Strike is specifically designed for use with Forty, Fifty, and SixtyLock gate frame systems. This electric strike is installed within the gate frame, providing a concealed and streamlined solution for secure access control. With a fail-close mechanism, it ensures that the lock remains securely locked even during power outages. The 40mm size makes it compatible with gate frames of that dimension. The built-in design offers enhanced security and convenience for your access control system.

Specifications

• Tested up to 500.000 movements
• Fast and easy fixing with Quick-Fix
• Resistance to pressure on the latch bolt: 300 kg
• Easy left or right changing
• Corrosion-resistant: black anodized aluminium housing
• Adjustable for gate profiles: 40-60 mm width
• Voltage: 12V-24V AC/DC
• Consumption: 12V - 1,25A / 24V - 0,62A
• Power: 15W

The Locinox Built-in Electric Strike is specifically designed for gate frames with a 50mm profile. This electric strike offers a reliable and secure locking solution for your gate system. It is installed directly into the gate frame, ensuring a seamless and integrated look. The fail-close functionality ensures that the gate remains securely locked in case of power failure or emergencies. Enhance the access control and security of your gate with the Built-in Electric Strike.

Specifications

• Tested up to 500.000 movements
• Fast and easy fixing with Quick-Fix
• Resistance to pressure on the latch bolt: 300 kg
• Easy left or right changing
• Corrosion-resistant: black anodized aluminium housing
• Adjustable for gate profiles: 40-60 mm width
• Voltage: 12V-24V AC/DC
• Consumption: 12V - 1,25A / 24V - 0,62A
• Power: 15W

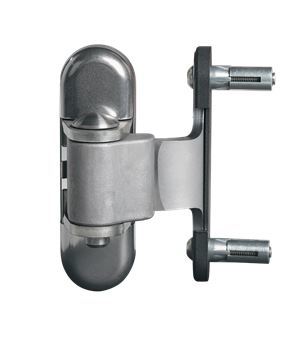

The Locinox 3-Way Adjustable Hinge is a premium hinge designed for superior performance and durability. Crafted from stainless steel, this hinge offers excellent resistance to corrosion and ensures long-lasting functionality in various weather conditions. With its 3-way adjustability, it provides precise alignment and smooth operation for gates and doors. The hinge is sold in pairs, allowing for easy installation and balanced support. Whether for residential or commercial applications, the Locinox 3-Way Adjustable Hinge is a reliable choice to enhance the security and functionality of your project.

Holds gates up to 150kg

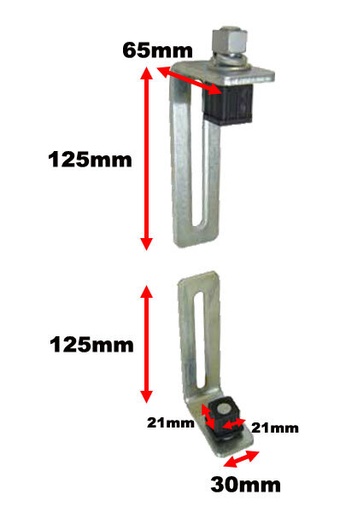

The Light Swing Gate Hinges are designed for gates with a frame size of 25x25mm and a weight capacity of up to 25kg/pair. These hinges are specifically crafted for light gates, offering smooth and reliable operation. With their durable construction, they provide stability and support to your gate, ensuring long-lasting performance. The hinges are easy to install and adjust, making them suitable for DIY projects or professional installations. Whether you have a residential gate or a small garden gate, these hinges are a practical choice to enhance the functionality of your gate.

Hold weights up to 25kg/pair

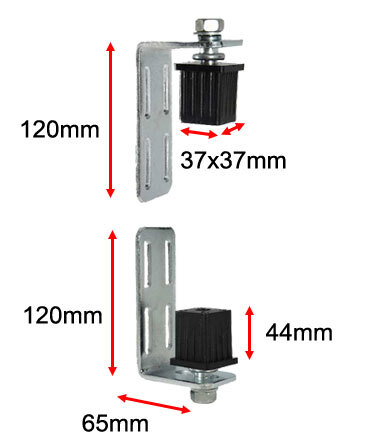

The "HN793 Light Swing Gate Hinges" are designed for gates with a frame size of 40x40mm. This set includes two hinges for optimal gate support. These hinges are suitable for lightweight gates and offer smooth operation and reliable performance. Crafted with precision, they ensure durability and long-lasting functionality. The hinges are easy to install and provide a secure solution for opening and closing your gate. With their sleek design and sturdy construction, these swing gate hinges are a practical choice for gates requiring a frame size of 40x40mm.

Hold weights up to 25kg/pair

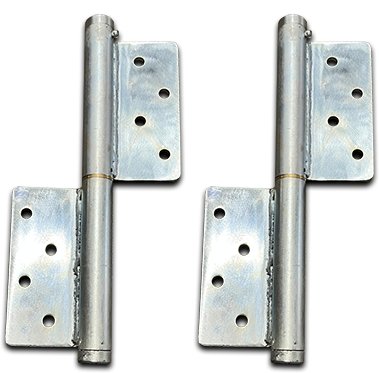

The Left-Handed Heavy Duty Screw-On Self-Closing Hinge Pair is a high-quality hinge designed for heavy-duty applications. It features a left-handed configuration and is suitable for various gate types. This hinge is screw-on, providing secure and reliable installation. With its self-closing mechanism, the hinge ensures that the gate automatically closes behind you, providing convenience and enhanced security. The heavy-duty construction of the hinge ensures durability and long-lasting performance, making it ideal for gates that require robust hardware.

Holds up to 120kg

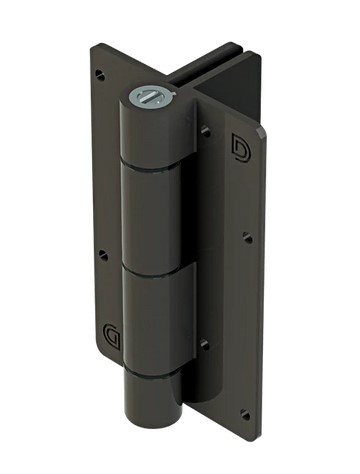

The Kwikfit Aluminium Self-Closing Gate Hinge with 2 Legs is a versatile and robust hinge designed for optimal gate performance. Crafted from high-quality aluminium, this hinge offers durability and strength while being lightweight and corrosion-resistant. The self-closing feature ensures that your gate will automatically close securely behind you, providing convenience and peace of mind. With the inclusion of 2 legs, this hinge provides enhanced stability and support for heavier gates. The Kwikfit design allows for easy installation and adjustment, making it a convenient choice for both residential and commercial applications.

Holds up to 20kg

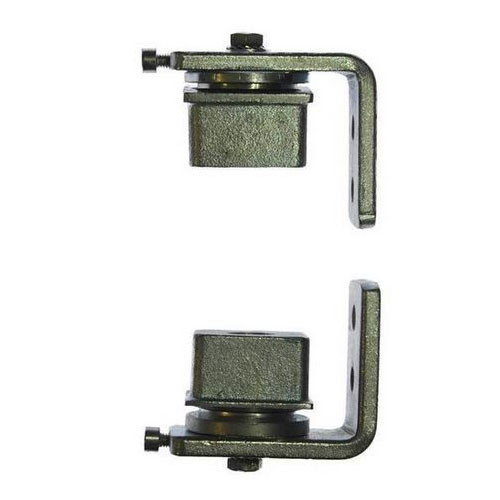

The Insert Bearing Hinges are designed for 50x50mm steel frame applications, providing a reliable and robust hinge solution for your gates or doors. This package includes a set of two hinges, offering the necessary hardware for secure and smooth operation.

With an insert design, these hinges are easy to install by aligning them with the pre-drilled holes on your steel frame and tapping them in securely. The bearing feature ensures smooth movement and reduced friction, allowing for effortless opening and closing of your gates or doors.

Universal Left and Right Heavy Duty Adjustable Bearing Hinges are specifically designed for 50x50mm steel frames, ensuring a precise fit and optimal performance. These hinges provide sturdy support and stability, enhancing the durability and functionality of your steel frame applications.

The benefit of these hinges is that the bearing fits inside your 50x50x2mm SHS frame.  Thus you don't need to leave a huge gap under your gate or have the hinges higher than your post.

Angle bracket made from 8mm thick rust resistant zinc/gal plated steel

Angle Bracket 80mm(bearing side) x 70mm (post side) x 40mm wide

Top and bottom hinge for one swing gate leaf

If you have a double gate buy 2 of these.

No need to weld this to your gate

Bearings fit inside 50x50 tube gate frame with wall a thickness of 2mm

Weld or bolt Angle mounting bracket to steel post or bolt on to wood or aluminum post

Adjustable positions with locking nut

Don't forget to grease the bearings during installation!!

Hold weights up to 350kg
