Automatic Wireless Vehicle Micro E-Loop Kit

The e-Loop Micro offers a fantastic low-cost solution to domestic gate control, offering a simple installation, impressive battery life for the form factor and a discreet and sleek design. Packaged with an e-Trans 20 as an all-in-one solution, the e-Loop Micro kit is the perfect product for any gate installer; offering a reasonably priced to up-sell a vehicle detection on a traditional gate installation.

Compact Profile – Height: 27mm | Diameter: 110mm

The e-Loop Micro’s Vehicle Detection System relies on magnetometer sensors to detect approaching vehicles. Upon detection, the system transmits this information to a nearby Microtech transceiver, facilitating gate activation/traffic control. Installation involves affixing sensors to the surface of entry or exit passages using dyna-bolts. These sensors are designed to withstand the rigors of vehicle traffic.

Automatic Wireless Vehicle Post Mount E-Loop Kit

Ideal for demanding environments, the e-Loop in-ground features all the functionality of the commercial with the added advantage of a in-ground installation. Perfect for low clearance vehicles, forklifts, tracked vehicles and heavy equipment.

***CANNOT BE PLACED TOO CLOSE TO A MOVING STEEL GATE

Automatic Wireless Vehicle Detector In-Ground E-Loop Gate Automation - Commercial Kit with Radar

Ideal for demanding environments, the e-Loop in-ground features all the functionality of the commercial with the added advantage of a in-ground installation. Perfect for low clearance vehicles, forklifts, tracked vehicles and heavy equipment.

The Swing Gate Weld-to-Weld Hinge is a reliable and sturdy hinge designed for swing gates. This hinge features a 16mm left-hand threaded design and comes in a pair. It is zinc-plated for enhanced durability and corrosion resistance, making it suitable for outdoor applications. The weld-to-weld installation provides a secure attachment, ensuring the stability and longevity of your gate. With its robust construction and convenient threaded design, the Swing Gate Weld-to-Weld Hinge is an excellent choice for gate installations.

Hold weights up to 100kg

Installation instruction for Weld on hinges

1. Weld the sockets onto the gate itself.
2. Measure the distance between the sockets.
3. Weld the pins onto your post, one at the bottom, and one at the top. Make sure you have left plenty of room at the bottom so the gate clears the ground. Double check the pins are the same distance apart as your sockets. The pins should be pointing up.
4. Lift your gate up and drop it on the pins.

To make sure your gate is secure :

1. Weld the bottom pin onto your post & pin pointing up and your bottom socket on your gate.
2. Sit your gate on the bottom pin.
3. Weld the top socket to your gate.
4. Drop the pin into the top socket. so Pin is pointing down
5. Weld the pin to the post.

Tip: Measure correctly before welding. If need to change anything you will need to cut them off and re-weld them again.

The Swing Gate Weld-to-Weld Hinge is a reliable and sturdy hinge designed for swing gates. This hinge features a 16mm left-hand threaded design and comes in a pair. It is zinc-plated for enhanced durability and corrosion resistance, making it suitable for outdoor applications. The weld-to-weld installation provides a secure attachment, ensuring the stability and longevity of your gate. With its robust construction and convenient threaded design, the Swing Gate Weld-to-Weld Hinge is an excellent choice for gate installations.

Hold weights up to 100kg

Installation instruction for Weld on hinges

1. Weld the sockets onto the gate itself.
2. Measure the distance between the sockets.
3. Weld the pins onto your post, one at the bottom, and one at the top. Make sure you have left plenty of room at the bottom so the gate clears the ground. Double check the pins are the same distance apart as your sockets. The pins should be pointing up.
4. Lift your gate up and drop it on the pins.

To make sure your gate is secure :

1. Weld the bottom pin onto your post & pin pointing up and your bottom socket on your gate.
2. Sit your gate on the bottom pin.
3. Weld the top socket to your gate.
4. Drop the pin into the top socket. so Pin is pointing down
5. Weld the pin to the post.

Tip: Measure correctly before welding. If need to change anything you will need to cut them off and re-weld them again.

MAGNUS is a motorised gate closer and hinge in one, designed for the automation of pedestrian gates. The brushless and reversible motor is insensitive to unpredictable pedestrian behaviour, and operates in low-energy mode. The settings and access control can be configured via an intuitive app. Includes lower hinge and compact connection box.

Specifications:

• Motorised gate closer with integrated electronics
• 75 Nm torque
• Fits on post profiles from 60 mm and gate profiles from 40 mm
• Steel gear box
• Anodized aluminium cover
• Fast and easy fixing with Quick-Fix
• ETL-tested
• Input main power supply: 110 AC to 240V AC
• Motor voltage: 24V DC
• External connection box with 3 inputs and 3 outputs (Max. 48W, 24V DC)
• Automated obstacle detection with reverse function
• Brushless motor: long lifespan and intensive usage
• Reversible motor with backdrivability for easy manual use – to be combined with a lock
• 2m cable between motor and connection module
• Compact and vandal-proof design
• Configuration via app
• Tested up to 500.000 cycles
• EN 16005 Compliant

MAGNUS is the first-of-its-kind motorized hinge that seamlessly blends convenience and safety in a sleek, integrated design.

It enables full automation of pedestrian gates without the need for external safety sensors or complicated wiring. The advanced brushless, reversible motor is designed with pedestrian safety in mind, offering easy configuration and reliable performance even under heavy daily use.

Enjoy smooth operation, secure access, and consistent closure—MAGNUS elevates the functionality of pedestrian gates.

Key Features:

• Intelligent motor enables automatic opening and closing
• Durable, brushless, and reversible motor technology
• Integrated obstacle detection and push-to-open capability
• Ideal for public areas, educational institutions, and healthcare facilities
• Fully compliant with global safety standards:
  EN16005, PMR, ADA, and UL325

LAMPY24-LED 24Vdc LED Flashing light with built in antenna

Flashing white light, 20÷255 Vac/dc with integrated antenna | Equipped with a flashing function as a standard feature, but can also be installed in systems that already have this function (useful for maintenance of older systems) | Reduced energy use thanks to one of the lowest absorbed power figures on the market (1 W) | Option of wall-mounting thanks to a bracket included in the package | Fast and easy to install, IRI.LAMP can also be set up as a fixed light

Q-Bolt Drop Bolt Padlockable with Padlock For Metal Gates

The Q-Bolt rod is made from high-grade stainless steel that has gone through an electro-polishing process to add to its rust-resistance. It is then powder coated black to further protect it from rust and corrosion.
For convenience, the Q-Bolt also offers a padlock storage facility for when the padlock is not being used. A bolt retention feature prevents the rod from dropping and dragging across the driveways and also keeps the rod from being pulled out of the brackets when mounted to a gate.
All models include alignment side-legs for ease of installation and added double face-fixing strength.

Padlockable Drop-Bolt
• Powder coated, stainless steel drop-bolt in black or white
• Padlockable; with padlock storage feature
• Tough, moulded polymer mounting system
• Retention tabs prevent bolt from dropping and dragging
• Mounting systems for metal and wood/vinyl
• Bolt lengths: 610 and 1020mm (24 and 40")
• Optional Base plate retains bolt into ground
• Lifetime Warranty

• Padlock not included

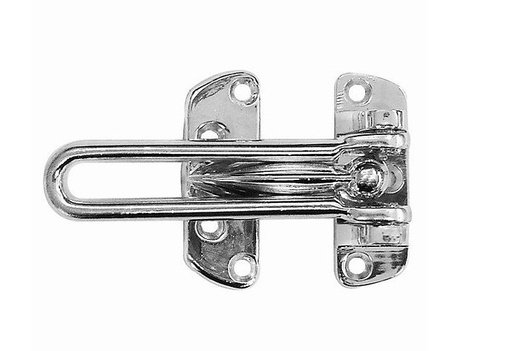

RiteFit Lenlok Door Guard Security  105mm Chrome Plate HDGCP

Lenlok security door guard, providing added security and suitable for use to 'child proof' a door, features chrome finish.

• Ideal for added security
• Visible fixings
• Modern satin chrome finish

The D&D Pull Gate Handle is a versatile and reversible handle designed for right or left-handing on gates. This pull handle offers a sturdy and ergonomic grip, making it easy to open and close your gate. Its durable construction ensures long-lasting performance, even in outdoor environments. With its sleek design and black finish, it adds a modern and stylish touch to your gate. Whether you have a right-handed or left-handed gate, the D&D Pull Gate Handle provides a convenient and reliable solution for effortless gate operation.

The bolt-on, self-closing gate hinges are easy to install and adjust for perfect installation. Compatible for use on aluminium gates for non-welding and high-traffic gates to ensure correct movement. Horizontally adjustable for perfect installations that ensures proper gate function. The Bolt-On BadAss was designed to be used on gates where welding the hinges to the gate and the end post is not an option.

Opens to 180° for unobstructed pass through
• Achieve gate gaps as small as 13mm
• Horizontally adjustable from 13mm to 25mm for precise installation
• Both weld-on and bolt-on models available
• No greasing or maintenance required on sealed bearings. EVER!
• Horizontal adjustability is ideal for panic bar installations
• 5 tension-adjustment settings
• Self-closing maximum gate weight: 200kg (with 2 closers) CI3835FM
