Tigerclamp 166 series Adjustable Angle Connector

fit 32NB pipe (42mm)

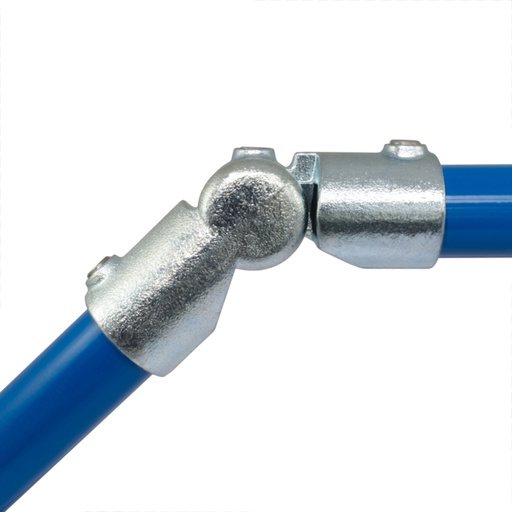

Tigerclamp 166 series Adjustable Angle Connector

fit 25NB pipe (34mm)

Kit includes:

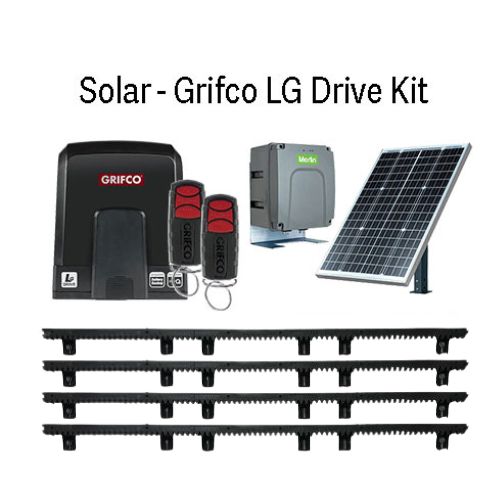

- 1x Grifco GDL-DO-LV “LG-Drive” GGS1000 Sliding Gate Opener
- 1x Merlin Solar kit
- 2x E960G Premium Keyring Transmitters
- Required Hardware Fixings (Bolts Etc)
- 4x 1m Sliding Gate Racking Lugs Down

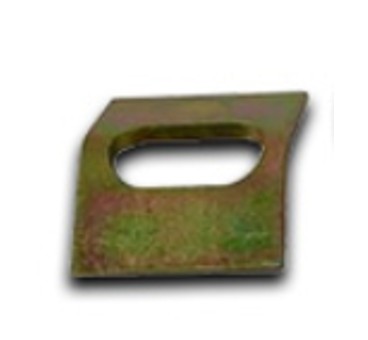

Striker Back plate for 14mm Pin Slam Lock suit FK408

The Swing Gate Weld-to-Weld Hinge is a reliable and sturdy hinge designed for swing gates. This hinge features a 16mm left-hand threaded design and comes in a pair. It is zinc-plated for enhanced durability and corrosion resistance, making it suitable for outdoor applications. The weld-to-weld installation provides a secure attachment, ensuring the stability and longevity of your gate. With its robust construction and convenient threaded design, the Swing Gate Weld-to-Weld Hinge is an excellent choice for gate installations.

Hold weights up to 100kg

Installation instruction for Weld on hinges

1. Weld the sockets onto the gate itself.
2. Measure the distance between the sockets.
3. Weld the pins onto your post, one at the bottom, and one at the top. Make sure you have left plenty of room at the bottom so the gate clears the ground. Double check the pins are the same distance apart as your sockets. The pins should be pointing up.
4. Lift your gate up and drop it on the pins.

To make sure your gate is secure :

1. Weld the bottom pin onto your post & pin pointing up and your bottom socket on your gate.
2. Sit your gate on the bottom pin.
3. Weld the top socket to your gate.
4. Drop the pin into the top socket. so Pin is pointing down
5. Weld the pin to the post.

Tip: Measure correctly before welding. If need to change anything you will need to cut them off and re-weld them again.

The Swing Gate Weld-to-Weld Hinge is a reliable and sturdy hinge designed for swing gates. This hinge features a 16mm left-hand threaded design and comes in a pair. It is zinc-plated for enhanced durability and corrosion resistance, making it suitable for outdoor applications. The weld-to-weld installation provides a secure attachment, ensuring the stability and longevity of your gate. With its robust construction and convenient threaded design, the Swing Gate Weld-to-Weld Hinge is an excellent choice for gate installations.

Hold weights up to 100kg

Installation instruction for Weld on hinges

1. Weld the sockets onto the gate itself.
2. Measure the distance between the sockets.
3. Weld the pins onto your post, one at the bottom, and one at the top. Make sure you have left plenty of room at the bottom so the gate clears the ground. Double check the pins are the same distance apart as your sockets. The pins should be pointing up.
4. Lift your gate up and drop it on the pins.

To make sure your gate is secure :

1. Weld the bottom pin onto your post & pin pointing up and your bottom socket on your gate.
2. Sit your gate on the bottom pin.
3. Weld the top socket to your gate.
4. Drop the pin into the top socket. so Pin is pointing down
5. Weld the pin to the post.

Tip: Measure correctly before welding. If need to change anything you will need to cut them off and re-weld them again.

MAGNUS is a motorised gate closer and hinge in one, designed for the automation of pedestrian gates. The brushless and reversible motor is insensitive to unpredictable pedestrian behaviour, and operates in low-energy mode. The settings and access control can be configured via an intuitive app. Includes lower hinge and compact connection box.

Specifications:

• Motorised gate closer with integrated electronics
• 75 Nm torque
• Fits on post profiles from 60 mm and gate profiles from 40 mm
• Steel gear box
• Anodized aluminium cover
• Fast and easy fixing with Quick-Fix
• ETL-tested
• Input main power supply: 110 AC to 240V AC
• Motor voltage: 24V DC
• External connection box with 3 inputs and 3 outputs (Max. 48W, 24V DC)
• Automated obstacle detection with reverse function
• Brushless motor: long lifespan and intensive usage
• Reversible motor with backdrivability for easy manual use – to be combined with a lock
• 2m cable between motor and connection module
• Compact and vandal-proof design
• Configuration via app
• Tested up to 500.000 cycles
• EN 16005 Compliant

MAGNUS is the first-of-its-kind motorized hinge that seamlessly blends convenience and safety in a sleek, integrated design.

It enables full automation of pedestrian gates without the need for external safety sensors or complicated wiring. The advanced brushless, reversible motor is designed with pedestrian safety in mind, offering easy configuration and reliable performance even under heavy daily use.

Enjoy smooth operation, secure access, and consistent closure—MAGNUS elevates the functionality of pedestrian gates.

Key Features:

• Intelligent motor enables automatic opening and closing
• Durable, brushless, and reversible motor technology
• Integrated obstacle detection and push-to-open capability
• Ideal for public areas, educational institutions, and healthcare facilities
• Fully compliant with global safety standards:
  EN16005, PMR, ADA, and UL325
