Kit includes:
- 1x Grifco GDL-DO-LV “LG-Drive” GGS1000 Sliding Gate Opener
- 1x Merlin Solar kit
- 2x E960G Premium Keyring Transmitters
- Required Hardware Fixings (Bolts Etc)
- 4x 1m Sliding Gate Racking Lugs Down


Striker Back plate for 14mm Pin Slam Lock suit FK408

The Swing Gate Weld-to-Weld Hinge is a reliable and sturdy hinge designed for swing gates. This hinge features a 16mm left-hand threaded design and comes in a pair. It is zinc-plated for enhanced durability and corrosion resistance, making it suitable for outdoor applications. The weld-to-weld installation provides a secure attachment, ensuring the stability and longevity of your gate. With its robust construction and convenient threaded design, the Swing Gate Weld-to-Weld Hinge is an excellent choice for gate installations.

Hold weights up to 100kg

Installation instruction for Weld on hinges

1. Weld the sockets onto the gate itself.
2. Measure the distance between the sockets.
3. Weld the pins onto your post, one at the bottom, and one at the top. Make sure you have left plenty of room at the bottom so the gate clears the ground. Double check the pins are the same distance apart as your sockets. The pins should be pointing up.
4. Lift your gate up and drop it on the pins.

To make sure your gate is secure :

1. Weld the bottom pin onto your post & pin pointing up and your bottom socket on your gate.
2. Sit your gate on the bottom pin.
3. Weld the top socket to your gate.
4. Drop the pin into the top socket. so Pin is pointing down
5. Weld the pin to the post.

Tip: Measure correctly before welding. If need to change anything you will need to cut them off and re-weld them again.

Compatible with all Merlin and Grifco gate openers.

1. Performance & Suitability - Perfect for residential & light commercial use with limited daily cycles. Under typical conditions (e.g. 6 hours of sunlight per day on the Australian East Coast), you can expect around 20 cycles per day with one set of 772ANZ Safety Beams Connected. Actual performance depends on sunlight availability, gate condition, connected accessories and environmental factors. Refer to the manual for detailed performance calculations & suitability to your location.
2. Installation Tips & Site Selection - To get the best performance from your Solar Kit, consider panel placement. Install the solar panel where it gets full sunlight—ideally facing due North. Avoid shaded or obstructed areas, as this will reduce charging efficiency. It is important to keep the solar panel close to the power supply enclosure, and ensure the enclosure is within reach of your gate opener.
3. Choosing the Right Setup - Solar performance depends on your location, sunlight hours, and how often the gate is used. Some setups may need two solar panels for reliable operation—especially in areas with less sun or higher usage. During long periods of low sunlight, you may need to recharge the system using the AC charging adaptor (included).

• IP65 Weather Resistant Power Supply Enclosure/Control Unit and Solar Panel
• 2 x 18Ah batteries
• 40W Solar Panel (a second 40W Solar Panel can be added for areas with low sunlight exposure*)
• Adjustable Solar Panel Mounting Kit
• 240V Mains Power Pack included to fully charge the SOLAR-KIT before installation

* If a second 40W Solar Panel is added, the Dual Solar Panel Cable Connector with 4m cable (041A0573) is required.  The Solar Panel Mounting Kit (SP-MOUNT-KIT) is also recommended.

Built for Local Conditions
Designed in Australia to withstand the unique environmental demands of both Australian and New Zealand climates.
Weather Resistant & Durable
Features an IP65-rated Power Supply Enclosure, offering strong protection against dust, rain, and harsh weather.
Reliable Power Storage
Includes 2 x 18Ah high-capacity batteries to keep your gate opener running smoothly.
Solar Powered Convenience
Comes with a 40W Solar Panel for clean, efficient energy—no mains power required.
Expandable System
Need more power? Add a second 40W Solar Panel for improved performance in low-sunlight areas.*
Flexible Mounting Options
Includes a sturdy, adjustable mounting kit to position the solar panel for maximum sunlight exposure.
Pre-Installation Charging
A 240V Mains Power Pack is included to fully charge the system before setup.
3-Year Warranty*
Merlin Peace of Mind

*The warranty period for the Solar Kit Batteries is 12 months from the date of purchase.

Wall mount remote control holder

B 00 R04 Wall mount

Flashing white light, 20÷255 Vac/dc with integrated antenna | Equipped with a flashing function as a standard feature, but can also be installed in systems that already have this function (useful for maintenance of older systems) | Reduced energy use thanks to one of the lowest absorbed power figures on the market (1 W) | Option of wall-mounting thanks to a bracket included in the package | Fast and easy to install, IRI.LAMP can also be set up as a fixed light

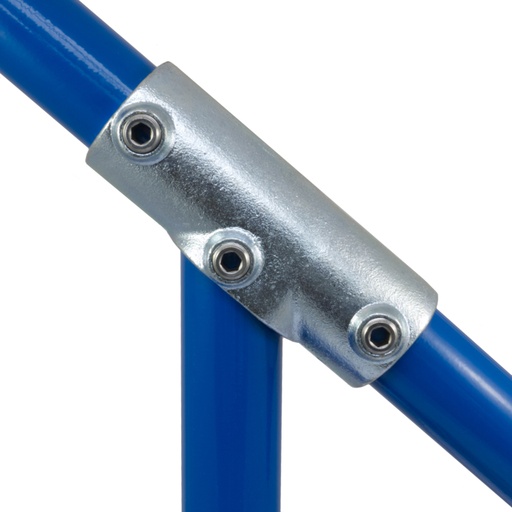

Tigerclamp galvanized heavy duty 40-70 degree elbow fittings - 123 series. "Corner type connectors for same diameter pipe to rail

Variable 40° to 70° angle joint, often used to join staircase top rail to end uprights.

Features

• simple, easy and fast to use
• high performance, ultra-durable
• extra heavy duty design & capabilities
• 12mm long 304 grade stainless screw for superior corrosion resistance

Standard finish is hot dip galvanized

Tigerlink Hardware

Tigerclamp galvanized heavy duty 40-70 degree elbow fittings - 123 series. "Corner type connectors for same diameter pipe to rail

Variable 40° to 70° angle joint, often used to join staircase top rail to end uprights.

Features

• simple, easy and fast to use
• high performance, ultra-durable
• extra heavy duty design & capabilities
• 12mm long 304 grade stainless screw for superior corrosion resistance

Standard finish is hot dip galvanized

Tigerlink Hardware

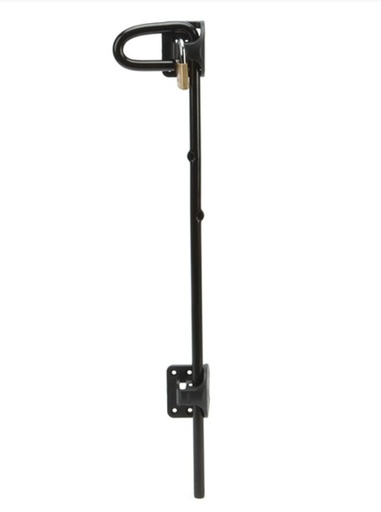

Q-Bolt Drop Bolt Padlockable with Padlock For Metal Gates

The Q-Bolt rod is made from high-grade stainless steel that has gone through an electro-polishing process to add to its rust-resistance. It is then powder coated black to further protect it from rust and corrosion.
For convenience, the Q-Bolt also offers a padlock storage facility for when the padlock is not being used. A bolt retention feature prevents the rod from dropping and dragging across the driveways and also keeps the rod from being pulled out of the brackets when mounted to a gate.
All models include alignment side-legs for ease of installation and added double face-fixing strength.

Padlockable Drop-Bolt
• Powder coated, stainless steel drop-bolt in black or white
• Padlockable; with padlock storage feature
• Tough, moulded polymer mounting system
• Retention tabs prevent bolt from dropping and dragging
• Mounting systems for metal and wood/vinyl
• Bolt lengths: 610 and 1020mm (24 and 40")
• Optional Base plate retains bolt into ground
• Lifetime Warranty

• Padlock not included

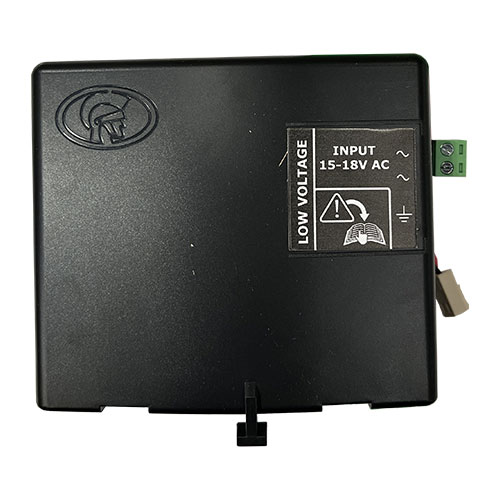

Internal Transformer for Low Voltage D5 Smart Evo & D3 Smart

Grifco/Merlin Receiver STAR1000

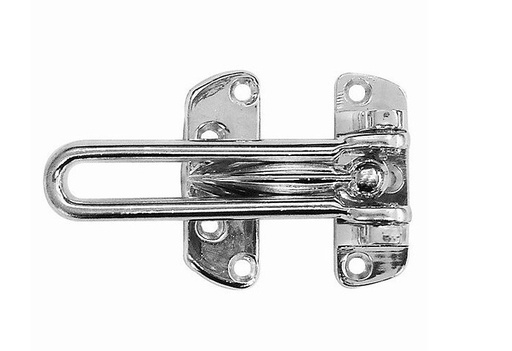

RiteFit Lenlok Door Guard Security  105mm Chrome Plate HDGCP

Lenlok security door guard, providing added security and suitable for use to 'child proof' a door, features chrome finish.

• Ideal for added security
• Visible fixings
• Modern satin chrome finish
