The BULL624SW is a 24 volt motor designed for residential and commercial sliding gates up to 600kg in weight. 24 VOLT ELECTRIC GATE OPERATOR - RESIDENTIAL - 600KG The BULL624SW by Beninca is plain and simple Beninca quality and reliability throughout. The BULL424SW is designed for residential and commercial sliding automatic gates up to 600kg in weight. 24 Vdc gear motor for intensive use with integrated control unit and virtual encoder | Switching power supply 240 Vac which reduces energy consumption and ensures a long lifespan of the actuator | Control unit with trimmers and dip-switches | The virtual encoder enables optimal management of slowing-down phases, movement tracking (STC system) and torque management in relation to the position of the gate, guaranteeing maximum safety | Operation guaranteed even in the event of a power supply failure through batteries that can be perfectly integrated in the motor (2 x 1.2 Ah) | Anti-crushing system with amperometric obstacle detection. The BULL624SW has a built in control board in its own seperate enclosure with a dedicated 433mhz wireless receiver and inputs for photocells and switches etc. The BULL also comes with a base plate. Battery backup is optional with the addition of the battery module and two 1.3Ah rechargeable batteries.
 Motor Voltage - 24 volts DCÂ
Current Standby - 8mAÂ
Current at use - 3.2AÂ
Motor power - 80WÂ
Maximum thrust - 428NÂ
Operating speed - 11 metres per minute (adjustable)Â
Maximum gate size - 600 kgÂ
Duty cycle - 80%Â
Height - 330mm Width - 326mm Depth - 140mmÂ
Weight - 7.6 KgÂ
IP rating - IP44
24 volts DC
8mA
0.4A
80W
428N
11 Metres per minute
600 Kg
IP44
330mm
140mm
326mm
10.2 Kg
80%
The BULL424SW is a 24 volt motor designed for residential and commercial sliding gates up to 450kg in weight. 24 VOLT ELECTRIC GATE OPERATOR - RESIDENTIAL - 450KG The BULL424SW by Beninca is plain and simple Beninca quality and reliability throughout. The BULL424SW is designed for residential and commercial sliding automatic gates up to 450kg in weight. 24 Vdc gear motor for intensive use with integrated control unit and virtual encoder | Switching power supply 240 Vac which reduces energy consumption and ensures a long lifespan of the actuator | Control unit with trimmers and dip-switches | The virtual encoder enables optimal management of slowing-down phases, movement tracking (STC system) and torque management in relation to the position of the gate, guaranteeing maximum safety | Operation guaranteed even in the event of a power supply failure through batteries that can be perfectly integrated in the motor (2 x 1.2 Ah) | Anti-crushing system with amperometric obstacle detection. The BULL424SW has a built in control board in its own seperate enclosure with a dedicated 433mhz wireless receiver and inputs for photocells and switches etc. The BULL also comes with a base plate. Battery backup is optional with the addition of the battery module and two 1.3Ah rechargeable batteries.
Maximum gate size - 450 kgÂ
400 Kg
Battery Back up $185Wireless Keypad $218.50

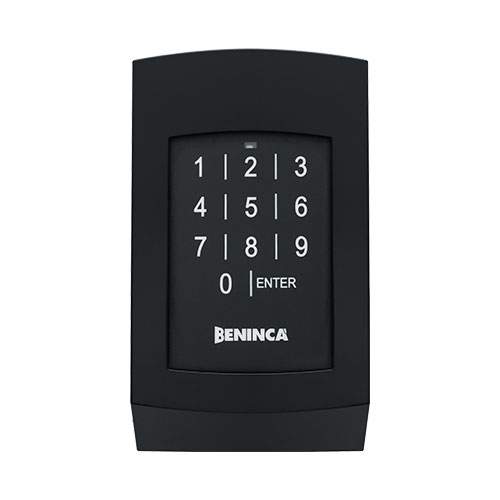

Digital Wireless Keypad Beninca Motors Entry or Exit - Access Control (BE.CODE)
Battery-operated wireless digital keypad. Numerical membrane keys to guarantee maximum activation, with Triple coding, Advanced Rolling Code, Rolling Code and Fixed Code, It can memorise up to 254 PINs, manage Administrator and User PINs, and provide the option of memorising User PINs at a later time without working on the receiver. Suitable for Beninca sliding & swing gate motors Enjoy easy and secure access control with the Beninca Keypad.
With advanced coding technology and the ability to store up to 254 PINs, you can easily manage multiple users and even add new ones at a later time. Compatible with Beninca sliding and swing gate motors, this wireless keypad offers convenience and peace of mind. Say goodbye to juggling keys and hello to a smarter way to control your gate.
