The FK510 Locinox Swing Gate Mortice Lock is a durable and reliable lock designed specifically for wooden swing gates. With a 35 mm backset and a lock-only configuration, this mortice lock offers enhanced security and peace of mind for your gate system. The lock is compatible with 35 mm thick gates and features a sturdy construction that ensures long-lasting performance. Upgrade the protection of your wooden swing gate with the FK510 Locinox Swing Gate Mortice Lock.

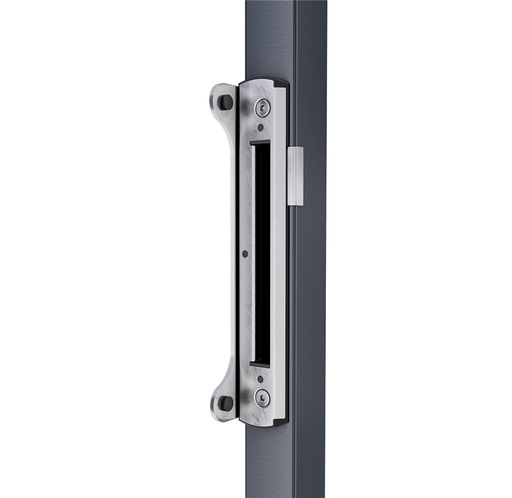

The Locinox Stainless Steel Surface-Mounted Keep is designed to provide a secure mounting solution for the Forty, Fifty, and Sixty Locks. This surface-mounted keep offers a sturdy and reliable option for securing your gate. It is constructed from high-quality stainless steel, ensuring durability and resistance to corrosion. The surface-mounted design allows for easy installation on various gate materials. With its sleek and modern appearance, the keep enhances the overall aesthetics of your gate system. Trust the Stainless Steel Surface-Mounted Keep to provide a robust and stylish solution for securing your gate with the Forty, Fifty, and Sixty Locks.

Specifications

• Stainless steel keep for square profiles as of 40 mm
• To combine with Fortylock, Fiftylock, Sixtylock and Eightylock
• Extruded stop plate in aluminium with rubber strip for longterm use
• Including innovative Quick-Fix fixations and self drilling screws
• Easy left or right changing
• Elegant design: visible thickness of 8 mm
• Adjustable stop plate for 40 mm till 60 mm gate frames
• Adjustable guide to avoid damage of day bolt to post

The Self-Closing Gate Hinges are designed for use with 40x40 tube gates weighing up to 75kg. These hinges feature a self-closing mechanism that ensures the gate automatically closes behind you, providing convenience and security. With a length of 130mm, these hinges offer durability and stability to keep your gate securely in place. They are suitable for various applications and provide reliable performance.

This hinge holds up to 75kg. The maximum gate size is 1.3m.

Other gate sizes and weights are not recommended with this hinge. Any damages or issues incurred from using incompatible weights and sizes will not be covered under warranty.

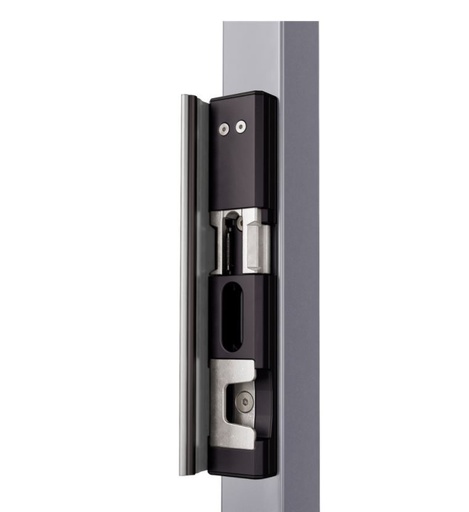

The FK537 Locinox Surface Mounted Electric Security Keep is a reliable and robust accessory designed to enhance the security of your gate system. This electric security keep features a fail-open mechanism, allowing gates to open in case of emergencies or power outages, ensuring safe passage. The black color option adds a sleek and modern touch to your gate aesthetics. The surface-mounted design allows for easy installation and compatibility with various gate types. With its durable construction, the FK537 Locinox Electric Security Keep provides long-lasting protection and peace of mind for your gate system.

Specifications

• Tested up to 500.000 movements
• Fast and easy fixing with Quick-Fix
• Resistance to pressure on the latch bolt: 300 kg
• Same drilling pattern as SA, SH and SM keeps
• Easy left or right changing
• Corrosion-resistant: black anodized aluminium housing
• Adjustable for gate profiles: 40-60 mm depth
• Voltage: 12V-24V AC/DC
• Consumption: 12V - 1,25A / 24V - 0,62A
• Power: 15W

The Locinox Mammoth HD Hydraulic 180-Degree Swing Gate Closer and Compact Hinge in One is a high-quality solution for swing gates that combines the functions of a gate closer and a hinge in a single unit. Designed in a sleek silver finish, it offers both functionality and style for your gate.

With its hydraulic system, this swing gate closer provides smooth and controlled gate closure, preventing slamming and ensuring optimal gate control. The compact hinge design integrates the hinge and closer into a single unit, saving space and simplifying installation.

Constructed with durability in mind, the Mammoth HD Swing Gate Closer and Compact Hinge are built to withstand harsh weather conditions and heavy usage. It is suitable for both residential and commercial applications, offering reliable performance and long-lasting functionality.

Specifications

• 180° hydraulic gate closer with adjustable speed and final snap
• Aesthetic design
• Powder coated aluminium housing
• Closing speed unaffected by temperature changes
• Easy to open: Max. 32 Nm
• Vandal-proof
• For left & right turning gates
• Easy mounting with Quick-Fix

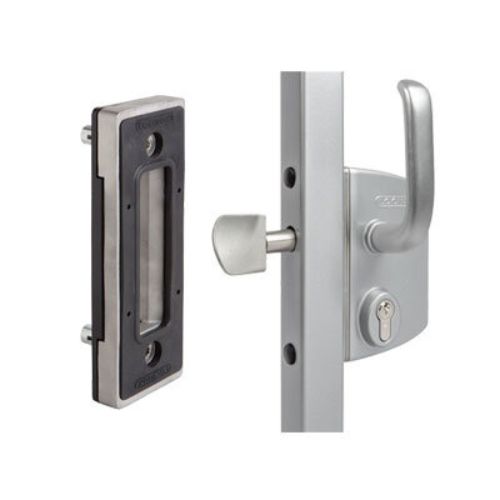

The Locinox Industrial Manual Sliding Gate Lock with Keep is a robust and secure locking solution designed for industrial sliding gates. With its 40mm profile and silver color, this manual gate lock combines durability and aesthetics. The Locinox lock includes a keep, providing additional stability and security for your sliding gate. Its industrial-grade construction ensures reliability and longevity, making it suitable for heavy-duty applications. The Locinox Industrial Manual Sliding Gate Lock with Keep is an ideal choice for industrial settings that require manual operation and dependable locking for sliding gates.

Specifications

• Mechanism and Twistfinger in stainless steel
• Reversible Twistfinger (catch bolt)
• Fixing with 2 hexagon socket head screws
• Innovative closing system
• Extremely strong
• Stainless steel collar around the Twistfinger prevents cutting the Twistfinger

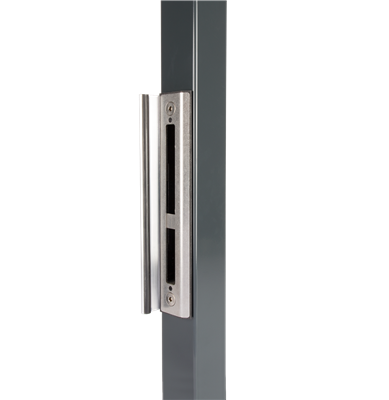

The Locinox Keep Hybrid Insert is specifically designed for H-Wood gates and offers a reliable solution for securing your gate. This gate keep is compatible with hybrid insert locks, providing enhanced security and peace of mind. It features a sleek black finish that complements the aesthetics of your H-Wood gate. The Keeps Hybrid Insert is constructed with high-quality materials to ensure durability and long-lasting performance. With its easy installation and secure fit, this gate keep provides optimal gate security for your residential or commercial property.

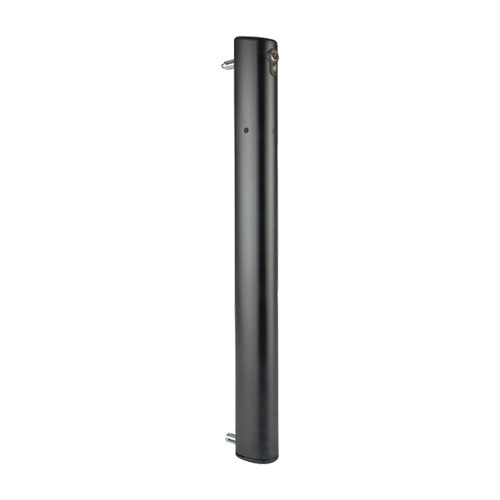

The Locinox Black Motorised Electrical Drop Bolt is a premium solution for automated gate security. This motorized drop bolt features a sleek black design that adds a touch of sophistication to any gate. With its advanced electrical operation, it offers convenient and secure locking and unlocking with the push of a button. The drop bolt is constructed with high-quality materials to ensure durability and resistance to outdoor elements. It offers adjustable settings for optimal functionality and can be easily integrated into existing access control systems. Upgrade your gate security with the Locinox Black Motorised Electrical Drop Bolt.

Specifications

• Vandal-proof, powder coated aluminium housing
• To be connected to the warning light on automated gates (min 3 sec prewarning signal) or directly on the gate automation
• Automatic detection and memorisation of the continuous or pulse signal
• Mechanical release possible (by key) in case of emergency
• The integrated obstacle detection will automatically stop the drop bolt movement in case of overpressure to avoid injuries.
• Throw: 120 mm (with the exception of Electradrop-ZILV: 115 mm)
• Drop bolt diameter: 20 mm
• For gate profiles: 40 mm or more
• Power consumption: Normal: 25 W / Peak: 55W / Standby: 0,2 W
• 5 m cable included
• Included: 3012-37-STD cylinder
• To connect to a Locinox PowerStone 60W

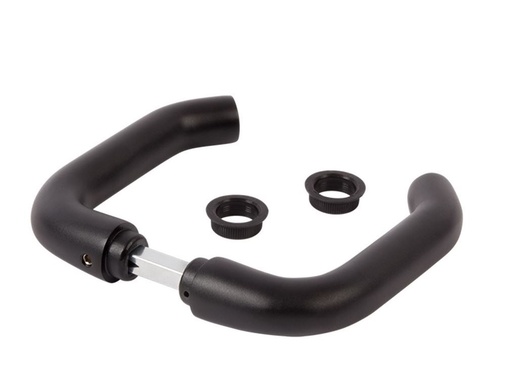

The Locinox Aluminium Handle is a durable and stylish handle designed for commercial and ornamental gates. It features an aluminium construction with a black finish, adding a sleek and modern touch to your gate. This handle is specifically designed with a square 66.5mm spindle for compatibility with commercial ornamental lock pairs.

The Aluminium Handle offers a comfortable grip and smooth operation, making it easy to open and close your gate. Its sturdy construction ensures durability and reliability even in high-traffic areas. The handle is designed to withstand outdoor conditions and is resistant to rust and corrosion.

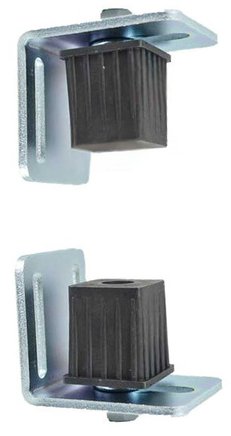

The "HN795 Light Swing Gate Hinges" are specifically designed for gates with a frame size of 50x50mm. This pair of hinges provides reliable support and smooth operation for your gate. Crafted with precision and durability in mind, these hinges are built to last. They are easy to install and offer a secure solution for opening and closing your gate. With their sleek design and sturdy construction, these swing gate hinges are ideal for gates requiring a frame size of 50x50mm.

Hold weights up to 25kg/pair

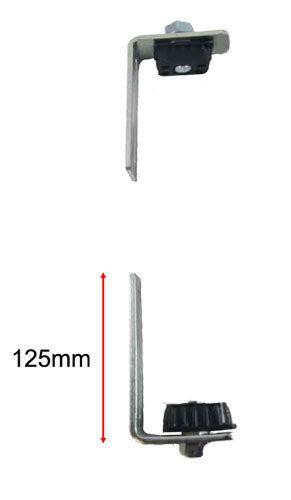

The "HN790 Light Swing Gate Hinges" are specially designed for gates with a frame size of 38x25mm and a maximum weight capacity of 25kg/pair. These hinges are perfect for lightweight gates and offer reliable functionality and durability. The hinges are made from high-quality materials and feature a sleek design that complements the overall aesthetics of the gate. With their easy installation and smooth operation, these swing gate hinges provide a convenient solution for securely opening and closing your gate.

Hold weights up to 25kg/pair

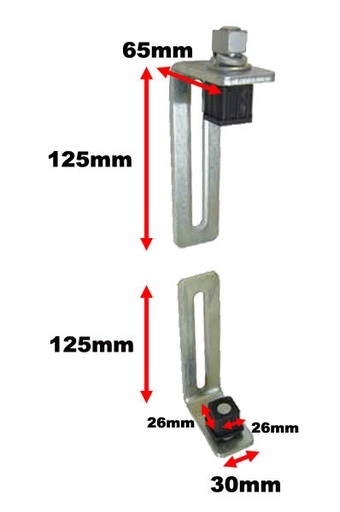

The "HN792 Light Swing Gate Hinges" are specifically designed for gates with a frame size of 30x30mm and a maximum weight capacity of 25kg/pair. These hinges provide reliable functionality and smooth operation for lightweight gates. Crafted from high-quality materials, they ensure durability and long-lasting performance. The hinges are easy to install and offer a secure solution for opening and closing your gate. With their sleek design and sturdy construction, these swing gate hinges are an ideal choice for gates requiring smaller frame sizes.

Hold weights up to 25kg/pair

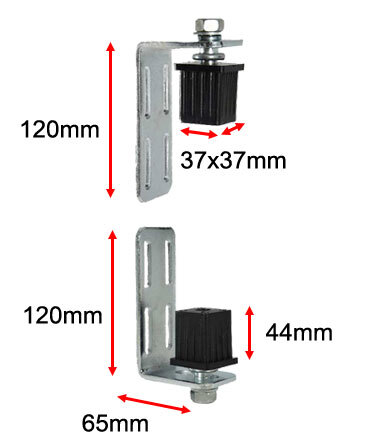

The "HN793 Light Swing Gate Hinges" are designed for gates with a frame size of 40x40mm. This set includes two hinges for optimal gate support. These hinges are suitable for lightweight gates and offer smooth operation and reliable performance. Crafted with precision, they ensure durability and long-lasting functionality. The hinges are easy to install and provide a secure solution for opening and closing your gate. With their sleek design and sturdy construction, these swing gate hinges are a practical choice for gates requiring a frame size of 40x40mm.

Hold weights up to 25kg/pair

The WH380 Internal Sliding Gate Wheel Rollers are designed to provide smooth and effortless sliding gate operation. These rollers feature a white nylon wheel with a 90mm diameter, which reduces friction and ensures quiet operation. The rollers are mounted on a stainless steel bracket, providing durability and resistance to corrosion. With their U-groove design, these rollers are suitable for various types of sliding gates. Whether it's for residential or commercial use, these rollers offer reliable performance and ease of use.

Hold weight up to 100kg

Installing a sliding gate wheel involves a few key steps to ensure the gate operates smoothly. Here’s a step-by-step guide to help you install it:

Materials Needed:

• Sliding gate wheel
• Measuring tape
• Cutting machine
• Drill and drill bits
• Screws and bolts
• Wrench or screwdriver

Steps for Installation:

Prepare the Gate and Track:

• Before installing the wheels, ensure that your sliding gate is already installed and that the sliding track is properly laid out.
• The track should be level and secure to ensure smooth operation.

Step One:
Measure the sliding gate wheel cradle, ensuring there's enough space to attach the wheel to the steel frame. Use a cutting wheel to make the cut, but first, drill four holes (one in each corner) using an 8-10mm drill bit. This will ensure the square hole is clean in each corner.

Step Two:
Clean up the rectangular hole with a file to ensure smooth edges, then spray the area with galvanized paint for protection.

Step Three:
Place the sliding gate wheel into the cut-out and check that it can rotate freely. Ensure there’s enough space for securing the wheel with a tek screw.

Step Four:
When screwing in the tek screws, make sure the wheel is aligned with the edge of the steel. The last thing you want is for the wheel to be out of alignment. Avoid welding the wheel if possible, as this can make replacement more difficult later on.
