Looking for a heavy-duty base plate for your construction project? Our Square Base Plate is the perfect solution! Made from high-grade steel, this base plate provides superior strength and durability, ensuring maximum safety and stability for your structural columns and beams.

With a size of 130x130x5mm, our base plate offers ample surface area for secure attachment to your columns or beams. Its square shape and sturdy construction make it suitable for even the most demanding applications.

Looking for a heavy-duty base plate for your construction project? Our Square Base Plate is the perfect solution! Made from high-grade steel, this base plate provides superior strength and durability, ensuring maximum safety and stability for your structural columns and beams.

With a size of 100x100x5mm, our base plate offers ample surface area for secure attachment to your columns or beams. Its square shape and sturdy construction make it suitable for even the most demanding applications.

Spring Loaded Pad Bolt 130mm

Release Key & Spare Key for All Centsys Centurion Sliding Gate motors

Spare Key for All type of Centsys Sliding Gate Motors

Spare Axe part for sliding gate lock 80mm

Small Ornamental Swing Gate Lock F2 Square profile adjustable 40-50mm

Ornamental lock with aluminium housing and stainless steel mechanism. We advise this lock as a standard for all your ornamental gates. The 10 mm continuous adjustability of the bolts allows a perfect alignment of your locking mechanism. A solid stainless steel deadbolt with a 23 mm throw guarantees a secure locking. Standard supplied with zamac ornamental handle pair.

• ISO 9227 KTL / E-coated lockbox withstands 1000 hours of salt spray test
• Easy left or right changing of the self-latching daybolt
• Throw of the deadbolt, 23 mm in 1 turn of the key
• Adjustment of the bolts up to 10 mm continuous without dismounting the lockbox
• Key-operated self-latching bolt
• 4-hole fixing with two hexagon socket head screws
• Center distance bolts: 60 mm

Tigerlink Hardware

Call us now 1300 055 099 or Email: sales@tigerlink.com.au

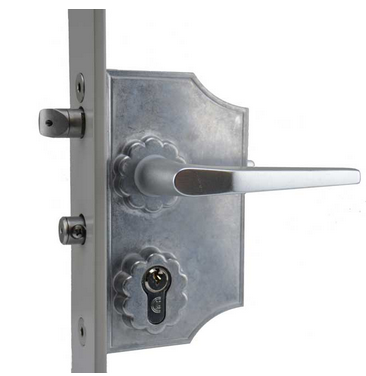

Small Ornamental Lock F2 Flat profile adjustable 10-20mm

Locinox Ornamental lock with aluminium housing and stainless steel mechanism. We advise this lock as a standard for all your ornamental gates. The 10 mm continuous adjustability of the bolts allows a perfect alignment of your locking mechanism. A solid stainless steel deadbolt with a 23 mm throw guarantees a secure locking. Standard supplied with zamac ornamental handle pair.

• ISO 9227 KTL / E-coated lockbox withstands 1000 hours of salt spray test
• Easy left or right changing of the self-latching daybolt
• Throw of the deadbolt, 23 mm in 1 turn of the key
• Adjustment of the bolts up to 10 mm continuous without dismounting the lockbox
• Key-operated self-latching bolt
• 4-hole fixing with two hexagon socket head screws
• Center distance bolts: 60 mm

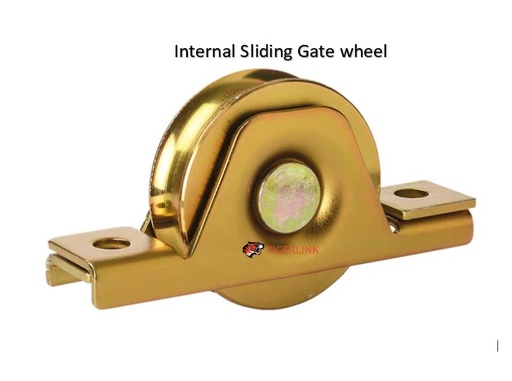

Sliding Gate Wheel/Rollers for U Groove 120mm internal Double Bearing

Sliding gate component wheel or rollers U groove 120mm Dia internal - Double bearing

Rated to carry 350kg each wheel

Tigerlink Hardware is Sliding Gate Automation Kits and Accessories supplier. We have full range of Sliding gate hardware

Wheels & Castors. High Quality Products. Very Competitive Prices. Over 20 Years Experience. freindly Staff.

Stronger and Heavyduty wheels.

Zinc - Finished

In Most cases 2 wheels are enough for Sliding gates upto 5M, if you want to add any extra wheels 2 at each end 200-300mm aparts would be better then adding a third wheel in the middle. A middle wheel would take all the weight if there is any rises in the floor track and would shorten the life of that wheel.   2 wheels or 4 wheels is the right way to do this.

Installing a sliding gate wheel involves a few key steps to ensure the gate operates smoothly. Here’s a step-by-step guide to help you install it:

Materials Needed:

• Sliding gate wheel
• Measuring tape
• Cutting machine
• Drill and drill bits
• Screws and bolts
• Wrench or screwdriver

Steps for Installation:

Prepare the Gate and Track:

• Before installing the wheels, ensure that your sliding gate is already installed and that the sliding track is properly laid out.
• The track should be level and secure to ensure smooth operation.

Step One:
Measure the sliding gate wheel cradle, ensuring there's enough space to attach the wheel to the steel frame. Use a cutting wheel to make the cut, but first, drill four holes (one in each corner) using an 8-10mm drill bit. This will ensure the square hole is clean in each corner.

Step Two:
Clean up the rectangular hole with a file to ensure smooth edges, then spray the area with galvanized paint for protection.

Step Three:
Place the sliding gate wheel into the cut-out and check that it can rotate freely. Ensure there’s enough space for securing the wheel with a tek screw.

Step Four:
When screwing in the tek screws, make sure the wheel is aligned with the edge of the steel. The last thing you want is for the wheel to be out of alignment. Avoid welding the wheel if possible, as this can make replacement more difficult later on.

Step by Step

1. How to join Floor Track

2. Installing the Gate Wheel

3. Double and Single Bearing Wheels

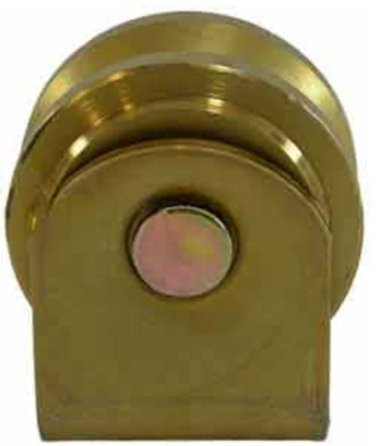

Sliding Gate Wheel V Groove Dounble bearing 58mm Dia

This v groove track wheel is 58mm in diameter and has double bearing.

Technical Specifications.

• Groove Type- V Groove
• Load Capacity- 120 Kg
• Wheel Diameter- 58mm
• Wheel Material- Steel
• Finish- Zinc Plated

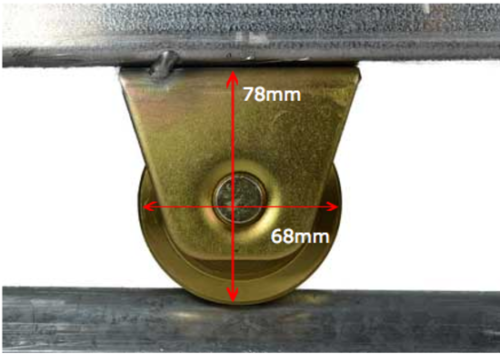

Sliding Gate Wheel V Groove Double bearing 68mm Dia

This v groove track wheel is 78mm in diameter and has double bearing.

Technical Specifications.

• Groove Type- V Groove
• Load Capacity- 100 Kg
• Wheel Diameter- 68mm
• Wheel Material- Steel
• Finish- Zinc Plated

Installing a sliding gate wheel involves a few key steps to ensure the gate operates smoothly. Here’s a step-by-step guide to help you install it:

Materials Needed:

• Sliding gate wheel
• Measuring tape
• Drill and drill bits
• Screws and bolts
• Wrench or screwdriver

Steps for Installation:

1. Prepare the Gate and Track:
   • Before installing the wheels, ensure that your sliding gate is already installed and that the sliding track is properly laid out.
   • The track should be level and secure to ensure smooth operation.
2. Determine the Wheel Placement:
   • Decide where the wheel brackets will go on the gate. Typically, the wheels should be placed at the bottom of the gate. Depending on the gate size.
   • The wheel’s placement is important for proper weight distribution and gate stability.
3. Mark the Drill Holes:
   • Hold the wheel brackets against the gate at the desired position.
   • Use a measuring tape to ensure the placement is even and at the correct height.
   • Mark the holes where the screws or bolts will go to secure the wheels.
4. Drill the Holes:
   • Drill holes at the marked points on the gate, making sure the holes are large enough for the screws or bolts provided in your wheel kit.
   • If you’re installing a single wheel, the hole placement should be centered along the gate's width.
5. Attach the Wheel Bracket:
   • Secure the wheel bracket to the gate using the screws or bolts.
   • Tighten them properly to ensure the bracket is secure. Be sure the wheel can rotate freely once attached.
6. Install the Wheel:
   • If the wheel is separate from the bracket, slide the wheel into its bracket or mounting system.
   • Tighten any screws or bolts holding the wheel in place, ensuring it rotates easily and is properly aligned.
7. Test the Gate:
   • Test the sliding gate by moving it along the track.
   • Check that the wheels glide smoothly without any obstruction or resistance. The gate should be stable and move freely.
8. Adjust if Necessary:
   • If the gate isn’t sliding smoothly, check the alignment of the wheels and track. You might need to adjust the wheel height or ensure that the track is level.
   • Make sure the wheels are aligned with the gate and track to avoid any friction.

Try not to weld them onto the sliding gate frame it will be a nightmare to replace them later

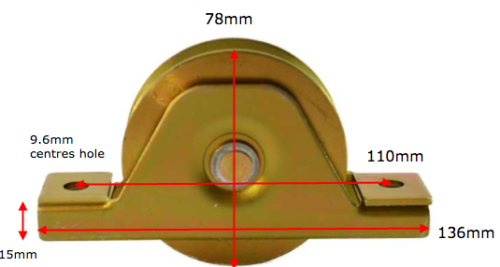

Sliding Gate Wheel V80  internal Double bearing

Installing a sliding gate wheel involves a few key steps to ensure the gate operates smoothly. Here’s a step-by-step guide to help you install it:

Materials Needed:

• Sliding gate wheel
• Measuring tape
• Cutting machine
• Drill and drill bits
• Screws and bolts
• Wrench or screwdriver

Steps for Installation:

Prepare the Gate and Track:

• Before installing the wheels, ensure that your sliding gate is already installed and that the sliding track is properly laid out.
• The track should be level and secure to ensure smooth operation.

Step One:
Measure the sliding gate wheel cradle, ensuring there's enough space to attach the wheel to the steel frame. Use a cutting wheel to make the cut, but first, drill four holes (one in each corner) using an 8-10mm drill bit. This will ensure the square hole is clean in each corner.

Step Two:
Clean up the rectangular hole with a file to ensure smooth edges, then spray the area with galvanized paint for protection.

Step Three:
Place the sliding gate wheel into the cut-out and check that it can rotate freely. Ensure there’s enough space for securing the wheel with a tek screw.

Step Four:
When screwing in the tek screws, make sure the wheel is aligned with the edge of the steel. The last thing you want is for the wheel to be out of alignment. Avoid welding the wheel if possible, as this can make replacement more difficult later on.
