The Steel Badass Hinge is a heavy-duty hinge specifically designed for gates weighing up to 450 kg. With its robust construction and zinc finish, this hinge offers exceptional strength, durability, and corrosion resistance, ensuring reliable performance even in harsh weather conditions. The hinge is designed to provide smooth and effortless operation, allowing for easy opening and closing of heavy gates. Whether for residential or commercial applications, the Steel Badass Hinge is the ideal choice for secure and long-lasting gate installations.

Hold weights up to 500kg

Features

• 1 Self-closing hinge + Original BadAss hinge
  • Easy to install, heavy duty self-closing hinge
  • 5 tension-adjustment settings (inc bracket)
  • Gate swings from -5º to 110º
  • Load rating per gate: 500kg (2,000 lbs)
  • Self-closing maximum gate weight:130kg (300 lbs)

The Steel Badass Bolt-On Hinge is a robust and heavy-duty hinge designed to handle gates weighing up to 450 kg. With its zinc finish, this hinge offers enhanced corrosion resistance, ensuring durability and longevity in various weather conditions. The bolt-on design allows for easy installation, providing a secure and stable hinge solution for large gates. Its sturdy construction and reliable performance make it suitable for industrial, commercial, or residential applications where strength and load-bearing capacity are crucial. The Steel Badass Bolt-On Hinge is engineered to provide smooth and effortless gate operation, making it a dependable choice for heavy gates that require reliable functionality.

Hold weights up to 450kg

• Designed for gates where welding is not an option
  • Two sealed maintenance free bearings
  • Adjustable barrel for precise installations
  • Flat, bolt-on brackets for through bolting
  • Zinc plated
  • Load rating per gate: 900kg (2,000 lbs)
  • Maximum gate weight: 450kg (1,000 lbs)

The Stainless Steel Light Gate Hinge is a durable and adjustable hinge designed for gates. With a length of 150mm and a 12mm rod, it is suitable for use with 30mm tubes. This hinge is specifically designed for gates weighing up to 70kg. The stainless steel construction ensures corrosion resistance and long-lasting performance, making it suitable for outdoor applications.

Hold weights up to 70kg/pair

The Stainless Steel Swing Gate Hinge Adjustable is a premium hinge designed for swing gates. It features a 24mm pin with a rotating mechanism and a threaded length of 70mm, allowing for easy and precise adjustment of the gate. Crafted from stainless steel, this hinge offers exceptional durability and corrosion resistance, making it suitable for outdoor installations. The pair of hinges ensures smooth operation and reliable performance, enhancing the functionality and aesthetics of your swing gate.

The WH397 Stainless Steel Sliding Gate Wheel is a top-quality component designed for smooth and efficient operation of your sliding gate. With its U-groove design and 90mm diameter, this wheel is suitable for various sliding gate applications. Constructed from stainless steel, it offers excellent durability and resistance to corrosion. The internal double-bearing mechanism ensures effortless gate movement and enhances overall performance. Whether for residential or commercial use, this stainless steel sliding gate wheel is a reliable choice.

Hold weights up to 350kg

Installing a sliding gate wheel involves a few key steps to ensure the gate operates smoothly. Here’s a step-by-step guide to help you install it:

Materials Needed:

• Sliding gate wheel
• Measuring tape
• Cutting machine
• Drill and drill bits
• Screws and bolts
• Wrench or screwdriver

Steps for Installation:

Prepare the Gate and Track:

• Before installing the wheels, ensure that your sliding gate is already installed and that the sliding track is properly laid out.
• The track should be level and secure to ensure smooth operation.

Step One:
Measure the sliding gate wheel cradle, ensuring there's enough space to attach the wheel to the steel frame. Use a cutting wheel to make the cut, but first, drill four holes (one in each corner) using an 8-10mm drill bit. This will ensure the square hole is clean in each corner.

Step Two:
Clean up the rectangular hole with a file to ensure smooth edges, then spray the area with galvanized paint for protection.

Step Three:
Place the sliding gate wheel into the cut-out and check that it can rotate freely. Ensure there’s enough space for securing the wheel with a tek screw.

Step Four:
When screwing in the tek screws, make sure the wheel is aligned with the edge of the steel. The last thing you want is for the wheel to be out of alignment. Avoid welding the wheel if possible, as this can make replacement more difficult later on.

The Stainless Steel Mortice Lock is a high-quality locking solution featuring the Lockwood 3782 Short Universal Mortice Lock. With a 23mm backset, this lock is specifically designed for narrow stile applications where space is limited. The stainless steel construction provides durability and corrosion resistance, making it suitable for both indoor and outdoor use. The Lockwood 3782 Short Universal Mortice Lock offers reliable and secure locking, ensuring the safety of your doors and gates. Upgrade your locking system with this stainless steel mortice lock for enhanced security and peace of mind.

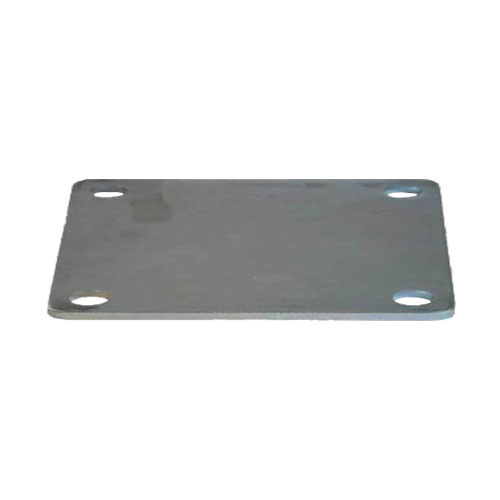

Looking for a heavy-duty base plate for your construction project? Our Square Base Plate is the perfect solution! Made from high-grade steel, this base plate provides superior strength and durability, ensuring maximum safety and stability for your structural columns and beams.

With a size of 200x200x8mm, our base plate offers ample surface area for secure attachment to your columns or beams. Its square shape and sturdy construction make it suitable for even the most demanding applications.
