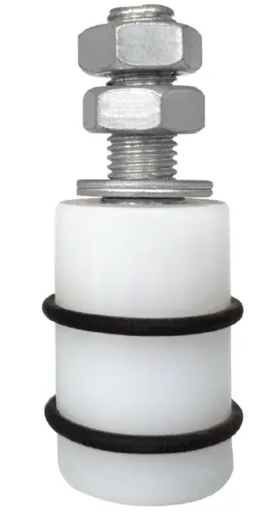

The Wh132 Top Guide Roller for Sliding Gate is a high-quality accessory designed to enhance the performance of sliding gates. With a size of 40x60mm, this guide roller ensures smooth and effortless operation for your gate. It is made of durable materials to withstand daily use and environmental conditions. The Wh330 Guide Roller is specifically designed to be installed on top posts, providing reliable guidance and support. The black color adds a sleek and modern touch to your gate. Upgrade your sliding gate with this top guide roller for improved functionality and convenience.

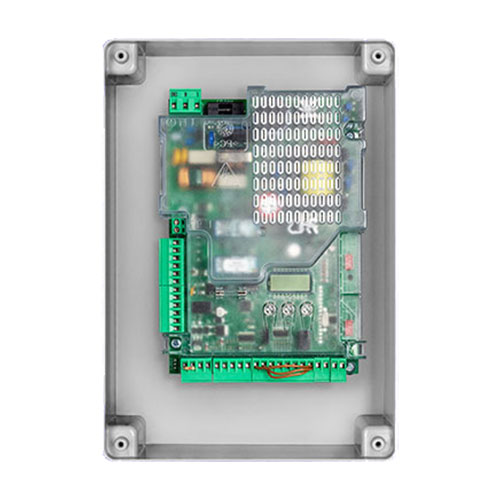

APPLICATION
1 or 2 actuators for swing gates, opposed sliding gates, and industrial folding doors with a maximum of 2 sections
CONTROL UNIT POWER SUPPLY
115 or 230 Vac (selectable) 50/60Hz
MOTORS POWER SUPPLY
24Â Vdc / 240 W + 240 W
MAIN FUNCTIONS
Integrated LCD display | Integrated radio receiver 433.92 MHz 64 codes and 3 encoding systems (Advanced Rolling Code, Rolling Code, Fixed Code | Removable terminal boards | Separate limit switch inputs for each motor | Open, close, step-by-step and pedestrian inputs | Separate opening-closing and closing photocell inputs | Stop input | Input for N.C. or 8K2 sensitive edge | Encoder Input for 24 Vdc hydraulic motors | Output for 12 Vdc electric lock | 2 outputs configurable as open gate indicator, second radio channel, courtesy light, zone light or photocell testing, flashing light, open gate alarm, NC input alarm | Output for connecting flashing light | Autoset of operating parameters | Separate electronic torque adjustment for each motor | Separate electronic speed adjustment for each motor | Anti-crushing safety through amperometric detection and encoder management | Separate slowdowns for each motor in opening and closing phases | Set up for connection to KNX systems via X.BE card (optional) | Designed for managing, configuring, diagnosing and updating firmware through the BeUP app, using the PRO.UP accessory | Advantouch system to configure parameters and manage radio transmitters | Number of manoeuvres | Programming access password | Maintenance warning | Built-in battery charger

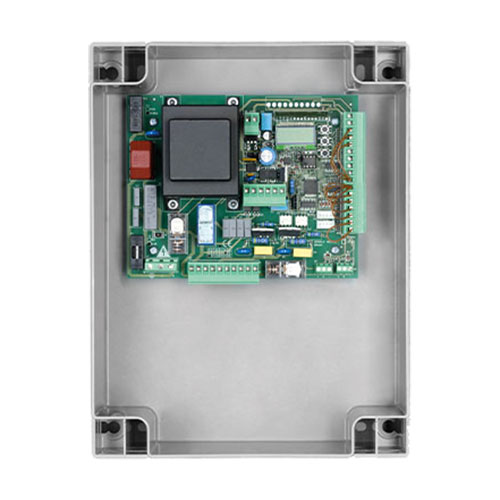

1 or 2 actuators for swing gates, opposed sliding gates, hydraulic operators, and industrial folding doors
230Â Vac - 50/60Â Hz
230Â Vac / 600 W + 600 W
Integrated LCD display | Integrated 433.92 MHz 64-code radio receiver with 3 encoding systems (Advanced Rolling Code, Rolling Code, Fixed Code) | Removable terminal boards | Automatic, semi-automatic and deadman’s logic | Encoder input to detect obstacles | Separate limit switch inputs for each motor | Open, close, pedestrian, step by step and stop inputs | Separate photocell inputs in opening-closing and in closing phases | Input for N.C or 8K2 sensitive edge | Output for electric lock 230 Vac and 12 Vac/dc | Outputs for configuration as gate open indicator, service light, second radio channel and photocell testing | Output for connecting flashing light | Autosetting of operating parameters (with motors equipped with encoder) | Separate electronic torque adjustment for each motor and operating times | Adjustable slow-downs | Advantouch system to configure parameters and manage radio transmitters| Number of maneuvers | Programming access password | Maintenance warning
1 or 2 actuators for swing gates
100 ÷ 250 Vac - 50/60 Hz
24Â Vdc / 130 W + 130 W
POWER CONSUMPTION IN STAND-BY
0.8 W
Integrated LCD display | Integrated radio receiver 433.92 MHz 512 codes with ARC coding | Removable terminal boards | Separate limit switch inputs for each motor | Automatic, semi-automatic and Deadman logic | Separate encoder inputs for each motor | Open, close, step-by-step and pedestrian inputs | Input for programmable photocell active in opening-closing and photocell active only in closing | Input for N.C. or 8k2 sensitive edge | Output for electric lock 12/24 Vdc | Two outputs configurable as open gate signal light, courtesy light, zone light, second radio channel, photocell testing, flashing light, alarm contact | Autoset operating parameters | Separate electronic torque adjustment for each motor| Anti-crushing safety through amperometric detection and encoder management | Electronic torque adjustment with automatic calculation for each point of the stroke (STC SYSTEM) | Separate adjustable slowdowns for each motor | Possibility of encoder- or time-based operation (managed through virtual encoder) even independently between the two motors | Built-in energy saving system ESA+ | Set up for connection to KNX systems via X.BE card (optional) | Designed for managing, configuring, diagnosing and updating firmware through the BeUP app, using the PRO.UP accessory | Advantouch system to configure parameters and manage radio transmitters | Number of manoeuvres | Programming access password | Maintenance warning | Built-in battery charger

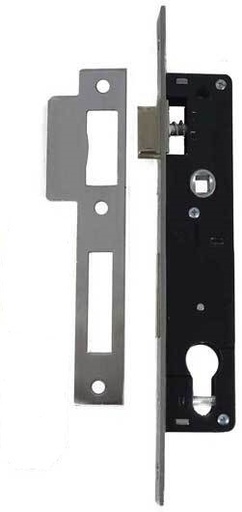

Lockton Stainless steel inflame Swing Gate Lock 23 MMÂ 50mm Gate Frame - Kit
PRODUCT DESCRIPTION
The LOCKTON Art. SG-SBML23 Narrow Stile Mortice Lock (23mm Backset).
Optional availableÂ
 Â
Sliding gate Top guide Rollers with Bracket kit.
Â

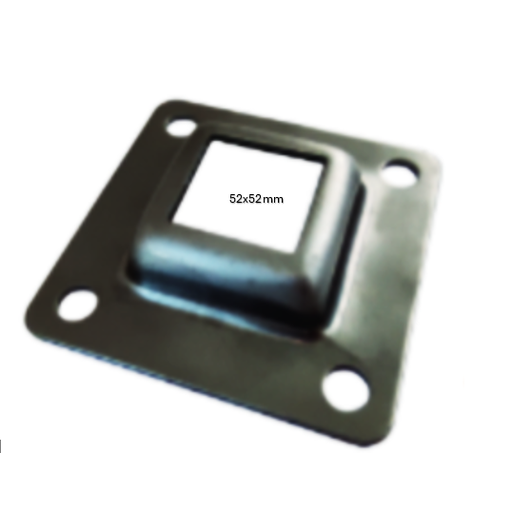

Industrial Steel Pallet / Post Feet 3mm 125x52mm Square Zinc Finished
If you're looking for a reliable and durable solution for pallet stacking, our Industrial Feet are the perfect choice. Made from high-quality 2.5mm steel with a zinc finish, these pallet feet provide strong and secure support, ensuring maximum safety for your goods.
Measuring 125 square, our industrial feet offer ample surface area for stable and secure stacking of your pallets. Their heavy-duty design makes them suitable for a range of industrial applications, providing a long-lasting and reliable solution for your pallet stacking needs.

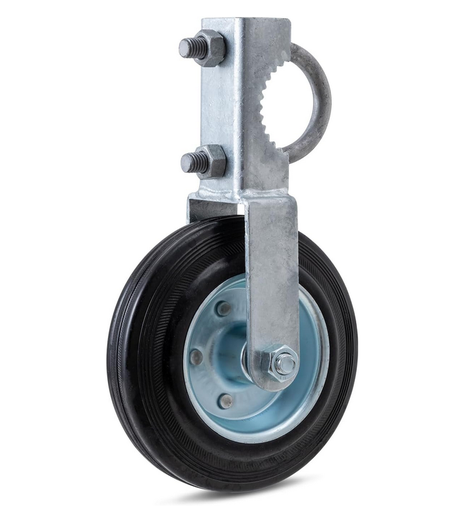

Ideal for a quick fix to those sagging gates for gate up to 180kg  Â
Bracket Dimensions: 280 x 56mm
Wheel Dia : 158x40 mm
Height : 280 mm
Ideal for a quick fix to those sagging gates for gate up to 200kg  Â
Wheel Dia : 158x50 mm
Stainless Steel 360 Degree Flag Hinge Ball Bearing Lift Off Thickened Heavy Duty 130x100mm

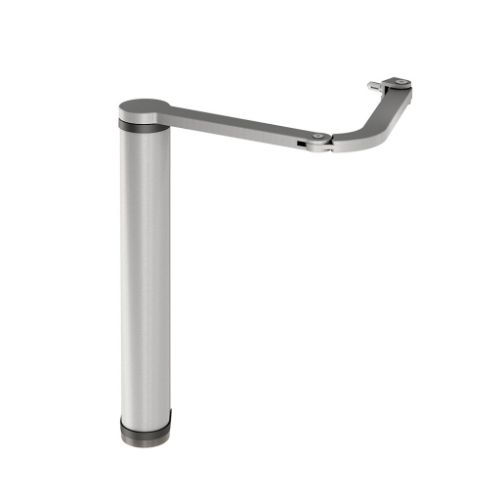

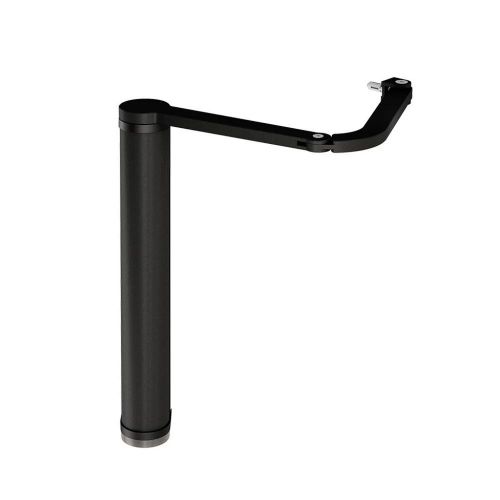

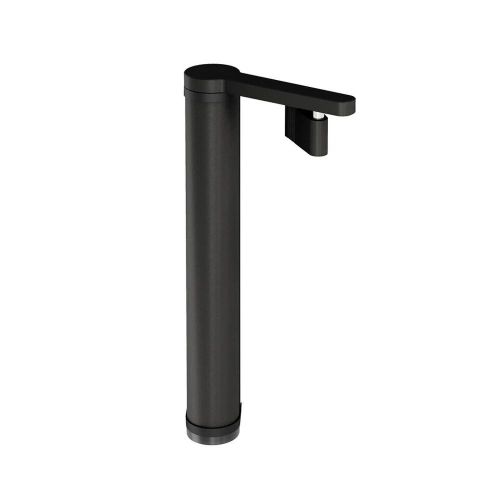

VENUS is a plug-and-play motorised gate closer for pedestrian swing gates. The compact all-in-one gate operator can easily be installed on any type of post and hinge thanks to 3 different arm types. The innovative motor’s performance remains unaffected by manual force. When combined with access control, the Venus also works as a low-energy gate opener.
The VENUS motorised gate closer is specifically designed for pedestrian gates up to 1400 mm and 100 kg.
VENUS is a brushless motor specially designed for semi-manual or fully automated outdoor use.
WHAT MAKES IT SPECIAL?
• Safe, reliable operation thanks to low-energy speed control and integrated obstacle detection.
• All-in-one gate operator with integrated power supply and circuit board, input/output connectors and indicator light.
• Easy setup with free mobile app
Specifications:
PERFORMANCE
INSTALLATION
CONFIGURATION
MATERIAL
VIDEOS
DOCUMENTS
Installation Manual
VENUS is a plug-and-play motorised gate closer for pedestrian swing gates. The compact all-in-one gate operator can easily be installed on any type of post and hinge thanks to 3 different arm types. The innovative motor’s performance remains unaffected by manual force. When combined with access control, the Venus also works as a low-energy gate opener.
Nylon Bush for light gate hinge 25x25mm

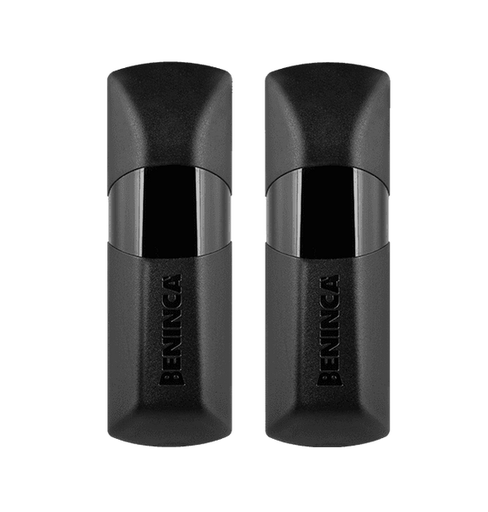

Pair of photocells adjustable to 180°, 22÷30 Vac / 20÷28 Vdc power supply | Possibility to synchronise up to 4 pairs | Easy adjustment through a LED that signals optimal alignment
Photocells represent an important tool to prevent impacts on things or people in every stage of handling of gates, doors or front door. IRI.CELL consists in a real photocell protection against outside tampering or accidental breakage. The cover is all made of metal and consists in a solid frontal case with a refined design, hidden screws and a metal bottom. The assembly is fast and easy and it allows to keep the photocells adjustable by 180°.
