Description:

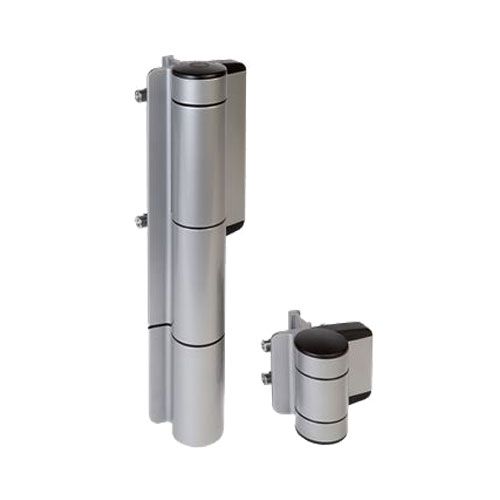

Locinox Mammoth-180 Hydraulic Gate Closer & Hinge in One (Silver) is a heavy-duty 180° hydraulic gate closer and hinge combination. Designed for reliability and durability, it provides smooth, controlled gate closure for larger swing gates up to 150 kg and 1.5 m wide, without the need for separate hinges or closers.
Key Features:
- All-in-one hydraulic gate closer and hinge
- 180° self-closing action with adjustable closing speed
- Suitable for gates up to 150 kg and 1.5 m width
- Active Thermal System: consistent closing speed in all weather
- Supplied with Locinox Dino bottom hinge
- Double-bearing hinge for smooth, long-lasting performance
- Powder-coated aluminium housing, vandal-resistant design
- Suitable for left- or right-swing gates
- 2 × 20 mm adjustability (horizontal & vertical)
- Effortless operation: max. 16 Nm opening force
Specifications:
- Max Gate Weight: 150 kg per leaf
- Max Gate Width: 1.5 m
- Adjustability: ±20 mm horizontal, ±20 mm vertical
- Opening Force: ~16 Nm
- Finish: Powder-coated aluminium
