Electric Lock 12V Horizontal Automatic Electric Gate Lock

FK775

0.0000 kg

https://www.tigerlink.com.au/web/image/product.template/5997/image_1920?unique=e99da0d
(0 review)

227.27 https://www.tigerlink.com.au/web/image/product.template/5997/image_1920?unique=e99da0d 227.27 AUD 227.27 GST Exclusive

250.00 GST Exclusive

Not Available For Sale

    This combination does not exist.

    Description:

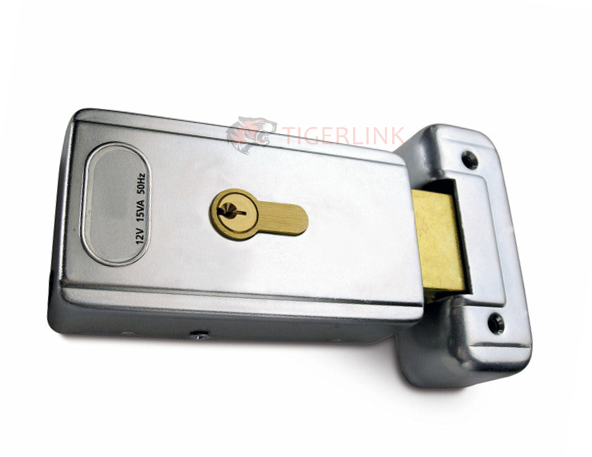

    VIRO Electric Lock 12V Horizontal Automatic Electric Gate Lock for Automated Swing Gates



    12V Horizontal Automatic Electric Gate Lock

    Horizontal installation electric lock, galvanized steel case, and cover

    Features:
    • Galvanized Steel Case and Cover
    • Operating voltage: 12 V (AC/DC)
    • Protection rating: IP 44
    • The electric lock can be operated in conjunction with most gate openers and access control systems.
    • Specially designed for installation on manual or automatic opening gates and drive-through gates.
    • PLA11 Dimensions: 125 x 67 x 36(p) mm

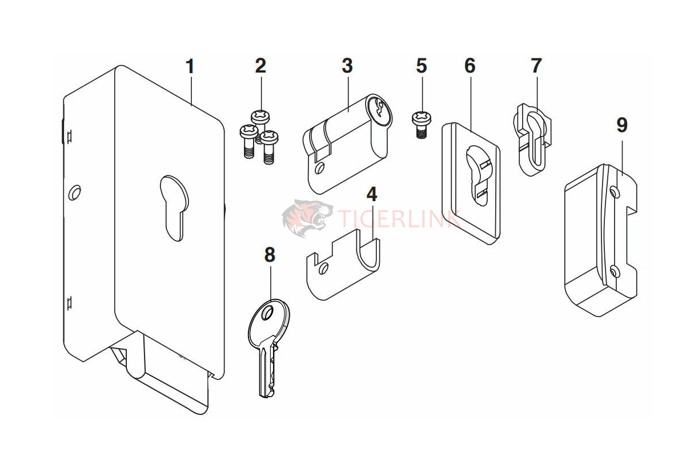

    Package Contents:

    • (1) Pre-assembled electric lock;
    • (2) Fixing screws;
    • (3) Key barrel;
    • (4) Fixing bracket for key barrel;
    • (5) Fixing screws for key barrel;
    • (6) Outer cover;
    • (7) Rear seal;
    • (8) Keys for unlocking;
    • (9) Locking bracket



    Usage:

    Driveway Electric Gate Lock
    Pedestrian Electric Gate Lock
    Swimming Pool Electric Lock
    Garage Swing Door Electric Lock



    Suitability:

    The Nice PLA11 12V Horizontal Automatic Electric Gate Lock is suitable for push-to-open single gates applications (outward opening gates).


    Electrical connections:

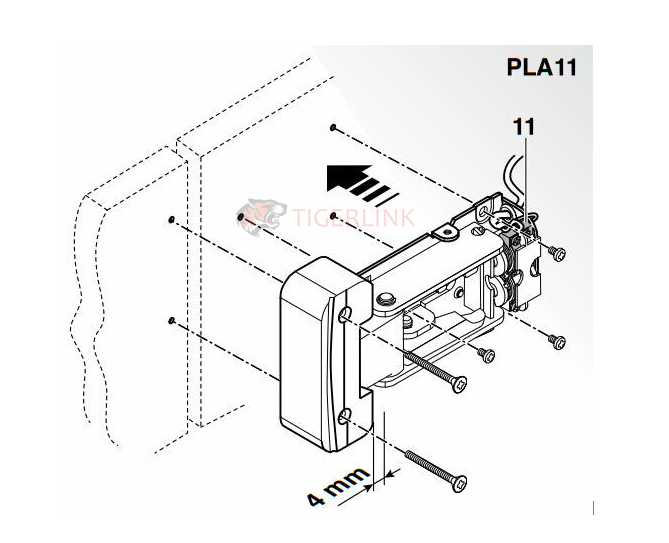

    • Open the electric lock and connect the terminal (11) with the electric lock output on the automation’s control unit;
    • For connections, use at least 1 mm2 wire suitable for external use.
