Sliding gate motors are the perfect gate automation when these factors are present: limited space, sloping driveway and a windy location. This is because aside from the motor being compact, it can still operate the gate regardless of incline and has no hardware that is prone to snapping when strong wind presents itself.

Our sliding gate motors come in an impressive range — from various reputable name brands and having different voltage configurations, weight capacities and solar options. We have sliding motors designed for heavy, commercial use, as well as for residential use. We also offer the convenience of a motor kit; each containing the motor itself, 2 remotes and 4 meters of track. Each kit is customisable, so you can get more remotes and/or tracks, or even choose lugs up or lugs down for your track. Only wanting the motor? No problem, because we can sell that individually too! Browse through our selection to find the sliding gate motor you need.

ET010
Low Voltage Replacement Kit for Centsys D6, D10, D20 Smart (24V)

24V Low Voltage Conversion Kit for Centsys D6, D10, D20 Smart

Kit includes:

  • Internal Transformer
  • External Transformer
  • 30m Cable
$ 390.00 390.0 AUD
MOT020

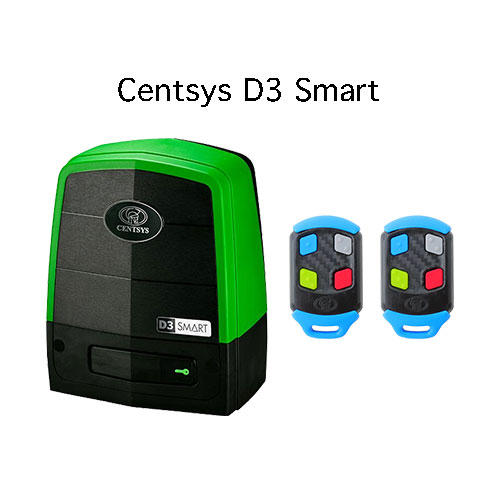

Centsys D3 Smart - Motor & 2 Remotes

Kit includes:

- Centsys D3 Smart

- Nova Remotes x 2

No Battery

No 3-Pin Plug

No Transformer

$ 635.45 635.45 AUD
GMSG701LVK
Low Voltage Beninca BULL424 SW 450kg Kit

Italian Sliding Gate Motor Beninca BULL424 SW 24V 450kg- Motor kit



Kit Includes:

Beninca 424SW x 1

Beninca Low Voltage Box x 1

Beninca Low Voltage Connector x 1

Beninca Remotes x 3

Lugs down nylon racks x 4


The BULL424SW is a 24 volt motor designed for residential and commercial sliding gates up to 450kg in weight. 24 VOLT ELECTRIC GATE OPERATOR - RESIDENTIAL - 450KG The BULL424SW by Beninca is plain and simple Beninca quality and reliability throughout. The BULL424SW is designed for residential and commercial sliding automatic gates up to 450kg in weight.

The BULL424SW has a built in control board in its own seperate enclosure with a dedicated 433mhz wireless receiver and inputs for photocells and switches etc. The BULL also comes with a base plate. Battery backup is optional with the addition of the battery module and two 1.3Ah rechargeable batteries.

 Motor Voltage - 24 volts DC

Current Standby - 8mA

Current at use - 3.2A

Motor power - 80W

Maximum thrust - 428N

Operating speed - 11 metres per minute (adjustable)

Maximum gate size - 450 kg

Duty cycle - 80%

Height - 330mm Width - 326mm Depth - 140mm

Weight - 7.6 Kg

IP rating - IP44




Additional information

Weight 15 kg
Motor Voltage

24 volts DC
Standby Current

8mA
Maximum Current

0.4A
Motor Power

80W
Maximum Thrust

428N
Operating Speed

11 Metres per minute
Maximum Gate Weight

400 Kg
IP Rating

IP44
Height (mm)

330mm
Width (mm)

140mm
Length (mm)

326mm
Weight (kg)

10.2 Kg
Duty Cycle

80%

Battery Back upWireless Keypad



$ 745.45 745.45 AUD
ET824
Beninca SAR.24 Low Voltage Transformer Box 7Amp

7Amp low voltage box with built-in transformer.

Up to 45m distance


Works with all Beninca Control Boards with screen.

For SW series (without screen), an adapter is required.

$ 244.55 244.55 AUD
GMSG710MVK

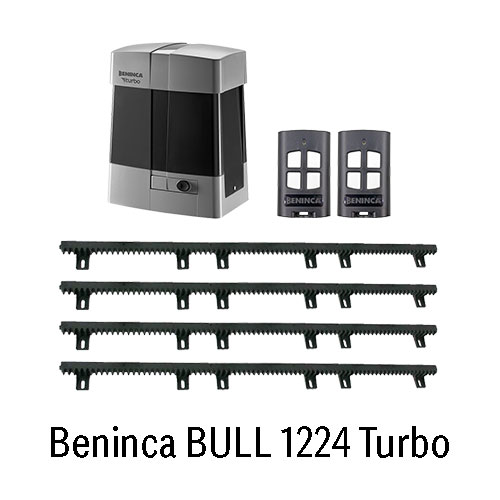

Beninca BULL1224 Turbo 1200kg Kit

Beninca BULL1224 Turbo 1200kg - Complete Kit with 3 remotes

Max Speed: 24m/min

$ 1,445.45 1445.45 AUD
GMSG710

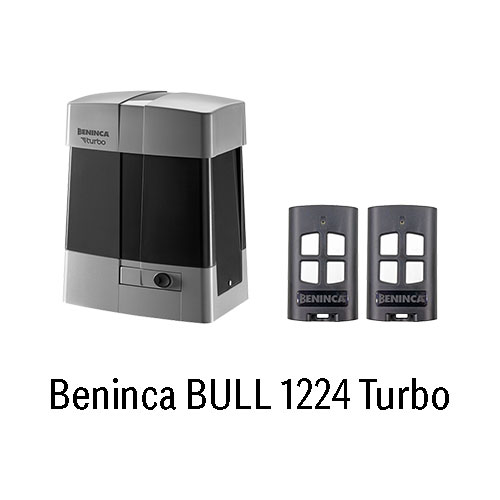

Beninca BULL1224 Turbo 1200kg + 2 Remotes

Beninca BULL1224 Turbo 1200kg - Motor Only with 2 remotes

Max Speed: 24m/min

$ 1,389.09 1389.09 AUD
GMSG707MVK

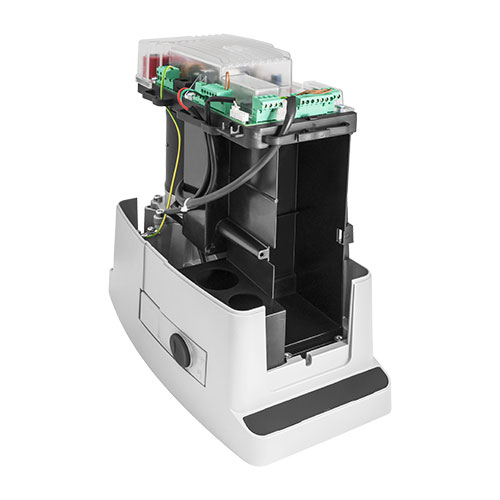

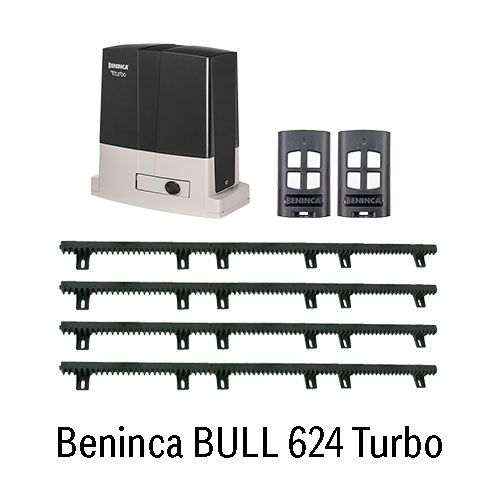

Beninca BULL624 Turbo 600kg Kit

Italian Sliding Gate Motor Beninca BULL624 TURBO 24V 600kg KIT


Max Speed: 25m/min



Power supply 115 Vac / 230 Vac (50-60Hz)
Motor supply 24 Vdc
Max absorbed current 5 / 3 A
Maximum thrust 330 N
Opening speed 12,5 ÷ 25,5 m/min
Duty cycle 60%
Protection level IP44
Built-in control unit
Integrated receiver
Encoder
Virtual encoder
Magnetic limit switches
Pinion for rack M4 Z18
Operating temperature -20°C /+50°C
Lubrication GREASE
Maximum gate weight 600 kg
Weight 10 kg
N. motors per pallet 40
Kit weight 10.6 kg




$ 981.82 981.82 AUD
GMSG707

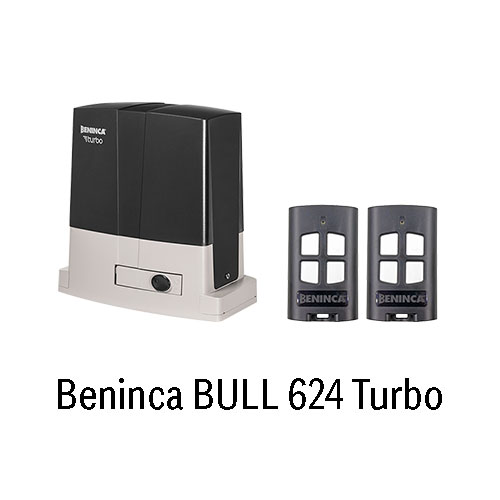

Beninca BULL624 Turbo 600kg + 2 Remotes

Italian Sliding Gate Motor Beninca BULL624 TURBO 24V 600kg


Max Speed: 25m/min



Power supply 115 Vac / 230 Vac (50-60Hz)
Motor supply 24 Vdc
Max absorbed current 5 / 3 A
Maximum thrust 330 N
Opening speed 12,5 ÷ 25,5 m/min
Duty cycle 60%
Protection level IP44
Built-in control unit
Integrated receiver
Encoder
Virtual encoder
Magnetic limit switches
Pinion for rack M4 Z18
Operating temperature -20°C /+50°C
Lubrication GREASE
Maximum gate weight 600 kg
Weight 10 kg
N. motors per pallet 40
Kit weight 10.6 kg




$ 922.73 922.73 AUD
ET009

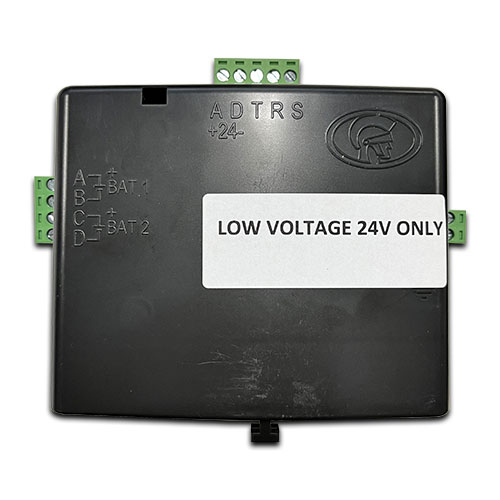

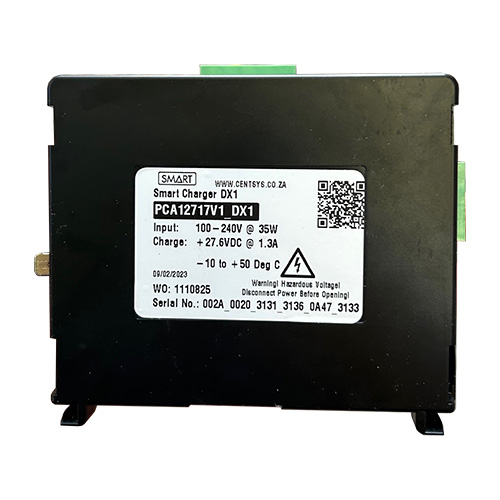

Internal Transformer for Mains Voltage Centsys D6, D10, and D20 Smart

240V Input - Internal Transformer for D5, D10, and D20 Smart

$ 204.55 204.55 AUD
GMSG705MVK
Beninca BULL624 SW 600kg Kit

Italian Sliding Gate Motor Beninca BULL424 SW 24V 600kg- Motor kit



The BULL624SW is a 24 volt motor designed for residential and commercial sliding gates up to 600kg in weight. 24 VOLT ELECTRIC GATE OPERATOR - RESIDENTIAL - 600KG The BULL624SW by Beninca is plain and simple Beninca quality and reliability throughout. The BULL424SW is designed for residential and commercial sliding automatic gates up to 600kg in weight.

24 Vdc gear motor for intensive use with integrated control unit and virtual encoder | Switching power supply 240 Vac which reduces energy consumption and ensures a long lifespan of the actuator | Control unit with trimmers and dip-switches | The virtual encoder enables optimal management of slowing-down phases, movement tracking (STC system) and torque management in relation to the position of the gate, guaranteeing maximum safety | Operation guaranteed even in the event of a power supply failure through batteries that can be perfectly integrated in the motor (2 x 1.2 Ah) | Anti-crushing system with amperometric obstacle detection.

The BULL624SW has a built in control board in its own seperate enclosure with a dedicated 433mhz wireless receiver and inputs for photocells and switches etc. The BULL also comes with a base plate. Battery backup is optional with the addition of the battery module and two 1.3Ah rechargeable batteries.

 Motor Voltage - 24 volts DC

Current Standby - 8mA

Current at use - 3.2A

Motor power - 80W

Maximum thrust - 428N

Operating speed - 11 metres per minute (adjustable)

Maximum gate size - 600 kg

Duty cycle - 80%

Height - 330mm Width - 326mm Depth - 140mm

Weight - 7.6 Kg

IP rating - IP44





Additional information

Weight 15 kg
Motor Voltage

24 volts DC
Standby Current

8mA
Maximum Current

0.4A
Motor Power

80W
Maximum Thrust

428N
Operating Speed

11 Metres per minute
Maximum Gate Weight

600 Kg
IP Rating

IP44
Height (mm)

330mm
Width (mm)

140mm
Length (mm)

326mm
Weight (kg)

10.2 Kg
Duty Cycle

80%



$ 799.00 $ 635.45 635.45 AUD
GMSG701MVK

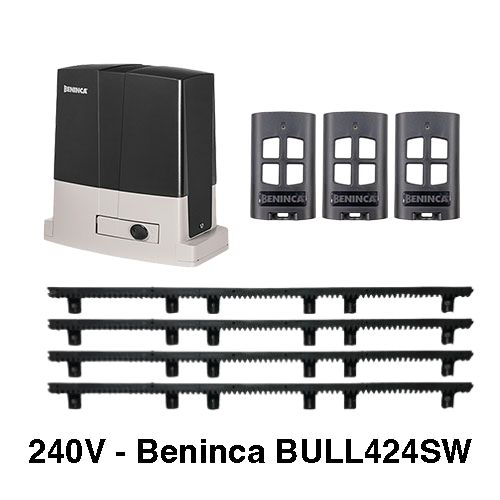

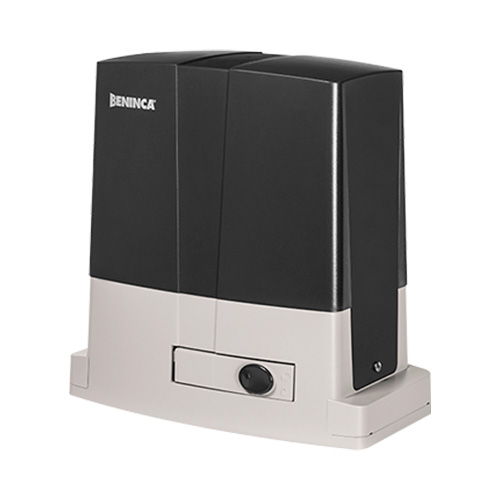

Beninca BULL424 SW 450kg Kit

Italian Sliding Gate Motor Beninca BULL424 SW 24V 450kg- Motor kit



The BULL424SW is a 24 volt motor designed for residential and commercial sliding gates up to 450kg in weight. 24 VOLT ELECTRIC GATE OPERATOR - RESIDENTIAL - 450KG The BULL424SW by Beninca is plain and simple Beninca quality and reliability throughout. The BULL424SW is designed for residential and commercial sliding automatic gates up to 450kg in weight.

24 Vdc gear motor for intensive use with integrated control unit and virtual encoder | Switching power supply 240 Vac which reduces energy consumption and ensures a long lifespan of the actuator | Control unit with trimmers and dip-switches | The virtual encoder enables optimal management of slowing-down phases, movement tracking (STC system) and torque management in relation to the position of the gate, guaranteeing maximum safety | Operation guaranteed even in the event of a power supply failure through batteries that can be perfectly integrated in the motor (2 x 1.2 Ah) | Anti-crushing system with amperometric obstacle detection.

The BULL424SW has a built in control board in its own seperate enclosure with a dedicated 433mhz wireless receiver and inputs for photocells and switches etc. The BULL also comes with a base plate. Battery backup is optional with the addition of the battery module and two 1.3Ah rechargeable batteries.

 Motor Voltage - 24 volts DC

Current Standby - 8mA

Current at use - 3.2A

Motor power - 80W

Maximum thrust - 428N

Operating speed - 11 metres per minute (adjustable)

Maximum gate size - 450 kg

Duty cycle - 80%

Height - 330mm Width - 326mm Depth - 140mm

Weight - 7.6 Kg

IP rating - IP44




Additional information

Weight 15 kg
Motor Voltage

24 volts DC
Standby Current

8mA
Maximum Current

0.4A
Motor Power

80W
Maximum Thrust

428N
Operating Speed

11 Metres per minute
Maximum Gate Weight

400 Kg
IP Rating

IP44
Height (mm)

330mm
Width (mm)

140mm
Length (mm)

326mm
Weight (kg)

10.2 Kg
Duty Cycle

80%

Battery Back up $185Wireless Keypad $218.50


$ 690.00 $ 630.91 630.91 AUD
ET008

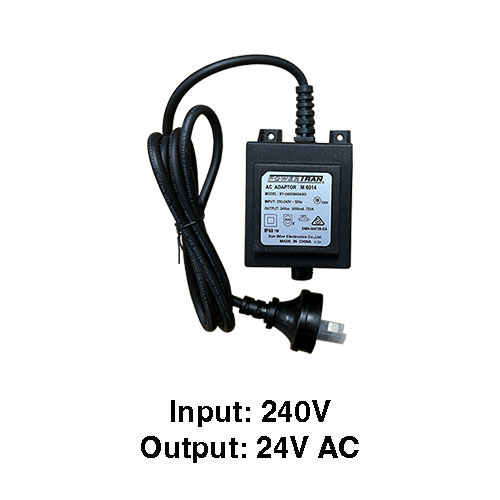

External Transformer for Centsys D6, D10, and D20 Smart Low Voltage

External Transformer for Low Voltage Centsys D5, D10, D20 Smart

(Without 30m cable)

Input: 240V

Output: 24V AC

IP68

$ 113.64 113.64 AUD
GMSG611MVK

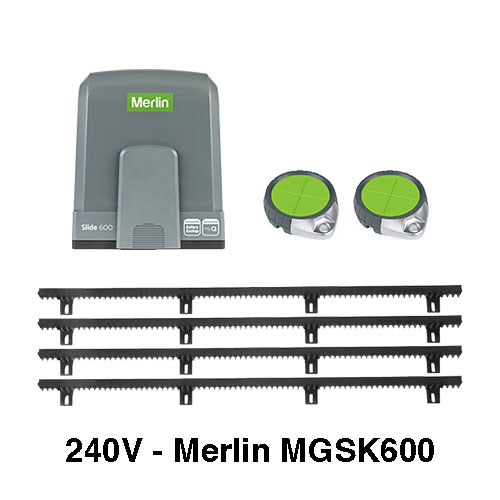

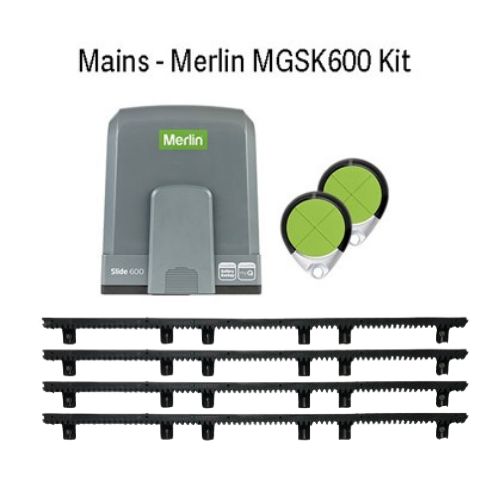

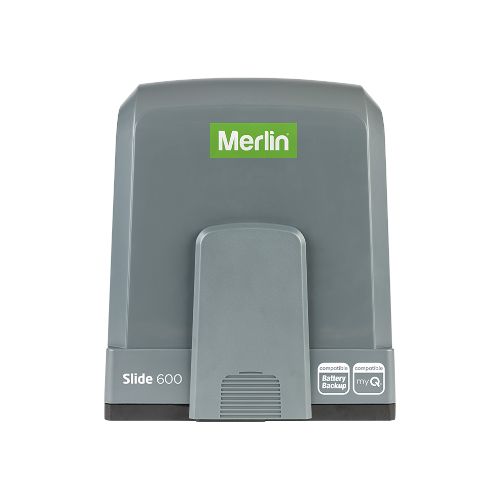

Merlin Slide 600 MSGK600 Kit

Elevate the functionality and security of your gate system with the Merlin Slide 600 Gate Motor - Merlin MGSK600. Designed to perfection, this high-quality gate opener from Merlin delivers reliable and efficient gate automation. With its robust construction and powerful performance, it effortlessly handles the sliding gates with ease. The Merlin MGSK600 offers smooth and quiet operation, providing you with convenience and peace of mind. Trust Tigerlink, the leading gate hardware supplier, to bring you top-notch products that enhance your home's security and convenience. Upgrade to the Merlin Slide 600 Gate Motor and experience a new level of gate automation excellence.

Kit Includes

  • 24V Sliding Gate Motor.
  • 2 x Remotes,
  • 4 x 1m H/D Gate Racks

Maximum Gate Width & Weights

  • Maximum weight for single gate: 600kg
  • Maximum width for single gate: 8m

Standard Specifications

  • Main AC Supply: 220-240Vac; 50/60Hz or 24V Low Voltage
  • Motor Voltage: 24 VDC
  • Input Power: 120 W
  • Ambient Temperature Range: -20 - +55*C
  • Max peak pulling force: 18 Nm
  • Max Travel Speed: 31 cm/s
  • Radio Frequency: 433.30, 433.92, 434.54 MHz with Security+ 2.0 Technology
  • Compatible with myQ technology
  • Gate opener capacity of up to 64 memory registers
  • IP44 Weather Resistant

Height of the top tooth of pinion gear from the ground

- with base plate: 132 mm

- without base plate: 89 mm

$ 949.00 $ 753.64 753.64 AUD

gate motor
GMSG611

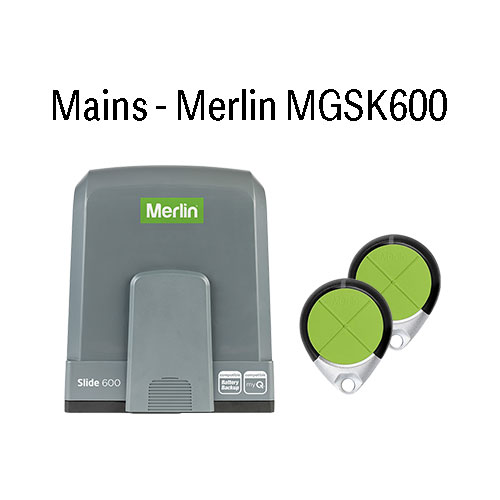

Merlin Slide 600 MGSK600 + 2 remotes

Elevate the functionality and security of your gate system with the Merlin Slide 600 Gate Motor - Merlin MGSK600. Designed to perfection, this high-quality gate opener from Merlin delivers reliable and efficient gate automation. With its robust construction and powerful performance, it effortlessly handles the sliding gates with ease. The Merlin MGSK600 offers smooth and quiet operation, providing you with convenience and peace of mind. Trust Tigerlink, the leading gate hardware supplier, to bring you top-notch products that enhance your home's security and convenience. Upgrade to the Merlin Slide 600 Gate Motor and experience a new level of gate automation excellence.

Kit Includes

  • 24V Sliding Gate Motor.
  • 2 x Remotes,
  •

Maximum Gate Width & Weights

  • Maximum weight for single gate: 600kg
  • Maximum width for single gate: 8m

Standard Specifications

  • Main AC Supply: 220-240Vac; 50/60Hz or 24V Low Voltage
  • Motor Voltage: 24 VDC
  • Input Power: 120 W
  • Ambient Temperature Range: -20 - +55*C
  • Max peak pulling force: 18 Nm
  • Max Travel Speed: 31 cm/s
  • Radio Frequency: 433.30, 433.92, 434.54 MHz with Security+ 2.0 Technology
  • Compatible with myQ technology
  • Gate opener capacity of up to 64 memory registers
  • IP44 Weather Resistant

Height of the top tooth of pinion gear from the ground

- with base plate: 132 mm

- without base plate: 89 mm

$ 726.36 726.36 AUD
ET840

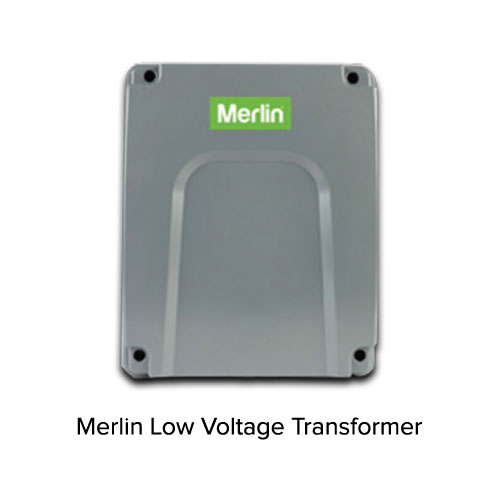

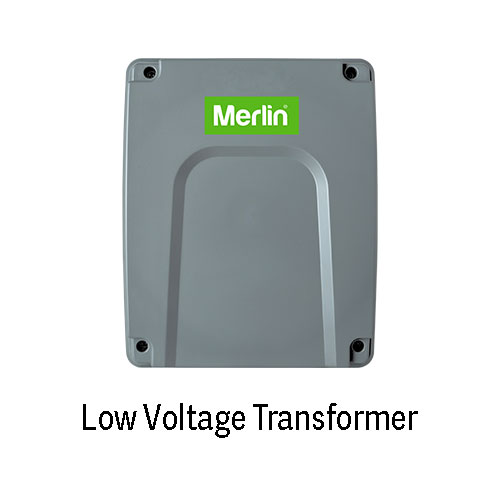

Low Voltage Transformer for Merlin Slide 600 MGSK600

Typical Setup:

  1. Merlin Sliding Gate Motor (GMSG611)
  2. Low Voltage Transformer (ET840)
  3. Magnetic Limit Switches
  4. Merlin Remote Control (GM833)


Recommended Power Wiring:

Flexible 3-core wire between the Merlin Slider (1) and the Transformer Box (2).

Distance

Cable Size

Less than 20m

Min 1.5mm

20-50m

Min 2.5mm

50-100m

Min 4mm


$ 143.64 143.64000000000001 AUD
ET842

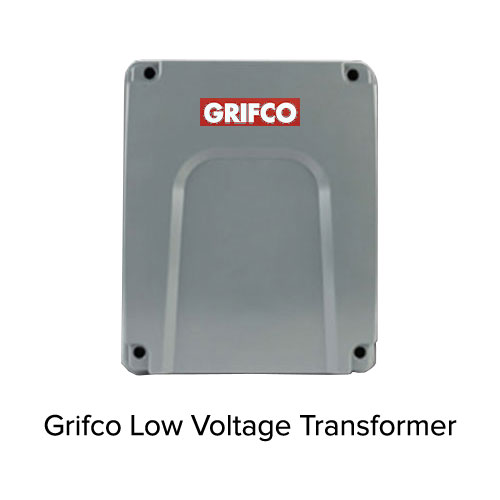

Low Voltage Transformer for Grifco 1000kg sliding gate motor

Low Voltage Transformer for Grifco 1000kg sliding gate motor

$ 159.09 159.09 AUD
GMSG611LVK

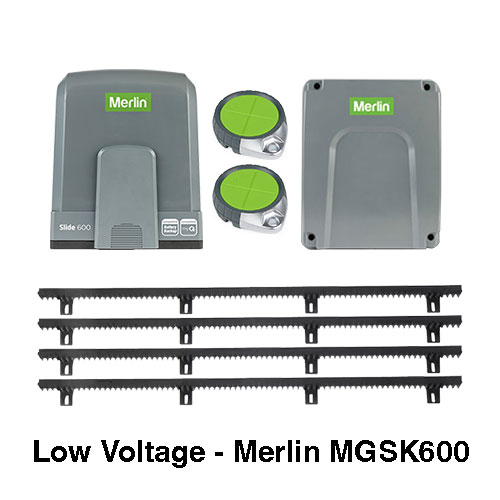

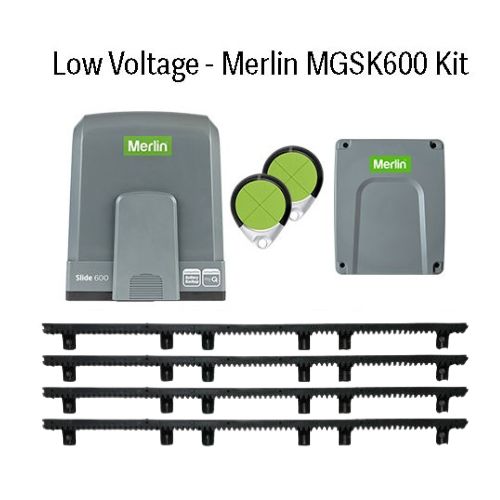

Low Voltage Merlin Slide 600 MGSK600-LV Kit

Experience the ultimate convenience and security with the Merlin Slide 600 Low Voltage Gate Motor - Merlin MGSK600-LV. This powerful and reliable gate opener from Merlin is designed to effortlessly automate your sliding gate. With its low voltage operation, it ensures energy efficiency and safe operation. The Merlin MGSK600-LV delivers exceptional performance, capable of handling gates up to 600 kg. Trust Tigerlink, your gate hardware supplier, to provide you with high-quality products that enhance the functionality and security of your gate system. Upgrade to Merlin Slide 600 Low Voltage and enjoy seamless gate automation like never before.

Kit Includes

  • 24V Merlin Sliding Gate Motor.
  • 1 x External transformer
  • 2 x Remotes
  • 4 x 1m H/D Gate Racks

Maximum Gate Width and Weights

  • Maximum weight for single gate: 600kg
  • Maximum width for single gate: 8m

Standard Specifications

  • Main AC Supply: 220-240Vac; 50/60Hz or 24V Low Voltage
  • Motor Voltage: 24 VDC
  • Input Power: 120 W
  • Ambient Temperature Range: -20 - +55*C
  • Max peak pulling force: 18 Nm
  • Max Travel Speed: 31 cm/s
  • Radio Frequency: 433.30, 433.92, 434.54 MHz with Security+ 2.0 Technology
  • Compatible with myQ technology
  • Gate opener capacity of up to 64 memory registers
  • IP44 Weather Resistant

Height of the top tooth of pinion gear from the ground

- with base plate: 132 mm

- without base plate: 89 mm

$ 959.00 $ 817.27 817.27 AUD

gate motor
RT586

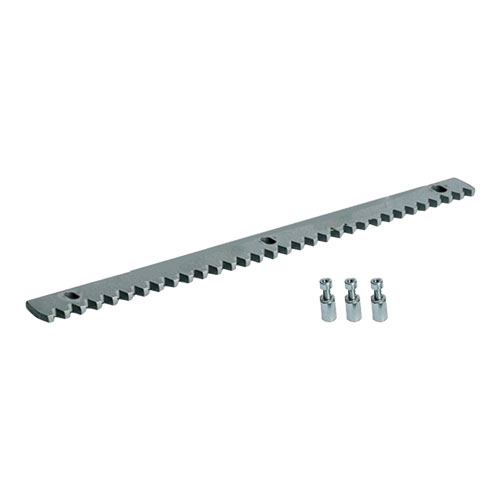

Heavy duty Steel Rack for Sliding Gates 1005x30x12mm long

Heavy duty Steel Gear Rack for Sliding Gates 1005x30x12mm long

Steel racks should be used on all gates exceeding 800kg or where a large slope is present.

It will provide a more positive mesh with drive pinion and will also provide a longer service life for both the rack and your motor.

Features

- Solid Steel come with 3 screws

- 1005 in length

- 30x12mm



$ 22.73 22.73 AUD
RT588

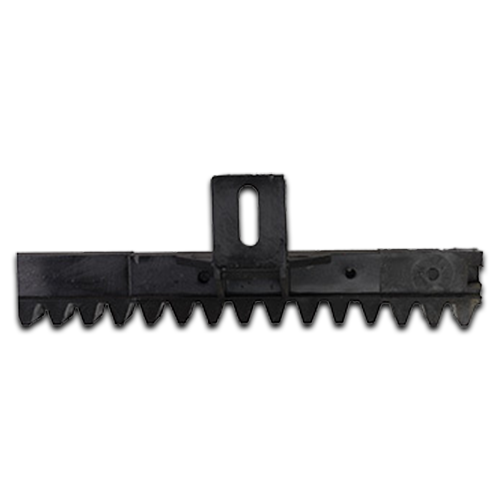

Nylon Rack with Steel Core 1 Metre - Lugs Up

The RT588 Heavy-Duty Nylon Rack is a robust and dependable solution designed for rack and pinion systems. Made from high-quality nylon material, this rack offers exceptional strength and durability. With a length of 1 meter and lugs-up design, it provides secure and efficient operation for your gate or door system. The wear-resistant construction ensures long-lasting performance even in demanding environments. Upgrade your rack and pinion system with the RT588 Heavy-Duty Nylon Rack for reliable and smooth operation.

$ 18.00 18.0 AUD
RT580

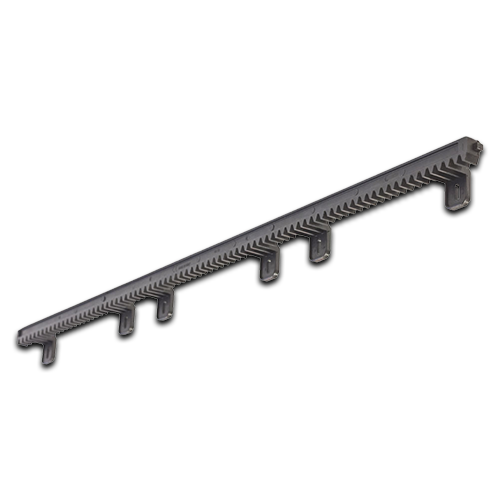

Nylon Rack 6 Lugs with Steel Core inserted 1 Metre - Lugs Down

The RT580 Heavy-Duty Nylon Rack is a reliable and durable solution for rack and pinion systems. This rack is made from high-quality nylon material, known for its strength and resistance to wear and tear. With a length of 1 metre, it provides ample rack space for smooth and efficient operation of your gate or door system.

The lugs-down design ensures secure attachment and optimal performance. Install the RT580 Heavy-Duty Nylon Rack for long-lasting and dependable operation of your rack and pinion system.

Please contact us for special trade price & bulk price

$ 16.82 16.82 AUD
