Gate Wheels

WH408 Sliding Gate Wheel/Rollers for U Groove 120mm internal Double Sliding Gate Wheel/Rollers for U Groove 120mm internal Double Bearing Sliding gate component wheel or rollers U groove 120mm Dia internal - Double bearing Rated to carry 350kg each wheel Tigerlink Hardware is Sliding Gate Automation Kits and Accessories supplier. We have full range of Sliding gate hardware Wheels & Castors. High Quality Products. Very Competitive Prices. Over 20 Years Experience. freindly Staff. Stronger and Heavyduty wheels. Zinc - Finished In Most cases 2 wheels are enough for Sliding gates upto 5M, if you want to add any extra wheels 2 at each end 200-300mm aparts would be better then adding a third wheel in the middle. A middle wheel would take all the weight if there is any rises in the floor track and would shorten the life of that wheel. 2 wheels or 4 wheels is the right way to do this. Installing a sliding gate wheel involves a few key steps to ensure the gate operates smoothly. Here’s a step-by-step guide to help you install it: Materials Needed: Sliding gate wheel Measuring tape Cutting machine Drill and drill bits Screws and bolts Wrench or screwdriver Steps for Installation: Prepare the Gate and Track: Before installing the wheels, ensure that your sliding gate is already installed and that the sliding track is properly laid out. The track should be level and secure to ensure smooth operation. Step One: Measure the sliding gate wheel cradle, ensuring there's enough space to attach the wheel to the steel frame. Use a cutting wheel to make the cut, but first, drill four holes (one in each corner) using an 8-10mm drill bit. This will ensure the square hole is clean in each corner. Step Two: Clean up the rectangular hole with a file to ensure smooth edges, then spray the area with galvanized paint for protection. Step Three: Place the sliding gate wheel into the cut-out and check that it can rotate freely. Ensure there’s enough space for securing the wheel with a tek screw. Step Four: When screwing in the tek screws, make sure the wheel is aligned with the edge of the steel. The last thing you want is for the wheel to be out of alignment. Avoid welding the wheel if possible, as this can make replacement more difficult later on. Try not to weld them onto the sliding gate frame it will be a nightmare to replace them later Step by Step 1. How to join Floor Track 2. Installing the Gate Wheel 3. Double and Single Bearing Wheels $ 34.50 34.5 AUD	WH395 Sliding Gate Wheel/Rollers for U Groove 100mm Internal - Double Bearing The WH395 Sliding Gate Wheel is a high-quality and durable solution for smooth and efficient movement of your sliding gate. With its U-groove design and 100mm internal diameter, this wheel provides excellent stability and support. The double-bearing system ensures smooth and silent operation, minimizing friction and wear. Upgrade your gate system with the WH395 Sliding Gate Wheel for reliable performance and enhanced convenience. Hold weight up to 350kg Installing a sliding gate wheel involves a few key steps to ensure the gate operates smoothly. Here’s a step-by-step guide to help you install it: Materials Needed: Sliding gate wheel Measuring tape Cutting machine Drill and drill bits Screws and bolts Wrench or screwdriver Steps for Installation: Prepare the Gate and Track: Before installing the wheels, ensure that your sliding gate is already installed and that the sliding track is properly laid out. The track should be level and secure to ensure smooth operation. Step One: Measure the sliding gate wheel cradle, ensuring there's enough space to attach the wheel to the steel frame. Use a cutting wheel to make the cut, but first, drill four holes (one in each corner) using an 8-10mm drill bit. This will ensure the square hole is clean in each corner. Step Two: Clean up the rectangular hole with a file to ensure smooth edges, then spray the area with galvanized paint for protection. Step Three: Place the sliding gate wheel into the cut-out and check that it can rotate freely. Ensure there’s enough space for securing the wheel with a tek screw. Step Four: When screwing in the tek screws, make sure the wheel is aligned with the edge of the steel. The last thing you want is for the wheel to be out of alignment. Avoid welding the wheel if possible, as this can make replacement more difficult later on. Try not to weld them onto the sliding gate frame it will be a nightmare to replace them later $ 27.23 27.23 AUD	WH375 Sliding Gate Wheel for U Groove 80mm Internal -Double Bearing The WH375 Sliding Gate Wheel is designed to provide smooth and reliable movement for your sliding gate. With its U-groove design, 80mm internal diameter, and double bearing mechanism, this wheel ensures enhanced performance and durability. It is compatible with U-groove tracks and offers easy installation and adjustment. Upgrade your sliding gate system with the WH375 Sliding Gate Wheel for effortless and efficient operation. Hold weights up to 350kg Installing a sliding gate wheel involves a few key steps to ensure the gate operates smoothly. Here’s a step-by-step guide to help you install it: Materials Needed: Sliding gate wheel Measuring tape Cutting machine Drill and drill bits Screws and bolts Wrench or screwdriver Steps for Installation: Prepare the Gate and Track: Before installing the wheels, ensure that your sliding gate is already installed and that the sliding track is properly laid out. The track should be level and secure to ensure smooth operation. Step One: Measure the sliding gate wheel cradle, ensuring there's enough space to attach the wheel to the steel frame. Use a cutting wheel to make the cut, but first, drill four holes (one in each corner) using an 8-10mm drill bit. This will ensure the square hole is clean in each corner. Step Two: Clean up the rectangular hole with a file to ensure smooth edges, then spray the area with galvanized paint for protection. Step Three: Place the sliding gate wheel into the cut-out and check that it can rotate freely. Ensure there’s enough space for securing the wheel with a tek screw. Step Four: When screwing in the tek screws, make sure the wheel is aligned with the edge of the steel. The last thing you want is for the wheel to be out of alignment. Avoid welding the wheel if possible, as this can make replacement more difficult later on. Try not to weld them onto the sliding gate frame it will be a nightmare to replace them later $ 17.73 17.73 AUD	WH476 Sliding Gate Wheel V Groove Dounble bearing 78mm Dia Sliding Gate Wheel V Groove Dounble bearing 78mm Dia This v groove track wheel is 78mm in diameter and has double bearing. Technical Specifications. Groove Type- V Groove Load Capacity- 120 Kg Wheel Diameter- 78mm Wheel Material- Steel Finish- Zinc Plated Installing a sliding gate wheel involves a few key steps to ensure the gate operates smoothly. Here’s a step-by-step guide to help you install it: Materials Needed: Sliding gate wheel Measuring tape Drill and drill bits Screws and bolts Wrench or screwdriver Steps for Installation: Prepare the Gate and Track: Before installing the wheels, ensure that your sliding gate is already installed and that the sliding track is properly laid out. The track should be level and secure to ensure smooth operation. Determine the Wheel Placement: Decide where the wheel brackets will go on the gate. Typically, the wheels should be placed at the bottom of the gate. Depending on the gate size. The wheel’s placement is important for proper weight distribution and gate stability. Mark the Drill Holes: Hold the wheel brackets against the gate at the desired position. Use a measuring tape to ensure the placement is even and at the correct height. Mark the holes where the screws or bolts will go to secure the wheels. Drill the Holes: Drill holes at the marked points on the gate, making sure the holes are large enough for the screws or bolts provided in your wheel kit. If you’re installing a single wheel, the hole placement should be centered along the gate's width. Attach the Wheel Bracket: Secure the wheel bracket to the gate using the screws or bolts. Tighten them properly to ensure the bracket is secure. Be sure the wheel can rotate freely once attached. Install the Wheel: If the wheel is separate from the bracket, slide the wheel into its bracket or mounting system. Tighten any screws or bolts holding the wheel in place, ensuring it rotates easily and is properly aligned. Test the Gate: Test the sliding gate by moving it along the track. Check that the wheels glide smoothly without any obstruction or resistance. The gate should be stable and move freely. Adjust if Necessary: If the gate isn’t sliding smoothly, check the alignment of the wheels and track. You might need to adjust the wheel height or ensure that the track is level. Make sure the wheels are aligned with the gate and track to avoid any friction. Try not to weld them onto the sliding gate frame it will be a nightmare to replace them later $ 20.82 20.82 AUD
WH472 Sliding Gate Wheel V Groove Dounble bearing 58mm Dia Sliding Gate Wheel V Groove Dounble bearing 58mm Dia This v groove track wheel is 58mm in diameter and has double bearing. Technical Specifications. Groove Type- V Groove Load Capacity- 120 Kg Wheel Diameter- 58mm Wheel Material- Steel Finish- Zinc Plated $ 13.18 13.18 AUD	WH475 Sliding Gate Wheel V Groove Double bearing 68mm Dia Sliding Gate Wheel V Groove Double bearing 68mm Dia This v groove track wheel is 78mm in diameter and has double bearing. Technical Specifications. Groove Type- V Groove Load Capacity- 100 Kg Wheel Diameter- 68mm Wheel Material- Steel Finish- Zinc Plated Installing a sliding gate wheel involves a few key steps to ensure the gate operates smoothly. Here’s a step-by-step guide to help you install it: Materials Needed: Sliding gate wheel Measuring tape Drill and drill bits Screws and bolts Wrench or screwdriver Steps for Installation: Prepare the Gate and Track: Before installing the wheels, ensure that your sliding gate is already installed and that the sliding track is properly laid out. The track should be level and secure to ensure smooth operation. Determine the Wheel Placement: Decide where the wheel brackets will go on the gate. Typically, the wheels should be placed at the bottom of the gate. Depending on the gate size. The wheel’s placement is important for proper weight distribution and gate stability. Mark the Drill Holes: Hold the wheel brackets against the gate at the desired position. Use a measuring tape to ensure the placement is even and at the correct height. Mark the holes where the screws or bolts will go to secure the wheels. Drill the Holes: Drill holes at the marked points on the gate, making sure the holes are large enough for the screws or bolts provided in your wheel kit. If you’re installing a single wheel, the hole placement should be centered along the gate's width. Attach the Wheel Bracket: Secure the wheel bracket to the gate using the screws or bolts. Tighten them properly to ensure the bracket is secure. Be sure the wheel can rotate freely once attached. Install the Wheel: If the wheel is separate from the bracket, slide the wheel into its bracket or mounting system. Tighten any screws or bolts holding the wheel in place, ensuring it rotates easily and is properly aligned. Test the Gate: Test the sliding gate by moving it along the track. Check that the wheels glide smoothly without any obstruction or resistance. The gate should be stable and move freely. Adjust if Necessary: If the gate isn’t sliding smoothly, check the alignment of the wheels and track. You might need to adjust the wheel height or ensure that the track is level. Make sure the wheels are aligned with the gate and track to avoid any friction. Try not to weld them onto the sliding gate frame it will be a nightmare to replace them later $ 11.09 11.09 AUD	WH465 Sliding Gate Wheel V Groove Double bearing 45mm Dia Sliding Gate Wheel V Groove Dounble bearing 45mm Dia This v groove track wheel is 45mm in diameter and has double bearing. Technical Specifications. Groove Type- V Groove Load Capacity-100Kg Wheel Diameter- 45mm Wheel Material- Steel Finish- Zinc Plated Installing a sliding gate wheel involves a few key steps to ensure the gate operates smoothly. Here’s a step-by-step guide to help you install it: Materials Needed: Sliding gate wheel Measuring tape Drill and drill bits Screws and bolts Wrench or screwdriver Steps for Installation: Prepare the Gate and Track: Before installing the wheels, ensure that your sliding gate is already installed and that the sliding track is properly laid out. The track should be level and secure to ensure smooth operation. Determine the Wheel Placement: Decide where the wheel brackets will go on the gate. Typically, the wheels should be placed at the bottom of the gate. Depending on the gate size. The wheel’s placement is important for proper weight distribution and gate stability. Mark the Drill Holes: Hold the wheel brackets against the gate at the desired position. Use a measuring tape to ensure the placement is even and at the correct height. Mark the holes where the screws or bolts will go to secure the wheels. Drill the Holes: Drill holes at the marked points on the gate, making sure the holes are large enough for the screws or bolts provided in your wheel kit. If you’re installing a single wheel, the hole placement should be centered along the gate's width. Attach the Wheel Bracket: Secure the wheel bracket to the gate using the screws or bolts. Tighten them properly to ensure the bracket is secure. Be sure the wheel can rotate freely once attached. Install the Wheel: If the wheel is separate from the bracket, slide the wheel into its bracket or mounting system. Tighten any screws or bolts holding the wheel in place, ensuring it rotates easily and is properly aligned. Test the Gate: Test the sliding gate by moving it along the track. Check that the wheels glide smoothly without any obstruction or resistance. The gate should be stable and move freely. Adjust if Necessary: If the gate isn’t sliding smoothly, check the alignment of the wheels and track. You might need to adjust the wheel height or ensure that the track is level. Make sure the wheels are aligned with the gate and track to avoid any friction. Try not to weld them onto the sliding gate frame it will be a nightmare to replace them later $ 10.36 10.36 AUD	WH479 Sliding Gate Wheel V Groove 80mm Internal Double Bearing Sliding Gate Wheel V80 internal Double bearing Installing a sliding gate wheel involves a few key steps to ensure the gate operates smoothly. Here’s a step-by-step guide to help you install it: Materials Needed: Sliding gate wheel Measuring tape Cutting machine Drill and drill bits Screws and bolts Wrench or screwdriver Steps for Installation: Prepare the Gate and Track: Before installing the wheels, ensure that your sliding gate is already installed and that the sliding track is properly laid out. The track should be level and secure to ensure smooth operation. Step One: Measure the sliding gate wheel cradle, ensuring there's enough space to attach the wheel to the steel frame. Use a cutting wheel to make the cut, but first, drill four holes (one in each corner) using an 8-10mm drill bit. This will ensure the square hole is clean in each corner. Step Two: Clean up the rectangular hole with a file to ensure smooth edges, then spray the area with galvanized paint for protection. Step Three: Place the sliding gate wheel into the cut-out and check that it can rotate freely. Ensure there’s enough space for securing the wheel with a tek screw. Step Four: When screwing in the tek screws, make sure the wheel is aligned with the edge of the steel. The last thing you want is for the wheel to be out of alignment. Avoid welding the wheel if possible, as this can make replacement more difficult later on. Try not to weld them onto the sliding gate frame it will be a nightmare to replace them later $ 23.09 23.09 AUD
WH483 Sliding Gate Wheel V Groove 120 mm diameter Sliding Gate Wheel V Groove 120 mm dia 482 kgs Carry capacity - Double bearings $ 39.82 39.82 AUD	WH393 Sliding Gate Wheel U Groove 90mm External Double bearing The WH393 Sliding Gate Wheel with U-Groove is designed to provide smooth and reliable operation for your sliding gate system. With its 90mm external diameter and U-groove design, this wheel ensures optimal traction and stability. The double-bearing system enhances the wheel's load-bearing capacity and reduces friction, resulting in effortless gate movement. Crafted from high-quality materials, this wheel is built to withstand heavy-duty use and resist wear and tear. Upgrade your sliding gate system with the WH393 Sliding Gate Wheel for improved performance and longevity. Hold weight up to 190kg Installing a sliding gate wheel involves a few key steps to ensure the gate operates smoothly. Here’s a step-by-step guide to help you install it: Materials Needed: Sliding gate wheel Measuring tape Drill and drill bits Screws and bolts Wrench or screwdriver Steps for Installation: Prepare the Gate and Track: Before installing the wheels, ensure that your sliding gate is already installed and that the sliding track is properly laid out. The track should be level and secure to ensure smooth operation. Determine the Wheel Placement: Decide where the wheel brackets will go on the gate. Typically, the wheels should be placed at the bottom of the gate. Depending on the gate size. The wheel’s placement is important for proper weight distribution and gate stability. Mark the Drill Holes: Hold the wheel brackets against the gate at the desired position. Use a measuring tape to ensure the placement is even and at the correct height. Mark the holes where the screws or bolts will go to secure the wheels. Drill the Holes: Drill holes at the marked points on the gate, making sure the holes are large enough for the screws or bolts provided in your wheel kit. If you’re installing a single wheel, the hole placement should be centered along the gate's width. Attach the Wheel Bracket: Secure the wheel bracket to the gate using the screws or bolts. Tighten them properly to ensure the bracket is secure. Be sure the wheel can rotate freely once attached. Install the Wheel: If the wheel is separate from the bracket, slide the wheel into its bracket or mounting system. Tighten any screws or bolts holding the wheel in place, ensuring it rotates easily and is properly aligned. Test the Gate: Test the sliding gate by moving it along the track. Check that the wheels glide smoothly without any obstruction or resistance. The gate should be stable and move freely. Adjust if Necessary: If the gate isn’t sliding smoothly, check the alignment of the wheels and track. You might need to adjust the wheel height or ensure that the track is level. Make sure the wheels are aligned with the gate and track to avoid any friction. Try not to weld them onto the sliding gate frame it will be a nightmare to replace them later $ 22.27 22.27 AUD	WH377 Sliding Gate Wheel U Groove 80mm External Double bearing The WH377 Sliding Gate Wheel is designed to provide reliable and efficient operation for your sliding gate. With its U-groove design and 80mm external diameter, this wheel offers excellent stability and support. The double-bearing system ensures smooth and effortless movement, reducing friction and wear. Upgrade your sliding gate with the WH377 Sliding Gate Wheel for enhanced performance and convenience. Hold weight up to 190kg Installing a sliding gate wheel involves a few key steps to ensure the gate operates smoothly. Here’s a step-by-step guide to help you install it: Materials Needed: Sliding gate wheel Measuring tape Drill and drill bits Screws and bolts Wrench or screwdriver Steps for Installation: Prepare the Gate and Track: Before installing the wheels, ensure that your sliding gate is already installed and that the sliding track is properly laid out. The track should be level and secure to ensure smooth operation. Determine the Wheel Placement: Decide where the wheel brackets will go on the gate. Typically, the wheels should be placed at the bottom of the gate. Depending on the gate size. The wheel’s placement is important for proper weight distribution and gate stability. Mark the Drill Holes: Hold the wheel brackets against the gate at the desired position. Use a measuring tape to ensure the placement is even and at the correct height. Mark the holes where the screws or bolts will go to secure the wheels. Drill the Holes: Drill holes at the marked points on the gate, making sure the holes are large enough for the screws or bolts provided in your wheel kit. If you’re installing a single wheel, the hole placement should be centered along the gate's width. Attach the Wheel Bracket: Secure the wheel bracket to the gate using the screws or bolts. Tighten them properly to ensure the bracket is secure. Be sure the wheel can rotate freely once attached. Install the Wheel: If the wheel is separate from the bracket, slide the wheel into its bracket or mounting system. Tighten any screws or bolts holding the wheel in place, ensuring it rotates easily and is properly aligned. Test the Gate: Test the sliding gate by moving it along the track. Check that the wheels glide smoothly without any obstruction or resistance. The gate should be stable and move freely. Adjust if Necessary: If the gate isn’t sliding smoothly, check the alignment of the wheels and track. You might need to adjust the wheel height or ensure that the track is level. Make sure the wheels are aligned with the gate and track to avoid any friction. Try not to weld them onto the sliding gate frame it will be a nightmare to replace them later $ 19.09 19.09 AUD	WH402 Sliding Gate Wheel U Groove 80mm Dia double bearing no Bracket The WH402 Sliding Gate Wheel with U-Groove is designed to provide smooth and reliable operation for your sliding gate system. With its 80mm diameter and U-groove design, this wheel offers excellent traction and stability. The double-bearing system ensures smooth movement and reduces friction, allowing for effortless gate opening and closing. This wheel does not include a bracket, providing flexibility for mounting options. Upgrade your sliding gate system with the WH402 Sliding Gate Wheel for enhanced performance and durability. Hold weight up to 300kg $ 16.82 16.82 AUD
WH369 Sliding Gate Wheel U Groove 60mm External Double bearing The WH369 Sliding Gate Wheel is designed to provide smooth and reliable operation for your sliding gate. With its U-groove design and 60mm external diameter, this wheel offers excellent stability and support. The double-bearing system ensures smooth and effortless movement, reducing friction and wear. Upgrade your sliding gate with the WH369 Sliding Gate Wheel for enhanced performance and convenience. Hold weight up to 170kg Installing a sliding gate wheel involves a few key steps to ensure the gate operates smoothly. Here’s a step-by-step guide to help you install it: Materials Needed: Sliding gate wheel Measuring tape Drill and drill bits Screws and bolts Wrench or screwdriver Steps for Installation: Prepare the Gate and Track: Before installing the wheels, ensure that your sliding gate is already installed and that the sliding track is properly laid out. The track should be level and secure to ensure smooth operation. Determine the Wheel Placement: Decide where the wheel brackets will go on the gate. Typically, the wheels should be placed at the bottom of the gate. Depending on the gate size. The wheel’s placement is important for proper weight distribution and gate stability. Mark the Drill Holes: Hold the wheel brackets against the gate at the desired position. Use a measuring tape to ensure the placement is even and at the correct height. Mark the holes where the screws or bolts will go to secure the wheels. Drill the Holes: Drill holes at the marked points on the gate, making sure the holes are large enough for the screws or bolts provided in your wheel kit. If you’re installing a single wheel, the hole placement should be centered along the gate's width. Attach the Wheel Bracket: Secure the wheel bracket to the gate using the screws or bolts. Tighten them properly to ensure the bracket is secure. Be sure the wheel can rotate freely once attached. Install the Wheel: If the wheel is separate from the bracket, slide the wheel into its bracket or mounting system. Tighten any screws or bolts holding the wheel in place, ensuring it rotates easily and is properly aligned. Test the Gate: Test the sliding gate by moving it along the track. Check that the wheels glide smoothly without any obstruction or resistance. The gate should be stable and move freely. Adjust if Necessary: If the gate isn’t sliding smoothly, check the alignment of the wheels and track. You might need to adjust the wheel height or ensure that the track is level. Make sure the wheels are aligned with the gate and track to avoid any friction. Try not to weld them onto the sliding gate frame it will be a nightmare to replace them later $ 14.09 14.09 AUD	WH406 Sliding Gate Wheel U Groove 120mm Dia double bearing Sliding Gate Wheel U Groove 120mm Dia double bearing Fits 20mm round groove track. - Zinc plated, Double Bearings. - Load Capacity = 482kg/wheel. - 20mm Hole Size $ 22.27 22.27 AUD	WH398 Sliding Gate Wheel U Groove 100mm External Double bearing The WH398 Sliding Gate Wheel with U-Groove is the perfect solution for smooth and effortless sliding gate operation. With its 100mm external diameter and U-groove design, this wheel provides exceptional traction and stability. The double-bearing system ensures optimal load-bearing capacity and reduces friction, resulting in seamless gate movement. Crafted from high-quality materials, this wheel is built to withstand heavy-duty use and resist wear and tear. Upgrade your sliding gate system with the WH398 Sliding Gate Wheel for reliable performance and durability. Hold weights up to 350kg Installing a sliding gate wheel involves a few key steps to ensure the gate operates smoothly. Here’s a step-by-step guide to help you install it: Materials Needed: Sliding gate wheel Measuring tape Drill and drill bits Screws and bolts Wrench or screwdriver Steps for Installation: Prepare the Gate and Track: Before installing the wheels, ensure that your sliding gate is already installed and that the sliding track is properly laid out. The track should be level and secure to ensure smooth operation. Determine the Wheel Placement: Decide where the wheel brackets will go on the gate. Typically, the wheels should be placed at the bottom of the gate. Depending on the gate size. The wheel’s placement is important for proper weight distribution and gate stability. Mark the Drill Holes: Hold the wheel brackets against the gate at the desired position. Use a measuring tape to ensure the placement is even and at the correct height. Mark the holes where the screws or bolts will go to secure the wheels. Drill the Holes: Drill holes at the marked points on the gate, making sure the holes are large enough for the screws or bolts provided in your wheel kit. If you’re installing a single wheel, the hole placement should be centered along the gate's width. Attach the Wheel Bracket: Secure the wheel bracket to the gate using the screws or bolts. Tighten them properly to ensure the bracket is secure. Be sure the wheel can rotate freely once attached. Install the Wheel: If the wheel is separate from the bracket, slide the wheel into its bracket or mounting system. Tighten any screws or bolts holding the wheel in place, ensuring it rotates easily and is properly aligned. Test the Gate: Test the sliding gate by moving it along the track. Check that the wheels glide smoothly without any obstruction or resistance. The gate should be stable and move freely. Adjust if Necessary: If the gate isn’t sliding smoothly, check the alignment of the wheels and track. You might need to adjust the wheel height or ensure that the track is level. Make sure the wheels are aligned with the gate and track to avoid any friction. Try not to weld them onto the sliding gate frame it will be a nightmare to replace them later $ 27.23 27.23 AUD	WH405 Sliding Gate U Groove Wheel 100mm Diameter no bracket The WH405 Sliding Gate U-Groove Wheel with a 100mm diameter is a high-quality component designed for smooth and efficient operation of your sliding gate. With its U-groove design and Class A rating, this wheel offers excellent traction and durability. The wheel does not include a bracket, providing flexibility for mounting options. Upgrade your sliding gate system with the WH405 Sliding Gate U-Groove Wheel for reliable performance and long-lasting durability. Hold weight up to 300kg $ 19.09 19.09 AUD

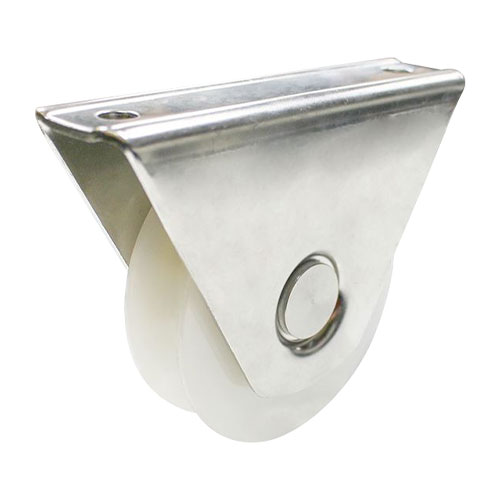

WH384 Sliding Gate External Wheel/Rollers for U Groove White Nylon 90mm Stainless Steel Bracket The WH384 Sliding Gate External Wheel Rollers are designed to provide smooth and reliable operation for your sliding gate. These rollers feature a white nylon wheel with a 90mm diameter, which reduces friction and ensures quiet movement. The wheel rollers are mounted on a sturdy stainless steel bracket, offering durability and resistance to corrosion. With their U-groove design, these rollers are suitable for various types of sliding gates. Whether it's for residential or commercial applications, these external wheel rollers deliver excellent performance and ease of use. Hold weight up to 100kg Installing a sliding gate wheel involves a few key steps to ensure the gate operates smoothly. Here’s a step-by-step guide to help you install it: Materials Needed: Sliding gate wheel Measuring tape Drill and drill bits Screws and bolts Wrench or screwdriver Steps for Installation: Prepare the Gate and Track: Before installing the wheels, ensure that your sliding gate is already installed and that the sliding track is properly laid out. The track should be level and secure to ensure smooth operation. Determine the Wheel Placement: Decide where the wheel brackets will go on the gate. Typically, the wheels should be placed at the bottom of the gate. Depending on the gate size. The wheel’s placement is important for proper weight distribution and gate stability. Mark the Drill Holes: Hold the wheel brackets against the gate at the desired position. Use a measuring tape to ensure the placement is even and at the correct height. Mark the holes where the screws or bolts will go to secure the wheels. Drill the Holes: Drill holes at the marked points on the gate, making sure the holes are large enough for the screws or bolts provided in your wheel kit. If you’re installing a single wheel, the hole placement should be centered along the gate's width. Attach the Wheel Bracket: Secure the wheel bracket to the gate using the screws or bolts. Tighten them properly to ensure the bracket is secure. Be sure the wheel can rotate freely once attached. Install the Wheel: If the wheel is separate from the bracket, slide the wheel into its bracket or mounting system. Tighten any screws or bolts holding the wheel in place, ensuring it rotates easily and is properly aligned. Test the Gate: Test the sliding gate by moving it along the track. Check that the wheels glide smoothly without any obstruction or resistance. The gate should be stable and move freely. Adjust if Necessary: If the gate isn’t sliding smoothly, check the alignment of the wheels and track. You might need to adjust the wheel height or ensure that the track is level. Make sure the wheels are aligned with the gate and track to avoid any friction. Try not to weld them onto the sliding gate frame it will be a nightmare to replace them later $ 29.27 29.27 AUD	WH622 Steel Overhead Sliding Gate Carriage, 4 Wheel - Type A, up to 200kg Overhead Sliding Gate/Hanging Barn Door 4 Steel Wheel for Gate up to 200kg/3000mm Silver Steel Sliding Track Roller Hanging Barn Doorwill fit our 50mm Track (RT202) Premium Material: High quality steel It is suitable for barn doors, indoor doors, kitchens, American sliding doors, sliding doors and so on. Adjustable both laterally and vertically; made of durable one-piece, precision-formed steel Load-bearing 200kg Material:High quality steel Color:Silver Wheel Dia: 38mm Quantity: 1 Tigerlink Hardware 1300 055 099 E: sales@tigerllink.com.au $ 25.00 25.0 AUD	WH620 Steel Overhead Sliding Gate Carriage, 4 Wheel - Type A, up to 120kg Overhead Sliding Gate/Hanging Barn Door 4 Steel Wheel for Gate up to 120kg/2400mm Silver Steel Sliding Track Roller Hanging Barn Doorwill fit our 35mm Track (RT200) Premium Material: High quality steel It is suitable for barn doors, indoor doors, kitchens, American sliding doors, sliding doors and so on. Adjustable both laterally and vertically; made of durable one-piece, precision-formed steel Load-bearing 120kg Material:High quality steel Color:Silver Wheel Dia: 25mm Quantity: 1 Tigerlink Hardware 1300 055 099 E: sales@tigerllink.com.au $ 14.09 14.09 AUD	WH602 Steel Overhead Sliding Gate Carriage, 2 Wheel - Type A, up to 200kg Overhead Sliding Gate/Hanging Barn Door 2 Steel Wheel for Gate up to 200kg/3000mm Silver Steel Sliding Track Roller Hanging Barn Doorwill fit our 50mm Track (RT202) Premium Material: High quality steel It is suitable for barn doors, indoor doors, kitchens, American sliding doors, sliding doors and so on. Adjustable both laterally and vertically; made of durable one-piece, precision-formed steel Load-bearing 200kg Material:High quality steel Color:Silver Wheel Dia: 38mm Quantity: 1 Tigerlink Hardware 1300 055 099 E: sales@tigerllink.com.au $ 17.73 17.73 AUD
