SOL003

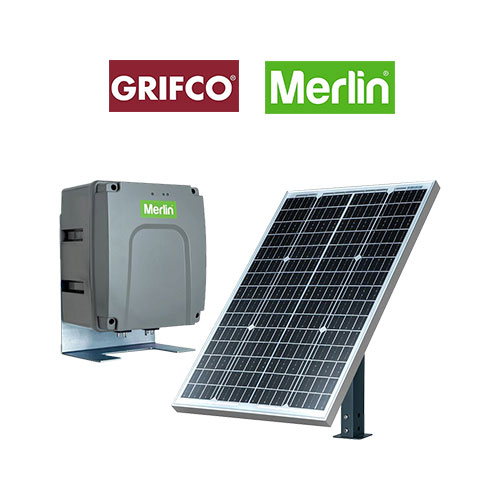

Solar Power Kit 24V DC for Merlin-Grifco Gate Opener

Compatible with all Merlin and Grifco gate openers.

  1. Performance & Suitability - Perfect for residential & light commercial use with limited daily cycles. Under typical conditions (e.g. 6 hours of sunlight per day on the Australian East Coast), you can expect around 20 cycles per day with one set of 772ANZ Safety Beams Connected. Actual performance depends on sunlight availability, gate condition, connected accessories and environmental factors. Refer to the manual for detailed performance calculations & suitability to your location.
  2. Installation Tips & Site Selection - To get the best performance from your Solar Kit, consider panel placement. Install the solar panel where it gets full sunlight—ideally facing due North. Avoid shaded or obstructed areas, as this will reduce charging efficiency. It is important to keep the solar panel close to the power supply enclosure, and ensure the enclosure is within reach of your gate opener.
  3. Choosing the Right Setup - Solar performance depends on your location, sunlight hours, and how often the gate is used. Some setups may need two solar panels for reliable operation—especially in areas with less sun or higher usage. During long periods of low sunlight, you may need to recharge the system using the AC charging adaptor (included).
  • IP65 Weather Resistant Power Supply Enclosure/Control Unit and Solar Panel
  • 2 x 18Ah batteries
  • 40W Solar Panel (a second 40W Solar Panel can be added for areas with low sunlight exposure*)
  • Adjustable Solar Panel Mounting Kit
  • 240V Mains Power Pack included to fully charge the SOLAR-KIT before installation

* If a second 40W Solar Panel is added, the Dual Solar Panel Cable Connector with 4m cable (041A0573) is required.  The Solar Panel Mounting Kit (SP-MOUNT-KIT) is also recommended.

Solar Power Supply
Rated Voltage21.6VDC to 35VDC
Maximum Output Current5 Amps
Battery Capacity2 x 18Ah
Recharge Time (AC Charger)Approx 24 hours
Operating Temp Range-20ºC to +50ºC
IP RatingIP65
Dimensions335mm x 230mm x 210mm
Weight15Kg



Solar Panel
Peak Power (Pmax):40W / 34.2V
Maximum Current:1.17A
Maximum Voltage:34.2V
Operating Temp Range-40ºC to +85ºC
IP RatingIP65
Dimensions620mm x 400mm x 25mm
Weight2.6Kg


Built for Local Conditions
Designed in Australia to withstand the unique environmental demands of both Australian and New Zealand climates.
Weather Resistant & Durable
Features an IP65-rated Power Supply Enclosure, offering strong protection against dust, rain, and harsh weather.
Reliable Power Storage
Includes 2 x 18Ah high-capacity batteries to keep your gate opener running smoothly.
Solar Powered Convenience
Comes with a 40W Solar Panel for clean, efficient energy—no mains power required.
Expandable System
Need more power? Add a second 40W Solar Panel for improved performance in low-sunlight areas.*
Flexible Mounting Options
Includes a sturdy, adjustable mounting kit to position the solar panel for maximum sunlight exposure.
Pre-Installation Charging
A 240V Mains Power Pack is included to fully charge the system before setup.
3-Year Warranty*
Merlin Peace of Mind

*The warranty period for the Solar Kit Batteries is 12 months from the date of purchase.


$ 1,181.82 1181.82 AUD
ET297

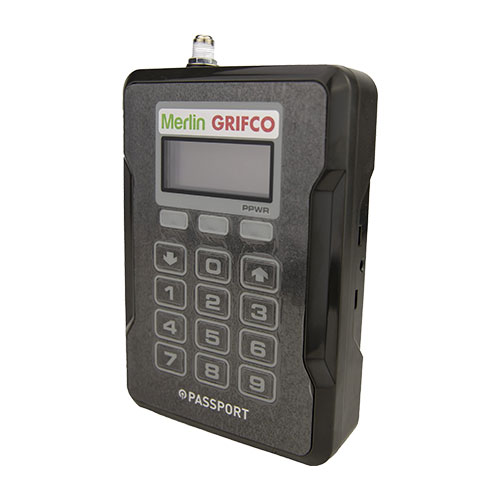

Merlin-Grifco Receiver STAR1000

Grifco/Merlin Receiver STAR1000


$ 362.73 362.73 AUD
GDR006

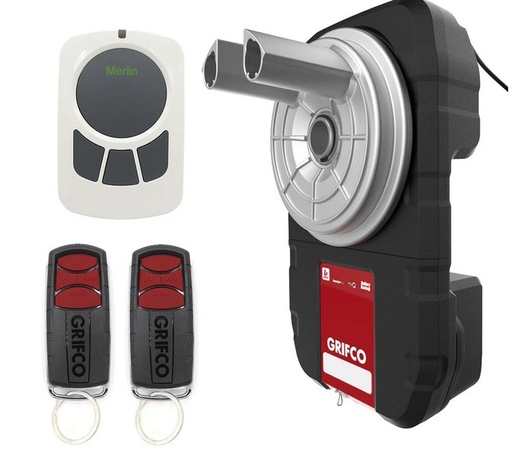

Grifco LR-Drive Light Commercial/Heavy Residential Roller Garage Opener(GLD-RDO)

The Grifco LR-Drive heralds the latest addition to the Grifco Light Commercial portfolio. It has been specifically designed for large and wind-locked roller doors. It is also ideal for shopfront roller grilles thanks to commercial terminals that allow dedicated open and closing.

  • Faster: LR-Drive opens a 2.4m high door in only 21 seconds. Fastest in its class!
  • Stronger: Stronger: The powerful motor and gearbox can lift roller doors up to 28m² and wind-locked roller doors up to 22m²
  • Thinner: The incredibly thin operator requires only 45mm of sideroom clearance
  • Smarter: LR-Drive is myQ compatible and features dedicated inputs for open / close and an OPEN Input


Included:
1 x Grifco LR-Drive Roller Door Motor
1 x Battery Backup Unit
2 x E960G 4-channel keyring transmitters
1 x E138G wireless wall control

1 x Installation Instructions

Specifications

  • Power Specifications
  • Main AC Power 230-240 VAC 50Hz
  • Max. Pull Force 1,300N
  • Power 150W
  • Operating Temp -20°C to +50°C
  • Door Specifications
  • Max Door Height 5.5m
  • Max Door Weight 270kg
  • Normal Torque 45Nm
  • Door Type Commercial Steel Spring-Balanced
  • Roller Door or Grille
  • Max. Door Size 28m²
  • 22m² wind-locked
  • Max. Door Cycles 50 cycles / day
  • Dimensions
  • Operator Dims 470 (H) x 280 (W) x 95mm (D)
  • 470 (H) x 280 (W) x 150mm (D) with BBU
  • Side Room
  • Clearance
  • 45mm between door drum and mounting
  • bracket
  • Operator Depth 95mm, 150mm with BBU
  • (Door Curtain to Wall)
  • Tines 2 x 90mm diecast aluminium tines
  • General
  • Compliance AS/NZS 60335-1
  • AS/NZS 60335-2-103
  • Warranty 2 Years / 10,000 Cycles

Brochure link: https://motepro.com.au/Manuals/Grifco/Rolling/LR-Drive-Product-Brochure.pdf




$ 726.32 726.32 AUD
GM332

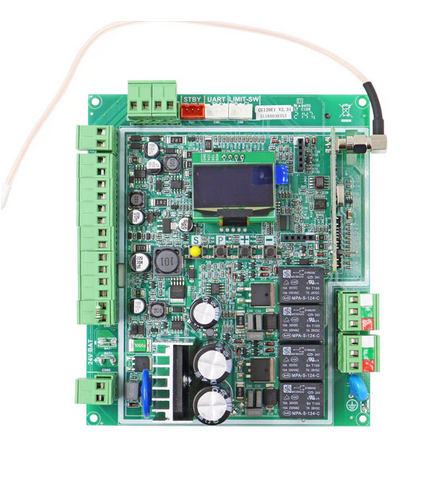

Merlin-Grifco Gate Motor Control Board

Genuine Merlin Gate Swing/Slide Motor   Control Board

This is a replacement gate control board which suits all of Merlin's current gate openers, both slide and swing models.

Important safety information is contained in the product installation and operation instruction manual. Please read the manual thoroughly before proceeding with any service work.

Please Note: All spare parts must be replaced by a qualified garage/gate service technician.


$ 440.91 440.91 AUD
ET355

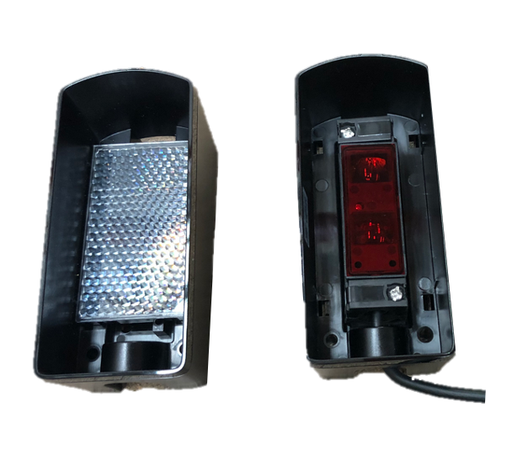

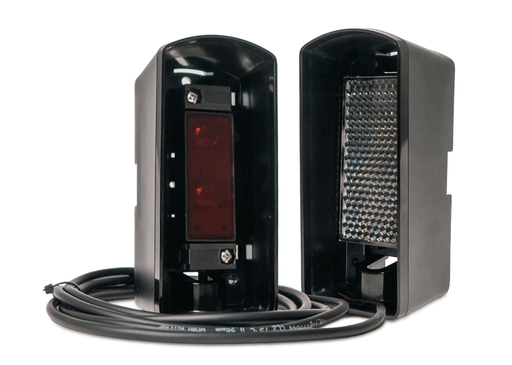

Merlin-Grifco Safety Reflector beam Kit with protector hood HPS15

Sliding or Swing Gate Safety Reflector Beam Kit with Protective Hood — Compatible with Merlin & Grifco

The Safety Beam Protector System reliably prevents the gate from closing when the beam is obstructed or broken. This safety feature helps protect people, pets, and vehicles from potential injury or damage.

Both the photoelectric sensor and reflector are fitted with protective rain hoods for reliable weather resistance (IP65 rated). The kit includes mounting brackets and a 2-metre cable.

Compatible with all Merlin and Grifco gate openers sold in Australia and New Zealand.





$ 280.00 280.0 AUD
ET842

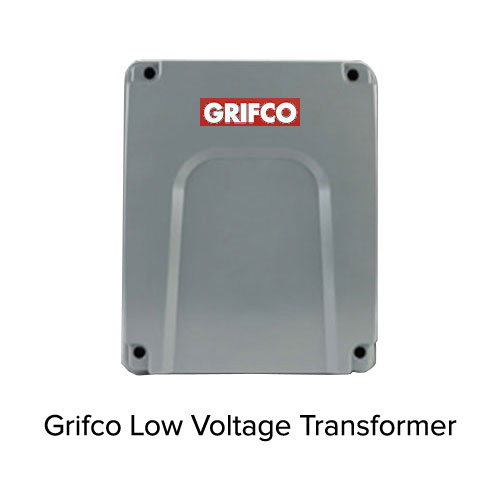

Low Voltage Transformer for Grifco 1000kg sliding gate motor

Low Voltage Transformer for Grifco 1000kg sliding gate motor

$ 159.09 159.09 AUD
GMSG190MVK

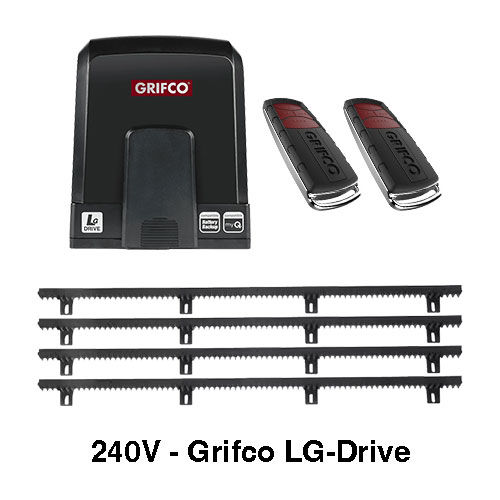

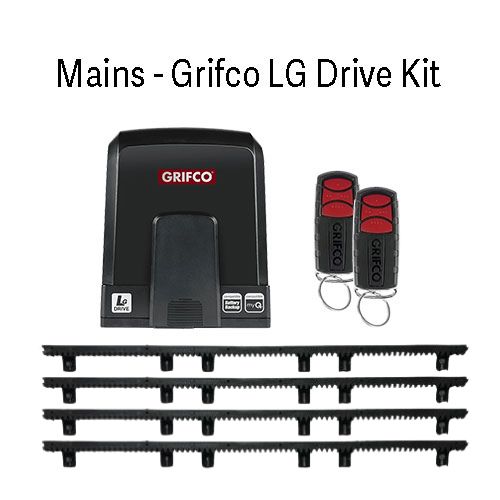

Mains Voltage Grifco LG Drive 1000kg Kit

Description

Upgrade your gate's security and convenience with the Grifco LG Drive Gate Motor. Specifically designed to handle gates weighing up to 1000kg, this motor combines power and reliability to provide a top-notch automation solution.

Key Features

  • Powerful Performance: The Grifco LG Drive gate motor offers powerful and consistent performance, ensuring smooth gate operation.
  • Designed for Durability: Crafted with durability in mind, this motor is built to withstand various weather conditions and continuous usage, ensuring its longevity.
  • Enhanced Safety: Equipped with safety features such as obstacle detection and an emergency stop function, it prioritizes the safety of users and property.
  • Easy Installation: The installation process is straightforward, allowing you to have your gate motor up and running quickly.
  • Remote Control: Enjoy the convenience of remote access, allowing you to control your gate effortlessly from a distance.

Kit included

1x GGS1000 motor/ opener

2 x E960G 4 Button Wireless Remotes

4 x 1M Heavy Duty nylon Racks

3 Years warranty

Height of the top tooth of pinion gear from the ground

- with base plate: 132 mm

- without base plate: 89 mm

Grifco Specifications


Features Grifco GLD-GO GGS1000 Opener ATA NES800 Gate Opener
Smart Capable Yes – MYQ Kit Yes – Remootio, iSmartGate
Max Gate Width 12 metres 6m
Max Gate Weight 1000Kg 800kg
Model Number GGS1000 NES-500
Input Power 240V 240V
Water Protection IP44 IP44
Opening Speed 310mm/sec 200mm/sec
Opener Dimensions 304mm x 270mm x 218mm 275mm x 170mm x 250mm
Memory Register 64 64
Warranty 3 Years / 7,500 cycles 2 Years / 5,000 cycles


$ 935.45 935.45 AUD
GMSG190LVK

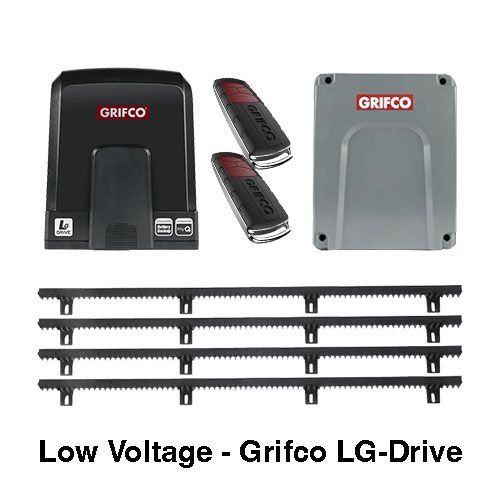

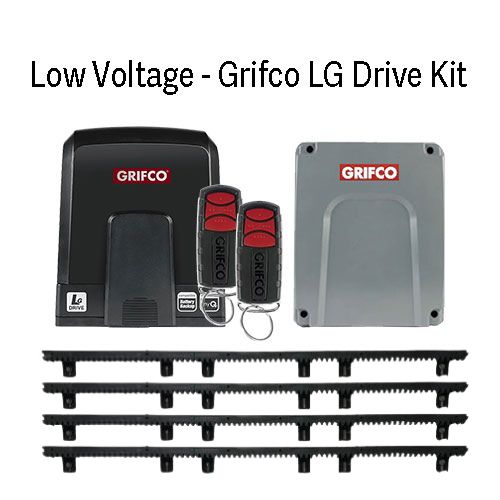

Low Voltage Grifco LG Drive 1000kg Kit



1x Grifco GDL-DO-LV “LG-Drive” GGS1000 Sliding Gate Opener
1x MGTR3-120VA Transformer Box (to be mounted near 240V supply)
2x E960G Premium Keyring Transmitters
Required Hardware Fixings (Bolts Etc)
4m MGS-RACK Sliding Gate Racking


$ 1,089.09 1089.09 AUD
ET420

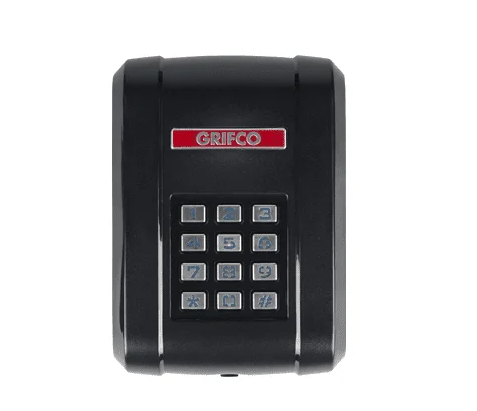

Grifco E850G Wireless Security Keypad- IP55


Upgrade your access control system with the Grifco E850G Wireless Security Keypad, a reliable and secure solution for controlled entry. This wireless keypad from Grifco, known for its quality and innovation, ensures convenient and secure access to your premises.

Featuring advanced technology and an IP55 rating for weather resistance, the Grifco E850G is designed to withstand various conditions while providing a seamless and secure access experience. Trust in the reliability of Grifco products for enhanced security and peace of mind.

Invest in the Grifco E850G Wireless Security Keypad for a secure and convenient access control solution. Trust TigerLink for quality products that prioritize your security needs.

$ 133.18 133.18 AUD
ET353

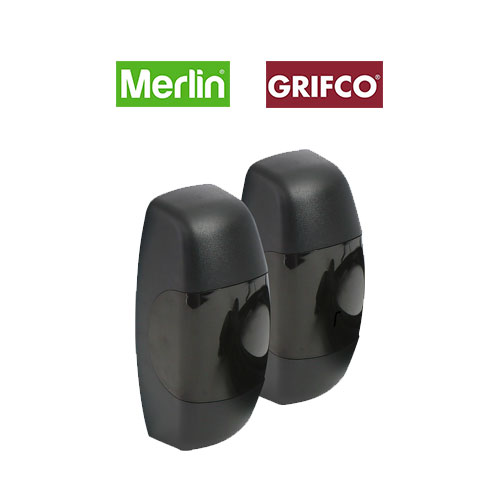

Genuine Merlin-Grifco Safety Beams Water resistant IP44 772ANZ

Enhance the safety and security of your garage door with the ET353 Genuine Merlin Safety Beams, designed to withstand various weather conditions with their water-resistant IP44 rating. These authentic Merlin safety beams provide peace of mind by ensuring safe and reliable operation of your garage door.

Key Features:

  • Genuine Merlin Quality: These safety beams are genuine Merlin products, assuring compatibility and superior performance with your Merlin garage door opener. Trust in the quality and reliability that only genuine Merlin safety beams can offer.
  • Water-Resistant Design: With an IP44 water-resistant rating, these safety beams are engineered to resist moisture, making them suitable for outdoor installations and ensuring consistent operation even in damp conditions.
  • Enhanced Safety: The safety beams are designed to detect obstacles or objects in the path of your garage door, ensuring that it stops and reverses its movement to prevent accidents or damage.
  • Easy Installation: Installing these safety beams is a straightforward process, with clear instructions provided. They are compatible with most garage door openers and can be quickly set up for immediate use.
  • Durable Build: Built to last, these safety beams are made from high-quality materials to withstand the test of time and provide continuous protection for your garage and family.

Upgrade your garage door's safety with the ET353 Genuine Merlin Safety Beams - Water Resistant IP44. Enjoy the peace of mind that comes with genuine Merlin safety beams, designed to withstand outdoor conditions while ensuring the safety of your loved ones and your property. Trust in Merlin's reputation for quality and reliability for all your garage door safety needs.

$ 72.27 72.27 AUD
GM835

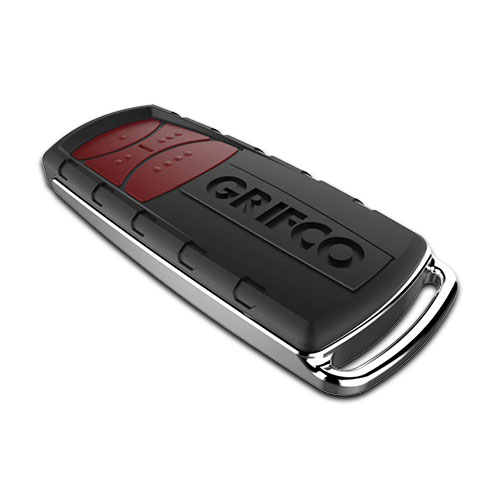

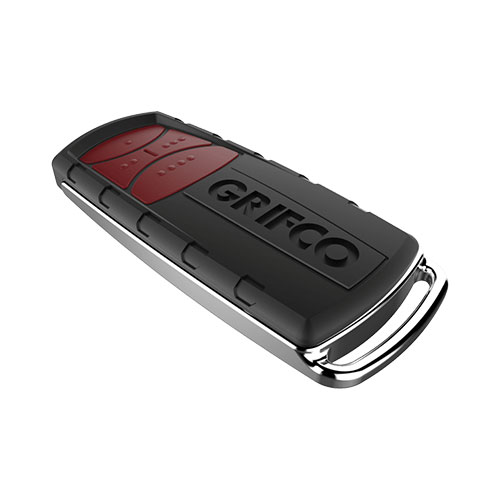

Genuine Grifco Remote E960G

Enhance the convenience and security of your access control system with the Genuine Grifco Remote E960G. Designed for garage doors and gates, this remote ensures reliable and efficient operation.

With Grifco's reputation for quality and innovation, the E960G remote provides a seamless and secure solution for your access needs. Say goodbye to manual operation and experience the convenience of remote control with this genuine Grifco product.

Invest in the reliability and performance of the Genuine Grifco Remote E960G for a more efficient and secure access experience. Upgrade your access control today with TigerLink.

$ 45.20 45.2 AUD
GM178

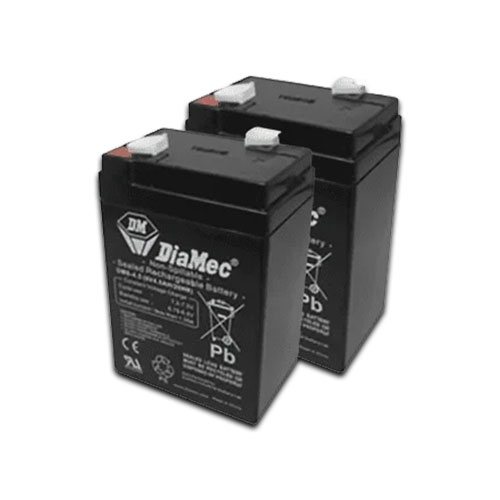

Battery Back Up MGBBU for - Merlin & Grifco

Battery Back Up  for - Merlin & Grifco

$ 135.91 135.91 AUD
