BFT E5 BT A18 Electromechanical Single Swing Gate Opener kit with 2 remotes

The E5 BT A18 Low Voltage Vehicular Electromechanical Reversible Swing Gate Opener by BFT can be installed to pillars or columns using the Thalia Control Unit. This swing gate operator is ideal for pedestrian gates up to 1.5M wide and up to 100kg. It features U-Link Platform compatibility, D-Track path tracking with smart torque management, and an absolute encoder that recognizes position and manages slow down times. Ideal for multi-residential and commercial sites, this Low Voltage Electromechanical Swing Gate Operator includes automatic closing settings and remote opening for added security.

Kit includes:

2 x E5 BT A18 Motor

1 x Thalia A80

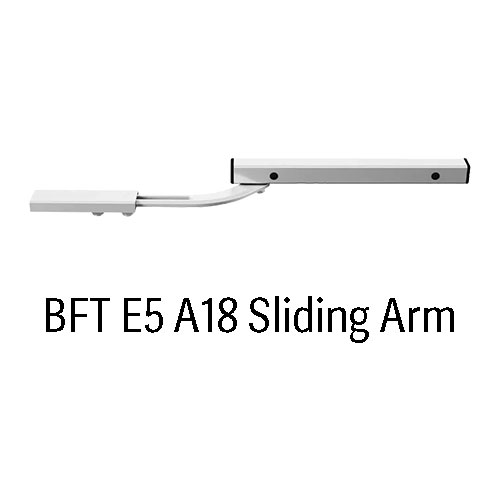

2 x Linear sliding arm

2 x BFT Remotes



Features:

• Installs to pillars or columns

• For pedestrian gates up to 220 lbs

• For pedestrian gates up to 5 ft wide

• Ideal for multi-resident and commercial sites

• Push & go function to manually open gate completely

• Easy to install fixing bracket for columns and pillars

• Compact, reversible electromechanical swing gate opener

• U-Link connectivity platform compatible using THALIA control unit

• Absolute encoder recognizes position to manage slowdown at all times

• THALIA unit has standard color terminal blocks for output/input for quick assembly

• D-Track path tracking includes smart torque management, constant updating for accuracy

• Safety enhancements include ability to set gate automatic closing after opening and remote opening

• 4.5-6.5s opening speed (90° maneuver including slowdown) based on weight/dimensions of the leaf

Specifications:

• Control unit: THALIA A80
• Board power supply: 230V
• Motor voltage: 24V
• Power consumption: 40W
• Max width of door/gate wing: 1.8m (5 ft)
• Cycle time: 14s
• Limit switch: Absolute encoder
• Release type: Reversible
• Impact reaction: D-Track
• Frequency of use: Semi-intensive
• Degree of protection: IP44
• Interconnectivity: Yes
• Max weight of door/gate wing: 100kg (220 lbs)
• Average opening time: 4.5-6.5s
• Model: E5 BT A18

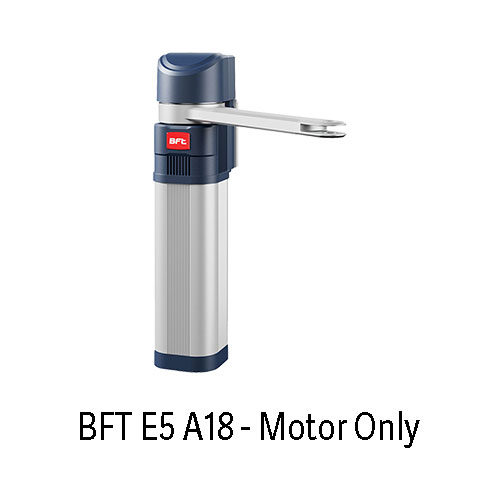

BFT E5 BT A18 Reversible Electromechanical Single Swing Gate Opener Motor only

The E5 BT A18 Low Voltage Vehicular Electromechanical Reversible Swing Gate Opener by BFT can be installed to pillars or columns using the Thalia Control Unit. This swing gate operator is ideal for pedestrian gates up to 1.5M wide and up to 100kg. It features U-Link Platform compatibility, D-Track path tracking with smart torque management, and an absolute encoder that recognizes position and manages slow down times. Ideal for multi-residential and commercial sites, this Low Voltage Electromechanical Swing Gate Operator includes automatic closing settings and remote opening for added security.


Features:

• Installs to pillars or columns

• For pedestrian gates up to 220 lbs

• For pedestrian gates up to 5 ft wide

• Ideal for multi-resident and commercial sites

• Push & Go function to manually open gate completely

• Easy-to-install fixing bracket for columns and pillars

• Compact, reversible electromechanical swing gate opener

• U-Link connectivity platform compatible using THALIA control unit

• Absolute encoder recognizes position to manage slow down at all times

• THALIA unit has standard color terminal blocks for output/input for quick assembly

• D-Track path tracking includes smart torque management, constant updating for accuracy

• Safety enhancements include ability to set gate automatic closing after opening and remote opening

• 4.5-6.5s opening speed (90° maneuver including slowdown) based on weight/dimensions of the leaf

Specifications:

• Motor voltage: 24V

• Power consumption: 40W

• Max width of door/gate wing: 1.8m (5 ft)

• Cycle time: 14s

• Limit switch: absolute encoder

• Release type: reversible

• Impact reaction: D-Track

• Frequency of use: semi-intensive

• Degree of protection: IP44

• Interconnectivity: Yes

• Max weight of door/gate wing: 100kg (220 lbs)

• Average opening time: 4.5-6.5s

• Model: E5 BT A18

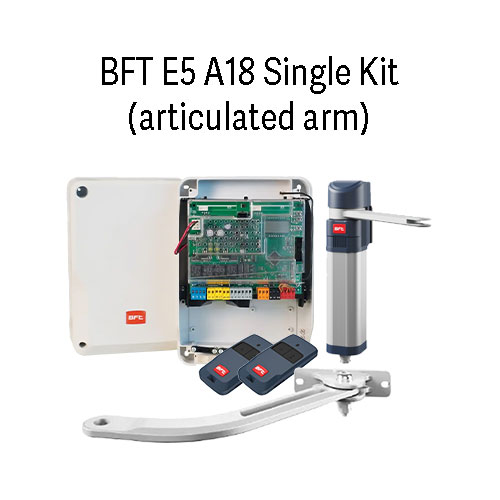

BFT E5 BT A18 Low Voltage Electromechanical Single Swing Gate Opener kit with 2 remotes

The E5 BT A18 Low Voltage Vehicular Electromechanical Reversible Swing Gate Opener by BFT can be installed to pillars or columns using the Thalia Control Unit. This swing gate operator is ideal for pedestrian gates up to 1.5M wide and up to 100kg. It features U-Link Platform compatibility, D-Track path tracking with smart torque management, and an absolute encoder that recognizes position and manages slow down times. Ideal for multi-residential and commercial sites, this Low Voltage Electromechanical Swing Gate Operator includes automatic closing settings and remote opening for added security.

Kit includes:

1 x E5 BT A18 Motor

1 x Articulated arm

1 x Thalia A80

2 x BFT Remotes



Features:

• Installs to pillars or columns

• For pedestrian gates up to 220 lbs

• For pedestrian gates up to 5 ft wide

• Ideal for multi-resident and commercial sites

• Push & go function to manually open gate completely

• Easy to install fixing bracket for columns and pillars

• Compact, reversible electromechanical swing gate opener

• U-Link connectivity platform compatible using THALIA control unit

• Absolute encoder recognizes position to manage slowdown at all times

• THALIA unit has standard color terminal blocks for output/input for quick assembly

• D-Track path tracking includes smart torque management, constant updating for accuracy

• Safety enhancements include ability to set gate automatic closing after opening and remote opening

• 4.5-6.5s opening speed (90° maneuver including slowdown) based on weight/dimensions of the leaf

Specifications:

• Control unit: THALIA A80
• Board power supply: 230V
• Motor voltage: 24V
• Power consumption: 40W
• Max width of door/gate wing: 1.8m (5 ft)
• Cycle time: 14s
• Limit switch: Absolute encoder
• Release type: Reversible
• Impact reaction: D-Track
• Frequency of use: Semi-intensive
• Degree of protection: IP44
• Interconnectivity: Yes
• Max weight of door/gate wing: 100kg (220 lbs)
• Average opening time: 4.5-6.5s
• Model: E5 BT A18

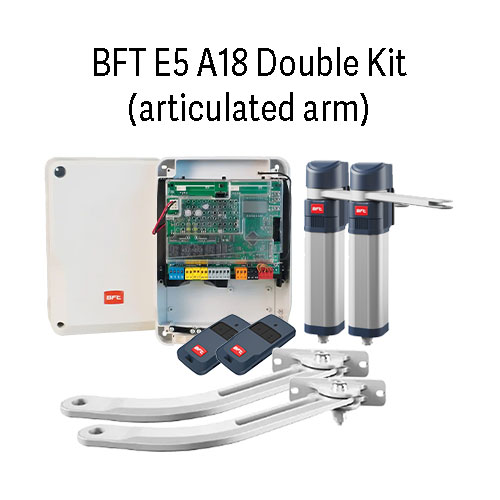

BFT E5 BT A18 Reversible Electromechanical Double Swing Gate Opener

The E5 BT A18 Low Voltage Vehicular Electromechanical Reversible Swing Gate Opener by BFT can be installed to pillars or columns using the Thalia Control Unit. This swing gate operator is ideal for pedestrian gates up to 1.5M wide and up to 100kg. It features U-Link Platform compatibility, D-Track path tracking with smart torque management, and an absolute encoder that recognizes position and manages slow down times. Ideal for multi-residential and commercial sites, this Low Voltage Electromechanical Swing Gate Operator includes automatic closing settings and remote opening for added security.

Kit includes:

2 x E5 BT A18 Motor

1 x Thalia A80

2 x BFT remotes

2 x Articulated Arm



Features:

• Installs to pillars or columns

• For pedestrian gates up to 220 lbs

• For pedestrian gates up to 5 ft wide

• Ideal for multi-resident and commercial sites

• Push & Go function to manually open gate completely

• Easy-to-install fixing bracket for columns and pillar

 • Compact, reversible electromechanical swing gate opener

• U-Link connectivity platform compatible using THALIA control unit

• Absolute encoder recognizes position to manage slow down at all times

• THALIA unit has standard color terminal blocks for output/input for quick assembly

• D-Track path tracking includes smart torque management, constant updating for accuracy

• Safety enhancements include the ability to set gate automatic closing after opening and remote opening

• 4.5-6.5s opening speed (90° maneuver including slowdown) based on weight/dimensions of the leaf

Specifications:

• Control Unit: THALIA A80

• Board Power Supply: 230V

• Motor Voltage: 24V

• Power Consumption: 40W

• Max Width of Door/Gate Wing: 1.8m (5 ft)

• Cycle Time: 14s

• Limit Switch: Absolute Encoder

• Release Type: Reversible

• Impact Reaction: D-Track

• Frequency of Use: Semi-Intensive

• Degree of Protection: IP44

• Interconnectivity: YES

• Max Weight of Door/Gate Wing: 100kg (220 lbs)

• Average Opening Time: 4.5-6.5s

• Model: E5 BT A18
