(240V Power Supply needs to be at the gate) or option for Transformer
After Sales Support & 24-Month Warranty
For sliding gates weighing up to 1000 kg

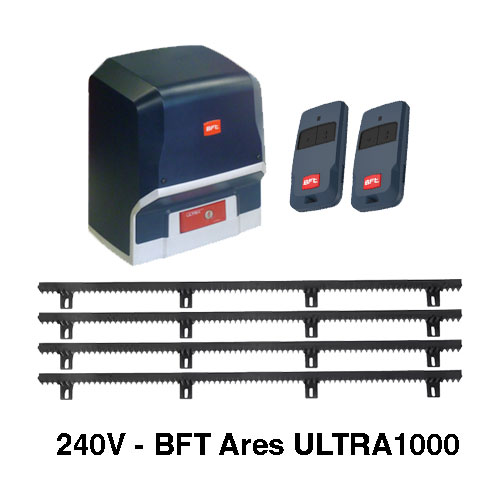

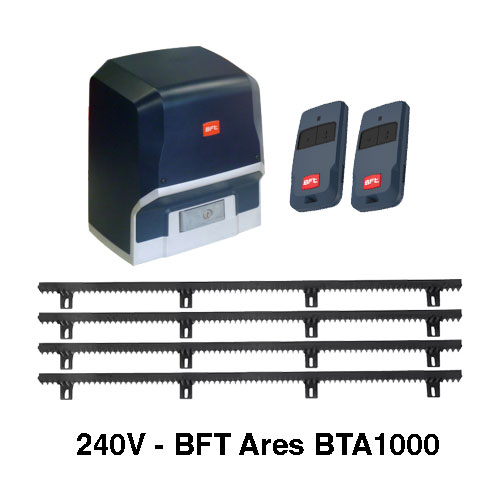

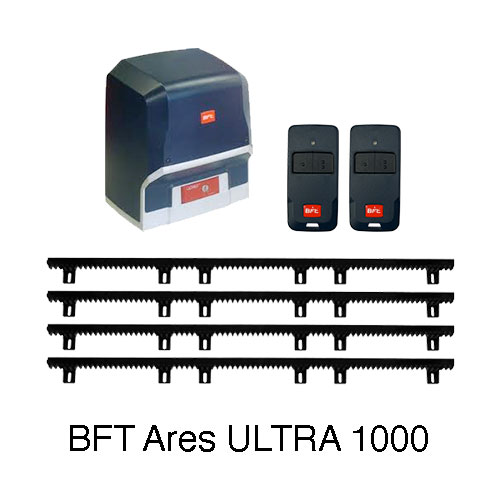

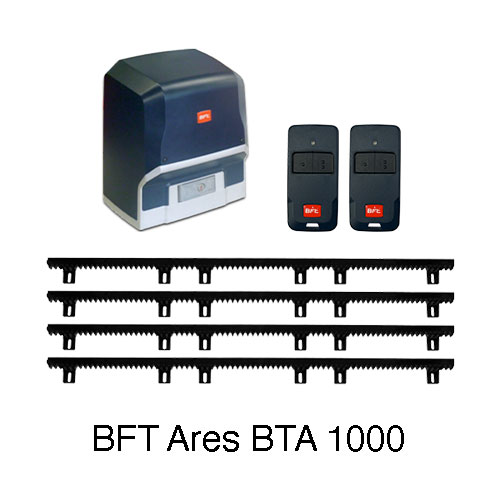

BFT ARES ULTRA BT A1000 Automatic Slide Gate Motor Opener Kit 1000KG
Price GST included
(240V Power Supply needs to be at the gate) or option for Transformer For sliding gates weighing up to 1000 kg
For sliding gates up to 1000 kg in w
Includes:
Technical Data
Control unit
HAMAL
Board power supply
230 V
Supply voltage AC
24 V
Power input
240 W
Max. door/gate weight
1000 kg
Gate speed
9 m/min
Type of limit switch
Electromechanical
Pinion module
4
Slowdown
Yes
Locking
Mechanical
Release
Knob operated with personal key
Impact reaction
D-Track
Frequency of use
intensive
Protection rating
IP24
Environmental conditions
-20 · 55 °C
U-Link
no

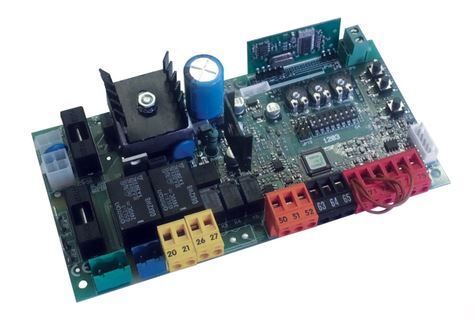

Control panel with trimmer and dip switch for one operator, 230V - 70W. Application: built-in control unit for one 24V operator for sliding gates. Board power supply: 230V single-phase. Operator power supply: 24V 80W. Main features: removable terminal blocks with new standard colour-coding, dip-switch programming and potentiometers, incorporated dual channel receiver, D-Track anti-crushing system, slowdown during opening and closing. Principal functions: automatic closing, pedestrian opening with remote control only, 8k2 obstruction sensor input, rapid closure.
