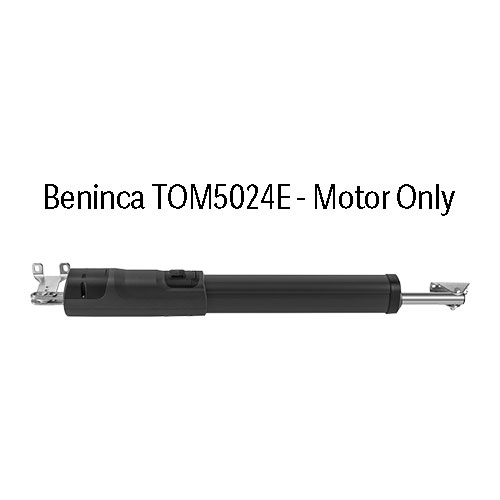

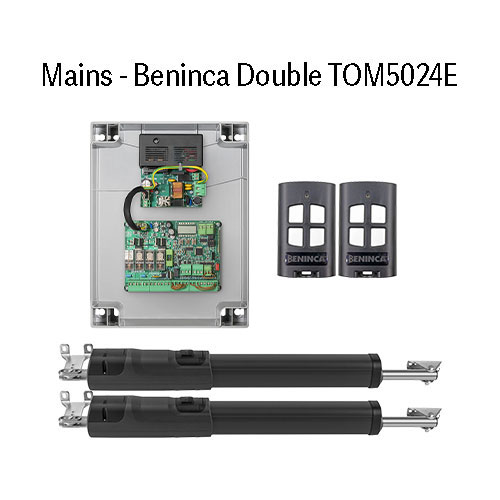

Beninca Double Swing Gate Motor TOM5024E Motor Kit
The TOM series of motors is made by Italian company Beninca which
translates into quality, reliability and performance. The TOM range uses
linear shaft technology for added length and strength and 24 volt DC
motors.
24 VOLT ELECTRIC GATE OPERATOR – RESIDENTIAL & COMMERCIAL –5.0 METRE LEAF
The powerful 24 volt swing gate electro mechanical operator. What makes
TOM so special (and yes a little more expensive than most) is just below
the top shaft cover. Easily accessible and adjustable mechanical stops.
That along with ability to wire encoders makes the TOM highly adaptable
to difficult sites where physical stops may be a problem to install.
The TOM is a non reversible operator with key operated manual override
but one of the main benefits of the 24 volt motor is the ability to use
battery backup meaning you may never have to use the manual override
key.
Reliable and innovative gear motor, thanks to the 2 adjustable
mechanical stops in opening and closing accessible from above and
positioned under the metal cover of the shaft. Ideal for the automation
of any type of swing gate thanks also to the compact footprints (only 96
mm width) and screw-in brackets. The 45° inclination of the wiring
cable allows the distance from the ground to be reduced to a minimum.
The rear and front brackets, aligned on the same axis, enable the better
distribution of loads by optimizing the lifespan of the actuator. The
worm screw protected by wiper ring and stainless steel shaft make it
suitable for dusty or sandy environments, or places with aggressive
weather conditions
It is possible to use a variety of control boards to control the TOM
but the factory designed board is the BRAINY which can be used as a one
or two motor controller with a host of programmable parameters.
•At just 96 cm wide, the TOM telescopic linear motor for swing gates to 5 metres long.
•TOM features adjustable mechanical stops for opening and closing,
patented FACE gears and a bronze release wheel with customised key.
•The 24 Vdc version, also guarantees standby power consumption of less than 0.8 W.
HIGH-QUALITY COMPONENTS
The release wheel is made of bronze to maximise its life, reliability,
and operation. The worm gear is protected by a wiper seal and a
stainless-steel shaft, making it suitable for use in dusty, sandy or
harsh environments.
COMPACT DESIGN
Thanks to its compact dimensions, just 96 mm wide, TOM adapts to any
situation. The 45° inclination of the cable also means that the operator
can be installed flush with the floor.
EASY ACCESS TO MECHANICAL STOPS
The adjustable stops at the top are accessible once the metal cover has
been slid back. These stops slide on rails and can be easily fixed in
the desired position using screws.
FASTENERS DESIGNED FOR MAXIMUM ADAPTABILITY
The rear articulation, which can be fixed in three positions, reduces
space requirements by adjusting for any misalignment of the panel during
movement. The alignment of the front and rear brackets also ensures
better load distribution by reducing bending, guaranteeing axial thrust
and optimising operator life.
Additional information
| Weight |
9.4 kg |
| Motor Voltage |
24 volts DC
|
| Standby Current |
0mA
|
| Maximum Current |
5.5A
|
| Motor Power |
89W
|
| Maximum Thrust |
1500Nm
|
| Opening Time |
19"
|
| Maximum Gate Width |
5000mm
|
| Duty Cycle |
80%
|
| Height (mm) |
114mm
|
| Width (mm) |
96mm
|
| Length (mm) |
1575mm
|
| Weight (kg) |
9.4 Kg
|
| IP Rating |
IP44 |
