Prison Hinges

The Swing Gate Steel Zinc Weld-to-Screw Hinge is a reliable and durable hinge designed for swing gates. Featuring a 19mm lockable pin and a right-hand hinge configuration, this hinge provides secure and smooth operation for your gate. The weld-to-screw design ensures a strong and sturdy attachment, while the zinc-plated finish adds corrosion resistance and enhances the overall longevity of the hinge. Sold as a pair, these hinges are easy to install and offer a lockable feature for added security. Upgrade your swing gate with the Swing Gate Steel Zinc Weld-to-Screw Hinge.

Hold weights up to 120kg

Step-by-step guide for installation:

Tools and Materials:

• Weld-to-screw hinge
• Welding machine
• Screws (bolts or threaded screws)
• Drill with bits
• Screwdriver or wrench
• Measuring tape or ruler
• Marker
• Protective gear (gloves, goggles)

Instructions:

1. Preparation:
   • Ensure you have all parts and confirm the hinge is weld-to-screw. Wear protective gear.
2. Mark Hinge Placement:
   • Measure and mark where the hinge will be welded on the frame.
3. Weld the Hinge:
   • Position and weld the hinge to the frame. Allow it to cool.
4. Drill Holes for Screws:
   • Mark and drill holes for screws on the opposite hinge end.
5. Install Screws/Bolts:
   • Align the screw holes, insert screws/bolts, and tighten securely.
6. Test Functionality:
   • Check that the hinge opens/closes smoothly and that all connections are tight.

The Swing Gate Steel Zinc Weld-to-Screw Hinge is a versatile and secure hinge designed for swing gates. With a 19mm lockable pin and a left-hand hinge configuration, this hinge offers excellent stability and durability. The weld-to-screw design allows for strong and reliable attachment, ensuring that your gate remains securely in place. The zinc-plated finish adds corrosion resistance and enhances the overall durability of the hinge. Sold as a pair, these hinges are easy to install and provide a lockable feature for added security. Upgrade your gate with the Swing Gate Steel Zinc Weld-to-Screw Hinge.

Hold weights up to 120kg

Step-by-step guide for installation:

Tools and Materials:

• Weld-to-screw hinge
• Welding machine
• Screws (bolts or threaded screws)
• Drill with bits
• Screwdriver or wrench
• Measuring tape or ruler
• Marker
• Protective gear (gloves, goggles)

Instructions:

1. Preparation:
   • Ensure you have all parts and confirm the hinge is weld-to-screw. Wear protective gear.
2. Mark Hinge Placement:
   • Measure and mark where the hinge will be welded on the frame.
3. Weld the Hinge:
   • Position and weld the hinge to the frame. Allow it to cool.
4. Drill Holes for Screws:
   • Mark and drill holes for screws on the opposite hinge end.
5. Install Screws/Bolts:
   • Align the screw holes, insert screws/bolts, and tighten securely.
6. Test Functionality:
   • Check that the hinge opens/closes smoothly and that all connections are tight.

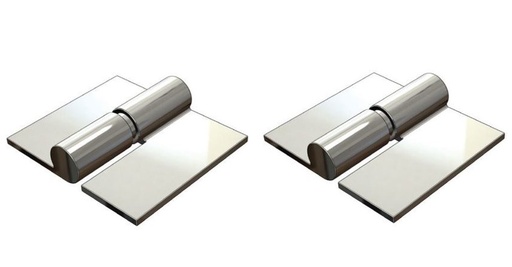

The Swing Gate Weld-to-Weld Hinge is a reliable hinge solution for swing gates. With a 16mm right-hand threaded design, this hinge ensures secure and durable gate operation. The pair of hinges are zinc-plated for added corrosion resistance, making them suitable for outdoor and harsh environments. The weld-to-weld installation provides a strong and stable connection, ensuring the gate remains securely attached. Whether for residential or commercial applications, the Swing Gate Weld-to-Weld Hinge offers reliable performance and ease of installation.

Hold weights up to 100kg

Installation instruction for Weld on hinges

1. Weld the sockets onto the gate itself.
2. Measure the distance between the sockets.
3. Weld the pins onto your post, one at the bottom, and one at the top. Make sure you have left plenty of room at the bottom so the gate clears the ground. Double check the pins are the same distance apart as your sockets. The pins should be pointing up.
4. Lift your gate up and drop it on the pins.

To make sure your gate is secure :

1. Weld the bottom pin onto your post & pin pointing up and your bottom socket on your gate.
2. Sit your gate on the bottom pin.
3. Weld the top socket to your gate.
4. Drop the pin into the top socket. so Pin is pointing down
5. Weld the pin to the post.

Tip: Measure correctly before welding. If need to change anything you will need to cut them off and re-weld them again.

The Swing Gate Weld-to-Weld Hinge is a reliable and sturdy hinge designed for swing gates. This hinge features a 16mm left-hand threaded design and comes in a pair. It is zinc-plated for enhanced durability and corrosion resistance, making it suitable for outdoor applications. The weld-to-weld installation provides a secure attachment, ensuring the stability and longevity of your gate. With its robust construction and convenient threaded design, the Swing Gate Weld-to-Weld Hinge is an excellent choice for gate installations.

Hold weights up to 100kg

Installation instruction for Weld on hinges

1. Weld the sockets onto the gate itself.
2. Measure the distance between the sockets.
3. Weld the pins onto your post, one at the bottom, and one at the top. Make sure you have left plenty of room at the bottom so the gate clears the ground. Double check the pins are the same distance apart as your sockets. The pins should be pointing up.
4. Lift your gate up and drop it on the pins.

To make sure your gate is secure :

1. Weld the bottom pin onto your post & pin pointing up and your bottom socket on your gate.
2. Sit your gate on the bottom pin.
3. Weld the top socket to your gate.
4. Drop the pin into the top socket. so Pin is pointing down
5. Weld the pin to the post.

Tip: Measure correctly before welding. If need to change anything you will need to cut them off and re-weld them again.

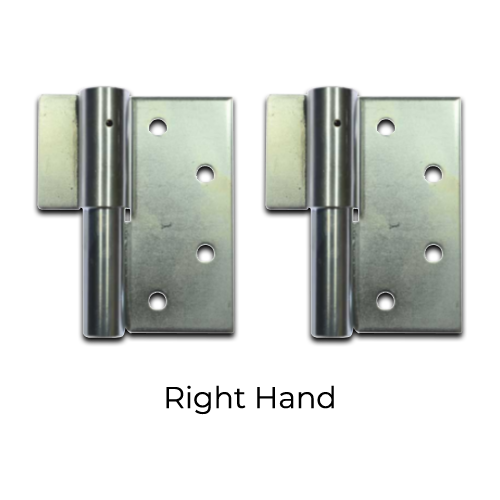

The Swing Gate Weld-to-Screw Hinge is a durable and reliable hinge designed for swing gates. With a right-hand configuration, this hinge ensures smooth and efficient gate operation. The 16mm lockable pin provides secure gate closure and enhances overall gate stability. The zinc-plated finish offers corrosion resistance, making it suitable for outdoor applications. Sold as a pair, these hinges are easy to install with their weld-to-screw design. Upgrade your swing gate with the Swing Gate Weld-to-Screw Hinge for dependable and long-lasting gate hardware.

Hold weights up to 100kg

Step-by-step guide for installation:

Tools and Materials:

• Weld-to-screw hinge
• Welding machine
• Screws (bolts or threaded screws)
• Drill with bits
• Screwdriver or wrench
• Measuring tape or ruler
• Marker
• Protective gear (gloves, goggles)

Instructions:

1. Preparation:
   • Ensure you have all parts and confirm the hinge is weld-to-screw. Wear protective gear.
2. Mark Hinge Placement:
   • Measure and mark where the hinge will be welded on the frame.
3. Weld the Hinge:
   • Position and weld the hinge to the frame. Allow it to cool.
4. Drill Holes for Screws:
   • Mark and drill holes for screws on the opposite hinge end.
5. Install Screws/Bolts:
   • Align the screw holes, insert screws/bolts, and tighten securely.
6. Test Functionality:
   • Check that the hinge opens/closes smoothly and that all connections are tight.

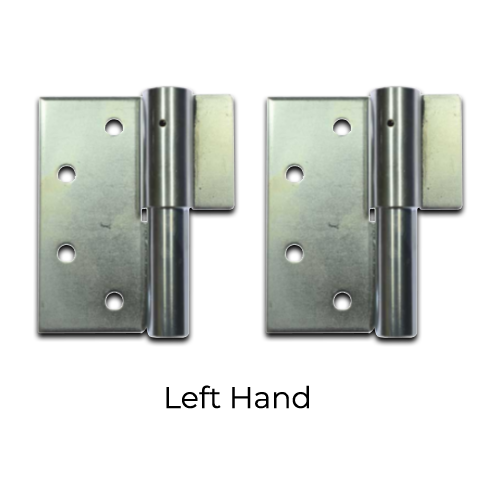

The Swing Gate Weld-to-Screw Hinge is a reliable and versatile hinge designed for swing gates. With a left-hand configuration, this hinge offers smooth and efficient gate operation. The 16mm lockable pin ensures secure gate closure and enhances the overall stability of the gate. The zinc-plated finish provides corrosion resistance, making it suitable for outdoor applications. Sold as a pair, these hinges are easy to install with their weld-to-screw design. Upgrade your swing gate with the Swing Gate Weld-to-Screw Hinge for reliable and durable gate hardware.

Hold weights up to 100kg

Step-by-step guide for installation:

Tools and Materials:

• Weld-to-screw hinge
• Welding machine
• Screws (bolts or threaded screws)
• Drill with bits
• Screwdriver or wrench
• Measuring tape or ruler
• Marker
• Protective gear (gloves, goggles)

Instructions:

1. Preparation:
   • Ensure you have all parts and confirm the hinge is weld-to-screw. Wear protective gear.
2. Mark Hinge Placement:
   • Measure and mark where the hinge will be welded on the frame.
3. Weld the Hinge:
   • Position and weld the hinge to the frame. Allow it to cool.
4. Drill Holes for Screws:
   • Mark and drill holes for screws on the opposite hinge end.
5. Install Screws/Bolts:
   • Align the screw holes, insert screws/bolts, and tighten securely.
6. Test Functionality:
   • Check that the hinge opens/closes smoothly and that all connections are tight.

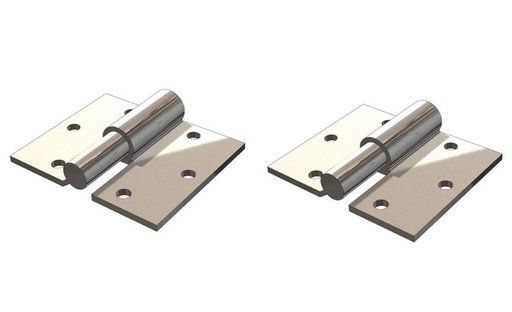

The Swing Gate Screw-to-Screw Hinge is a reliable hinge designed for swing gates. It features a 19mm screw-to-screw distance and a right-hand configuration. The hinge is zinc-plated for enhanced durability and corrosion resistance. Sold as a pair, it includes all necessary screws for easy installation. Whether you're installing a new gate or replacing existing hinges, the Swing Gate Screw-to-Screw Hinge provides a sturdy and convenient solution.

The Swing Gate Screw-to-Screw Hinge is a versatile hinge designed for swing gates. It features a 19mm screw-to-screw distance and a left-hand configuration. The hinge is zinc-plated for enhanced durability and corrosion resistance. Sold as a pair, it includes all necessary screws for easy installation. Whether you need to install a new gate or replace existing hinges, the Swing Gate Screw-to-Screw Hinge provides a reliable and convenient solution.

Can carry up to 120kg

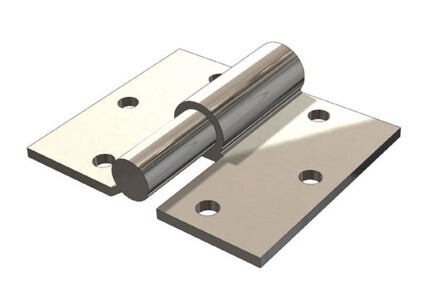

The Swing Gate Screw-to-Screw Hinge is a reliable and sturdy hinge designed for swing gates. With a 16mm pin size and a right-hand hinge configuration, this hinge provides secure attachment and smooth operation for your gate. The screw-to-screw installation method ensures easy and convenient installation, allowing you to securely fasten the hinge to both the gate and the gate post. The zinc-plated finish adds durability and corrosion resistance, making it suitable for outdoor applications. Sold as a pair, the Swing Gate Screw-to-Screw Hinge is a versatile and dependable choice for your gate hardware needs.

Hold weights up to 100kg

Step-by-step guide for installation:

Tools and Materials:

• Screw-to-screw hinge
• Screws (appropriate size)
• Drill with bits
• Screwdriver or wrench
• Measuring tape or ruler
• Marker
• Protective gear (gloves, goggles)

Instructions:

1. Preparation:
   • Gather all materials and tools. Wear protective gear.
2. Mark Hinge Placement:
   • Measure and mark the positions for the hinge on both the door/lid and the frame.
3. Drill Holes for Screws:
   • Drill pilot holes at the marked spots where the hinge will be attached, ensuring they align on both the frame and door.
4. Attach the Hinge:
   • Position the screw-to-screw hinge on both surfaces. Insert screws into the holes and tighten them securely with a screwdriver or wrench.
5. Test Functionality:
   • Open and close the door or lid to ensure the hinge operates smoothly and is securely attached.

The Swing Gate Screw-to-Screw Hinge is a reliable and versatile hinge designed for swing gates. With a 16mm pin size, this hinge offers strength and stability for your gate. The screw-to-screw installation method provides convenience and ease of installation, allowing you to securely attach the hinge to both the gate and the gate post. The zinc-plated finish adds corrosion resistance and durability, ensuring long-lasting performance even in outdoor environments. Sold as a pair, the Swing Gate Screw-to-Screw Hinge is suitable for various gate applications, providing smooth and reliable operation.

Hold weights up to 100kg

Step-by-step guide for installation:

Tools and Materials:

• Screw-to-screw hinge
• Screws (appropriate size)
• Drill with bits
• Screwdriver or wrench
• Measuring tape or ruler
• Marker
• Protective gear (gloves, goggles)

Instructions:

1. Preparation:
   • Gather all materials and tools. Wear protective gear.
2. Mark Hinge Placement:
   • Measure and mark the positions for the hinge on both the door/lid and the frame.
3. Drill Holes for Screws:
   • Drill pilot holes at the marked spots where the hinge will be attached, ensuring they align on both the frame and door.
4. Attach the Hinge:
   • Position the screw-to-screw hinge on both surfaces. Insert screws into the holes and tighten them securely with a screwdriver or wrench.
5. Test Functionality:
   • Open and close the door or lid to ensure the hinge operates smoothly and is securely attached.

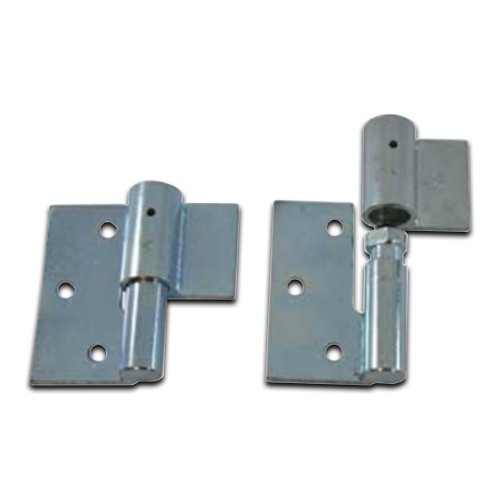

The Heavy Duty Swing Gate Weld-to-Screw Hinge is a robust and reliable hinge designed for heavy-duty swing gates. With a 25mm lockable pin and a right-hand hinge configuration, this hinge provides exceptional strength and stability for your gate. The weld-to-screw design ensures a secure attachment, while the zinc-plated finish offers corrosion resistance and durability. Sold as a pair, these hinges are easy to install and designed to withstand heavy loads and frequent use. Upgrade your swing gate with the Heavy Duty Swing Gate Weld-to-Screw Hinge for long-lasting performance.

Weld on / Screw On  - Zinc plated
Gates up to 600 kgs

Step-by-step guide for installation:

Tools and Materials:

• Weld-to-screw hinge
• Welding machine
• Screws (bolts or threaded screws)
• Drill with bits
• Screwdriver or wrench
• Measuring tape or ruler
• Marker
• Protective gear (gloves, goggles)

Instructions:

1. Preparation:
   • Ensure you have all parts and confirm the hinge is weld-to-screw. Wear protective gear.
2. Mark Hinge Placement:
   • Measure and mark where the hinge will be welded on the frame.
3. Weld the Hinge:
   • Position and weld the hinge to the frame. Allow it to cool.
4. Drill Holes for Screws:
   • Mark and drill holes for screws on the opposite hinge end.
5. Install Screws/Bolts:
   • Align the screw holes, insert screws/bolts, and tighten securely.
6. Test Functionality:
   • Check that the hinge opens/closes smoothly and that all connections are tight.

The Heavy Duty Swing Gate Weld-to-Screw Hinge is designed to provide exceptional strength and durability for heavy-duty swing gates. With a 25mm lockable pin and a left-hand hinge configuration, this hinge ensures secure and reliable gate operation. The weld-to-screw design allows for a strong and stable attachment, while the zinc-plated finish offers corrosion resistance for long-lasting performance. Sold as a pair, these hinges are easy to install and suitable for gates that require robust and reliable hardware. Upgrade your swing gate with the Heavy Duty Swing Gate Weld-to-Screw Hinge for enhanced functionality and security.

Weld on / Screw On  - Zinc plated
Gates up to 600 kgs

Step-by-step guide for installation:

Tools and Materials:

• Weld-to-screw hinge
• Welding machine
• Screws (bolts or threaded screws)
• Drill with bits
• Screwdriver or wrench
• Measuring tape or ruler
• Marker
• Protective gear (gloves, goggles)

Instructions:

1. Preparation:
   • Ensure you have all parts and confirm the hinge is weld-to-screw. Wear protective gear.
2. Mark Hinge Placement:
   • Measure and mark where the hinge will be welded on the frame.
3. Weld the Hinge:
   • Position and weld the hinge to the frame. Allow it to cool.
4. Drill Holes for Screws:
   • Mark and drill holes for screws on the opposite hinge end.
5. Install Screws/Bolts:
   • Align the screw holes, insert screws/bolts, and tighten securely.
6. Test Functionality:
   • Check that the hinge opens/closes smoothly and that all connections are tight.

The Heavy-Duty Swing Gate Screw-to-Screw Hinge is a durable hinge designed for heavy-duty swing gates. It features a 25mm screw-to-screw distance and a right-hand configuration. The hinge is zinc-plated for enhanced durability and corrosion resistance, making it suitable for outdoor applications. Sold as a pair, it includes all necessary screws for easy installation. With its heavy-duty construction and reliable performance, the  Heavy-Duty Swing Gate Screw-to-Screw Hinge is an ideal choice for demanding gate installations.

Can carry up to 220kg

The Heavy-Duty Swing Gate Screw-to-Screw Hinge is a robust hinge designed for heavy-duty swing gates. It features a 25mm screw-to-screw distance and a left-hand configuration. The hinge is zinc-plated for enhanced durability and corrosion resistance, making it suitable for outdoor applications. Sold as a pair, it includes all necessary screws for easy installation. With its heavy-duty construction and reliable performance, the Heavy-Duty Swing Gate Screw-to-Screw Hinge is an ideal choice for demanding gate installations.

Can carry up to 220kg

The Heavy-Duty Swing Gate Hinge is a reliable and robust hinge designed for swing gates. With a right-hand configuration and a 19mm lockable pin, this hinge ensures secure gate closure and smooth operation. The zinc-plated finish provides excellent corrosion resistance, making it suitable for outdoor use. Sold as a pair, these hinges feature a weld-to-screw design for easy installation. Upgrade your swing gate with the Heavy-Duty Swing Gate Hinge for durable and long-lasting gate hardware.

Hold weights up to 120kg

Step-by-step guide for installation:

Tools and Materials:

• Weld-to-screw hinge
• Welding machine
• Screws (bolts or threaded screws)
• Drill with bits
• Screwdriver or wrench
• Measuring tape or ruler
• Marker
• Protective gear (gloves, goggles)

Instructions:

1. Preparation:
   • Ensure you have all parts and confirm the hinge is weld-to-screw. Wear protective gear.
2. Mark Hinge Placement:
   • Measure and mark where the hinge will be welded on the frame.
3. Weld the Hinge:
   • Position and weld the hinge to the frame. Allow it to cool.
4. Drill Holes for Screws:
   • Mark and drill holes for screws on the opposite hinge end.
5. Install Screws/Bolts:
   • Align the screw holes, insert screws/bolts, and tighten securely.
6. Test Functionality:
   • Check that the hinge opens/closes smoothly and that all connections are tight.

The Heavy-Duty Swing Gate Hinge is designed to provide exceptional strength and durability for swing gates. With a left-hand configuration and a 19mm lockable pin, this hinge ensures secure gate closure and reliable operation. The zinc-plated finish offers excellent corrosion resistance, making it suitable for outdoor environments. Sold as a pair, these hinges feature a weld-to-screw design for easy installation. Upgrade your swing gate with the Heavy-Duty Swing Gate Hinge for reliable and long-lasting gate hardware.

Hold weights up to 120kg

Step-by-step guide for installation:

Tools and Materials:

• Weld-to-screw hinge
• Welding machine
• Screws (bolts or threaded screws)
• Drill with bits
• Screwdriver or wrench
• Measuring tape or ruler
• Marker
• Protective gear (gloves, goggles)

Instructions:

1. Preparation:
   • Ensure you have all parts and confirm the hinge is weld-to-screw. Wear protective gear.
2. Mark Hinge Placement:
   • Measure and mark where the hinge will be welded on the frame.
3. Weld the Hinge:
   • Position and weld the hinge to the frame. Allow it to cool.
4. Drill Holes for Screws:
   • Mark and drill holes for screws on the opposite hinge end.
5. Install Screws/Bolts:
   • Align the screw holes, insert screws/bolts, and tighten securely.
6. Test Functionality:
   • Check that the hinge opens/closes smoothly and that all connections are tight.

The Heavy-Duty Industrial Weld-to-Weld Prison Hinge is a reliable hinge designed for heavy-duty and high-security applications. Featuring a 19mm right-hand threaded design, this hinge provides exceptional strength and durability. It comes in a pair and is specifically engineered for weld-to-weld installation, ensuring a secure and tamper-resistant connection. The heavy-duty construction and robust design make it suitable for industrial gates, secure facilities, or other demanding environments. Trust the eavy-Duty Industrial Weld-to-Weld Prison Hinge for secure and long-lasting gate operation.

Hold weights up to 260kg

Step-by-Step Instructions:

Tools and Materials:

• Weld-to-weld hinge
• Welding machine
• Measuring tape or ruler
• Marker
• Protective gear (gloves, goggles)

Instructions:

1. Preparation:
   • Ensure you have the hinge and all necessary tools. Wear protective gear.
2. Mark Hinge Placement:
   • Measure and mark where the hinge will be welded on both the frame and the door or lid.
3. Position the Hinge:
   • Align the hinge in the marked position on both the frame and door/lid.
4. Weld the Hinge:
   • Use the welding machine to weld the hinge securely to both surfaces. Ensure strong welds on both ends.
5. Allow Cooling:
   • Let the welds cool completely before testing the hinge.
6. Test Functionality:
   • Open and close the door or lid to check that the hinge operates smoothly and is securely attached.
