Description:
BFT E5 BT A18 Low Voltage Electromechanical Single Swing Gate Opener kit with 2 remotes
The E5 BT A18 Low Voltage Vehicular Electromechanical Reversible Swing Gate Opener by BFT can be installed to pillars or columns using the Thalia Control Unit. This swing gate operator is ideal for pedestrian gates up to 1.5M wide and up to 100kg. It features U-Link Platform compatibility, D-Track path tracking with smart torque management, and an absolute encoder that recognizes position and manages slow down times. Ideal for multi-residential and commercial sites, this Low Voltage Electromechanical Swing Gate Operator includes automatic closing settings and remote opening for added security.
After sales support and 24 months warranty

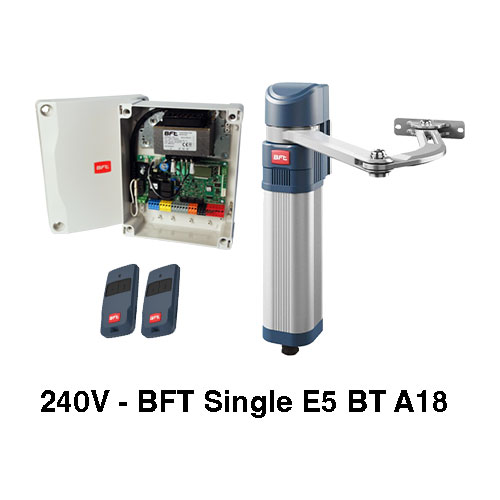

Kit includes:
1 x E5 BT A18 Motor
1 x Thalia light control unit
2 x BFT Remotes
Features:
• Installs to pillars or columns
• For pedestrian gates up to 220 lbs
• For pedestrian gates up to 5 ft wide
• Ideal for multi-resident and commercial sites
• Push & go function to manually open gate completely
• Easy to install fixing bracket for columns and pillars
• Compact, reversible electromechanical swing gate opener
• U-Link connectivity platform compatible using THALIA control unit
• Absolute encoder recognizes position to manage slowdown at all times
• THALIA unit has standard color terminal blocks for output/input for quick assembly
• D-Track path tracking includes smart torque management, constant updating for accuracy
• Safety enhancements include ability to set gate automatic closing after opening and remote opening
• 4.5-6.5s opening speed (90° maneuver including slowdown) based on weight/dimensions of the leaf
Specifications:
• Control unit: THALIA• Board power supply: 230V
• Motor voltage: 24V
• Power consumption: 40W
• Max width of door/gate wing: 1.8m (5 ft)
• Cycle time: 14s
• Limit switch: Absolute encoder
• Release type: Reversible
• Impact reaction: D-Track
• Frequency of use: Semi-intensive
• Degree of protection: IP44
• Interconnectivity: Yes
• Max weight of door/gate wing: 100kg (220 lbs)
• Average opening time: 4.5-6.5s
• Model: E5 BT A18
