Low Voltage Beninca BULL624SW 600kg - Complete Kit
GMSG713
17.0000 kg
| Brands: Beninca |
| Colour: Dark Grey |

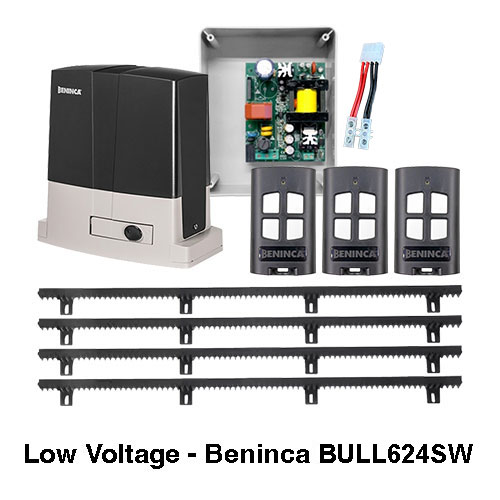

Kit Components:
| Image | Product | Quantity |
|---|---|---|
| [EW101] Beninca Low Voltage Connector for SW-Series | 1 | |
| [ET824] Beninca SAR.24 Low Voltage Box 7Amp | 1 | |
| [RT580] Nylon Rack 6 Lugs with Steel Core inserted 1 Metre - Lugs Down | 4 | |
| [GMSG705] 240V Beninca BULL624SW 600kg - Motor with 3 remotes | 1 |
Description:
Italian Sliding Gate Motor Beninca BULL624 SW 24V 600kg- Motor kit
Kit Includes:
Beninca 624SW x 1
Beninca Low Voltage Box x 1
Beninca Low Voltage Connector x 1
Beninca Remotes x 3
Lugs down nylon racks x 4
The BULL624SW is a 24 volt motor
designed for residential and commercial sliding gates up to 600kg in
weight.
24 VOLT ELECTRIC GATE OPERATOR - RESIDENTIAL - 600KG
The BULL624SW by Beninca is plain and
simple Beninca quality and reliability throughout. The BULL624SW is
designed for residential and commercial sliding automatic gates up to
600kg in weight.
The BULL624SW has a built in control board in its own seperate enclosure
with a dedicated 433mhz wireless receiver and inputs for photocells and
switches etc. The BULL also comes with a base plate. Battery backup is
optional with the addition of the battery module and two 1.3Ah
rechargeable batteries.
| Power supply | 115 / 230 Vac (50-60Hz) |
| Motor supply | 24 Vdc |
| Max absorbed current | 3.2 / 1.7 A |
| Maximum thrust | 715 N |
| Opening speed | 5.5 ÷ 11 m/min |
| Duty cycle | intensive use |
| Protection level | IP44 |
| Built-in control unit | |
| Integrated receiver | |
| Encoder | |
| Virtual encoder | |
| Magnetic limit switches | |
| Pinion for rack | M4 Z14 |
| Operating temperature | -20°C /+50°C |
| Lubrication | GREASE |
| Maximum gate weight | 600 kg |
| Weight | 8.0 kg |
| N. motors per pallet | 40 |
| Kit weight | 8.5 kg |
| N. kits per pallet | 40 |
